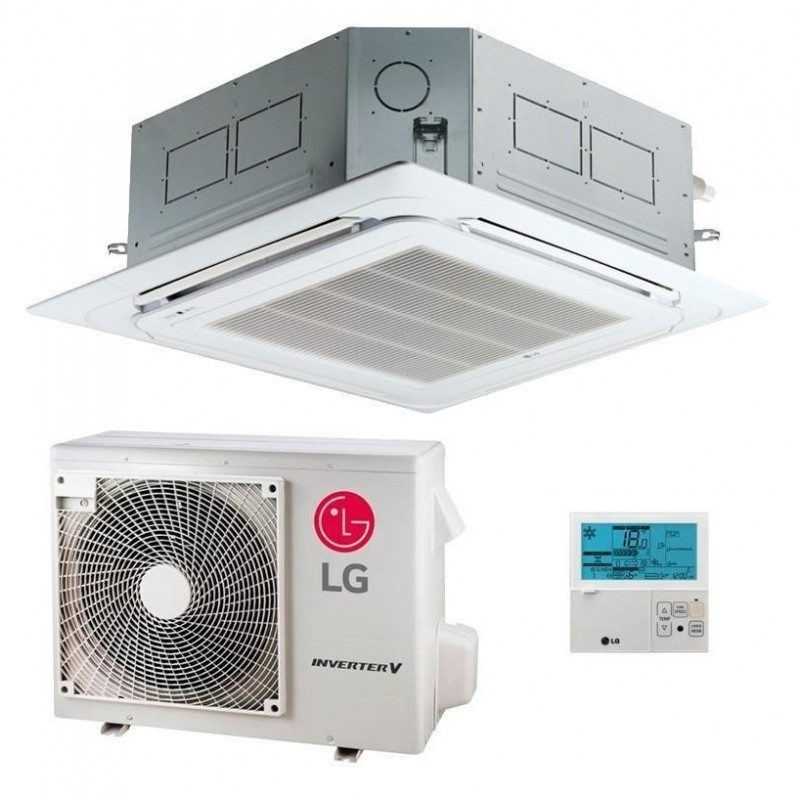

LG UT36F CONFORT CASSETTE 4 VIAS
Cassette Comercial 60x60 Maximum Power Monophatic
9,50 kW
FRENCH POTENCE
10,80 kW
CALOR POTENCE
EER 3.40
EXCEPT EFFECTIVE
SEER 6,70
STATIONAL EFFECTIVE
41 dBA
LEVEL SONORO MINE
A++/A+
ENERGÉTIC ETIQUETA
The Cassette LG UT36F CONFORT Set 36 represents maximum monophase power with technology FREE COMBINATION superior. With 9,50kW of frigorific power and 10,80kW heated, combine EER 3,40 excellent, SEER 6,70 superior and 950mm Dual Vane panel for high performance commercial air conditioning with silent operation since 41 dBA.
▷ Technology R32 Ecological • Dual Vane 950mm • Tag A+/A+ • FREE COMBINATION
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette 60x60 LG CONFORT 36 Monof.
Referencia: CONFORT 36 MONO CAS
€1,821.51
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG UT36F CONFORT CASSETTE 4 VIAS
Cassette Comercial 60x60 Maximum Power Monophatic
9,50 kW
FRENCH POTENCE
10,80 kW
CALOR POTENCE
EER 3.40
EXCEPT EFFECTIVE
SEER 6,70
STATIONAL EFFECTIVE
41 dBA
LEVEL SONORO MINE
A++/A+
ENERGÉTIC ETIQUETA
The Cassette LG UT36F CONFORT Set 36 represents maximum monophase power with technology FREE COMBINATION superior. With 9,50kW of frigorific power and 10,80kW heated, combine EER 3,40 excellent, SEER 6,70 superior and 950mm Dual Vane panel for high performance commercial air conditioning with silent operation since 41 dBA.
▷ Technology R32 Ecological • Dual Vane 950mm • Tag A+/A+ • FREE COMBINATION
Security policy
Delivery policy
Refund policy
LG UT36F CONFORT - Cassette of 4 Vias with the Maximum Power
Tecnología Technology FREE COMBINATION of Maximum Power
The LG UT36F CONFORT Set 36 establishes the superior standard in monophase commercial air conditioning. With its advanced technology FREE COMBINATION and coolant Organic R32, provides 9,50kW of frigorific power, , EER 3,40 excellent and SEER 6,70 superior for commercial applications that demand maximum power with exceptional energy efficiency.
▼ Máxima Potential
- 🔹 Cold capacity: 3,80 - 9,50 - 10,80 kW (min-nom-máx)
- 🔹 Capacity Heat: 4,30 - 10,80 - 11,70 kW (min-nom-máx)
- 🔹 EER 3.40: Excellent energy efficiency
- 🔹 SEER 6,70: Higher seasonal savings
M Maximum sustainability
- 🔹 Refrigerant Gas R32: Low environmental impact
- 🔹 Tag A++/A+: Maximum energy classification
- 🔹 COP 3.90: Excellent heating performance
- 🔹 SCOP 4,30: Seasonal efficiency higher heat
S Technical Specifications Set 36
Energy consumption
Cold: 0.60 - 2.79 - 3.57 kW
Heat: 0.60 - 2.77 - 3.30 kW
Heat: 0.60 - 2.77 - 3.30 kW
Efficiency
EER: 3.40 (Excellent)
SEER: 6,70 (Superior)
SEER: 6,70 (Superior)
Heat performance
COP: 3.90 (Excellent)
SCOP: 4,30 (Superior)
SCOP: 4,30 (Superior)
Classification
Tag: A++/A+
Climate: Media
Climate: Media
Es Maximum Power Commercial Applications
Ideal for large commercial spaces: Large offices (90-130 m2), large shopping malls, medical centers, spacious conference rooms, venues, medium-sized restaurants and commercial establishments that require maximum monophase power with uniform distribution and continuous efficient operation.

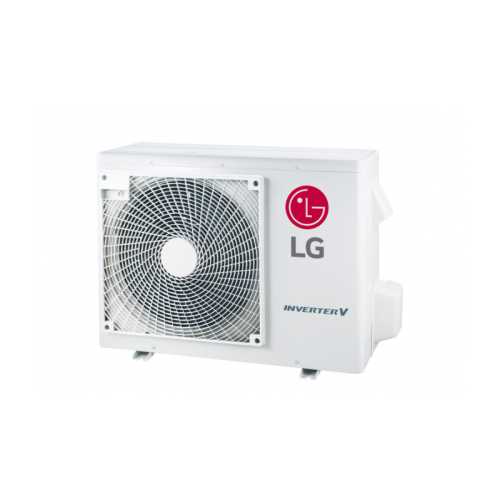

🏢 Outdoor Unit UUC1.U40 - Maximum Monophosic Power
La outdoor Unit UUC1.U40 uT36F system is designed for commercial applications with maximum monophase requirements. Its ultra robust construction and cutting-edge technology guarantee continuous operation to maximum power, , exceptional durability and higher energy efficiency for the most intense commercial loads in monophase feeding.
Nivel External sound level
Cold mode: 54 dBA
Heat mode: 56 dBA
Controlled operation for maximum power
Air flow rate
58 m3/min
Maximum capacity single ventilator
Dimensions
950 × 834 × 330 mm
Weight: 59.0 kg
Robust maximum power design
️ System Refrigerant Gas R32 Maximum Capacity
Charge Refrigerant Gas
Preload: 1.9 kg R32
Preload length: 20 ml
Preload length: 20 ml
Environmental Impact
T-CO2eq: 1,283
Additional: 55 g/m
Additional: 55 g/m
Operational range
Cold: -20°C to +50°C
Heat: -15°C to +18°C
Heat: -15°C to +18°C
Connections
Liquid: 9,52mm (3/8")
Gas: 15,88mm (5/8")
Gas: 15,88mm (5/8")
De Maximum Installation Flexibility
Total length: 5 - 50 meters
Maximum commercial versatility
Maximum commercial versatility
Maximum Level: 30 meters
Total architectural adaptation
Total architectural adaptation

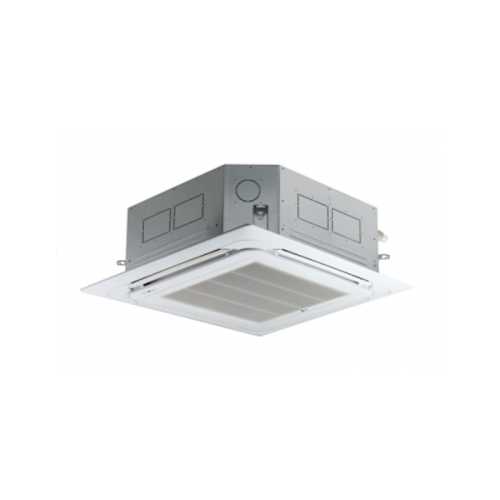

▼ Indoor Unit high Power UT36F.NA0
High capacity dimensions: 840×288×840 mm with weight of 25.3 kg. PT-AAGW0 Dual Vane panel of 950×35×950 mm (7.1 kg) for distribution 4 tracks maximum coverage. Sound levels of 41-44 dBA and flows of 22.5-27.5 m3/min for maximum comfort in large spaces.
CONFORT 36 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- UT36F.NA0
- Outdoor Unit
- UUC1.U40
- Panel
- PT-AAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.790
- Energy class (cold)
- A++
- SEER
- 6.7
- Heat capacity (W)
- 10.800
- Heat capacity (Kcal / h)
- 9.288
- Nominal heat consumption (W)
- 2.770
- Energy class (heat)
- A+
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 41
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 834
- Weight Indoor Unit (Kg)
- 25,3
- Weight Outdoor Unit (Kg)
- 57,7
- Net weight (kg)
- 86,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
