Cassette 90x90 LG Comfort 24 Monof.
Referencia: CONFORT 24 MONO CAS
€1,418.17
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy

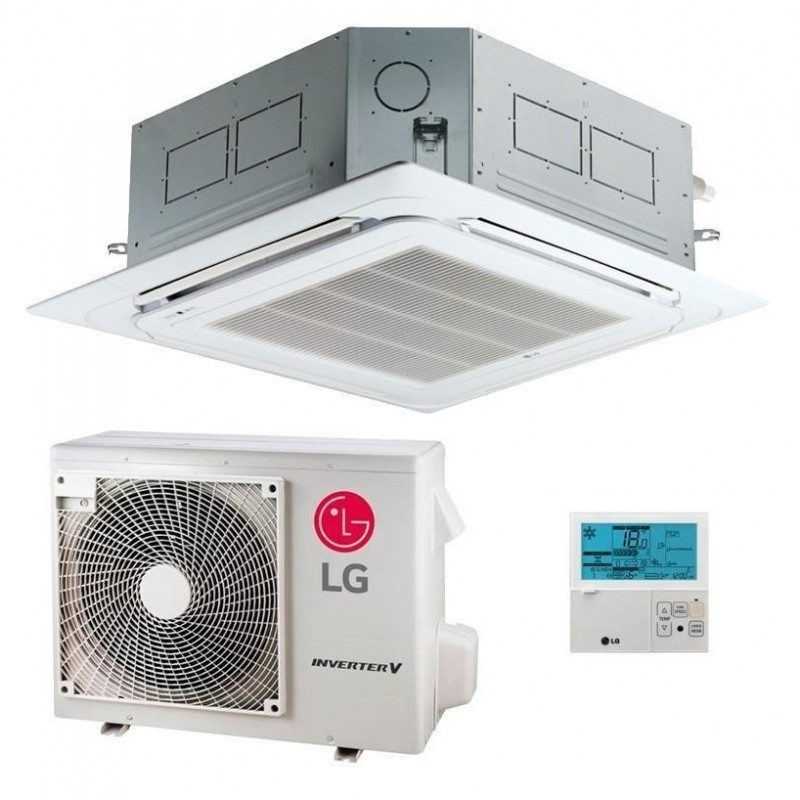

LG CASSETTE CT24F CONFORT - High Performance
Tecnología High Performance FREE COMBINATION Technology
The LG Cassette 4 vias CT24F CONFORT Set 24 sets a new standard in monophase commercial air conditioning. With its advanced technology FREE COMBINATION and coolant Organic R32, offers 6,80kW of frigorific power, , EER 3,40 excellent and SEER 7.00 superior for commercial applications that require maximum energy efficiency.
▪ Efficient Commercial Power
- 🔹 Cold capacity: 2,70 - 6,80 - 7,50 kW (min-nom-máx)
- 🔹 Capacity Heat: 3,00 - 7.50 - 8,60 kW (min-nom-máx)
- 🔹 EER 3.40: Excellent energy efficiency
- 🔹 SEER 7,00: Higher seasonal savings
M Maximum sustainability
- 🔹 Refrigerant Gas R32: Low environmental impact
- 🔹 Tag A++/A+: Maximum energy classification
- 🔹 COP 3.39: Excellent heating performance
- 🔹 SCOP 4,20: Seasonal heat efficiency
S Technical Specifications Set Cassette 24
Energy consumption
Cold: 0.40 - 2.00 - 2.40 kW
Heat: 0.40 - 2.21 - 2.87 kW
Heat: 0.40 - 2.21 - 2.87 kW
Efficiency
EER: 3.40 (Excellent)
SEER: 7.00 (Superior)
SEER: 7.00 (Superior)
Heat performance
COP: 3.39 (Excellent)
SCOP: 4,20 (Very good)
SCOP: 4,20 (Very good)
Classification
Tag: A++/A+
Climate: Media
Climate: Media
Es Commercial applications
Ideal for medium commercial spaces: Medium offices (60-90 m2), commercial shops, large medical offices, professional offices, school classrooms, meeting rooms and commercial spaces that require efficient climate with uniform distribution and silent operation.

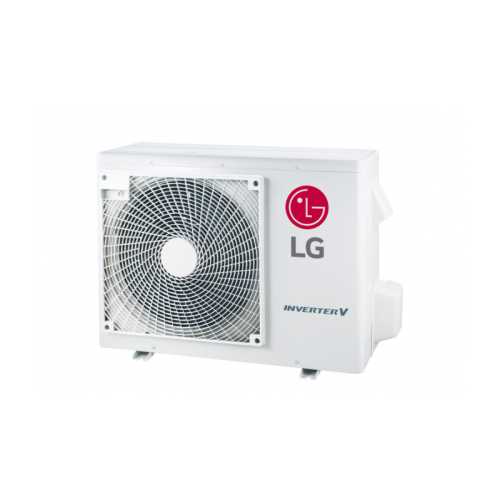

🏢 Outdoor Unit UUB1.U20 - Optimized Performance
La outdoor Unit UUB1.U20 the CT24F system is designed for medium commercial applications. Its robust construction and advanced technology guarantee efficient operation, , excellent durability and higher energy efficiency for moderate to intense commercial loads.
Nivel External sound level
Cold mode: 48 dBA
Heat mode: 53 dBA
Optimized silent operation
Air flow rate
50 m3/min
High Performance Single Ventilator
Dimensions
870 × 650 × 330 mm
Weight: 44,5 kg
Optimized intermediate size
️ System Refrigerant Gas R32 Eficient
Charge Refrigerant Gas
Preload: 1.2 kg R32
Preload length: 10 ml
Preload length: 10 ml
Environmental Impact
T-CO2eq: 0,810
Additional: 40 g/m
Additional: 40 g/m
Operational range
Cold: -15°C to +50°C
Heat: -20°C to +18°C
Heat: -20°C to +18°C
Connections
Liquid: 6.35mm (1/4")
Gas: 12.7mm (1/2")
Gas: 12.7mm (1/2")
De Installation flexibility
Total length: 5 - 35 meters
Greater location versatility
Greater location versatility
Maximum Level: 30 meters
Flexible adaptation
Flexible adaptation

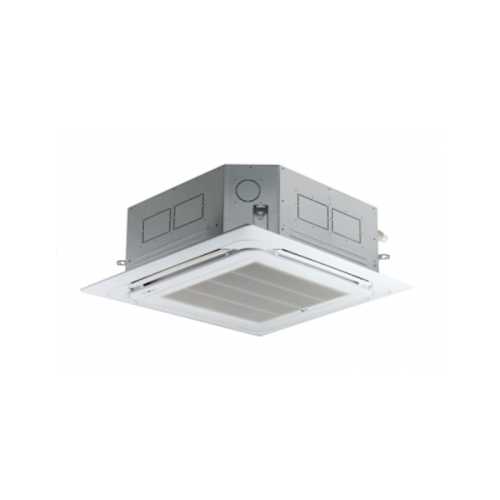

▼ Indoor Unit Commercial CT24F.NB0
Commercial dimensions: 840×204×840 mm with weight of 21.1 kg. PT-AAGW0 Dual Vane panel of 950×35×950 mm (7.1 kg) for distribution 4 standard tracks. Sound levels of 34-38 dBA and flows of 13,0-17,0 m3/min.
CONFORT 24 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- CT24F.NB0
- Outdoor Unit
- UUB1.U20
- Panel
- PT-AAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 65 m2
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- 2.000
- Energy class (cold)
- A++
- SEER
- 7,0
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Nominal heat consumption (W)
- 2.210
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 204
- Dimensions u.e (anxfxh) mm
- 870 x 330 x 650
- Weight Indoor Unit (Kg)
- 21,1
- Weight Outdoor Unit (Kg)
- 44,5
- Net weight (kg)
- 68,6
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- Optional WiFi
