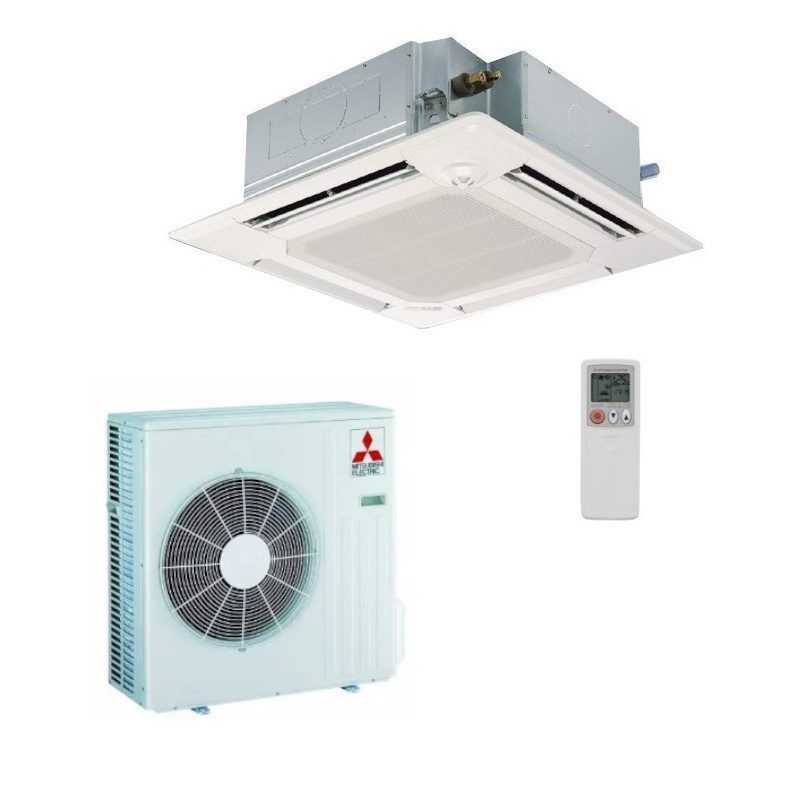

Air Conditioning Cassette Mitsubishi MGPLZ-100YEA
Refrigeration 9500W Δ Heating 11200W Δ SEER 6,0 A+ Δ Triphasic 400V Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-100YEA represents stable mean strength of the series Mr. Slim PRO with 9500W in cooling and 11200W in heating. Power supply 400V Three-phase, standard panel with wireless control included and technology DC Inverter, offers ultra-stable 4-way air conditioning for medium-sized commercial and industrial facilities that require japanese quality and maximum electrical stability with possibility of optional upgrades.
9️ 9500W Refrigeration
Rank 4.0-10.6 kW
11 11200W Heating
Rank 2,8-12,5 kW
▪ SEER 6.0 A+
SCOP 4,5 A+
400V Triphasic
Maximum stability
Specifications Clave Cassette Mr. Slim PRO 100 Triphasic
Indoor Unit: PLA-SM100EA
Outdoor Unit: PUZ-SM100YKA
Air flow: 19-29 m3/min
Sonic Pressure: 31-40 dBA
Food: 400V Triphasic
Nominal consumption: 2,79 kW cold
Refrigerant Gas: R-32 (3.10 kg)
Optional: EasyClean, 3D i-see, WiFi
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning MGPLZ-100YEA Cassette Mitsubishi Pro Trif Series.
Referencia: MGPLZ-100YEA
€2,498.72
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Mitsubishi MGPLZ-100YEA
Refrigeration 9500W Δ Heating 11200W Δ SEER 6,0 A+ Δ Triphasic 400V Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-100YEA represents stable mean strength of the series Mr. Slim PRO with 9500W in cooling and 11200W in heating. Power supply 400V Three-phase, standard panel with wireless control included and technology DC Inverter, offers ultra-stable 4-way air conditioning for medium-sized commercial and industrial facilities that require japanese quality and maximum electrical stability with possibility of optional upgrades.
9️ 9500W Refrigeration
Rank 4.0-10.6 kW
11 11200W Heating
Rank 2,8-12,5 kW
▪ SEER 6.0 A+
SCOP 4,5 A+
400V Triphasic
Maximum stability
Specifications Clave Cassette Mr. Slim PRO 100 Triphasic
Indoor Unit: PLA-SM100EA
Outdoor Unit: PUZ-SM100YKA
Air flow: 19-29 m3/min
Sonic Pressure: 31-40 dBA
Food: 400V Triphasic
Nominal consumption: 2,79 kW cold
Refrigerant Gas: R-32 (3.10 kg)
Optional: EasyClean, 3D i-see, WiFi
Security policy
Delivery policy
Refund policy
1 Triphase and DC Inverter Premium Technology
The Air Conditioning Cassette Mitsubishi MGPLZ-100YEA integration 400V triphase power supply for maximum operational stability, combined with technology DC Inverter Advanced and premium japanese quality. With SEER 6.0 A+ in cooling and SCOP 4,5 A+ in heating, its power 9500W cold and 11200W in heat ensures efficient and ultra-stable air conditioning for medium-sized commercial and industrial facilities.
The triphasic system modifies its power from 4000W up to 10600W cold and from 2800W up to 12500W in heat, distributing the electrical loads in a balanced way and ensuring ultra-stable operation with minimal fluctuations, ideal for installations that require maximum reliability.
2 Standard Panel and Industrial Efficient Distribution

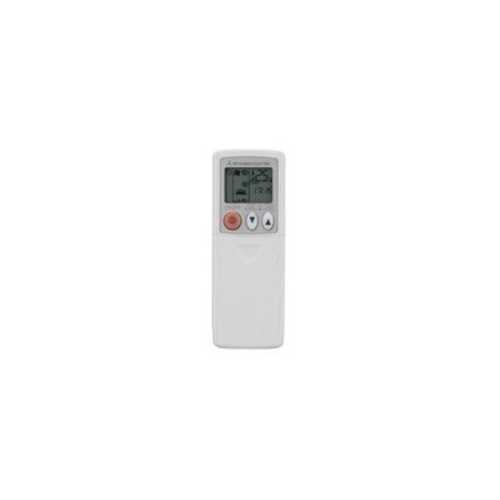

Includes pLP-6EALM standard panel with wireless serial control for full control of all basic functions. The panel 95x95 cm provides uniform air distribution air conditioning through its 4 directional pathways, with variable flow rate 19 to 29 m3/min for medium-large spaces 70-90 m2 in commercial and industrial facilities.

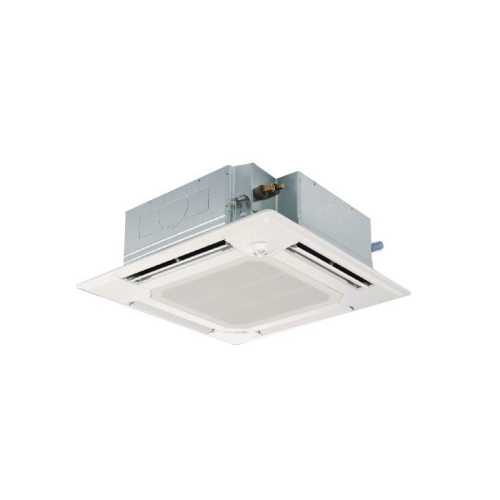

La indoor Unit of 298x840x840 mm is discreetly integrated into false standard industrial ceilings, while their silent operation 31 to 40 dBA guarantees acoustic comfort ideal for offices and commercial spaces that require discrete triphase air conditioning.
3 Premium and Available Industrial Upgrades
The base triphase unit can upgrade optionally with premium technologies easyClean automatic panel that descends to facilitate maintenance, sensor 3D i-see for intelligent detection of people, Plasma Quad Connect for advanced air purification, and wiFi adapter for smartphone control, allowing to customize the equipment according to specific needs of demanding industrial and commercial projects.
4 Refrigerant Gas R32 Ecological and Triphasic Operational Efficiency
Use coolant Organic R32 with load 3.10 kg, significantly reducing environmental impact while improving energy efficiency. The triphasic system operates in extended range -15°C to +46°C in cooling and -15°C to +21°C in heating, guaranteeing reliable operation throughout the year in industrial facilities with demanding weather conditions.

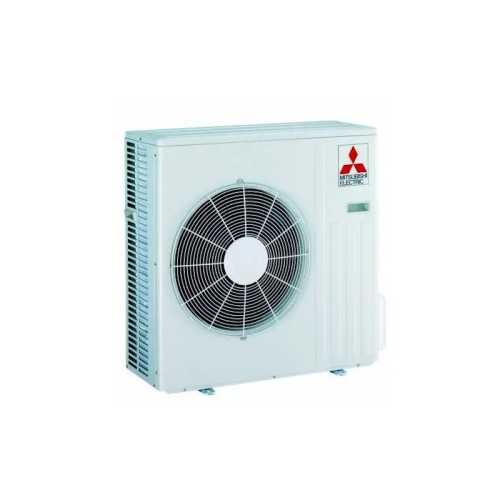

La outdoor Unit three-phase 981x1050x330 mm facilitates installation in industrial spaces, with cold connections 9,52mm liquid and 15,88mm gas and maximum pipe length 30 meters with uneven 30 meters, providing flexibility in various commercial and industrial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 9500W (4000-10600W) | Heating | 11200W (2800-12500W) |
| SEER / SCOP | 6.0 A+ / 4.5 A+ | Nominal consumption | 2790W / 3100W |
| Food | 400V Triphasic | Air flow | 19-29 m3/min |
| Sound level | 31-40 dBA | Refrigerant Gas | R32 (3.10 kg) |
| Tube Max | 30m / 30m | Weight Neto UI | 24 kg + 5 kg panel |
Recommended Commercial and Industrial Applications
S Corporate Offices
Corporate 70-90m2 spaces that require stable triphase power with Japanese quality and optional upgrades.
Es Industrial facilities
Medium industrial ships that need stable triphase air conditioning with premium Japanese quality.
S️ Gastronomic Complexes
Gastronomic establishments that require three-phase food with silent and reliable operation.
Medical Centres
Hospitals and medical centers that need ultra-stable triphase feeding with reliable 24/7 operation.
Technology Mitsubishi Electric
Japanese quality with stable triphase and premium optional
MGPLZ-100YEA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PLA-SM100EA
- Outdoor Unit
- PUZ-SM100YKA
- Panel
- PLP-6EALM
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.790
- Energy class (cold)
- A+
- SEER
- 6,0
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.100
- Energy class (heat)
- A+
- SCOP
- 4,5
- Minimum sound pressure UI DB
- 31
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 298
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 24,0
- Weight Outdoor Unit (Kg)
- 78,0
- Net weight (kg)
- 104,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
