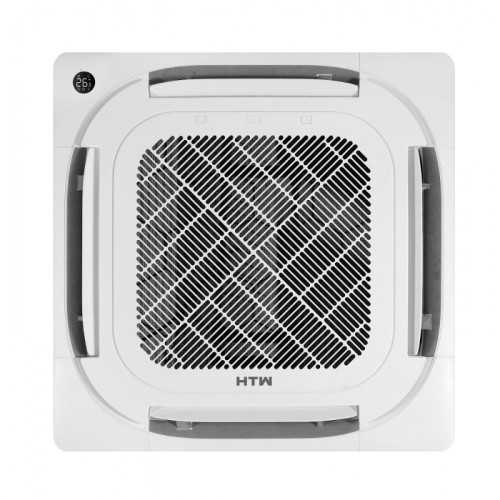

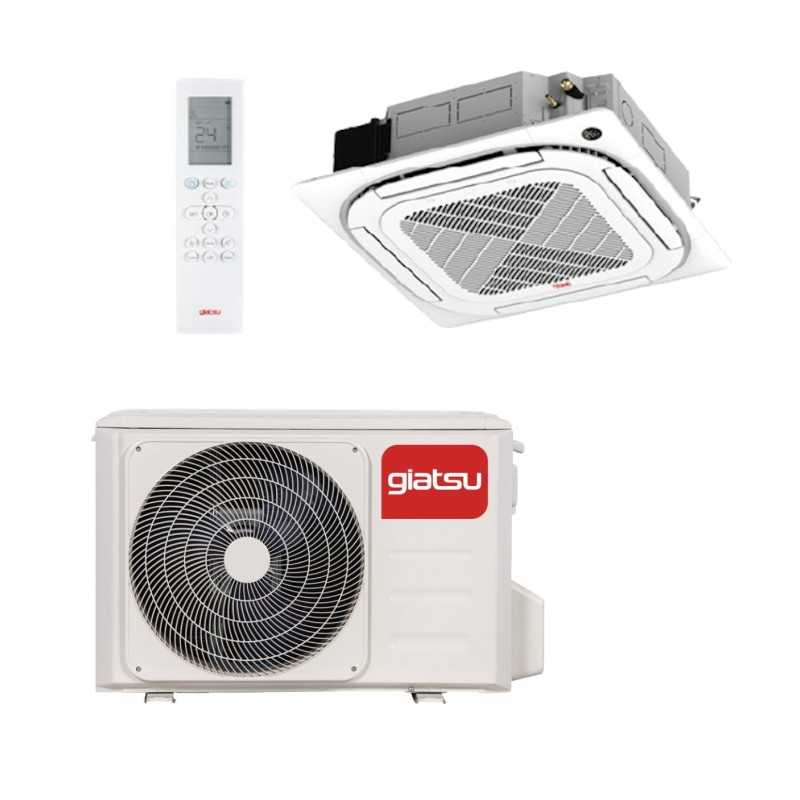

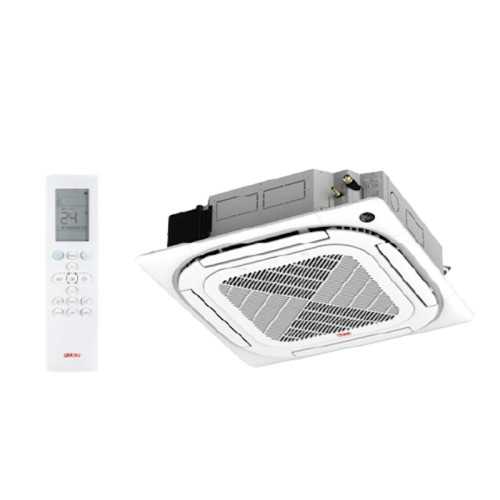

Air Conditioning Cassette Giatsu GIAC9T3-48ADM2R32WF
Refrigeration 14070W 日本語 Heating 16120W 日本語 SEER 6,1 A++ Δ Triphasic Panel 90x90
The Air Conditioning Cassette Giatsu GIAC9T3-48ADM2R32WF represents ultra maximum stable triphase power of the Cassette Admira Plus Series 14070W in cooling and 16120W in heating. Power supply 380-415V triphase, panel 90x90 standard and technology DC Inverter complete, offers ultra-maximum 4-way air conditioning with remote control included for commercial and industrial installations that require ultra-high power and absolute stability.
️ 14070W Refrigeration
Rank 3.52-15.83 kW
Calefacción 16120W Heating
Rank 4,10-17,29 kW
▪ SEER 6,1 A++
SCOP 4.0 A+
3 380-415V Triphasic
Ultra maximum stability
Key Specifications Cassette Admira Plus T3-48
Indoor Unit: GIA-C9I-48ADM2R32WF
Outdoor Unit: GIA-UOT3-48ADM2R32
Air flow: 1600-1900 m3/h
Sonic Pressure: 38.5-51.5 dBA
Food: 380-415V Triphase
Nominal consumption: 4,98 kW cold
Refrigerant Gas: R-32 (2.9 kg)
Protection: Golden Fin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 90x90 Giatsu GIA-C9T3-48ADM2R32WF trif.
Referencia: GIA-C9T3-48ADM2R32WF
€2,104.63
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Giatsu GIAC9T3-48ADM2R32WF
Refrigeration 14070W 日本語 Heating 16120W 日本語 SEER 6,1 A++ Δ Triphasic Panel 90x90
The Air Conditioning Cassette Giatsu GIAC9T3-48ADM2R32WF represents ultra maximum stable triphase power of the Cassette Admira Plus Series 14070W in cooling and 16120W in heating. Power supply 380-415V triphase, panel 90x90 standard and technology DC Inverter complete, offers ultra-maximum 4-way air conditioning with remote control included for commercial and industrial installations that require ultra-high power and absolute stability.
️ 14070W Refrigeration
Rank 3.52-15.83 kW
Calefacción 16120W Heating
Rank 4,10-17,29 kW
▪ SEER 6,1 A++
SCOP 4.0 A+
3 380-415V Triphasic
Ultra maximum stability
Key Specifications Cassette Admira Plus T3-48
Indoor Unit: GIA-C9I-48ADM2R32WF
Outdoor Unit: GIA-UOT3-48ADM2R32
Air flow: 1600-1900 m3/h
Sonic Pressure: 38.5-51.5 dBA
Food: 380-415V Triphase
Nominal consumption: 4,98 kW cold
Refrigerant Gas: R-32 (2.9 kg)
Protection: Golden Fin
Security policy
Delivery policy
Refund policy
1 Triphase and DC Inverter Ultra Maximum
The Cassette Air Conditioner Giatsu GIAC9T3-48ADM2R32WF integration 380-415V for ultra maximum operating stability, combined with technology DC Inverter complete both in compressor and fan. With SEER 6,1 A++ in cooling and SCOP 4.0 A+ in heating, its power 14070W cold and 16120W in heat position it as the ultra maximum power solution for commercial and industrial installations that require maximum stability and absolute efficiency.
The triphasic system modifies its power from 3520W to 15830W cold and from 4100W up to 17290W in heat, distributing the electrical loads in an ultra-balanced manner and ensuring ultra-stable operation with minimal fluctuations in any demanding operating condition.
2 Panel 90x90 Standard and Ultra Maximum Industrial Distribution
Equipped with standard panel 90x90 cm without independent control of lamas, the GIAC9T3-48ADM2R32WF provides uniform air distribution through its 4 directional lanes. The variable flow rate 1600 to 1900 m3/h guarantees optimal coverage for spaces 120 to 160 m2, maintaining homogeneous temperature in ultra demanding commercial and industrial facilities.
La indoor Unit of 830x287x830 mm is integrated into false standard industrial ceilings, while their operation 38.5 to 51.5 dBA maintains acoustic comfort suitable for workers in commercial and industrial environments of ultra maximum three-phase power.
3 Intelligent Control and Ultra Industrial Features
The equipment includes remote serial control with 24-hour programming functions, allowing advanced time and temperature configuration to optimize energy consumption in ultra intensive and continuous industrial applications. La protection Golden Fin in exchangers protects against marine corrosion and ultra aggressive industrial environments, while the integrated capacitor pump facilitates automatic evacuation of condensed water without additional installations.
4 Refrigerant Gas R32 Ecological and Ultra Basic Triphasic Operational Efficiency
Use coolant Organic R32 with load of 2.9 kg, reducing environmental impact and improving energy efficiency.The three-phase system operates over an extended range of -15°C to +50°C in refrigeration and -20°C to +24°C in heating, guaranteeing reliable operation throughout the year in industrial facilities with ultra demanding weather conditions.

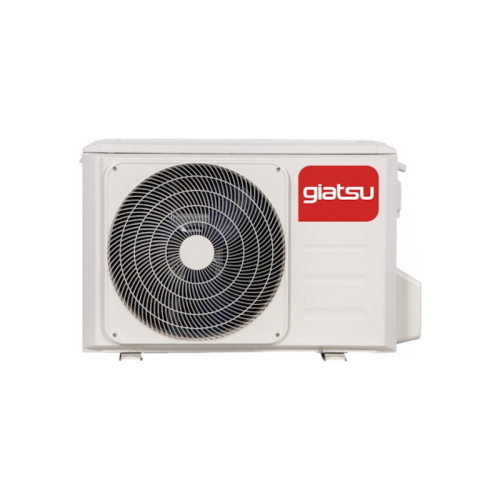

La outdoor Unit three-phase 975x980x375 mm facilitates installation in large industrial spaces, with frigorific connections 3/8" liquid and 5/8" gas and maximum pipe length of 75 meters with a slope of up to 30 meters, providing maximum flexibility in complex ultra large industrial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 14070W (3520-15830W) | Heating | 16120W (4100-17290W) |
| SEER / SCOP | 6.1 A++ / 4.0 A+ | Nominal consumption | 4980W / 4580W |
| Food | 380-415V Triphase | Air flow | 1600-1900 m3/h |
| Sound level | 38.5-51.5 dBA | Refrigerant Gas | R32 (2.9 kg) |
| Max Pipe | 75m / 30m deseven | Weight Neto UI | 29.3 kg + 6 kg panel |
Commercial and Industrial Applications Ultra Recommended
S Ultra Corporate Offices
Ultra large corporate 120-160m2 spaces that require ultra maximum power with ultra stable triphase power.
Es Industrial Megainstallations
Large industrial ships and mega-installations that need ultra-maximum air conditioning with balanced triphase power.
S️ Gastronomic Mega Complexes
Gastronomic megacomplete and ultra wide food courts that require ultra-maximum triphase air conditioning.
S Medical Megacentres
Large hospitals and medical megacenters that need ultra-maximum stable air conditioning with 24/7 continuous operation.
Extended warranty Giatsu
3 years guarantee total + 5 years warranty compressor
GIA-C9T3-48ADM2R32WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-C9I-48ADM2R32WF
- Outdoor Unit
- GIA-UOT3-48ADM2R32
- Panel
- GIA-C9P-ADM2R32
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 14.000
- Refrigerator capacity (kcal / h)
- 12.040
- Nominal consumption Cold (W)
- 4.980
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 16.120
- Heat capacity (Kcal / h)
- 13.863
- Nominal heat consumption (W)
- 4.580
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 39
- Dimensions u.i (anxfxh) mm
- 830 x 830 x 287
- Dimensions u.e (anxfxh) mm
- 975 x 375 x 980
- Weight Indoor Unit (Kg)
- 29,3
- Weight Outdoor Unit (Kg)
- 71,0
- Net weight (kg)
- 102,8
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
