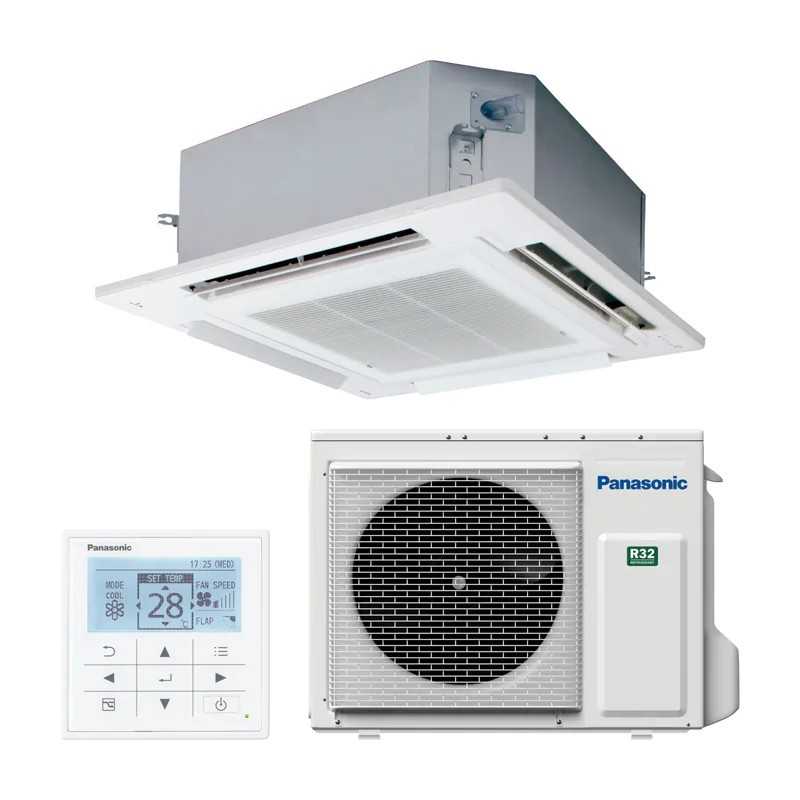

Air Conditioning Cassette Panasonic KIT-140PU3Z8-6W
Refrigeration 14000W 日本語 Heating 14000W 日本語 SEER 6,5 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X Δ TRIFÁSICO
The Air Conditioning Cassette Panasonic KIT-140PU3Z8-6W represents ultra maximum three-phase commercial power pACi NX Standard Series with 14000W in cooling and heating. With 380-415V and command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-maximum 4-way air conditioning with advanced air purification and maximum stability for massive industrial spaces.
️ 14000W Refrigeration
Range 3.3-15.0 kW
14 14000W Heating
Rank 3.4-16.0 kW
▪ SEER 6,5 A++
SCOP 4,2 A+
Triphasic + nanoeTM X
380-415V
Specifications Cassette PACi NX Standard 140 Triphasic

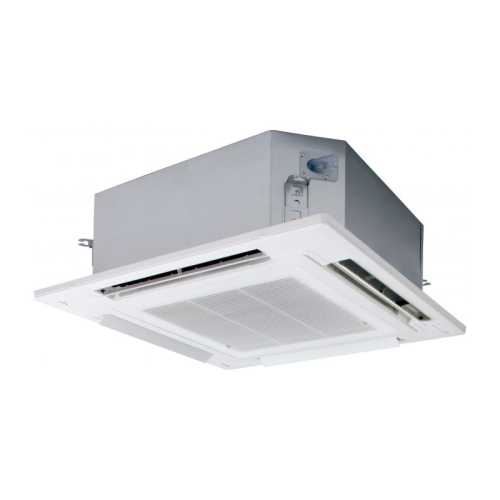

Indoor Unit: S-1014PU3E

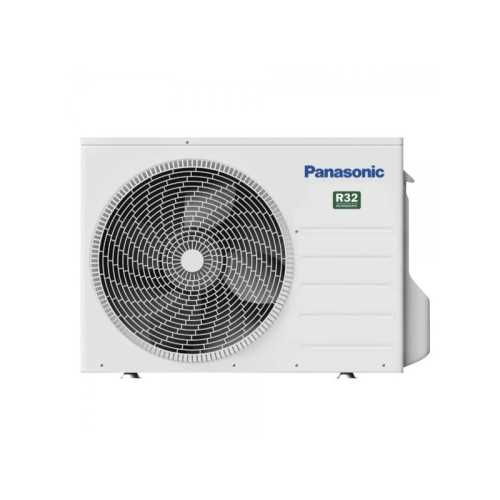

Outdoor Unit: U-140PZ3E8
Air flow: 20,0-38,0 m3/min
Sonic Pressure: 47 dBA

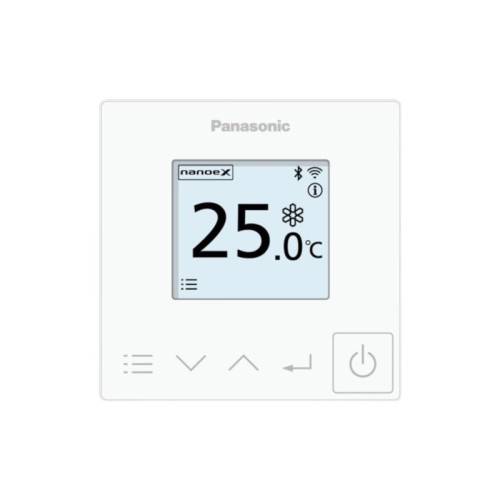

Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 4,34 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-140Pu3Z8-6W PACI NX Standard
Referencia: KIT-140PU3Z8-6W
€3,588.88
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-140PU3Z8-6W
Refrigeration 14000W 日本語 Heating 14000W 日本語 SEER 6,5 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X Δ TRIFÁSICO
The Air Conditioning Cassette Panasonic KIT-140PU3Z8-6W represents ultra maximum three-phase commercial power pACi NX Standard Series with 14000W in cooling and heating. With 380-415V and command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-maximum 4-way air conditioning with advanced air purification and maximum stability for massive industrial spaces.
️ 14000W Refrigeration
Range 3.3-15.0 kW
14 14000W Heating
Rank 3.4-16.0 kW
▪ SEER 6,5 A++
SCOP 4,2 A+
Triphasic + nanoeTM X
380-415V
Specifications Cassette PACi NX Standard 140 Triphasic
Indoor Unit: S-1014PU3E
Outdoor Unit: U-140PZ3E8
Air flow: 20,0-38,0 m3/min
Sonic Pressure: 47 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 4,34 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-140PU3Z8-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD TRIFÁSICO • 14000W/14000W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard Triphasic: Ultra Maximum Industrial Power + Absolute Stability
The Panasonic KIT-140PU3Z8-6W establishes the absolute record in triphase commercial air conditioning with 14000W in cooling and heating for massive industrial spaces of 110-170m2. Integra 380-415V which guarantees maximum stability and balanced distribution of loads in ultra demanding commercial facilities, while the cZ-RTC6BLW controller with Wi-Fi + Bluetooth allows total professional remote control.
Designed for industrial complexes, production plants and corporate megaprojects, combine the ultra maximum power high-performance turboventilator with Econavi industrial sensor which automatically optimizes energy consumption. His 4-way air distribution with cassette 90x90 cm ultra industrial ensures uniform air conditioning in massive spaces with the nanoeTM X Mark 1 series technology for continuous purification of industrial air.
Tri Ultra Classical Triphatic Feeding
380-415V Triphasic: Absolute stability
Ultra Distribution: Ultra balanced loads
Industrial installation: 110-170m2 ideal
▪ Ultra Maximum Power 14000W
Refrigeration: 14000W (3.3-15.0 kW)
Heating: 14000W (3.4-16.0 kW)
SEER 6,5 A++: Industrial efficiency
Tecnología Advanced technology PACi NX Standard Ultra Maximum Power
🌀
Turboventilator Ultra
High industrial benefits
️
Sensor Econavi Ultra
Automatic saving of industrial spaces
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
🏭
Ultra Industrial Design
Ultra industrial unit 25 kg
Industrial Energy Efficiency Ultra A+
SEER 6,5 A++
Ultra industrial cooling
SCOP 4,2 A+
Industrial heating
EER 3.23
Ultra nominal performance
COP 4,18
Industrial heat coefficient
Technical Specifications • PACi NX Standard KIT-140PU3Z8-6W Triphasic
INVERTER+ TRIFÁSICO ULTRA • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette 4 Vias Ultra Industrial + Ultra Maximum Power Turboventilator
The 4-way cassette 90x90 cm ultra industrial kIT-140PU3Z8-6W incorporates a high performance turboventilator ultra maximum power optimized for ultra maximum power that maximizes air distribution through the ultra-sized industrial heat exchanger. With variable flow rate from 20,0 to 38,0 m3/min, adapts automatically to mass industrial needs by maintaining a controlled sound level of 47 dBA at ultra high speed.
La 380-415V guarantees balanced distribution of loads and maximum stability in continuous industrial operation 24/7. The econavi Ultra industrial sensor detects occupation in massive spaces and automatically optimizes performance for maximise energy savings SEER 6,5 A++ maintaining total comfort. Technology Ecological R32 with 2.80 kg ultra load offers superior thermodynamic properties for ultra maximum industrial power.
Re️ Ultra Maximum Air Performance Power
Variable flow rate: 20,0-38,0 m3/min
Distribution: 4 ultra industrial roads 90x90
Sound level: 47 dBA (high speed)
Dehumidification: 6.0 L/h ultra elimination
・ Specifications Triphasic Ultra
Food: 380-415V triphase
Consumption Cold: 4,34 kW (nominal)
Consumption Calor: 3.35 kW (nominal)
Intensity: 6,40-7,00 A (cold)
Dimensions and Technical Specifications Ultra Industrial
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-1014PU3E |
| Interior dimensions | High x Width x Deep | 319 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 25 / 5 kg |
| Outdoor Unit | Model | U-140PZ3E8 |
| Outer dimensions | High x Width x Deep | 996 x 980 x 370 mm |
| Tuberias | Liquid / Gas | 3/8" (9,52mm) / 5/8" (15,88mm) |
| Maximum length | Tuberia | 5-50 meters |
S Triphasic Industrial Applications
🏭
▷ Advantages Cassette Ultra Industrial:
- Uniform distribution 4 mass spaces addresses
- Ultra-stable triphase power
- Ideal coverage industrial spaces 110-170m2
- Continuous industrial operation 24/7
- Precise temperature control ultra
: Ultra Industrial Features:
- SEER 6,5 A++ ultra industrial efficiency
- nanoetm X purification continuous air
- Wi-Fi + Bluetooth professional control
- Series Integrated Drain Pump
- Ultra industrial unit 25 kg maximum
🏭
Industrial plants
110-170m2 heated production
📦
Logistics Centres
Ultra wide stores
🏪
Commercial complexes
Massive industrial spaces
🔧
Megaprojects
Critical facilities
POTENCE WITH WI-FI + NANOETM X!
Panasonic KIT-140PU3Z8-6W • 14000W/14000W • SEER 6,5 A+ • 380-415V Triphasic
ULTRA MÁXIMA POTENCIA INDUSTRIAL TRIFÁSICA: 14000W + Wi-Fi + nanoeTM X
The ultra-high-power triphase solution for massive industrial spaces. Food 380-415V ultra stable, cassette 4 ultra maximum power and nanoeTM X purification for ultra demanding industrial plants. The ideal solution for industrial plants, logistics centers and megaprojects that require ultra-maximum air conditioning with maximum absolute stability.
Tri Ultra Classical Triphatic Feeding
380-415V: Ultra maximum industrial stability
Ultra Distribution: Ultra-maximum balanced loads
Ultra installation: Ideal 110-170m2
▪ Ultra Maximum Power 14000W
SEER 6,5 A++: Ultra industrial efficiency
Variable flow rate: 20,0-38,0 m3/min
Modulant Range: 3,3-15,0 kW cold
WHY TO ELEGATE THE KIT-140PU3Z8-6W TRIFÁSICO PANASONIC?
▷ Ultra Maximum Technical Advantages:
- Three-phase food 380-415V ultra stable
- SEER 6,5 A++ ultra industrial efficiency
- Ultra maximum power 14000W modulant
- Ultra dehumidification 6.0 L/h maximum
- Ultra maximum flow 38,0 m3/min
: Ultra Industrial applications:
- Industrial plants 110-170m2 production
- Logistics centres ultra wide stores
- Commercial complex massive spaces
- Megaprojects critical facilities
- Industrial projects ultra maximum power
S Advanced Included Series Technologies
Turboventilator Ultra
High ultra-industrial benefits
️ Econavi Ultra
Ultra automatic industrial sensor
NanoeTM X
4.8 billion OH/second
R32
Ecological 2,80kg ultra
CHECK NOW YOUR TRIPHASIC TAPE!
Air conditioning specialists Panasonic • Personalized technical advice • Integral solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-140PU3Z8-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PU3E
- Outdoor Unit
- U-140PZ3E8
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.000
- Refrigerator capacity (kcal / h)
- 12.040
- Nominal consumption Cold (W)
- 4.340
- Heat capacity (W)
- 14.000
- Heat capacity (Kcal / h)
- 12.040
- Nominal heat consumption (W)
- 3.350
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 319
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 87,0
- Net weight (kg)
- 117,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
