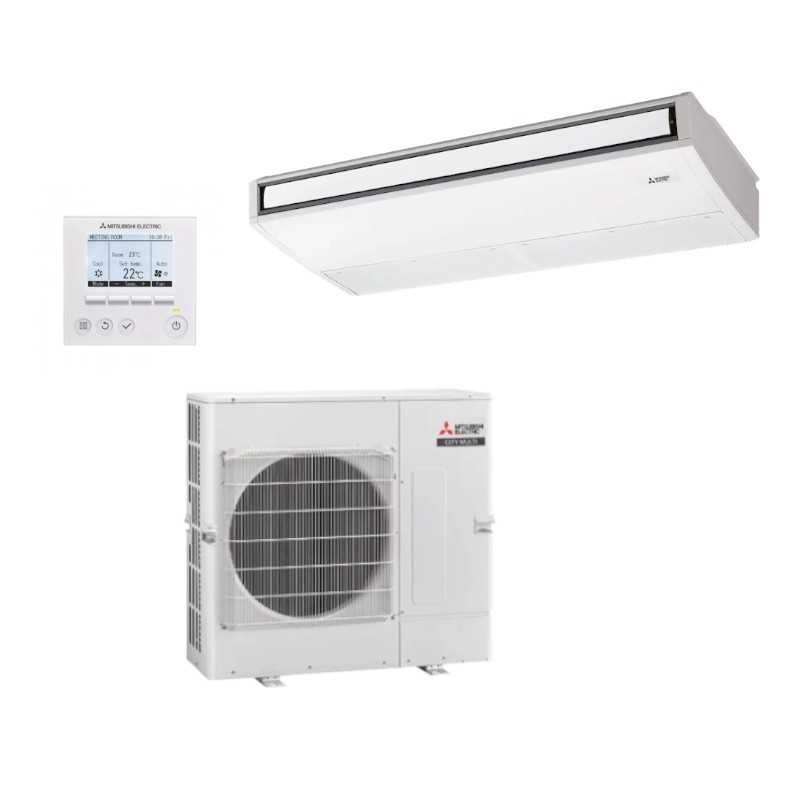

Techo Mitsubishi Electric MSPCZ-125YKA2 (Trifásico)
Solución comercial trifásica de gran potencia para instalación suspendida bajo techo, óptima para la climatización de grandes superficies, locales de restauración y oficinas diáfanas. Este robusto sistema de 12,1 kW opera con refrigerante ecológico R-32 y distribuye la carga eléctrica de forma equilibrada entre sus fases. Ofrece altos índices de rendimiento estacional, tecnología Replace y total durabilidad profesional.
• Potencia Frigorífica: 12,10 kW
• Alimentación: Trifásica (400V)

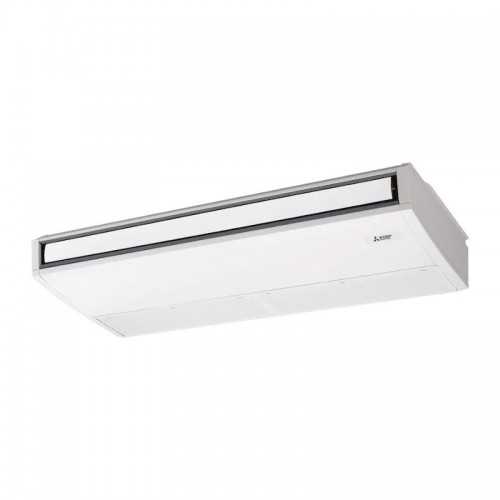

• Unidad Interior: PCA-M125KA2

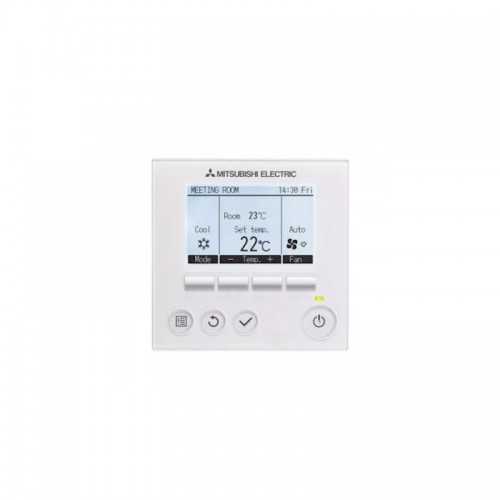

• Control Incluido: PAR-41MAA
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning MSPCZ-125YKA Trif. Mitsubishi Electric Standard Inverter
Referencia: MSPCZ-125YKA
€4,024.85
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Techo Mitsubishi Electric MSPCZ-125YKA2 (Trifásico)
Solución comercial trifásica de gran potencia para instalación suspendida bajo techo, óptima para la climatización de grandes superficies, locales de restauración y oficinas diáfanas. Este robusto sistema de 12,1 kW opera con refrigerante ecológico R-32 y distribuye la carga eléctrica de forma equilibrada entre sus fases. Ofrece altos índices de rendimiento estacional, tecnología Replace y total durabilidad profesional.
• Potencia Frigorífica: 12,10 kW
• Alimentación: Trifásica (400V)
• Unidad Interior: PCA-M125KA2
• Control Incluido: PAR-41MAA
Security policy
Delivery policy
Refund policy
The Mitsubishi Electric MSPCZ-125YKA establishes the absolute reference in professional industrial climatization of ceiling with three-phase food for commercial and industrial spaces of maximum demand. With exceptional power 12.5kW cold and 14.0kW in heat, this sophisticated roof system represents the culmination of japanese technology Mitsubishi Electric with revolutionary R-32 coolant and 400V triphasic power, ideal for industrial ships, logistics centers, large corporate offices and commercial spaces up to 130 square meters.
Stressing for its exceptional energy rating A++ and an outstanding SEER 5.8, this model maintains controlled energy consumption 671 kWh annual cold. Its silent professional functioning 36dB at minimum speed and the optional WiFi with control MAC-587IF-E guarantee maximum intelligent comfort in industrial spaces where three-phase feeding and invisible elite air conditioning are required.
The MSPCZ-125YKA unit is discreetly integrated into the false roof with professional extended format 245 x 840 x 840 mm while the outdoor Unit SUZ-M125YA ensures robust three-phase and maximum performance. Its advanced features include technology Standard Inverter Industrial, , wide range of operation (-15°C to +46°C), remote control PAR-41MAA professional and advanced industrial V-blocking filtering options for perfect interior environment with recognized japanese reliability and 3 year warranty.
Main features
▪ Industrial Power 12.5kW
12.5kW cold / 14.0kW heat with three phase feeding up to 130m2
🏆 Efficiency A++
SEER 5.8 and SCOP 4.0 maximum efficiency - Only 671 kWh annual
🔌 Tripha
400V 3F+N for industrial and commercial installations
📱 Optional WiFi
Control Professional Smartphone with MAC-587IF-E WiFi Adapter
️ Wide range
Operation from -15°C to +46°C outside
🔇 Professional Silence 36dB
Silent professional operation for critical applications
Technical Specifications
Included Advanced Technologies
✓ Standard Inverter Industrial Technology
Ultra precise industrial control for maximum energy efficiency
✓ Refrigerant Gas R-32 Industrial
Ecological cutting-edge gas with superior industrial thermal efficiency
✓ Trifle
400V 3F+N for advanced industrial and commercial installations
✓ Auto Restart Professional
Automatic rendition with full professional configuration memory
Main applications
🏭 Industrial ships
Up to 130m2 with three phase feeding
🏢 Corporate offices
Business complexes and business centres
📦 Logistics Centres
Stores and distribution centres
🏪 Great Surfaces
Shopping and hypermarket centers
Why choose the Mitsubishi Electric MSPCZ-125YKA?
The MSPCZ-125YKA combines legendary japanese quality Mitsubishi Electric with superior industrial power and triphasic power for ceiling. With 12.5kW power, SEER 5.8, A++ rating and operation of 36dB professional silent, is the perfect solution for industrial spaces that require invisible, powerful and triphase air conditioning with japanese industrial reliability.
12.5kW
Tripha power400V
Industrial130m2
Industrial CoverageGet yours Mitsubishi Electric MSPCZ-125YKA!
Japanese quality with three-phase industrial ceiling air conditioning. Perfect for industrial ships, logistics centers and commercial spaces up to 130m2 that require triphase power and maximum professional comfort.
✓ Triphase 12.5kW power
✓ Food 400V industrial
✓ Japanese quality
MSPCZ-125YKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PCA-M125KA

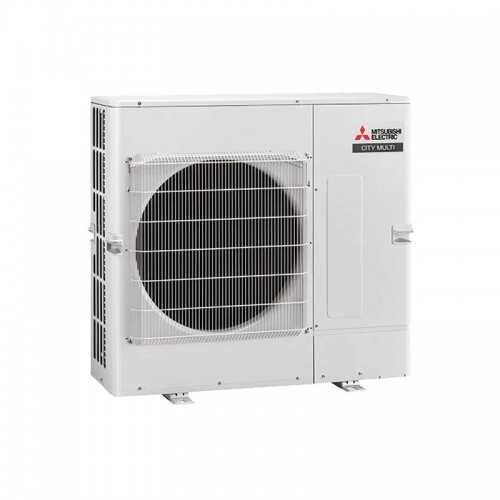

- Outdoor Unit
- PUZ-M125YKA
- I send
- Mando cable PAR-40MAA
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.950
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 680 x 230
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 123,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
