The ceiling LG Comfort + 36 single-phase
High capacity commercial solution For suspended installation under ceiling, optimal to optimize space in large premises and offices. This 9.5 kW single-phase system uses ecological refrigerant A-32 And it offers a remarkable energy savings. It has a seasonal rating To ++ In cold, an excellent flow of air and total professional durability.
• Refrigerator power: 9.50 kW
• Seasonal efficiency: A ++ / A +
• Indoor Unit: UV36F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

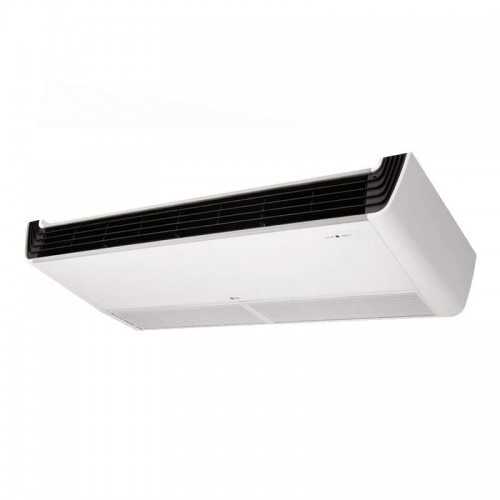

Air conditioning ceiling LG Comfort + 36 MONOF.
Referencia: TECCONFORT+ 36M
€2,695.34
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 36 single-phase
High capacity commercial solution For suspended installation under ceiling, optimal to optimize space in large premises and offices. This 9.5 kW single-phase system uses ecological refrigerant A-32 And it offers a remarkable energy savings. It has a seasonal rating To ++ In cold, an excellent flow of air and total professional durability.
• Refrigerator power: 9.50 kW
• Seasonal efficiency: A ++ / A +
• Indoor Unit: UV36F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning ceiling LG model 36 (UV36F.N20) marks the start of the high power range with your 9,50 kW refrigeration capacity and heating of 10,80 kW. This System of the Free Combination Comfort + range incorporates indoor Unit large format with extended dimensions 1.600 x 235 x 690 mm and advanced Inverter technology that guarantees superior performance for large commercial spaces and light industrial applications.
Composed of the indoor Unit UV36F.N20 of great capacity and the outdoor Unit UUD1.U30 With double fan, this system stands out for its intelligent modulation capacity ranging from 3.80 to 12.54 kW in refrigeration and from 4.30 to 13.39 kW in heating. With a massive treated air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides powerful air distribution by covering spaces of up to 110 m² with homogeneous comfort.
The unit incorporates ecological R32 coolant with 3.0 kg preload, Robust refrigerated connection system 9.52 / 15.88 mm and flexible installation capability with maximum pipe length of 85 meters. With energy classification A ++ / A + and availability in single-phase and three-phase version, It offers maximum versatility for complex commercial facilities in shopping centers, corporate offices, industrial buildings and large-scale professional spaces.
Main features
⚡
High power 9.5kw
Robust capacity of 9,50 kW refrigeration / 10,80 kW Heating for large spaces up to 110 m².
🔌
Single-phase and three-phase
Available in single-phase and three-phase configuration to adapt to any commercial electrical installation.
📏
Large format 1.600mm
Indoor Unit extended 1,600 x 235 x 690 mm for massive air distribution in spacious spaces.
🌊
Mass flow rate 28 m³ / min
Massive treated air volume of up to 28.0 m³ / min for efficient distribution on large surfaces.
🎯
COP 4.15 excellent
Heating coefficient of 4.15 heating that guarantees maximum winter thermal efficiency.
🔇
Silent 40-46 dB
Silent performance from 40 dB (A) Despite its high power, ideal for commercial spaces.
Technical specifications
| Feature | Single-phase | Three-phase |
|---|---|---|
| Pattern | UV36F.N20 + UUD1.U30 | UV36F.N20 + UUD3.U30 |
| Cold power (min-nom-max) | 3,80 - 9,50 - 12,54 kW | 3,80 - 9,50 - 12,54 kW |
| Power heat (min-nom-max) | 4:30 - 10,80 - 13,39 kW | 4:30 - 10,80 - 13,39 kW |
| Cold consumption (min-nom-max) | 0.50 - 2.65 - 4.03 kW | 0.50 - 2.65 - 4.03 kW |
| Heat consumption (min-nom-max) | 0.50 - 2,60 - 3,54 kW | 0.50 - 2,60 - 3,54 kW |
| Eer / seer | 3.59 / 6,30 | 3.59 / 6,30 |
| COP / SCOP | 4,15 / 4,10 | 4,15 / 4,10 |
| Energy label (cold / heat) | To ++ / a + | To ++ / a + |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm | |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm | |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min | |
| Internal sound pressure (high / medium / low) | 46/43/40 dB (A) | |
| Exterior sound pressure | 50 dB (A) cold / 50 dB (A) heat | 50 dB (A) cold / 50 dB (A) heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg | |
| Refrigerant Gas / Preload | R32 / 3.0 kg | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Maximum length pipe | 85 meters | |
| Maximum | 30 meters | |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C | |
Benefits LG Uv36f.n20
✓
High power solution for large spaces
With 9.5kw of power, ideal for shopping centers, corporate offices, industrial buildings and spaces of 100-110 m².
✓
Singhafish and three-phase electric versatility
Available in single-phase and three-phase configuration to adapt to any commercial electrical installation.
✓
Massive distribution of optimized air
Indoor Unit expanded 1.600mm with 28 m³ / min flow for uniform coverage on large surfaces.
✓
Excellent performance in COP 4.15 heating
Superior Performance Coefficient that guarantees maximum thermal efficiency and winter energy savings.
Main applications
🏢
Corporate offices
Large offices, business centers, open work spaces and corporate headquarters that require high power.
🏪
Shopping centers
Large commercial surfaces, department stores, retail centers and spaces with high occupancy density.
🏭
Industrial buildings
Lightweight industrial warehouses, wide warehouses, large workshops and industrial spaces that need powerful air conditioning.
Why choose the LG Uv36f.n20?
High power for large commercial spaces!
The LG UV36F.N20 combined high power of 9.5KW, single-phase electric / three-phase versatility, extended format and excellent COP 4.15 to provide superior air conditioning in shopping centers, corporate offices and industrial buildings up to 110 m².
See Electrical configuration and availability!
TECCONFORT+ 36M
Data sheet
- Brand
- LG
- Indoor Unit
- UV36F.N20
- Outdoor Unit
- UUD1.U30
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- Energy class (cold)
- A++
- SEER
- 6,30
- Heat capacity (W)
- 10.800
- Heat capacity (Kcal / h)
- 9.288
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
