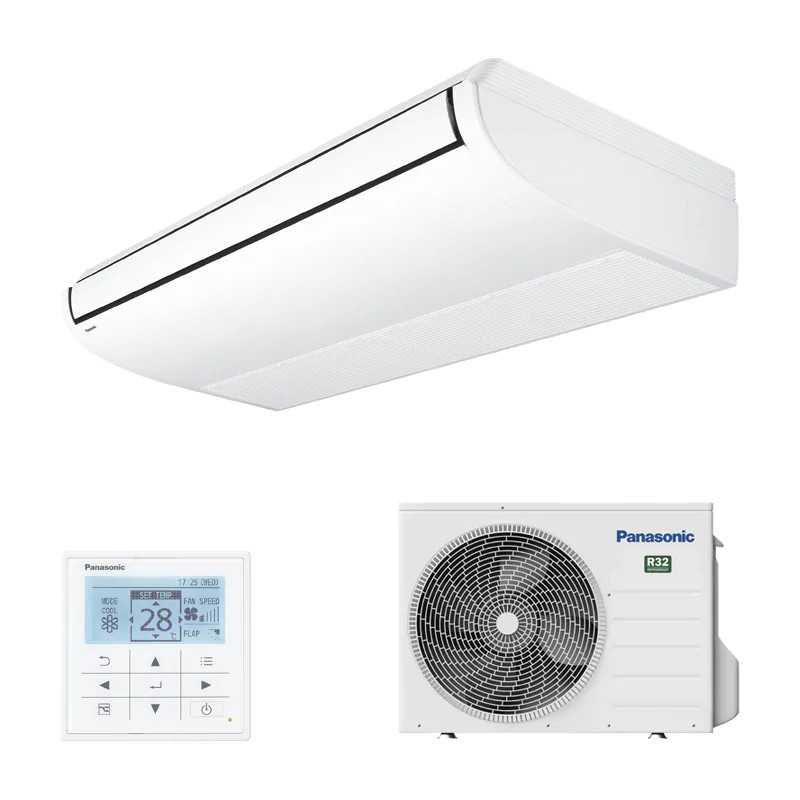

Panasonic PACi NX KIT-140PT3Z5 Monofásico
Sistema comercial de techo de máxima potencia monofásica perteneciente a la gama PACi NX Standard, operando con gas ecológico R-32. Esta imponente solución de 13,6 kW está diseñada específicamente para proporcionar una distribución de aire grande y amplia en estancias de gran volumen o locales comerciales extensos. Cuenta con un diseño elegante de solo 235 mm de altura, altos ratios de rendimiento estacional y la tecnología de protección activa nanoe™ X (Generador Mark 2) incorporada de serie.
• Potencia Frigorífica Nominal: 13,60 kW
• Alimentación Eléctrica: Monofásica (230V)
• Generador de Calidad de Aire: nanoe™ X Mark 2

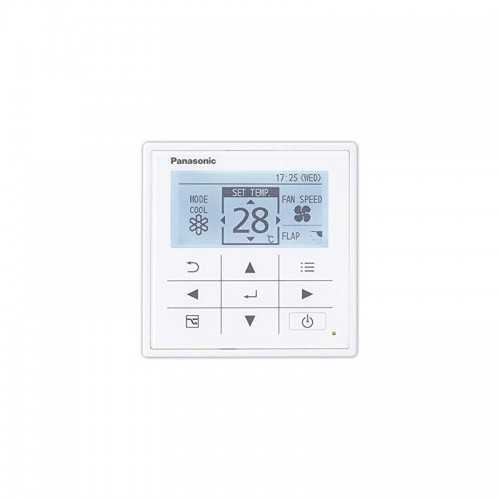

• Kit de Control Incluido: Mando CZ-RTC5B
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Panasonic PACi NX KIT-140PT3Z5 Monof.
Referencia: KIT-140PT3Z5
€4,172.10
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic PACi NX KIT-140PT3Z5 Monofásico
Sistema comercial de techo de máxima potencia monofásica perteneciente a la gama PACi NX Standard, operando con gas ecológico R-32. Esta imponente solución de 13,6 kW está diseñada específicamente para proporcionar una distribución de aire grande y amplia en estancias de gran volumen o locales comerciales extensos. Cuenta con un diseño elegante de solo 235 mm de altura, altos ratios de rendimiento estacional y la tecnología de protección activa nanoe™ X (Generador Mark 2) incorporada de serie.
• Potencia Frigorífica Nominal: 13,60 kW
• Alimentación Eléctrica: Monofásica (230V)
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
Security policy
Delivery policy
Refund policy
The Panasonic PACi NX KIT-140PT3Z5 represents the absolute cusp of the extreme industrial climate of ceiling for commercial and industrial spaces of maximum demand. With extreme power 14.0kW cold and 14.0kW in heat, this sophisticated roof system represents the culmination of japanese technology Panasonic eco-friendly R-32 coolant and nanoeTM technology X series, ideal for industrial megaprojects, large shopping centers, corporate auditoriums and commercial spaces up to 140 square meters.
Stressing for its exceptional efficiency of 228.8% and an outstanding EER of 2.98, this model offers maximum professional performance. Its silent professional functioning 36dB at minimum speed and the nanoeTM X technology series guarantee maximum comfort and quality of the interior air in spaces where extreme air conditioning and absolute elite are required.

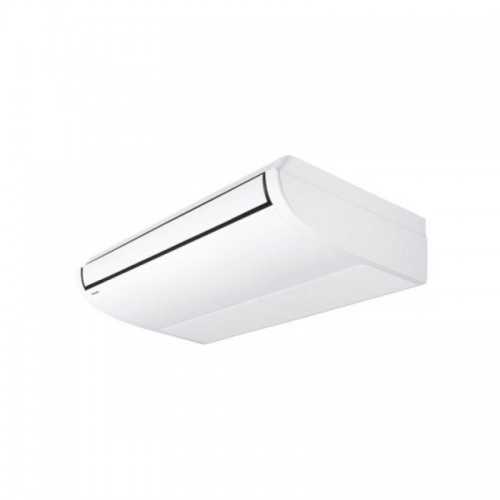

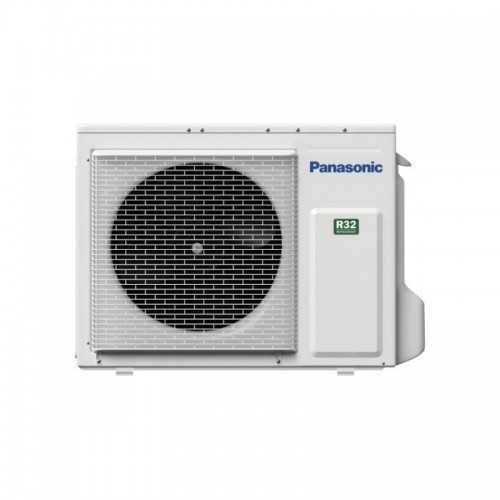

La indoor Unit S-1014PT3E is discreetly integrated into the false ceiling with industrial format 235 x 1590 x 690 mm while the outdoor Unit U-140PZ3E5 ensures robust and maximum performance. Its advanced features include latest generation Inverter+ technology, , horizontal air flow to 9.5m, , cZ-RTC6BL wall control with Bluetooth and optional WiFi connection for intelligent control with recognized japanese reliability and 5-year warranty.
Main features
▪ Extreme Power 14.0kW
14.0kW cold / 14.0kW heat for spaces up to 140m2 with maximum efficiency
🏆 Efficiency 228.8%
EER 2.98 and COP 3.70 for maximum energy efficiency
🌟 nanoeTM X Series
9.6 billion hydroxyl/sec radicals for better air quality
📱 Bluetooth Control
CZ-RTC6BL with Bluetooth and optional WiFi
💨 Distribution 9.5m
Maximum horizontal air flow rate 9.5m for large rooms
🔇 Professional Silence 36dB
Silent professional operation for extreme applications
Technical Specifications
Included Advanced Technologies
✓ nanoeTM X Series
9.6 billion hydroxyl/sec radicals to purify the air
✓ Technology Inverter+
Ultra precise control for maximum energy efficiency
✓ Refrigerant Gas R-32 Ecological
Ecological gas with less environmental impact
✓ Wide Air Distribution
Horizontal flow to 9.5m maximum comfort
Main applications
🏭 Megaprojects
Up to 140m2 with extreme power
🏪 Great Centres
Hypermarkets and megastores
🎭 Auditors XL
Convention and theatre centres
️ Macro Restaurants
Large halls and complexes
Why choose the Panasonic PACi NX KIT-140PT3Z5?
The KIT-140PT3Z5 combines the legendary japanese quality Panasonic with cutting edge technology ideal for megaprojects. With 14.0kW power, efficiency of 228.8%, EER 2.98 and performance of 36dB silent professional, is the perfect solution for spaces that require extreme, efficient and exceptional air quality with japanese reliability and 5 year warranty.
14.0kW
Extreme Power36dB
Professional Silence140m2
Extreme CoverageGet yours Panasonic PACi NX KIT-140PT3Z5!
Japanese quality with extreme ceiling air conditioning and nanoeTM X. Perfect for megaprojects, large shopping centers and auditoriums up to 140m2 that require maximum extreme comfort and air quality.
✓ Extreme 14.0kW
✓ nanoeTM X series
✓ Japanese quality
KIT-140PT3Z5
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PT3E
- Outdoor Unit
- U-140PZ3E5
- I send
- Mando cable CZ-RTC5B
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.000
- Refrigerator capacity (kcal / h)
- 12.040
- Nominal consumption Cold (W)
- Heat capacity (W)
- 14.000
- Heat capacity (Kcal / h)
- 12.040
- Nominal heat consumption (W)
- 3.780
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1590 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 127,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
