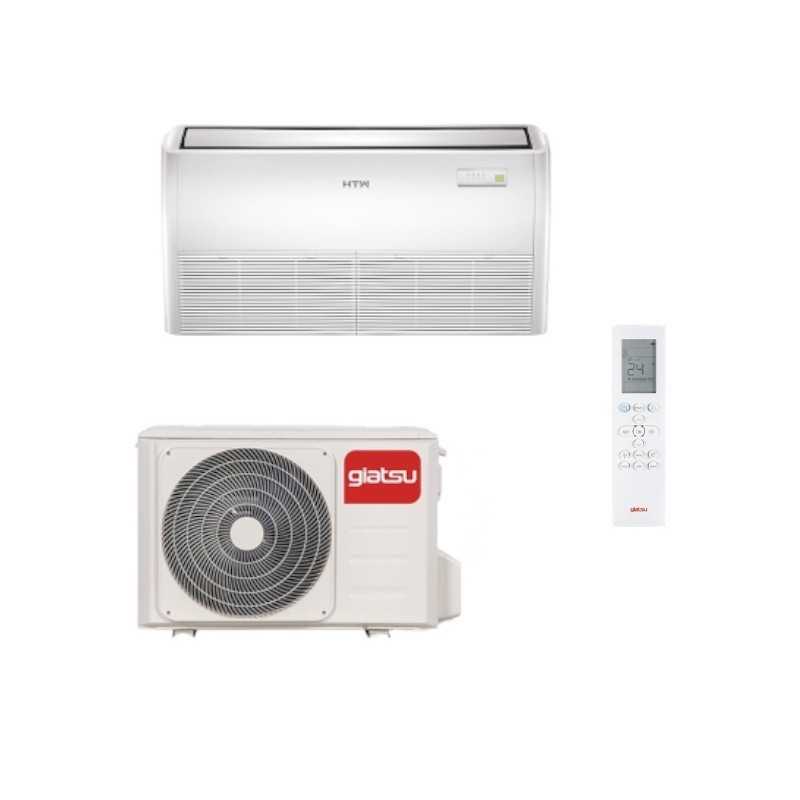

Air conditioning floor-ceiling Giatsu
Office range Admires Plus • Model GIA-CF-18Adm2R32 • Single-phase
Maximum installation flexibility, robustness and intelligent commercial air conditioning They merge in the SPLIT floor-ceiling system Giatsu Gia-cf.-18adm2r32. Belonging to the advanced line Admires Plus of the Office range, this versatile set single-phase set develops a nominal refrigeration power of 5,28 kW (18,000 BTU / H) and a heat power of 5,57 kW (19,000 BTU / H). Your last generation design allows you to install the indoor Unit Horizontally suspended from the roof or vertical resting on the ground, fully adapting to the architecture of your business or office. Equipped with a robust GMCC compressor, DC Inverter fans and anticorrosive protection Golden End Standard, this equipment ensures a continuous thermal flow and a high durability. All this operating under the efficient ecological refrigerant R-32 and backed by one of the most solid market coverage with 5 years warranty in the compressor.
Flexibility Soil-ceiling: Horizontal or vertical installation according to need
High seasonal energy efficiency: A ++ classification in cold and A in heat
Golden Protection End Included SERIES FOR MAXIMUM LIFE SDLEZLE BACK
Premium Commercial Warranty: 3 years Total and 5 years in the compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning Floor-roof GIA-CF-18ADM2R32 Giatsu Admires MONOF.
Referencia: GIA-CF-18ADMR32
€1,132.73
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air conditioning floor-ceiling Giatsu
Office range Admires Plus • Model GIA-CF-18Adm2R32 • Single-phase
Maximum installation flexibility, robustness and intelligent commercial air conditioning They merge in the SPLIT floor-ceiling system Giatsu Gia-cf.-18adm2r32. Belonging to the advanced line Admires Plus of the Office range, this versatile set single-phase set develops a nominal refrigeration power of 5,28 kW (18,000 BTU / H) and a heat power of 5,57 kW (19,000 BTU / H). Your last generation design allows you to install the indoor Unit Horizontally suspended from the roof or vertical resting on the ground, fully adapting to the architecture of your business or office. Equipped with a robust GMCC compressor, DC Inverter fans and anticorrosive protection Golden End Standard, this equipment ensures a continuous thermal flow and a high durability. All this operating under the efficient ecological refrigerant R-32 and backed by one of the most solid market coverage with 5 years warranty in the compressor.
Flexibility Soil-ceiling: Horizontal or vertical installation according to need
High seasonal energy efficiency: A ++ classification in cold and A in heat
Golden Protection End Included SERIES FOR MAXIMUM LIFE SDLEZLE BACK
Premium Commercial Warranty: 3 years Total and 5 years in the compressor
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling Giatsu Admires Plus 18 it represents the perfect solution for medium spaces that require efficient, versatile and silent air conditioning. With a nominal power of 5.28 kW in refrigeration (18,000 BTU / H) and 5.57 KW in heating (19,000 BTU / H), this Office Admiral Plus System combines Advanced DC Inverter technology, compact design and Exceptional Energy Efficiency A ++ / A + to provide optimal comfort in offices, medical consultations, medium-sized commercial spaces and homes seeking the highest quality and benefits.

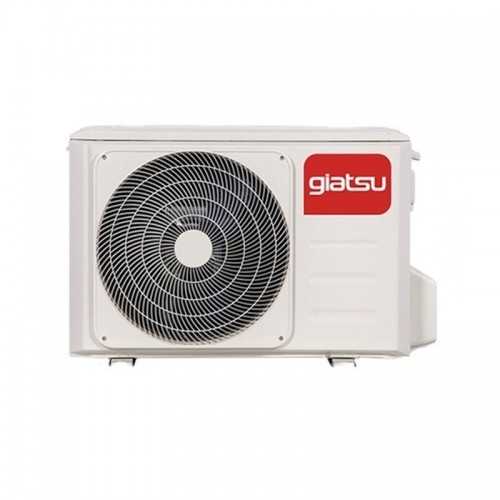

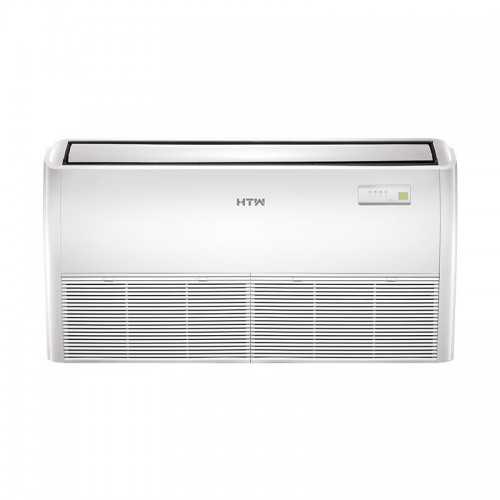

Composed of the indoor Unit GIA-CFI-18ADM2R32 elegant design with compact dimensions 1068 x 675 x 235 mm and outdoor Unit GIA-UO-18ADM2R32 with high reliability GMCC compressor, this system stands out for its intelligent modulation capacity ranging from 2.71 to 5.86 kW in refrigeration and from 2.42 to 6.30 kW in heating. With an air flow of up to 958 m³ / h and ultrasilence sound levels from 24 dB (A), it provides uniform air distribution by guaranteeing homogeneous comfort and discrete operation.
The unit incorporates DC Inverter technology in compressor and fan that guarantees maximum energy efficiency and silent operation, golden end protection for maximum durability in saline and corrosive environments, remote control of serial series and optional wifi connectivity for intelligent management from Smartphone. With selectable temperature range of 16-30 ° C, Ecological Refrigerant R32, and total 3-year warranty with 5 years in Compressor, it offers the perfect combination between advanced technology, energy efficiency and tranquility of residential and commercial projects.
Main features
⚡
DC Inverter Technology
Compressor and fan inverter that guarantees maximum energy efficiency, silent operation and precise control of temperature.
🌟
Exceptional Efficiency A ++
Seer 6.2 (A ++) in refrigeration and SCOP 4.0 (A +) in heating that guarantees maximum energy saving and minimum operational consumption.
🔄
Versatile dual installation
Total flexibility: installation on soil or ceiling with pipe up to 30m in length for maximum architectural adaptability.
🛡️
Golden End Protection
Golden anti-corrosion treatment fin that protects the exchanger against saline and corrosive environments for maximum durability.
📱
Optional Wifi Wifi Wifi
Optional WiFiufo wifi module for smart control from smartphone, advanced programming and remote system monitoring.
🔇
Ultrasilencious 24 dB (A)
Exceptionally silent operation from 24 dB (A) thanks to the DC Inverter technology and optimized acoustic design.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | GIA-CFI-18ADM2R32 + GIA-UO-18ADM2R32 |
| Cold nominal power (min-nom-max) | 2,71 - 5,28 - 5,86 kW (9,250 - 18,000 - 20,000 BTU / H) |
| Nominal power heat (min-nom-max) | 2,42 - 5.57 - 6,30 kW (8,250 - 19,000 - 21,500 BTU / H) |
| Nominal consumption Cold (Lo-nom-Max) | 0.67 - 1.45 - 2,027 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.54 - 1.50 - 1.64 kW |
| Seer / Scop | 6.2 / 4.0 |
| Energy label (cold / heat) | A ++ / A + |
| Dimensions Indoor Unit (Anxalxpr) | 1.068 x 675 x 235 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 805 x 554 x 330 mm |
| Air flow (high / medium / low) | 958/839/723 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 44/41/37/24 dB (A) |
| Exterior sound pressure | 59 dB (A) |
| Refrigerant Gas / Load | R32 / 1,15 kg |
| Maximum tubing length | 30 m |
| Maximum | 20 m |
| Liquid connections / gas | 1/4 "/ 1/2" |
| Weight Indoor Unit Outdoor | 28.0 / 32.5 kg |
| Compressor | GMCC DC Inverter |
| Electrical supply | 220-240V (1 phase ~ 50Hz) |
| Range Running cold / heat | -15 ° C A + 50 ° C / -20 ° C A + 24 ° C |
Benefits of air conditioning Giatsu Admires Plus 18
✓
Perfect for residential and commercial medium spaces
With 5.28 kW (18,000 BTU / H) of power, ideal for 40-60 m² spaces, medium-sized offices, medical consultations, commercial salons and homes that require efficient and silent air conditioning.
✓
DC Inverter technology maximum efficiency
DC Inverter compressor and fan that guarantees Seer 6,2 (A ++) for maximum energy savings with ultrasilencious operation from 24 dB (A).
✓
Installation versatile floor-ceiling
Total installation flexibility on floor or ceiling with pipe up to 30m, adapting perfectly to any architectural configuration without compromising the design.
✓
Golden Protection End and Extended Warranty
Golden End anti-corrosion treatment for maximum durability with 3-year warranty Total and 5 years in compressor that ensures total tranquility.
Why choose the Giatsu Admire Plus 18?
Main applications
🏠
Residential spaces
Salons, main bedrooms, studios and residential spaces of 40-60 m² that require efficient, silent air conditioning and smart control.
🏢
Professional offices
Individual offices, Medical consultations, Small offices and professional spaces that need comfortable environment and silent operation.
🏪
Medium businesses
Shops, boutiques, hairdressers, small restaurants and commercial spaces that require discrete and efficient air conditioning for customer comfort.
ADVANCED DC Inverter Technology
⚡
Maximum energy efficiency
Compressor and DC Inverter fan that automatically adjusts the speed according to the demand, guaranteeing SEER 6.2 (A ++) and maximum energy saving.
🔇
Ultrasilence
DC Inverter technology that eliminates abrupt starts and stops, providing continuous operation from 24 dB (A) for maximum acoustic comfort.
📱
Intelligent control WiFi
Optional WiFiufo wifi module for total remote control from smartphone, 24h programming and system monitoring from anywhere.
Professional air conditioning with advanced technology!
The air conditioning Giatsu Admires Plus 18 Combine DC Inverter technology, maximum efficiency A ++, versatile installation floor-ceiling, golden end protection and optional wifi connectivity to provide the most professional and advanced air conditioning solution for medium space. Quality Giatsu with extended warranty for maximum tranquility.
Ask your personalized budget today!
GIA-CF-18ADMR32
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-CFI-18ADMR32
- Outdoor Unit
- GIA-UO-18ADMR32
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 35 a 45 m2
- Refrigerator capacity (W)
- 5.280
- Refrigerator capacity (kcal / h)
- 4.541
- Nominal consumption Cold (W)
- 1.450
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 5.570
- Heat capacity (Kcal / h)
- 4.790
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1068 x 675 x 235
- Dimensions u.e (anxfxh) mm
- 805 x 330 x 554
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi
