Air conditioning floor-ceiling Giatsu
Office Range Admires Plus • Model GIA-CF-36ADM2R32 • Single-phase
Imposing flow, maximum spatial versatility and high capacity professional air conditioning They are unified excellently in the SPLIT floor-ceiling system Giatsu Gia-cf.-36adm2r32. Belonging to the advanced line Admires Plus of the Office range, this robust single-phase set develops a large nominal refrigeration capacity of 10.55 kW (36,000 BTU / H) and a heat power of 11,14 kW (38,000 BTU / H). Your versatile engineering allows you to set the indoor Unit Horizontally suspended from the roof or vertically supported on the ground, fully adapting to the structural requirements of its commercial premises, a large plant or restoration area. Equipped with a durable GMCC compressor, Fans with DC Inverter technology and anti-corrosive coating Golden End As standard, it guarantees a constant and high-durability thermal flow under the efficient ecological gas R-32, backed by a solid 5 year warranty coverage in the compressor.
Flexibility Floor-ceiling: Horizontal installation on ceiling or vertical low on floor
High commercial energy efficiency: A ++ classification in cold and + in heating
Golden Protection End Included SERIES FOR MAXIMUM LIFE SDLEZLE BACK
Trust Commercial Guarantee: 3 Total Years and 5 years in the compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning floor-roof GIA-CF-36ADM2R32 Giatsu Admires MONOF.
Referencia: GIA-CF-36ADMR32
€1,941.32
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air conditioning floor-ceiling Giatsu
Office Range Admires Plus • Model GIA-CF-36ADM2R32 • Single-phase
Imposing flow, maximum spatial versatility and high capacity professional air conditioning They are unified excellently in the SPLIT floor-ceiling system Giatsu Gia-cf.-36adm2r32. Belonging to the advanced line Admires Plus of the Office range, this robust single-phase set develops a large nominal refrigeration capacity of 10.55 kW (36,000 BTU / H) and a heat power of 11,14 kW (38,000 BTU / H). Your versatile engineering allows you to set the indoor Unit Horizontally suspended from the roof or vertically supported on the ground, fully adapting to the structural requirements of its commercial premises, a large plant or restoration area. Equipped with a durable GMCC compressor, Fans with DC Inverter technology and anti-corrosive coating Golden End As standard, it guarantees a constant and high-durability thermal flow under the efficient ecological gas R-32, backed by a solid 5 year warranty coverage in the compressor.
Flexibility Floor-ceiling: Horizontal installation on ceiling or vertical low on floor
High commercial energy efficiency: A ++ classification in cold and + in heating
Golden Protection End Included SERIES FOR MAXIMUM LIFE SDLEZLE BACK
Trust Commercial Guarantee: 3 Total Years and 5 years in the compressor
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling Giatsu Admires Plus 36 it represents the high-power solution for large commercial and residential spaces that require robust, efficient and reliable air conditioning. With a rated power of 10.55 kW in refrigeration (36,000 BTU / H) and 11.72 kW in heating (40,000 BTU / H), this Office Admiral Plus range incorporates advanced DC Inverter technology, robust design and Exceptional Energy Efficiency A ++ / A + to provide optimal comfort in large offices, wide commercial premises, large restaurants and facilities that demand high performance with stable and efficient operation.

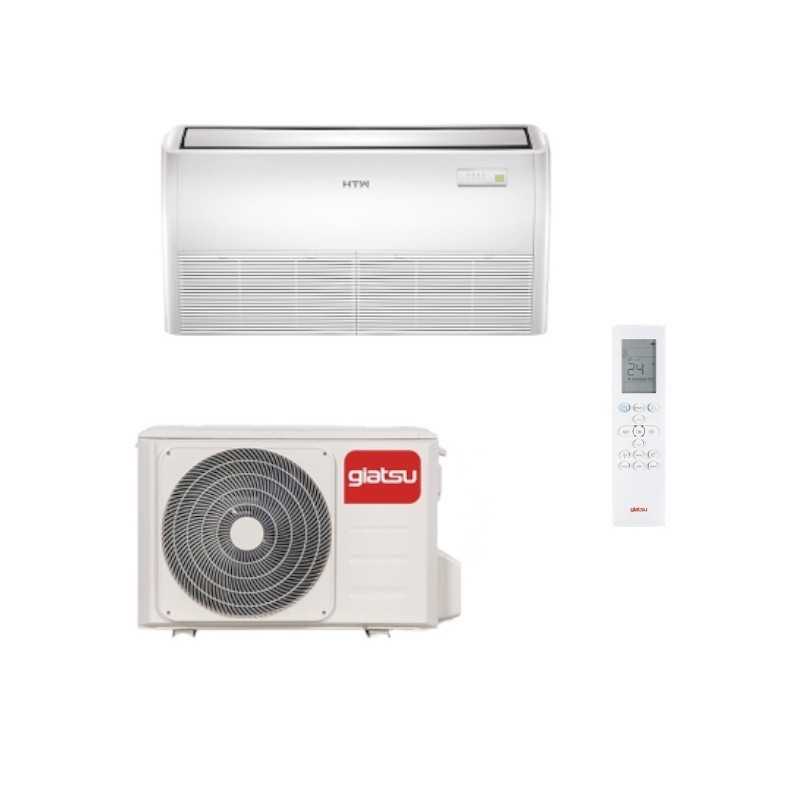

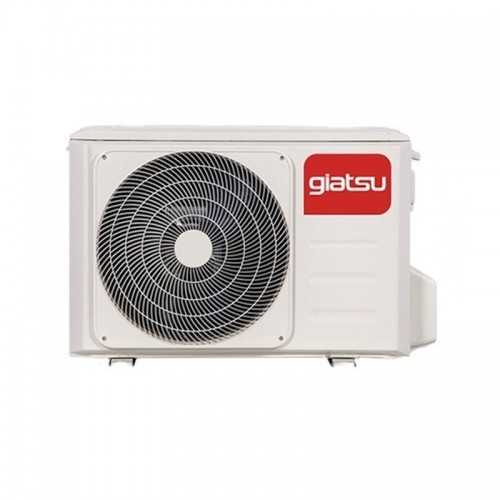

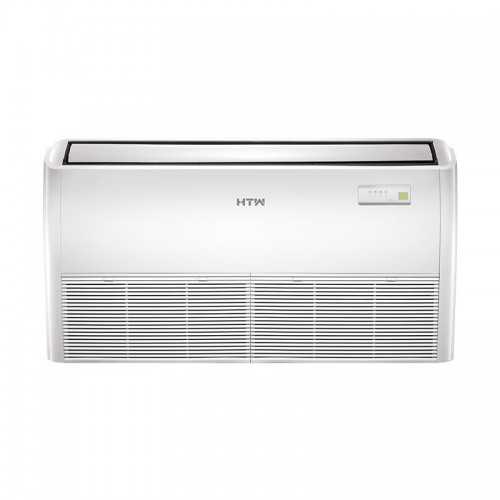

Composed of the indoor Unit GIA-CFI-36ADM2R32 large capacity with dimensions 1650 x 675 x 235 mm and outdoor Unit GIA-UO-36ADM2R32 with high reliability GMCC compressor, this system stands out for its intelligent modulation capacity ranging from 2.73 to 11.43 kW in refrigeration and from 2.78 to 12.78 kW in heating. With a powerful air flow of up to 1,955 m³ / h and sound levels controlled from 39 dB (A), it provides powerful and uniform air distribution by guaranteeing homogeneous comfort on large surfaces with discrete and efficient operation.

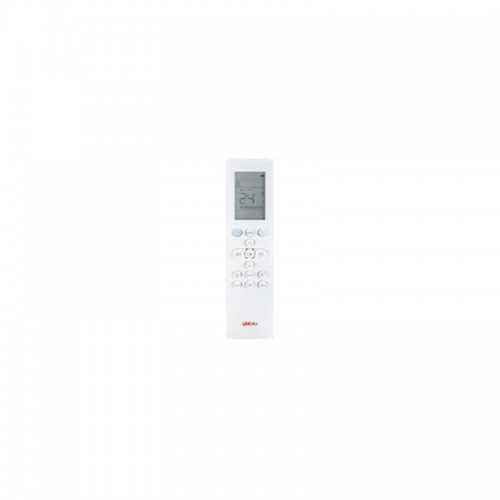

The unit incorporates DC Inverter technology in compressor and fan that guarantees maximum Seer 6.4 (A ++) maximum energy efficiency, golden end protection for maximum durability in demanding commercial environments, serial remote control and optional wifi connectivity Wifiufo for smart management from smartphone. With selectable temperature range of 16-30 ° C, ecological refrigerant R32, maximum 75m pipe length with 30m unevenness and total 3-year warranty with 5 years in compressor, it offers the perfect combination between high power, energy efficiency and reliability For large commercial and residential projects that require maximum performance.
Main features
⚡
High power 10,55 kW
Power of 10.55 kW (36,000 BTU / H) with DC Inverter technology that guarantees effective air conditioning in large commercial and residential spaces.
🌟
Excellent Efficiency A ++
Seer 6.4 (A ++) that guarantees maximum energy savings with optimized consumption for commercial applications of high demand and intensive use.
🌊
Powerful flow 1.955 m³ / h
Powerful air flow Up to 1,955 m³ / h that guarantees effective and uniform distribution on large commercial and residential surfaces.
📏
75m Commercial Installation
Maximum pipe length of 75m and 30m indise that allows complex facilities in large commercial buildings and demanding projects.
🛡️
Golden Protection Commercial End
Golden End anti-corrosion treatment Specially designed for intensive commercial use that protects against demanding environments.
📱
WiFi Wifi Wifiufo
WiFi WiFi Wifiufo module designed for commercial use with total remote control, 24h programming and professional monitoring.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | GIA-CFI-36ADM2R32 + GIA-UO-36ADM2R32 |
| Cold nominal power (min-nom-max) | 2,73 - 10,55 - 11,43 kW (9,300 - 36,000 - 39,000 BTU / H) |
| Nominal power heat (min-nom-max) | 2,78 - 11,72 - 12,78 kW (9,600 - 40,000 - 43,600 BTU / H) |
| Nominal consumption Cold (Lo-nom-Max) | 0.90 - 3,90 - 4,25 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.80 - 3,35 - 3,95 kW |
| Seer / Scop | 6.4 / 4.1 |
| Energy label (cold / heat) | A ++ / A + |
| Dimensions Indoor Unit (Anxalxpr) | 1.650 x 675 x 235 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 946 x 810 x 410 mm |
| Air flow (high / medium / low) | 1.955 / 1,728 / 1,504 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 51.5 / 48/45/39 dB (A) |
| Exterior sound pressure | 63 dB (A) |
| Refrigerant Gas / Load | R32 / 2.4 kg |
| Maximum tubing length | 75 m |
| Maximum | 30 m |
| Liquid connections / gas | 3/8 "/ 5/8" |
| Weight Indoor Unit Outdoor | 41.5 / 66.9 kg |
| Compressor | GMCC DC Inverter |
| Electrical supply | 220-240V (1 phase ~ 50Hz) |
| Range Running cold / heat | -15 ° C A + 50 ° C / -20 ° C A + 24 ° C |
Benefits of air conditioning Giatsu Admires Plus 36
✓
Ideal for large commercial and residential spaces
With 10.55 kW (36,000 BTU / H) of power, perfect for spaces of 100-140 m², large offices, spacious restaurants, large shops and large-area housing that require powerful air conditioning.
✓
Excellent Energy Efficiency A ++
SEER 6.4 (A ++) that guarantees maximum energy savings in high demand applications with optimized consumption for intensive and continuous commercial use.
✓
Flexible commercial installation up to 75m
Maximum pipe length of 75m and 30m unevenness that allows complex facilities in large commercial buildings and demanding architectural projects.
✓
DC Inverter Technology Robust
Compressor GMCC DC Inverter Designed for intensive commercial use that guarantees stable operation, exceptional durability and minimum maintenance.
Why choose the Giatsu Admire Plus 36?
Main applications
🏠
Large homes
Large single-family houses, spacious chalets, luxury floors and residential spaces of 100-140 m² that require powerful and efficient air conditioning.
🏢
Large offices
Spacious corporate offices, large conference rooms, business centers and professional spaces with high occupancy density.
🏪
Large commercial premises
Large stores, spacious restaurants, gyms, event rooms and commercial spaces that require powerful air conditioning for customer comfort.
Advanced commercial technology
⚡
DC commercial inverter
Compressor GMCC DC Inverter Robust that provides precise modulation of power, maximum efficiency and stable operation for intensive commercial use.
🛡️
Golden End Protection
Specialized anti-corrosion treatment that protects against demanding commercial environments, moisture, salt and contaminants for maximum operating durability.
📱
Commercial wifi control
Optional WiFiufo wifi module for professional commercial management with advanced programming, total remote control and continuous system monitoring.
Commercial climate control of high power and maximum reliability!
The air conditioning Giatsu Admires Plus 36 combines high power of 10.55 kW (36,000 BTU / H), excellent SEE 6.4 (A ++) efficiency, DC Inverter Technology, Flexible Installation up to 75m, Golden End Protection and Optional WiFi Connectivity to provide the solution of More robust and efficient air conditioning for large commercial and residential spaces. Office range with extended warranty for maximum tranquility in intensive commercial applications.
Ask your budget for great business projects today!
GIA-CF-36ADMR32
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-CFI-36ADMR32
- Outdoor Unit
- GIA-UO-36ADMR32
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 90 a 100 m2
- Refrigerator capacity (W)
- 10.550
- Refrigerator capacity (kcal / h)
- 9.073
- Nominal consumption Cold (W)
- 3.900
- Energy class (cold)
- A++
- SEER
- Heat capacity (W)
- 11.720
- Heat capacity (Kcal / h)
- 10.079
- Nominal heat consumption (W)
- 3.350
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1650 x 675 x 235
- Dimensions u.e (anxfxh) mm
- 946 x 410 x 810
- Weight Indoor Unit (Kg)
- 41,5
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 121,5
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
New
