Ground-ceiling Haier Ac105s2sh2fa (pm)
Professional solution of great power For versatile assembly on soil or ceiling. This 9.50 kW Inverter system integrates technology increase for a total distribution and is compatible with UVC sterilization optional. Classification To ++, Optimized operation, 5-speed fan and connectivity Wi-Fi optional For intelligent management in large premises.
• Installation: floor or ceiling
• A ++ efficiency
• Integrable Wi-Fi
• Increased flow
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Floor-ceiling 105 HC Monof. Haier Health-Connect R32 Air conditioning
Referencia: KIT AC105S2SH1FA (H)M
€1,976.78
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ground-ceiling Haier Ac105s2sh2fa (pm)
Professional solution of great power For versatile assembly on soil or ceiling. This 9.50 kW Inverter system integrates technology increase for a total distribution and is compatible with UVC sterilization optional. Classification To ++, Optimized operation, 5-speed fan and connectivity Wi-Fi optional For intelligent management in large premises.
• Installation: floor or ceiling
• A ++ efficiency
• Integrable Wi-Fi
• Increased flow
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling 105 HC Haier Health-connect it represents the professional solution for large commercial and residential spaces that require powerful, reliable and versatile air conditioning. With a nominal power of 9.5 kW in refrigeration and up to 10.5 kW in heating, this HEALTH-CONNECT range system incorporates advanced rotating double compressor technology that guarantees maximum efficiency, stable operation and exceptional durability for use Intensive in large offices, spacious commercial premises and large area housing.

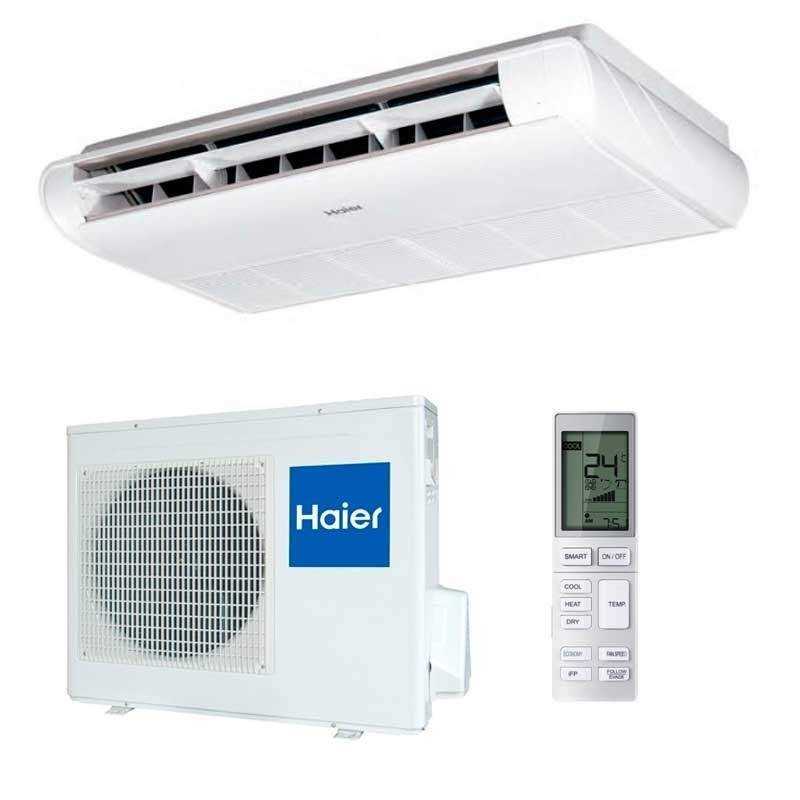

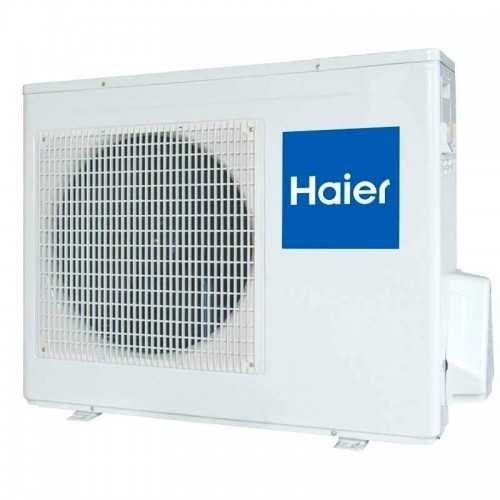

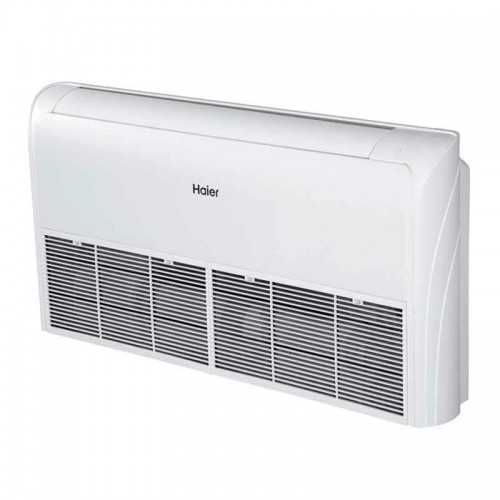

Composed of the indoor Unit AC105S2SH2FA (H) of great capacity with dimensions 1.325 x 230 x 680 mm and available with outer units 1U105S2SS2FA (single-phase) or 1U105S2SS1FB (three-phase) with technology Advanced double rotary inverter compressor, this system stands out for its intelligent modulation capacity ranging from 2.5 to 10.0 kW in refrigeration and from 3.0 to 11.0 kW in heating. With an exceptional treated air volume of up to 1,600 m³ / h and sound levels controlled from 37 dB (A), it provides powerful and uniform air distribution by covering large surfaces with homogeneous comfort.
The unit incorporates Health-Connect technology with integrated Wi-Fi for professional control from Smartphone, UVC Sterilization System for Healthy Air in Commercial Spaces, External Air Function for Continuous Ventilation and Adjustable Fan Speeds. With installation capacity on floor or ceiling up to 4.2 meters high, maximum tubing length of 50 meters, availability in single-phase versions (220-240V) and three-phase (380-415V), and A ++ energy efficiency, it offers maximum Flexibility for demanding commercial and residential facilities.
Main features
⚡
Commercial power 9,5 kW
Power of 9.5 kW with double rotary inverter compressor designed for large commercial and residential applications with intensive use.
🔌
Single-phase and three-phase
Available in single-phase (220-240V) and three-phase (380-415V) versions to suit any commercial and residential electrical installation.
🌊
Powerful flow 1,600 m³ / h
Exceptional treated air volume up to 1,600 m³ / h that guarantees effective air conditioning in large commercial and residential spaces.
📱
Health-Connect Comercial
Professional Wi-Fi control for remote commercial management, advanced programming and continuous system monitoring for intensive use.
🦠
Commercial UVC sterilization
High capacity UVC sterilization system specially designed for commercial spaces with high occupancy density.
🌿
Optimized A ++ efficiency
SEER 6,11 (A ++) that guarantees maximum energy performance and minimum operational consumption for intensive commercial applications.
Technical specifications
| Feature | Single-phase | Three-phase |
|---|---|---|
| Pattern | AC105S2SH2FA (H) + 1U105S2SS2FA | AC105S2SH2FA (H) + 1U105S2SS1FB |
| Cold nominal power (min-nom-max) | 2,50 - 9,50 - 10.00 kW | 2,50 - 9,50 - 10.00 kW |
| Nominal power heat (min-nom-max) | 3,00 - 10,20 - 10,50 kW | 3.00 - 10,50 - 11,00 kW |
| Nominal consumption Cold (Lo-nom-Max) | 0.50 - 3,13 - 4,00 kW | 0.50 - 3,25 - 4,00 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.50 - 3,07 - 4,00 kW | 0.50 - 3,10 - 4,00 kW |
| EER / COP | 3.04 / 3,32 | 2.90 / 3.50 |
| Seer / Scop | 6,11 / 3,80 | 6,11 / 3,91 |
| Energy label (cold / heat) | A ++ | A ++ |
| Annual consumption refrigeration / heating | 549 / 2,750 kWh / year | 557 / 2,228 kWh / year |
| Dimensions Indoor Unit (Anxprxal) | 1.325 x 230 x 680 mm | |
| Dimensions Outdoor Unit (Anxprxal) | 920 x 372 x 765 mm | |
| TREATED AIR VOLUME (High / Medium / Low / Quiet) | 1,600 / 1,400 / 1,280 / 1,160 m³ / h | |
| Internal sound pressure (high / medium / low / quiet) | 47/43/41/37 dB (A) | |
| Exterior sound pressure | 53 dB (A) | 54 dB (A) |
| Electrical supply | 1 / 220-240v / 50 / 60hz | 3 / 380-415v / 50 / 60hz |
| Refrigerant Gas / Load | R32 / 1.70 kg | |
| Maximum tubing length | 50 m | |
| Difference maximum height | 30 m | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Weight Indoor Unit Outdoor | 33.5 / 60.0 kg | 33.5 / 61.0 kg |
| Compressor type | Double rotary inverter | |
| Range Running cold / heat | -20 ° C A + 46 ° C / -20 ° C A + 24 ° C | |
Benefits of air conditioning floor-ceiling 105 HC
✓
Solution for large commercial and residential spaces
With 9.5 kW of power, ideal for spaces of 120-150 m², large housing, spacious offices, conference rooms, restaurants and commercial premises that require powerful air conditioning.
✓
Total electrical flexibility
Available in single-phase (220-240V) and three-phase versions (380-415V) to adapt to any residential or commercial electrical installation according to specific regulations.
✓
Ultra-flexible installation up to 50 meters
Maximum tubing length of 50m and outrage of 30m that allows complex facilities in multi-plant buildings and demanding architectural configurations.
✓
Double compressor for intensive commercial use
Rotary double compressor technology designed for continuous commercial operation, guaranteeing exceptional durability and reduced maintenance.
Why choose the air conditioning floor-ceiling 105 HC?
Main applications
🏠
Large homes
Large single-family houses, chalets, luxury floors and large-area housing that require powerful, discreet and efficient air conditioning.
🏢
Large offices
Corporate offices, large conference rooms, spacious offices and professional spaces that need continuously controlled environment.
🏪
Commercial premises
Large stores, restaurants, event halls, spacious clinics and commercial spaces with high density occupancy and intensive use.
Commercial Health-Connect Technology
📱
Remote Professional Management
Professional control from multiple devices with specific functions for commercial management: complex hours, multizone control and multi-user access.
📊
Commercial monitoring
Detailed analysis of energy consumption, system performance and predictive diagnostics for continuous optimization in commercial environments.
🛡️
Predictive maintenance
Advanced alert system that automatically notifies maintenance needs and optimizations to minimize unscheduled stops.
High performance commercial solution!
Air conditioning floor-ceiling 105 HC combines 9.5 kW commercial power, double compressor inverter for intensive use, single-phase electric flexibility / three-phase, ultra-flexible installation up to 50m, commercial health-connect technology and healthy air UVC To provide the most robust and versatile air conditioning for large spaces. The professional choice for demanding projects.
Ask your budget today for commercial projects!
KIT AC105S2SH1FA (H)M
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- 1U105S2SQ1FA
- I send

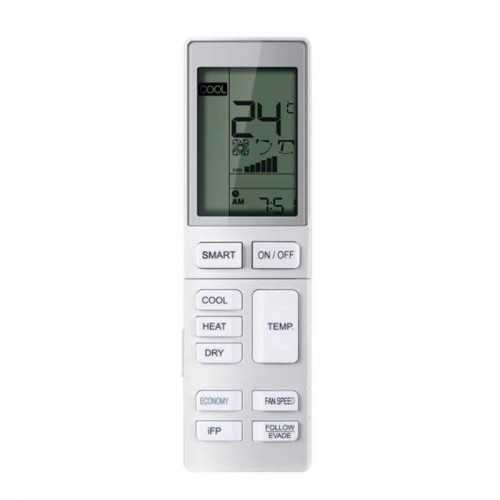

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 3.130
- Energy class (cold)
- A++
- SEER
- 6,11
- Heat capacity (W)
- 10.200
- Heat capacity (Kcal / h)
- 8.772
- Nominal heat consumption (W)
- 3.070
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1325 x 230 x 680
- Dimensions u.e (anxfxh) mm
- 920 x 372 x 760
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 98,5
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
