The ceiling LG Comfort + 60 single-phase
Light industrial solution of maximum capacity For suspended installation under ceiling, optimal for climate to large commercial surfaces and ships. This robust 14.4 kW single-phase system uses ecological refrigerant A-32 For exceptional seasonal performance. It offers a powerful air flow of 28.0 m³ / min distributed in a homogeneous way, optimized operation and total professional durability.
• Refrigerator power: 14,40 kW
• Air flow: 28.0 m³ / min
• Indoor Unit: UV60F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 60 MONOF.
Referencia: TECCONFORT+ 60M
€3,819.39
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 60 single-phase
Light industrial solution of maximum capacity For suspended installation under ceiling, optimal for climate to large commercial surfaces and ships. This robust 14.4 kW single-phase system uses ecological refrigerant A-32 For exceptional seasonal performance. It offers a powerful air flow of 28.0 m³ / min distributed in a homogeneous way, optimized operation and total professional durability.
• Refrigerator power: 14,40 kW
• Air flow: 28.0 m³ / min
• Indoor Unit: UV60F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning ceiling LG model 60 (UV60F.N20) represents the cusp of the industrial range with its 14,40 kW refrigeration capacity and heating of 16,80 kW. This System of the Free Combination Comfort + range incorporates indoor Unit of maximum industrial format with robust dimensions 1.600 x 235 x 690 mm and Maximum capacity Inverter technology that guarantees exceptional performance for heavier industrial applications, logistic megancentros and spaces that require maximum intensive and continuously available air conditioning.

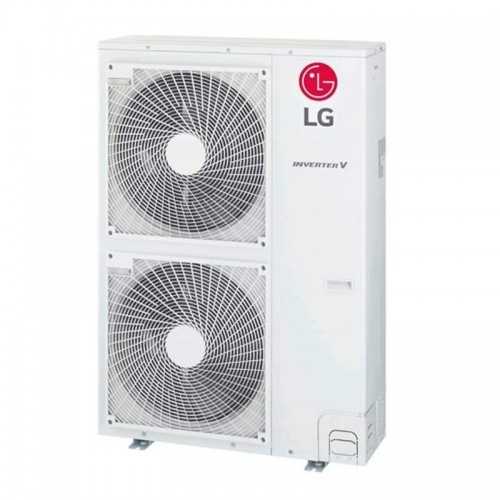

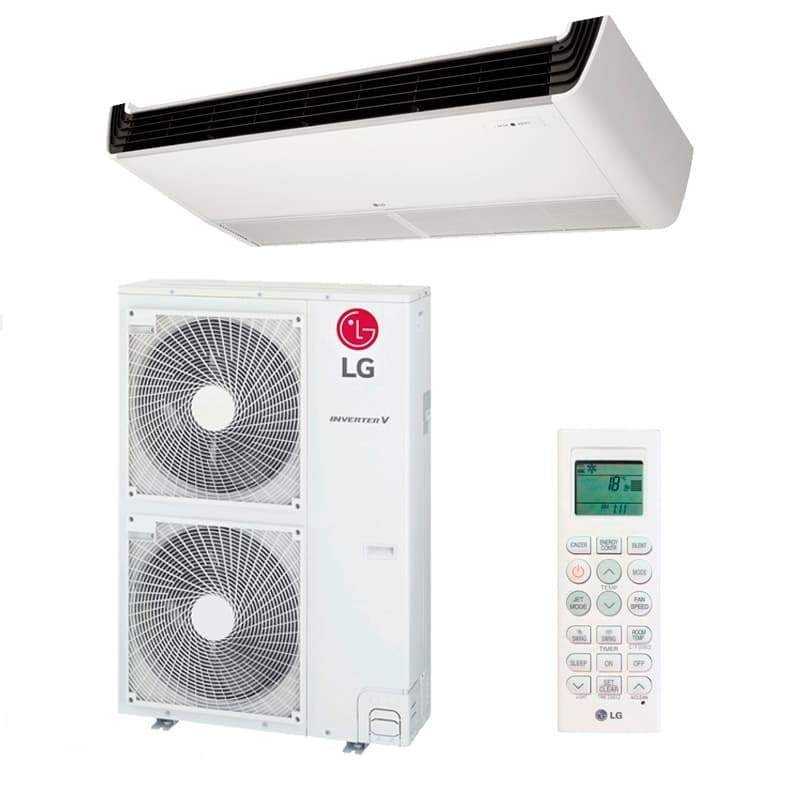

Composed of the indoor Unit UV60F.N20 maximum absolute capacity and the outdoor Unit UUD1.U30 with double fan for single-phase version or UUD3.U30 for three-phase version, this system stands out for its extreme industrial modulation capacity ranging from 5.80 to 15.55 kW in refrigeration and from 6.70 to 18,14 KW in heating. With a massive treated air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides maximum air distribution by covering spaces of up to 180 m² with homogeneous comfort.
The unit incorporates ecological R32 coolant with 3.0 kg preload, maximum industrial refrigeration system 9.52 / 15,88 mm and flexible installation capability with maximum pipe length of 85 meters. Designed specifically for the most extreme industrial applications, it offers maximum reliability, durability and power for complex commercial facilities in industrial megaplantas, massive distribution centers, large commercial complexes and professional spaces demanding the highest air conditioning capacity in the market.
Main features
🏭
Absolute maximum power 14.4KW
Absolute maximum capacity of 14.40 kW refrigeration / 16,80 kW Heating for the largest industrial applications up to 180 m².
⚡
Extreme modulation 5.8-18.1kW
Extreme industrial modulation range from 5.80 to 18.14 kW for maximum adaptability to extreme variable demands.
🔌
Maximum industrial configuration
Single and three-phase version for more robust and demanding industrial electrical infrastructures.
🌊
Maximum distribution 28 m³ / min
Maximum air flow of 28.0 m³ / min for mass distribution on the largest industrial surfaces.
🔄
Extreme industrial use
Specific design for the most extreme industrial applications with continuous operation 24/7 under limit conditions.
🎯
COP 3.00 Industrial
Industrial performance coefficient optimized for maximum power with controlled efficiency.
Technical specifications
| Feature | Single-phase | Three-phase |
|---|---|---|
| Pattern | UV60F.N20 + UUD1.U30 | UV60F.N20 + UUD3.U30 |
| Cold power (min-nom-max) | 5,80 - 14,40 - 15,55 kW | 5,80 - 14,40 - 15,55 kW |
| Power heat (min-nom-max) | 6,70 - 16,80 - 18,14 kW | 6,70 - 16,80 - 18,14 kW |
| Cold consumption (min-nom-max) | 1,10 - 5,33 - 5,97 kW | 1,10 - 5,33 - 5,97 kW |
| Heat consumption (min-nom-max) | 1,10 - 5,60 - 6,44 kW | 1,10 - 5,60 - 6,44 kW |
| Eer / seer | 2.70 / 5,70 | 2.70 / 5,70 |
| COP / SCOP | 3.00 / 4,10 | 3.00 / 4,10 |
| Energy label (cold / heat) | - / - | - / - |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm | |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm | |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min | |
| Internal sound pressure (high / medium / low) | 48/44/40 dB (A) | |
| Exterior sound pressure | 54 dB (A) Cold / 54 dB (A) Heat | 54 dB (A) Cold / 54 dB (A) Heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg | |
| Refrigerant Gas / Preload | R32 / 3.0 kg | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Maximum length pipe | 85 meters | |
| Maximum | 30 meters | |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C | |
Benefits LG Uv60f.n20
✓
Absolute maximum power for megaapplications
With 14.4kw power, the definitive solution for industrial megaplantas, large logistics complexes and spaces of 160-180 m².
✓
Extreme modulation up to 18.1kw in heating
Extreme modulation range that guarantees perfect adaptation to the most variable and extreme thermal demands of the market.
✓
Industrial construction for extreme conditions
Design and specific components for the most extreme industrial applications with maximum resistance and exceptional durability.
✓
The maximum capacity available in roof format
Represent the top of the range LG with the highest power available in ceiling units for applications without limitations.
Main applications
🏭
Industrial Megaplantas
Industrial Megaplantas, Massive Production Complexes, Heavy Industrial Facilities and Spaces that require maximum capacity.
📦
Logistic megayntros
Logistic centers of maximum magnitude, megaalmacenes, continental distribution hubs and large-scale deposits.
🏪
Massive commercial complexes
Commercial Megayntros, Hypermarkets of Great Area, Mass Retail Complexes and Maximum Scale Commercial Spaces.
Why choose the LG Uv60f.n20?
The maximum industrial power available!
The LG UV60F.N20 represents the cusp of industrial air conditioning with maximum absolute power of 14.4kw, extreme modulation up to 18.1kw, construction for limit conditions and dual electric versatility to provide the definitive solution in industrial megaplantas, large complex Logistics and spaces of up to 180 m² that demand performance without limitations.
Consult for projects of maximum industrial size!
TECCONFORT+ 60M
Data sheet
- Brand
- LG
- Indoor Unit
- UV60F.N20
- Outdoor Unit
- UUD1.U30
- I send

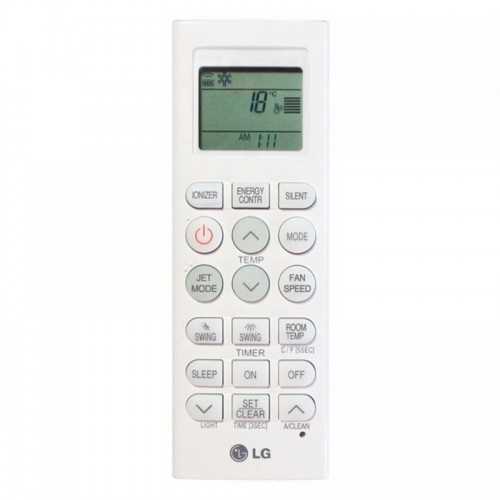

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.400
- Refrigerator capacity (kcal / h)
- 12.384
- Nominal consumption Cold (W)
- 5.330
- SEER
- 5,70
- Heat capacity (W)
- 16.800
- Heat capacity (Kcal / h)
- 14.448
- Nominal heat consumption (W)
- 5.600
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
