Panasonic PACi NX KIT-36PT3Z5 Monofásico
Sistema comercial de techo premium de la serie PACi NX Standard, optimizado con refrigerante ecológico R-32. Diseñado específicamente para proporcionar una distribución del aire grande y amplia en salas de gran volumen. Destaca por su diseño delgado de solo 235 mm de altura, una clasificación estacional de eficiencia A++ y la incorporación de serie de la tecnología activa nanoe™ X (Generador Mark 2).
• Potencia Frigorífica Nominal: 3,50 kW
• Eficiencia Estacional (SEER / SCOP): 7,30 A++ / 4,60 A++
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Panasonic PACi NX KIT-36PT3Z5 Monof.
Referencia: KIT-36PT3Z5
€1,389.71
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic PACi NX KIT-36PT3Z5 Monofásico
Sistema comercial de techo premium de la serie PACi NX Standard, optimizado con refrigerante ecológico R-32. Diseñado específicamente para proporcionar una distribución del aire grande y amplia en salas de gran volumen. Destaca por su diseño delgado de solo 235 mm de altura, una clasificación estacional de eficiencia A++ y la incorporación de serie de la tecnología activa nanoe™ X (Generador Mark 2).
• Potencia Frigorífica Nominal: 3,50 kW
• Eficiencia Estacional (SEER / SCOP): 7,30 A++ / 4,60 A++
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
Security policy
Delivery policy
Refund policy
The Panasonic PACi NX KIT-36PT3Z5 establishes the reference in professional air conditioning of compact ceiling for commercial and residential spaces of maximum demand. With efficient power 3.6kW cold and 3.5kW in heat, this sophisticated roof system represents the culmination of japanese technology Panasonic eco-friendly R-32 coolant and nanoeTM technology X series, ideal for small offices, medical offices, boutiques and residential spaces up to 35 square meters.
Stressing for its exceptional energy rating A++ and an outstanding SEER 7.2, this model maintains minimal energy consumption 171 kWh annual cold. Its ultra silent operation 28dB at minimum speed and the nanoeTM X technology series guarantee maximum comfort and quality of the interior air in spaces where discreet and elite air conditioning is required.

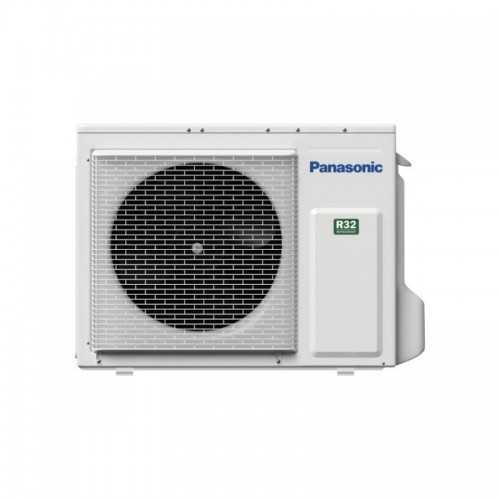

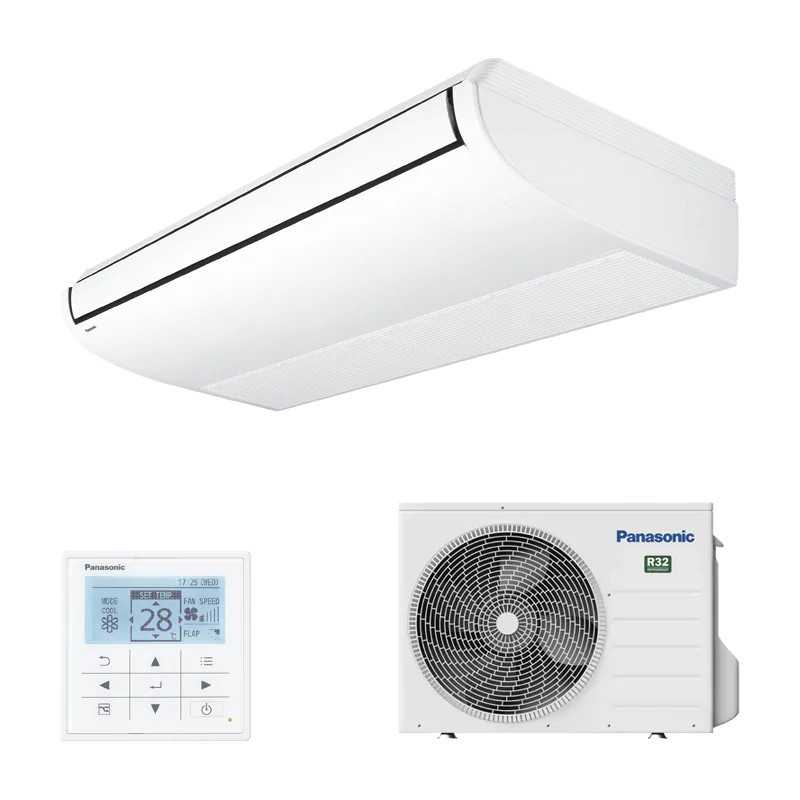

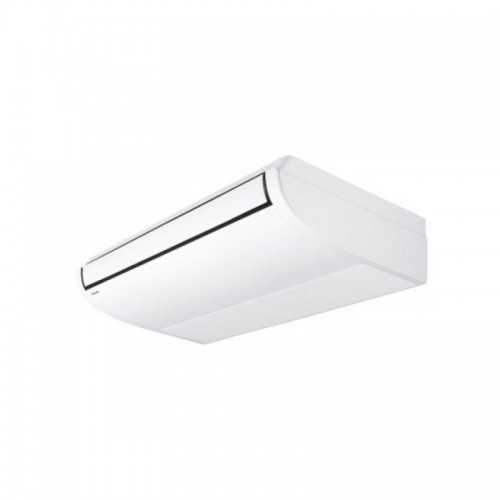

La indoor Unit S-3650PT3E is discreetly integrated into the false roof with compact format 235 x 960 x 690 mm while the outdoor Unit U-36PZ3E5 ensures robust and efficient operation. Its advanced features include latest generation Inverter+ technology, , horizontal air flow to 9.5m, , cZ-RTC6BL wall control with Bluetooth and optional WiFi connection for intelligent control with recognized japanese reliability and 5-year warranty.
Main features
▪ Compact Power 3.6kW
3.6kW cold / 3.5kW heat for spaces up to 35m2 with maximum efficiency
🏆 Efficiency A++
SEER 7.2 and SCOP 4.4 maximum efficiency - Only 171 kWh annual
🌟 nanoeTM X Series
9.6 billion hydroxyl/sec radicals for better air quality
📱 Bluetooth Control

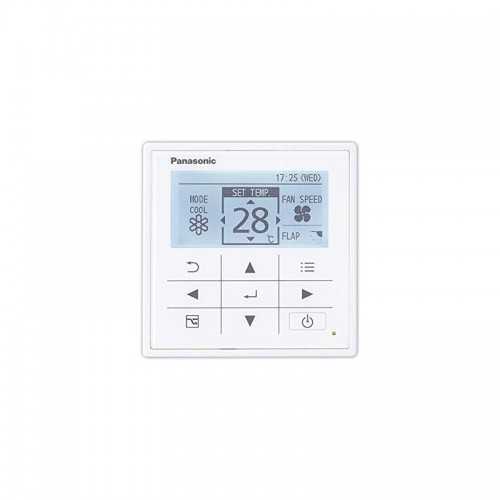

CZ-RTC6BL with Bluetooth and optional WiFi
💨 Distribution 9.5m
Maximum horizontal air flow rate 9.5m for large rooms
🔇 Ultra Silence 28dB
Ultra silent operation for residential applications
Technical Specifications
Included Advanced Technologies
✓ nanoeTM X Series
9.6 billion hydroxyl/sec radicals to purify the air
✓ Technology Inverter+
Ultra precise control for maximum energy efficiency
✓ Refrigerant Gas R-32 Ecological
Ecological gas with less environmental impact
✓ Wide Air Distribution
Horizontal flow to 9.5m maximum comfort
Main applications
🏢 Small offices
Up to 35m2 with maximum comfort
🏥 Consultants
Medical clinics and clinics
👗 Boutiques
Shops and commercial spaces
▪ Residencial Premium
High-quality housing
Why choose the Panasonic PACi NX KIT-36PT3Z5?
The KIT-36PT3Z5 combines the legendary japanese quality Panasonic with cutting edge technology ideal for compact spaces. With 3.6kW power, SEER 7.2, A++ rating and operation of 28dB ultra silent, is the perfect solution for spaces that require discreet, efficient and air-quality air conditioning with japanese reliability and 5 year warranty.
3.6kW
Compact Power28dB
Ultra Quiet35m2
Ideal CoverageGet yours Panasonic PACi NX KIT-36PT3Z5!
Japanese quality with compact ceiling air conditioning and nanoeTM X. Perfect for small offices, offices and residential spaces up to 35m2 that require maximum comfort and air quality.
✓ Power 3.6kW compact
✓ nanoeTM X series
✓ Japanese quality
KIT-36PT3Z5
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-3650PT3E
- Outdoor Unit
- U-35PZ3E5
- I send
- Mando cable CZ-RTC5B
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 25 a 35 m2
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- Energy class (cold)
- A++
- SEER
- 7,20
- Heat capacity (W)
- 3.500
- Heat capacity (Kcal / h)
- 3.010
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,4
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 960 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 824 x 299 x 619
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi
