Air conditioning floor-ceiling Giatsu
Office range Admires Plus • Model GIA-CFT3-48ADM2R32 • Three-phase
Three-phase balanced feeding, massive flow and light industrial climate control of maximum power Define the Silo-ceiling SPLIT system Giatsu Gia-cft3-48adm2r32. Belonging to the advanced line Admires Plus of the Office range, this powerful three-phase set distributes the electric charge suitably in its phases, developing a strong nominal refrigeration capacity of 14.07 kW (48,000 BTU / H) and a heat power of 16,12 kW (55,000 BTU / H). Your dual engineering allows you to install the indoor Unit Horizontally suspended under the roof or vertical supported on the ground, fully adapting to the architecture of large commercial premises, diaphanous offices or industrial warehouses. Equipped with a robust GMCC compressor, fans with DC Inverter technology and anti-corrosive coating Golden End As standard, it guarantees a constant and high-durability thermal flow under the efficient ecological gas R-32, backed by a solid 5 year warranty coverage in the compressor.
Three-phase connection (380-415V): Perfect load distribution for industrial uses
Mounting flexibility: Horizontal coupling on ceiling or vertical low on floor
Golden Protection End of Series in Exchangers Against Saline and Acid Corrosion
Premium Commercial Warranty Giatsu: 3 years Total and 5 years in the compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning Floor-roof GIA-CFT3-48ADM2R32 Giatsu Admires Trif.
Referencia: GIA-CFT3-48ADM2R32
€2,488.52
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air conditioning floor-ceiling Giatsu
Office range Admires Plus • Model GIA-CFT3-48ADM2R32 • Three-phase
Three-phase balanced feeding, massive flow and light industrial climate control of maximum power Define the Silo-ceiling SPLIT system Giatsu Gia-cft3-48adm2r32. Belonging to the advanced line Admires Plus of the Office range, this powerful three-phase set distributes the electric charge suitably in its phases, developing a strong nominal refrigeration capacity of 14.07 kW (48,000 BTU / H) and a heat power of 16,12 kW (55,000 BTU / H). Your dual engineering allows you to install the indoor Unit Horizontally suspended under the roof or vertical supported on the ground, fully adapting to the architecture of large commercial premises, diaphanous offices or industrial warehouses. Equipped with a robust GMCC compressor, fans with DC Inverter technology and anti-corrosive coating Golden End As standard, it guarantees a constant and high-durability thermal flow under the efficient ecological gas R-32, backed by a solid 5 year warranty coverage in the compressor.
Three-phase connection (380-415V): Perfect load distribution for industrial uses
Mounting flexibility: Horizontal coupling on ceiling or vertical low on floor
Golden Protection End of Series in Exchangers Against Saline and Acid Corrosion
Premium Commercial Warranty Giatsu: 3 years Total and 5 years in the compressor
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling Giatsu Admires Plus 48 three8 it represents the industrial solution for large commercial spaces and facilities requiring high-power air conditioning, maximum reliability and optimized energy efficiency. With a nominal power of 14.07 kW in refrigeration (48,000 BTU / H) and 16,12 kW in heating (55,000 BTU / H), this Office Admiral Plus range incorporates ADVANCE DC Inverter technology, feeding Three-phase 380-415V and robust design to provide optimal comfort in large corporate offices, shopping centers, spacious restaurants and industrial facilities that demand maximum performance and continuous operation.

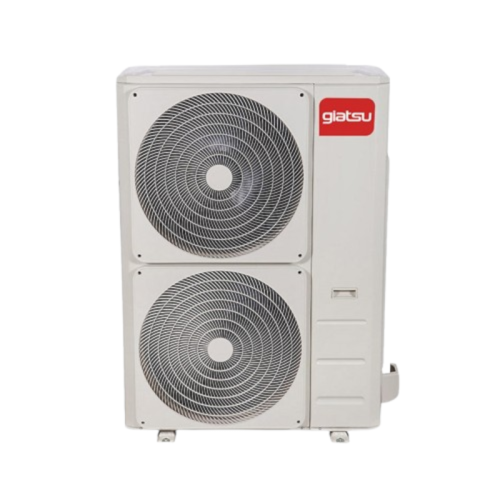

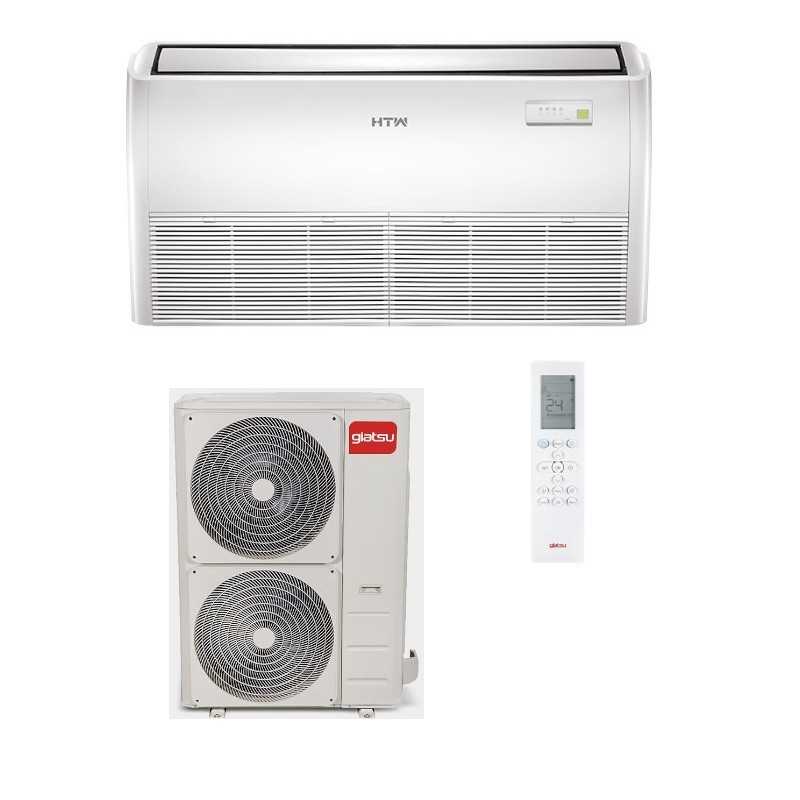

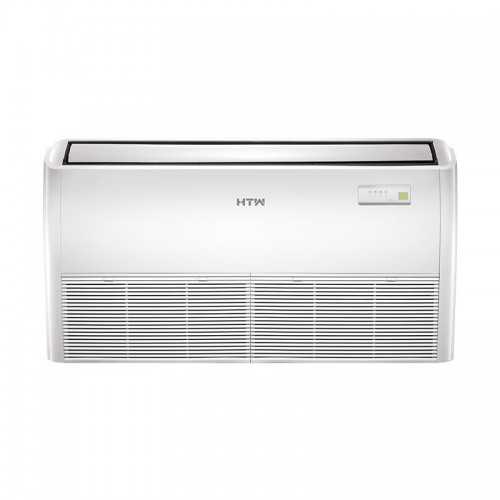

Composed of the indoor Unit GIA-CFI-48ADM2R32 large capacity with dimensions 1650 x 675 x 235 mm and outdoor Unit three-phase GIA-UOT3-48AdM2R32 with GMCC compressor of high industrial reliability, this system stands out for its intelligent modulation capacity ranging from 3.52 to 15,24 kW in refrigeration and from 4:10 to 17.59 kW in heating. With an exceptional industrial air flow of up to 2,100 m³ / h and sound levels controlled from 35 dB (A), it provides massive and uniform air distribution by guaranteeing homogeneous comfort on large areas with discrete and efficient operation.
The unit incorporates DC Inverter technology in compressor and ventilator optimized for three-phase use that guarantees maximum Seer 6.1 (A ++) maximum energy efficiency and stable operation, golden end protection for maximum durability in demanding industrial environments, remote control of serial remote control and WiFi connectivity Optional WiFufo for smart management from smartphone. With three-phase feeding 380-415V for industrial installations, selectable temperature range of 16-30 ° C, ecological refrigerant R32, maximum 75m pipe length and total 3-year warranty with 5 years in compressor, offers the perfect combination between Industrial power, energy efficiency and reliability for large-scale commercial and industrial projects.
Main features
⚡
Industrial power 14.07 kW
Industrial power of 14.07 kW (48,000 BTU / H) with three-phase DC Inverter technology designed for large commercial and industrial spaces.
🔌
Industrial three-phase feeding
Three-phase feed 380-415V Designed for industrial and commercial installations that require maximum power with optimized efficiency.
🌊
Industrial flow 2,100 m³ / h
Industrial air flow up to 2,100 m³ / h guarantee effective air conditioning in the largest and most demanding commercial spaces.
📏
Complex installation 75m
Maximum pipe length of 75m and 30m drop that allows complex facilities in large commercial and industrial buildings.
🛡️
Golden Industrial Fin Protection
Anti-corrosion treatment Golden End especially reinforced for industrial applications and extremely demanding environments.
🌿
Efficiency A ++ Industrial
SEER 6.1 (A ++) and SCOP 4.0 (A +) that guarantees maximum energy performance in intensive commercial and industrial applications.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | GIA-CFI-48ADM2R32 + GIA-UOT3-48ADM2R32 |
| Cold nominal power (min-nom-max) | 3,52 - 14.07 - 15,24 kW (12,000 - 48,000 - 52,000 BTU / H) |
| Nominal power heat (min-nom-max) | 4,10 - 16,12 - 17,59 kW (14,000 - 55,000 - 60,000 BTU / H) |
| Nominal consumption Cold (Lo-nom-Max) | 0.91 - 5,00 - 6,20 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.95 - 4,80 - 5,95 kW |
| Seer / Scop | 6.1 / 4.0 |
| Energy label (cold / heat) | A ++ / A + |
| Dimensions Indoor Unit (Anxalxpr) | 1.650 x 675 x 235 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 980 x 975 x 375 mm |
| Air flow (high / medium / low) | 2,100 / 1,850 / 1,600 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 51/49/43/35 dB (A) |
| Exterior sound pressure | 64 dB (A) |
| Refrigerant Gas / Load | R32 / 2.9 kg |
| Maximum tubing length | 75 m |
| Maximum | 30 m |
| Liquid connections / gas | 3/8 "/ 5/8" |
| Weight Indoor Unit Outdoor | 41.7 / 90.0 kg |
| Compressor | GMCC DC Inverter |
| Electrical supply | 380-415V (3 phase ~ 50Hz) |
| External Electrical Connections | 4 x 6 + T |
| Range Running cold / heat | -15 ° C A + 50 ° C / -20 ° C A + 24 ° C |
Benefits of air conditioning Giatsu Admires Plus 48 three8
✓
Solution for large commercial and industrial spaces
With 14.07 kW (48,000 BTU / H) of three-phase power, ideal for spaces of 140-200 m², large offices, shopping centers, spacious restaurants and industrial facilities.
✓
Industrial three-phase feeding
Three-phase feeding 380-415V Designed for industrial infrastructures that require maximum power with optimized energy efficiency and stable operation.
✓
Flexible industrial installation up to 75m
Maximum pipe length of 75m and 30m unevenness that allows complex facilities in large industrial buildings and demanding architectural projects.
✓
DC technology Three-phase inverter
Compressor GMCC DC Three-phase inverter designed for continuous commercial operation that guarantees maximum durability and minimum maintenance.
Why choose the Giatsu Admire plus 48 three8?
Main applications
🏭
Industrial facilities
Industrial warehouses, large surface workshops, stores and production plants that require powerful and reliable air conditioning with three-phase feeding.
🏢
Large corporate offices
Spacious corporate offices, business centers, large conference rooms and professional spaces with high occupancy density.
🏪
Shopping centers
Large commercial surfaces, shopping centers, large restaurants, hotels and public spaces with maximum air conditioning requirements.
Advanced industrial three-phase technology
🔌
Three-phase feed 380-415V
Professional three-phase feeding that guarantees maximum power with optimized efficiency and electric stability for demanding industrial applications.
⚡
DC Three-phase inverter
Compressor GMCC DC Three-phase Inverter that provides precise power modulation, maximum efficiency and stable continuous operation 24/7.
📱
Industrial WiFi Control
Optional wifiufo wifi module designed for industrial management with total remote control, advanced programming and continuous professional monitoring.
Maximum power three-phase industrial air conditioning!
The air conditioning Giatsu Admires Plus 48 Three-phase combines industrial power of 14.07 kW (48,000 BTU / H), three-phase feeding 380-415V, DC technology Three-phase, complex installation up to 75m, Golden protection Industrial end and WiFi connectivity Optional to provide the most robust and powerful air conditioning solution for large commercial and industrial spaces. Office range with extended warranty for maximum tranquility in critical applications.
Ask your budget today for industrial projects!
GIA-CFT3-48ADM2R32
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-CFI-48ADMR32
- Outdoor Unit
- GIA-UOT3-48ADMR32
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.070
- Refrigerator capacity (kcal / h)
- 12.100
- Nominal consumption Cold (W)
- 5.000
- Energy class (cold)
- A++
- SEER
- 6,10
- Heat capacity (W)
- 16.120
- Heat capacity (Kcal / h)
- 13.863
- Nominal heat consumption (W)
- 5.100
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1650 x 675 x 235
- Dimensions u.e (anxfxh) mm
- 952 x 415 x 1333
- Weight Indoor Unit (Kg)
- 41,7
- Weight Outdoor Unit (Kg)
- 104,0
- Net weight (kg)
- 145,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
