Panasonic PACi NX KIT-125PT3Z5 Monofásico
Sistema comercial de techo de alta capacidad perteneciente a la gama PACi NX Standard, operando con gas ecológico R-32 bajo suministro monofásico. Esta solución de 12,1 kW está diseñada específicamente para proporcionar un caudal grande y amplio en locales comerciales extensos o salas de gran volumen. Cuenta con un diseño estilizado de tan solo 235 mm de altura, altos ratios de rendimiento estacional y la tecnología de protección activa nanoe™ X (Generador Mark 2) incorporada de serie.
• Potencia Frigorífica Nominal: 12,10 kW
• Alimentación Eléctrica: Monofásica (230V)
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Panasonic PACi NX KIT-125PT3Z5 Monof.
Referencia: KIT-125PT3Z5
€3,450.92
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic PACi NX KIT-125PT3Z5 Monofásico
Sistema comercial de techo de alta capacidad perteneciente a la gama PACi NX Standard, operando con gas ecológico R-32 bajo suministro monofásico. Esta solución de 12,1 kW está diseñada específicamente para proporcionar un caudal grande y amplio en locales comerciales extensos o salas de gran volumen. Cuenta con un diseño estilizado de tan solo 235 mm de altura, altos ratios de rendimiento estacional y la tecnología de protección activa nanoe™ X (Generador Mark 2) incorporada de serie.
• Potencia Frigorífica Nominal: 12,10 kW
• Alimentación Eléctrica: Monofásica (230V)
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
Security policy
Delivery policy
Refund policy
The Panasonic PACi NX KIT-125PT3Z5 establishes the reference in superior industrial climate of ceiling for commercial and industrial spaces of maximum demand. With superior power 12.5kW cold and 12.5kW in heat, this sophisticated roof system represents the culmination of japanese technology Panasonic eco-friendly R-32 coolant and nanoeTM technology X series, ideal for large industrial ships, shopping centers, auditoriums and commercial spaces up to 125 square meters.
Stressing for its exceptional efficiency of 241.7% and an outstanding EER of 3.32, this model offers optimized professional performance. Its silent professional functioning 35dB at minimum speed and the nanoeTM X technology series guarantee maximum comfort and quality of the interior air in spaces where superior and elite air conditioning is required.

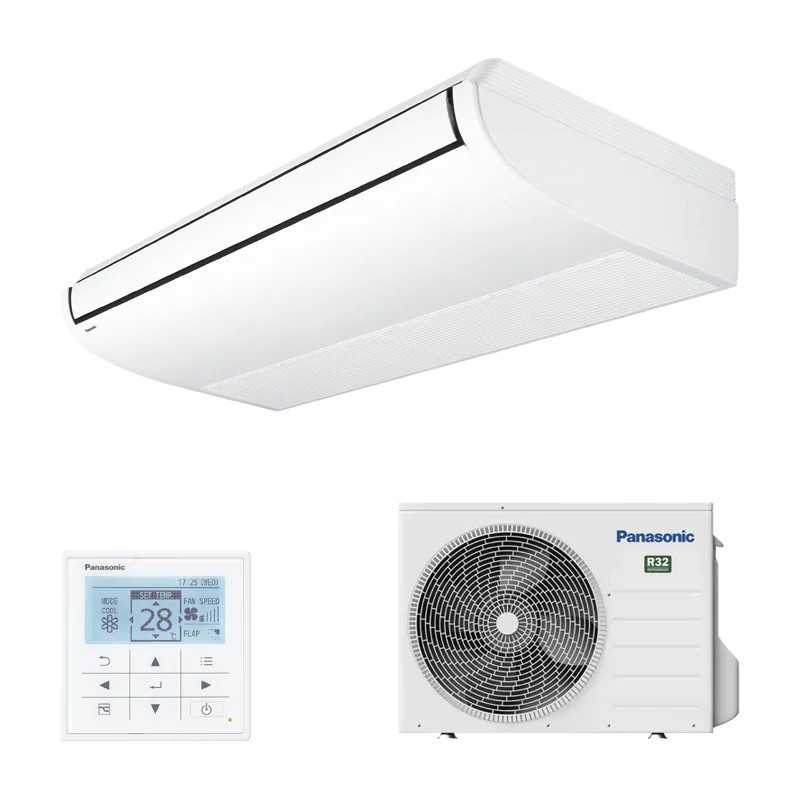

La indoor Unit S-1014PT3E is discreetly integrated into the false ceiling with industrial format 235 x 1590 x 690 mm while the outdoor Unit U-125PZ3E5 ensures robust and maximum performance. Its advanced features include latest generation Inverter+ technology, , horizontal air flow to 9.5m, , cZ-RTC6BL wall control with Bluetooth and optional WiFi connection for intelligent control with recognized japanese reliability and 5-year warranty.
Main features
▪ Higher Power 12.5kW
12.5kW cold / 12.5kW heat for spaces up to 125m2 with maximum efficiency
🏆 Efficiency 241.7%
EER 3.32 and COP 3.89 for maximum energy efficiency
🌟 nanoeTM X Series
9.6 billion hydroxyl/sec radicals for better air quality
📱 Bluetooth Control

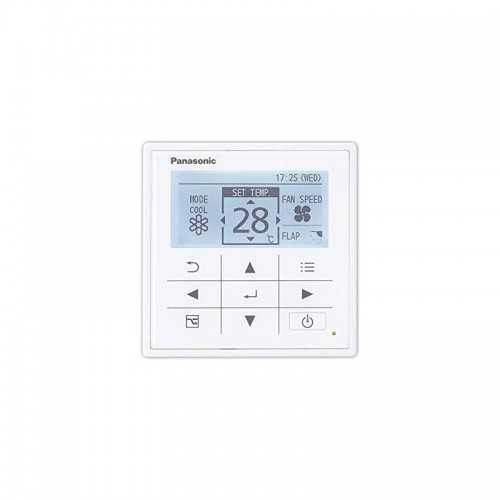

CZ-RTC6BL with Bluetooth and optional WiFi
💨 Distribution 9.5m
Maximum horizontal air flow rate 9.5m for large rooms
🔇 Professional Silence 35dB
Silent professional operation for higher applications
Technical Specifications
Included Advanced Technologies
✓ nanoeTM X Series
9.6 billion hydroxyl/sec radicals to purify the air
✓ Technology Inverter+
Ultra precise control for maximum energy efficiency
✓ Refrigerant Gas R-32 Ecological
Ecological gas with less environmental impact
✓ Wide Air Distribution
Horizontal flow to 9.5m maximum comfort
Main applications
🏭 Industrial ships XL
Up to 125m2 with higher power
🏪 Shopping Centres
Large surfaces and warehouses
🎭 Auditors
Conference and theatre venues
️ Great Restaurants
Banquet halls and events
Why choose the Panasonic PACi NX KIT-125PT3Z5?
The KIT-125PT3Z5 combines the legendary japanese quality Panasonic with cutting edge technology ideal for superior spaces. With 12.5kW of power, efficiency of 241.7%, EER 3.32 and operation of 35dB professional silent, is the perfect solution for spaces that require air conditioning superior, efficient and with exceptional air quality with japanese reliability and 5 year warranty.
12.5kW
High Power35dB
Professional Silence125m2
Higher coverageGet yours Panasonic PACi NX KIT-125PT3Z5!
Japanese quality with superior ceiling air conditioning and nanoeTM X. Perfect for industrial ships, shopping centers and auditoriums up to 125m2 that require maximum superior comfort and air quality.
✓ Superior 12.5kW
✓ nanoeTM X series
✓ Japanese quality
KIT-125PT3Z5
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PT3E
- Outdoor Unit
- U-125PZ3E5
- I send
- Mando cable CZ-RTC5B
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.500
- Refrigerator capacity (kcal / h)
- 10.750
- Nominal consumption Cold (W)
- Heat capacity (W)
- 12.500
- Heat capacity (Kcal / h)
- 10.750
- Nominal heat consumption (W)
- 3.210
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1590 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 127,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
