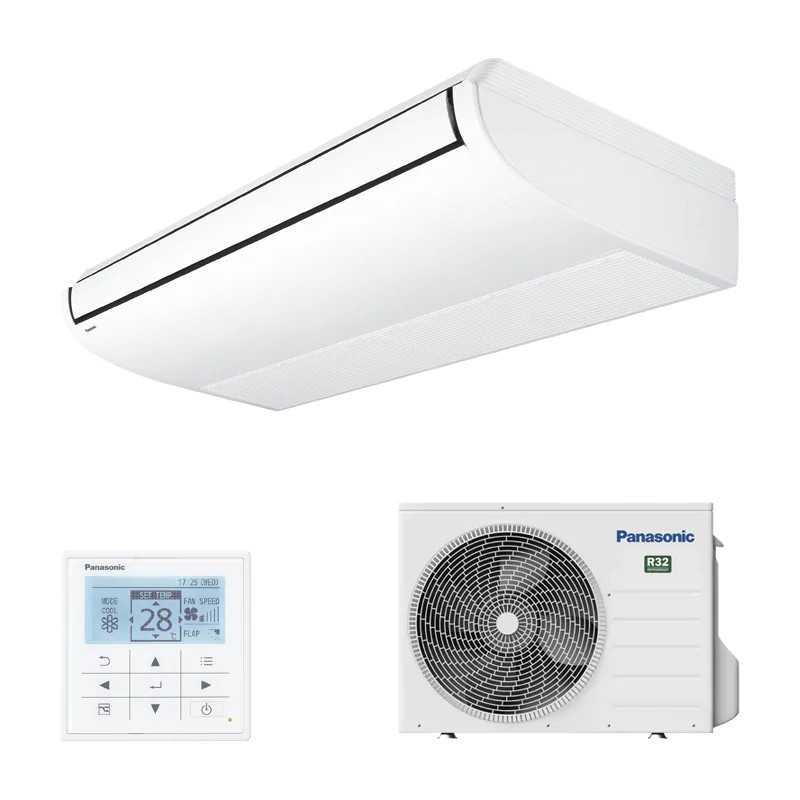

Panasonic PACi NX KIT-71PT3Z5 Monofásico
Sistema comercial de techo de alta capacidad de la serie PACi NX Standard, optimizado con refrigerante ecológico R-32. Diseñado específicamente para proporcionar una distribución del aire grande y amplia en salas de gran volumen. Destaca por su diseño delgado de solo 235 mm de altura, una excelente clasificación estacional de eficiencia A++ y la tecnología activa nanoe™ X (Generador Mark 2) incluida de serie.
• Potencia Frigorífica Nominal: 6,80 kW
• Eficiencia Estacional (SEER / SCOP): 6,30 A++ / 4,10 A+
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Panasonic PACi NX KIT-71PT3Z5 Monof.
Referencia: KIT-71PT3Z5
€2,017.97
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic PACi NX KIT-71PT3Z5 Monofásico
Sistema comercial de techo de alta capacidad de la serie PACi NX Standard, optimizado con refrigerante ecológico R-32. Diseñado específicamente para proporcionar una distribución del aire grande y amplia en salas de gran volumen. Destaca por su diseño delgado de solo 235 mm de altura, una excelente clasificación estacional de eficiencia A++ y la tecnología activa nanoe™ X (Generador Mark 2) incluida de serie.
• Potencia Frigorífica Nominal: 6,80 kW
• Eficiencia Estacional (SEER / SCOP): 6,30 A++ / 4,10 A+
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
Security policy
Delivery policy
Refund policy
The Panasonic PACi NX KIT-71PT3Z5 establishes the reference in professional ceiling air conditioning for commercial and industrial spaces of maximum demand. With a professional power 6.8kW cold and 6.8kW in heat, this sophisticated roof system represents the culmination of japanese technology Panasonic eco-friendly R-32 coolant and nanoeTM technology X series, ideal for corporate offices, specialized medical centers, large shops and commercial spaces up to 70 square meters.
Stressing for its exceptional energy classification A+ and an outstanding SEER 5.9, this model maintains controlled energy consumption 404 kWh annual cold. Its silent professional functioning 30dB at minimum speed and the nanoeTM X technology series guarantee maximum comfort and quality of the interior air in spaces where professional and elite air conditioning is required.

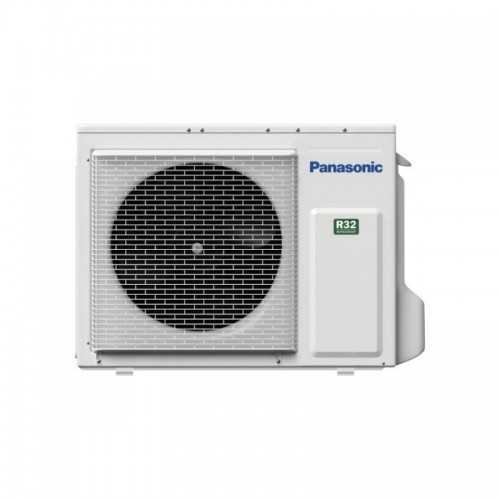

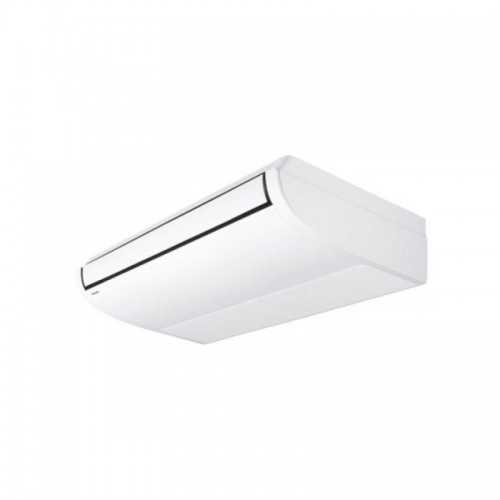

La indoor Unit S-6071PT3E is discreetly integrated into the false roof with extended format 235 x 1275 x 690 mm while the outdoor Unit U-71PZ3E5A ensures robust and professional operation. Its advanced features include latest generation Inverter+ technology, , horizontal air flow to 9.5m, , cZ-RTC6BL wall control with Bluetooth and optional WiFi connection for intelligent control with recognized japanese reliability and 5-year warranty.
Main features
▪ Professional Power 6.8kW
6.8kW cold / 6.8kW heat for spaces up to 70m2 with maximum efficiency
🏆 Efficiency A+
SEER 5.9 and SCOP 4.3 maximum efficiency - Only 404 kWh annual
🌟 nanoeTM X Series
9.6 billion hydroxyl/sec radicals for better air quality
📱 Bluetooth Control

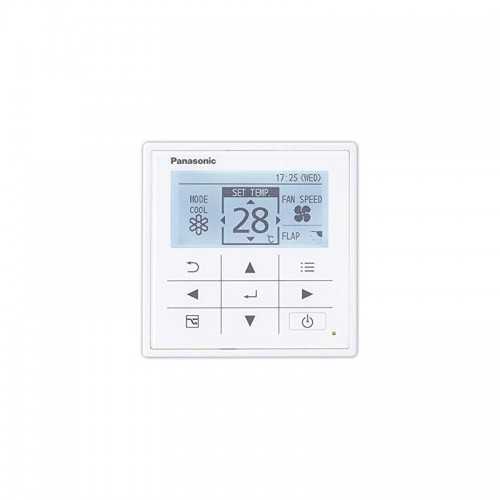

CZ-RTC6BL with Bluetooth and optional WiFi
💨 Distribution 9.5m
Maximum horizontal air flow rate 9.5m for large rooms
🔇 Professional Silence 30dB
Silent professional operation for critical applications
Technical Specifications
Included Advanced Technologies
✓ nanoeTM X Series
9.6 billion hydroxyl/sec radicals to purify the air
✓ Technology Inverter+
Ultra precise control for maximum energy efficiency
✓ Refrigerant Gas R-32 Ecological
Ecological gas with less environmental impact
✓ Wide Air Distribution
Horizontal flow to 9.5m maximum comfort
Main applications
🏢 Corporate offices
Up to 70m2 with maximum professional comfort
🏥 Medical Centres
Specialized and operating rooms
🏪 Great Shops
Showrooms and commercial spaces
️ Restaurants
Lounges and VIP areas
Why choose the Panasonic PACi NX KIT-71PT3Z5?
The KIT-71PT3Z5 combines the legendary japanese quality Panasonic with cutting edge technology ideal for professional spaces. With 6.8kW power, SEER 5.9, A+ rating and operation of 30dB silent professional, is the perfect solution for spaces that require professional, efficient and superior air conditioning with japanese reliability and 5 year warranty.
6.8kW
Professional30dB
Professional Silence70m2
Professional coverageGet yours Panasonic PACi NX KIT-71PT3Z5!
Japanese quality with professional ceiling air conditioning and nanoeTM X. Perfect for corporate offices, medical centers and commercial spaces up to 70m2 that require maximum professional comfort and air quality.
✓ Professional power 6.8kW
✓ nanoeTM X series
✓ Japanese quality
KIT-71PT3Z5
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-6071PT3E
- Outdoor Unit
- U-71PZ3E5
- I send
- Mando cable CZ-RTC5B
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 70 m2
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- Energy class (cold)
- A+
- SEER
- 5,90
- Heat capacity (W)
- 6.800
- Heat capacity (Kcal / h)
- 5.848
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,3
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1275 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 875 x 320 x 695
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
