Panasonic PACi NX KIT-100PT3Z8 Trifásico
Sistema comercial trifásico de techo perteneciente a la gama PACi NX Standard, optimizado con refrigerante ecológico R-32. Diseñado específicamente para garantizar una distribución del aire grande y amplia en salas de gran volumen, distribuyendo la carga de manera perfectamente equilibrada entre las fases. Cuenta con un diseño slim de solo 235 mm de altura, una excelente clasificación estacional A++ en frío y la tecnología activa nanoe™ X (Generador Mark 2) integrada de serie.
• Potencia Frigorífica Nominal: 10,00 kW
• Alimentación Eléctrica: Trifásica (400V)
• Generador de Calidad de Aire: nanoe™ X Mark 2

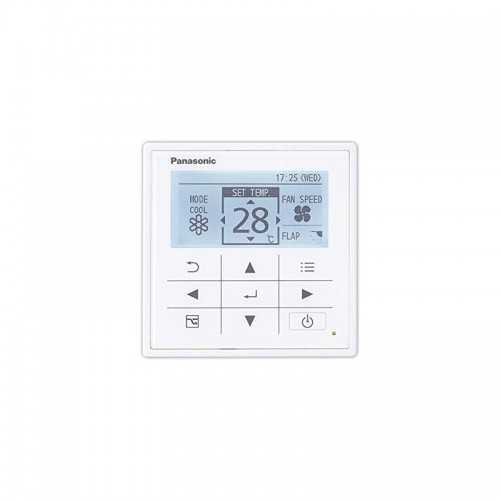

• Kit de Control Incluido: Mando CZ-RTC5B
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Panasonic PACi NX KIT-100PT3Z8 Trif.
Referencia: KIT-100PT3Z8
€3,260.60
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic PACi NX KIT-100PT3Z8 Trifásico
Sistema comercial trifásico de techo perteneciente a la gama PACi NX Standard, optimizado con refrigerante ecológico R-32. Diseñado específicamente para garantizar una distribución del aire grande y amplia en salas de gran volumen, distribuyendo la carga de manera perfectamente equilibrada entre las fases. Cuenta con un diseño slim de solo 235 mm de altura, una excelente clasificación estacional A++ en frío y la tecnología activa nanoe™ X (Generador Mark 2) integrada de serie.
• Potencia Frigorífica Nominal: 10,00 kW
• Alimentación Eléctrica: Trifásica (400V)
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
Security policy
Delivery policy
Refund policy
The Panasonic PACi NX KIT-100PT3Z8 establishes the reference in three-phase industrial air conditioning of ceiling for commercial and industrial spaces of maximum demand. With an industrial power 10.0kW cold and 10.0kW in heat with 400V triphase power, this sophisticated roof system represents the culmination of Japanese technology Panasonic eco-friendly R-32 coolant and nanoeTM technology X series, ideal for industrial ships, logistics centers, large corporate offices and commercial spaces up to 100 square meters.
Stressing for its exceptional energy rating A++ and an outstanding SEER of 6.5, this model maintains controlled energy consumption 537 kWh annual cold. Its silent professional functioning 34dB at minimum speed and the nanoeTM X technology series guarantee maximum comfort and quality of the interior air in industrial spaces where three-phase and elite air conditioning are required.

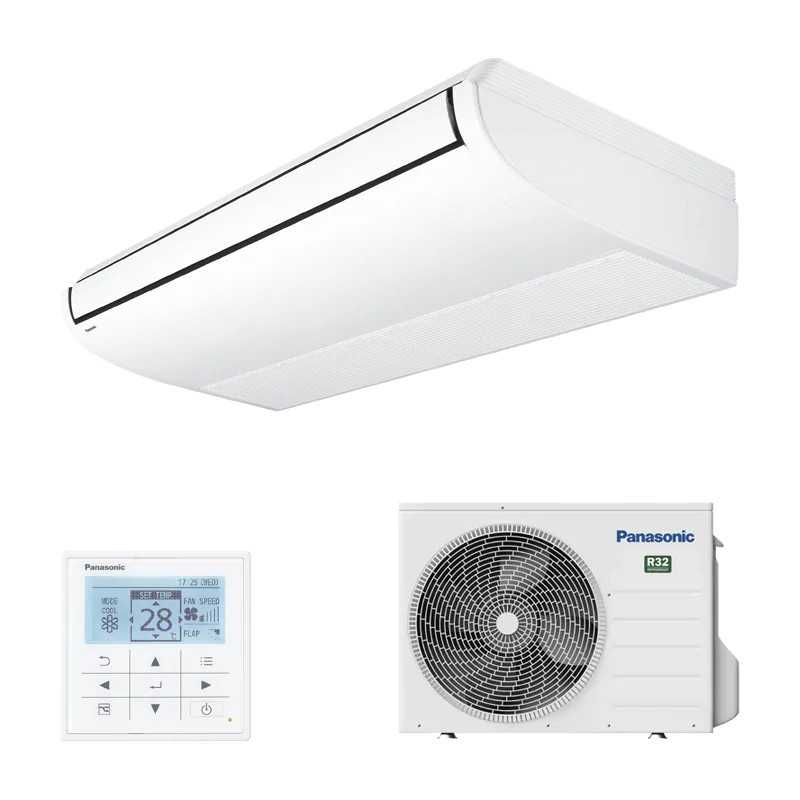

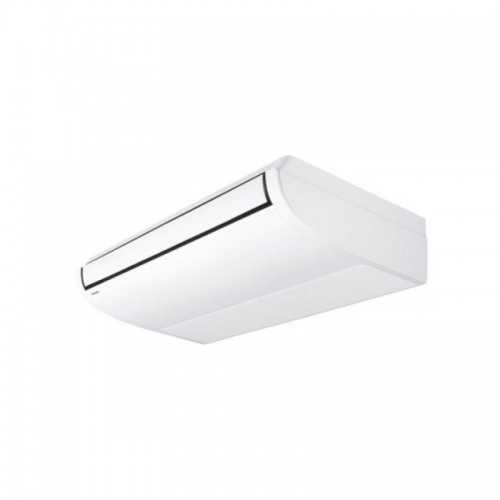

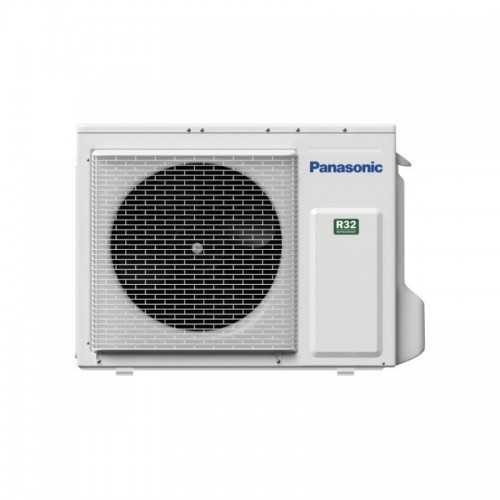

La indoor Unit S-1014PT3E is discreetly integrated into the false ceiling with industrial format 235 x 1590 x 690 mm while the outdoor Unit U-100PZ3E8 ensures robust three-phase and maximum performance. Its advanced features include latest generation Inverter+ technology, , horizontal air flow to 9.5m, , cZ-RTC6BL wall control with Bluetooth and optional WiFi connection for intelligent control with recognized japanese reliability and 5-year warranty.
Main features
▪ Industrial Power 10.0kW
10.0kW cold / 10.0kW heat with three phase feeding up to 100m2
🏆 Efficiency A++
SEER 6.5 and SCOP 4.2 maximum efficiency - Only 537 kWh annual
🔌 Tripha
400V 3F for industrial and commercial installations
🌟 nanoeTM X Series
9.6 billion hydroxyl/sec radicals for better air quality
💨 Distribution 9.5m
Maximum horizontal air flow rate 9.5m for large rooms
🔇 Professional Silence 34dB
Silent professional operation for industrial applications
Technical Specifications
Included Advanced Technologies
✓ nanoeTM X Series
9.6 billion hydroxyl/sec radicals to purify the air
✓ Technology Inverter+
Ultra precise control for maximum energy efficiency
✓ Trifle
400V 3F for industrial and commercial installations
✓ Refrigerant Gas R-32 Ecological
Ecological gas with less environmental impact
Main applications
🏭 Industrial ships
Up to 100m2 with three phase feeding
📦 Logistics Centres
Stores and distribution centres
🏢 Corporate offices
Large business complex
🏪 Shopping Centres
Large commercial surfaces
Why choose the Panasonic PACi NX KIT-100PT3Z8?
The KIT-100PT3Z8 combines the legendary japanese quality Panasonic with cutting edge technology ideal for three-phase industrial spaces. With 10.0kW power, SEER 6.5, A++ rating and operation of 34dB professional silent, is the perfect solution for spaces that require industrial air conditioning triphase, efficient and with superior air quality with japanese reliability and 5 year warranty.
10.0kW
Tripha power400V
Industrial100m2
Industrial CoverageGet yours Panasonic PACi NX KIT-100PT3Z8!
Japanese quality with triphase industrial ceiling air conditioning and nanoeTM X. Perfect for industrial ships, logistics centers and commercial spaces up to 100m2 that require triphase power and maximum industrial comfort.
✓ Power 10.0kW triphase
✓ nanoeTM X series
✓ Japanese quality
KIT-100PT3Z8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PT3E
- Outdoor Unit
- U-100PZ3E8
- I send
- Mando cable CZ-RTC5B
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 90 a 100 m2
- Refrigerator capacity (W)
- 10.000
- Refrigerator capacity (kcal / h)
- 8.600
- Nominal consumption Cold (W)
- 2.750
- Energy class (cold)
- A++
- SEER
- 6,50
- Heat capacity (W)
- 10.000
- Heat capacity (Kcal / h)
- 8.600
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1590 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 123,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
