Panasonic Aquarea T-Cap R32 9 KW single-phase
R32 | 9 kW | A +++ | Without DHW | Constant power at -20 ° C
TECHNOLOGY T-CAP: maintains nominal power even with extreme cold. R32 and Efficiency at +++ for homes that require thermal stability all year round.

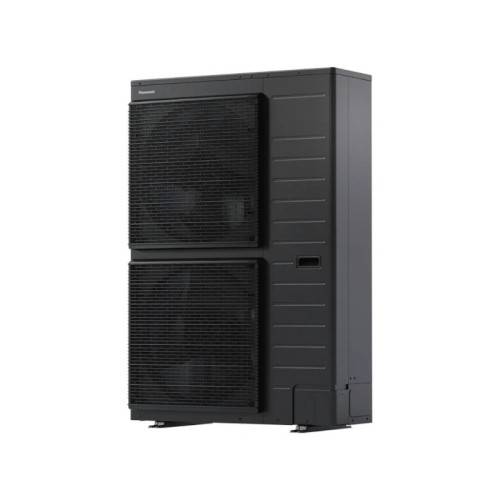

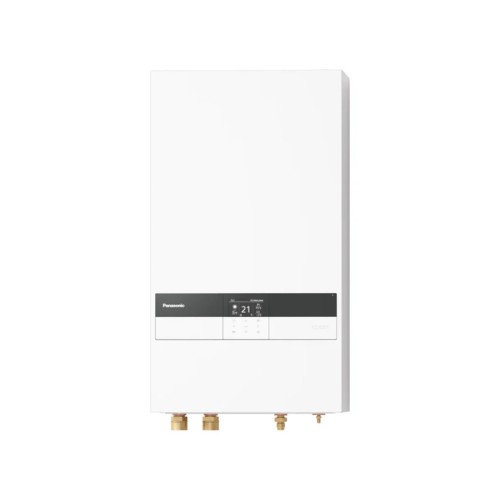

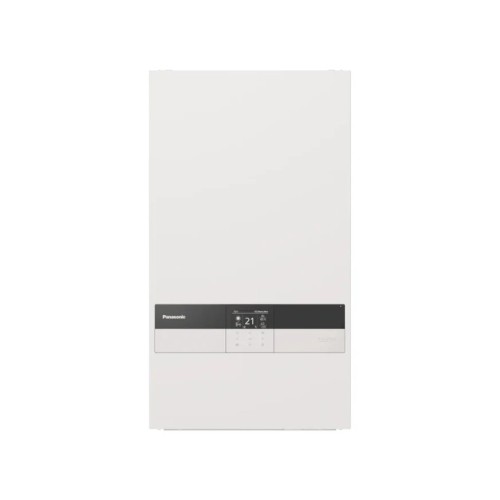

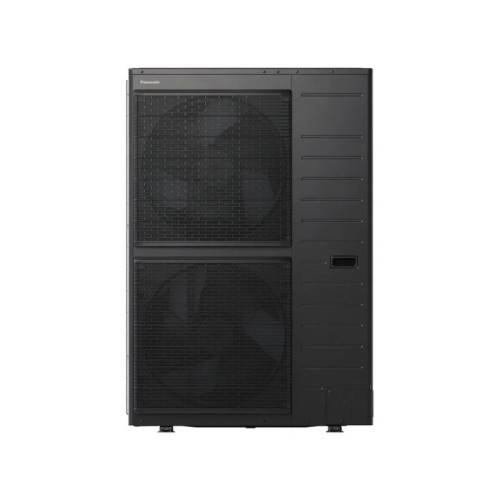

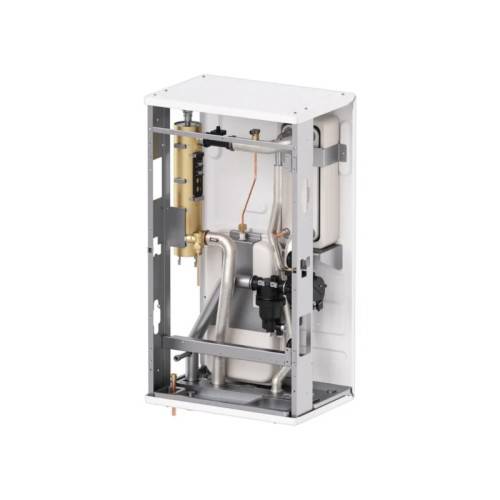

Outdoor Unit: WH-UXZ09KE5 | Indoor Unit: Wh-sxc09k3e5
DHW: Not included (optional)
Wi-Fi module included
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Panasonic Kit-WXC09K3E5 Aquarea Bible T-Cap R32 Monophasic Generation K
Referencia: KIT-WXC09K3E5
âŹ5,636.93
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
ÂĄÂĄMĂDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Panasonic Aquarea T-Cap R32 9 KW single-phase
R32 | 9 kW | A +++ | Without DHW | Constant power at -20 ° C
TECHNOLOGY T-CAP: maintains nominal power even with extreme cold. R32 and Efficiency at +++ for homes that require thermal stability all year round.
Outdoor Unit: WH-UXZ09KE5 | Indoor Unit: Wh-sxc09k3e5
DHW: Not included (optional)
Wi-Fi module included
Security policy
Delivery policy
Refund policy
Panasonic Aquarea T-Cap R32 9 kW single-phase (kit-wxc09k3e5)
Bible System T-Cap Generation K - No accumulator DHW integrated
9 kW power Ecological R32 A +++ / A ++ SCOP 4.84 230 V single-phase
The Panasonic Aquarea Kit-WXC09K3E5 is part of the range T-cap generation k r32, designed to maintain a constant power Even in extreme outer conditions. Technology T-Cap (Total Capacity) It guarantees nominal power without resorting to electrical resistance, maintaining comfort and reducing consumption.

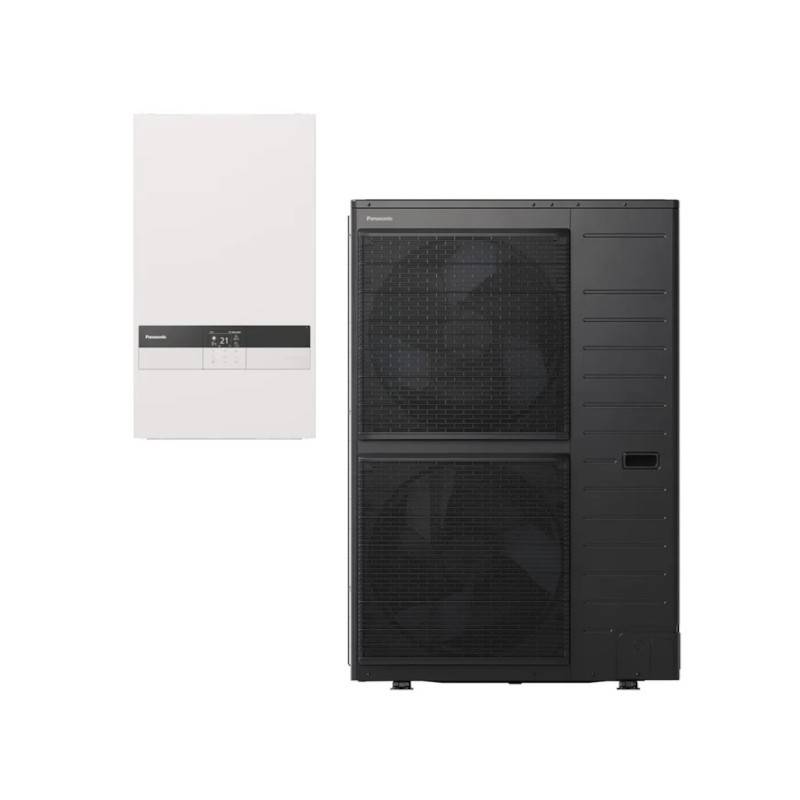

The system is composed of the outdoor Unit Wh-uxz09ke5 and the indoor Unit Wh-sxc09k3e5, configuring a Monophasic Bible Solution High efficiency with refrigerant R32. With energy classification A +++ (A7 / W35), It is ideal for single-family homes and energy rehabilitations.
Its operation is extremely silent and allows a water outlet temperature of up 60 ° C, being suitable for conventional radiators and underfloor soil. In addition, it is compatible with remote control Panasonic Smart cloud and systems photovoltaic smart grid ready.
Main features
âïž T-CAP technology
It maintains nominal power up to -20 ° C without electrical resistance.
đż Refrigerant Gas R32
GWP 675 - Greater heat capacity and lower environmental impact.
đ„ High output temperature
Up to 60 ° C drive, compatible with high temperature radiators.
đ§ Flexibility DHW
Compatible with external accumulators Panasonic of 200-300 L.
đ¶ Smart Cloud Control
Wi-Fi included with energy monitoring and remote control.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-uxz09ke5 |
| Model Indoor Unit | Wh-sxc09k3e5 |
| Type of system | Bibloc - Sin DHW integrated |
| Refrigerant Gas | R32 (1.95 kg) - GWP 675 |
| Power heating | 9.00 kW (A7 / W35) / 8.50 kW (A7 / W55) |
| Refrigeration Power | 8.00 kW (A35 / W18) |
| Nominal electrical consumption | 1.90 kW (A7 / W35) |
| COP / SCOP | 4.70 / 4.84 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Max. leak | 60 ° C |
| Outside temperature range | -28 ° C to +43 ° C |
| Sound level outdoor Unit | 51 dB (a) Power / 37 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1410 Ă 1283 Ă 320 mm (107 kg) |
| Dimensions Indoor Unit | 890 Ă 340 Ă 500 mm (47 kg) |
| Power supply | 230 V / 1 pH / 50 Hz |
| Maximum current (MCA) | 16.1 |
| Compatibility DHW | External deposits Panasonic 200-300 L |
| Control and Management | Wi-Fi included / Smart Cloud / optional Modbus |
| Compressor guarantee | 5 years (Panasonic official) |
Constant power and silence with Panasonic T-CAP 9 KW!
Total yield Up to -20 ° C, efficiency A +++, R32 refrigerant and integrated Smart Cloud control.
â Technology T-CAP
â Ecological R32
â single-phase 230 V
â Smart Cloud integrated
KIT-WXC09K3E5
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sxc09k3e5
- Outdoor Unit
- Wh-uxz09ke5
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 8.800
- Nominal consumption Cold (W)
- 2.830
- Heat capacity (W)
- 9.000
- Nominal heat consumption (W)
- 1.789
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- COP
- 5,03
- Scop (warm weather)
- 6,47
- EER
- 3,11
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 1.340
- Width UD Exterior (mm)
- 900
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 88
