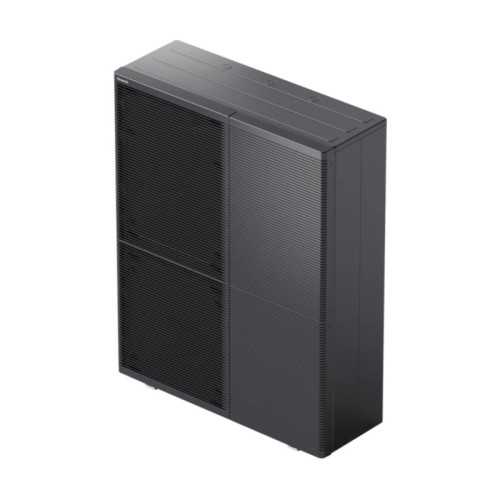

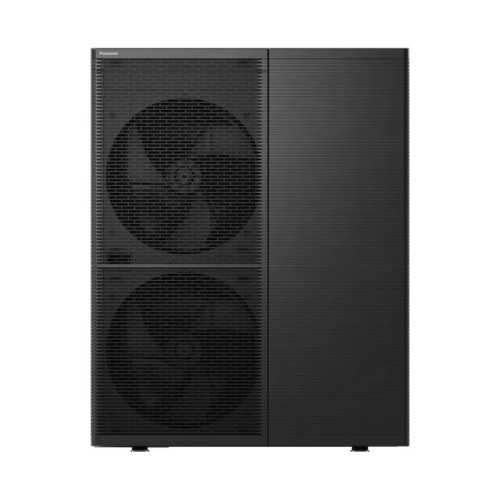

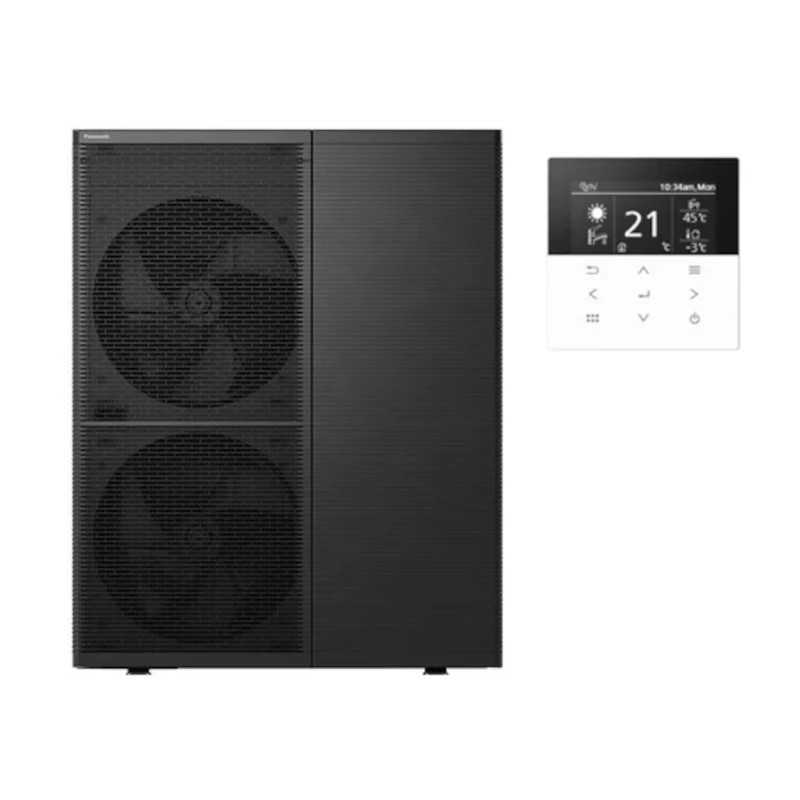

Aerotermia Monobloc WH-WXG30ME8 with CZ-RTW2TAW1C control Panasonic R290

Large capacity thermal performance

HEAT NOMINAL POWER (A + 7 ° C, W35 ° C): 30.00 kW

Heating efficiency (W35): Energy label A +++

Heating efficiency (W55): A ++ energy label

Maximum temperature of drive (heat): 75 ° C (20-75 ° C)

Output temperature (cold): 5 ° C to 20 ° C

Sterilization of DHW without resistance: Up to 65 ° C direct

Mechanical specifications and installation

Measures of the Outdoor Unit: 1520 x 1200 x 430 mm

Gas Refrigerant Gas Natural: R290 (propane)

Sonora power emission (heat): 57 dB (A)

Outdoor operation range (heat): -25 ° C A + 35 ° C

Recommended electrical disconnector: 30 a

Water pipe connector: 1¼ inches thread

Electrical supply: Three-phase, 400V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: The purified propane is the future response to global warming. It has exceptional thermophysical properties that allow you to work comfortably with water at 75 ° C drive.

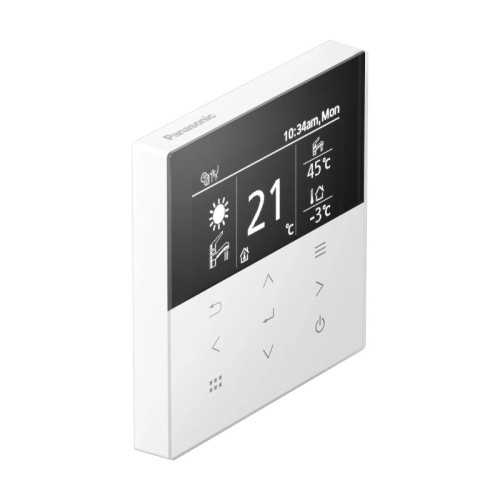

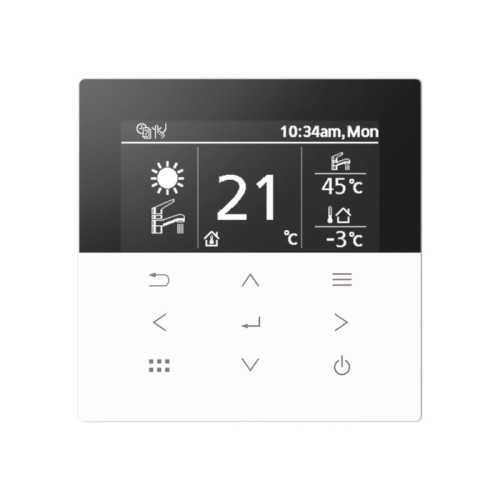

✔️ Advanced control CZ-RTW2TAW1C included: It is supplied as standard to act as the operating brain of the installation. It offers a premium control unit with precise tactile regulation of areas, detailed consumption graphics and integrated native Wi-Fi connectivity.

✔️ Professional three-phase rolling: When working at 400V, the large electric charge required by the Inverter compressor is distributed symmetrically between the three phases. This guarantees the stability of the general network of the building and minimizes the risk of voltage drops.

✔️ Structure of soundproofing: Despite its massive power of 30 kW, it incorporates a double acoustic insulation chassis that mitigates mechanical frequencies, setting the sound power in silent 57 dB (A).

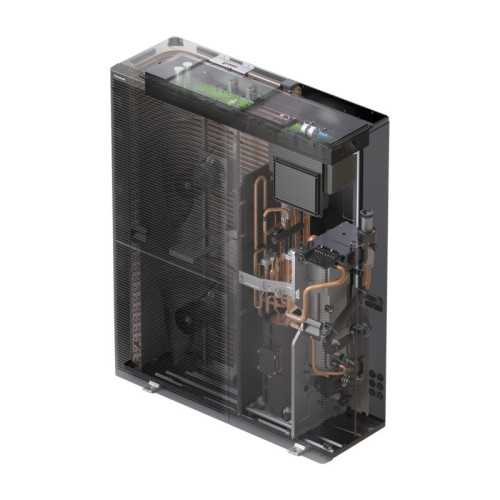

✔️ Hydraulic premium of great flow: It houses a smart-speed-speed-speed hydronic pump adapted to large waterflows, high-retention magnetic filter to avoid the accumulation of ferrous sludge and large volume expansion vessel.

Is this 30 kW model compatible with conventional high temperature radiators?

Yes, excellently. Thanks to the thermodynamic behavior of natural gas R290, the equipment drives heating water directly up to 75 ° C without requiring support from secondary electrical resistances. This is qualified as the ideal machine to replace massive fossil heating systems by feeding the classic radiator network of the building.

What benefit does T-CAP technology provide in a large capacity team?

Ordinary Aerothermia teams suffer drastic decreases in their thermal delivery as the outer thermometer falls. The Aquarea T-CAP models of Panasonic they incorporate an advanced logic of injection into the compressor that allows them to sustain their constant nominal capacity against hard winter frost, ensuring that large volume facilities do not suffer comfort losses.

Is the manipulation of refrigerant gases necessary inside the building?

No. As it is a compact monobloc architecture for exterior, the entire cooling cycle comes hermetically sealed and verified from the factory. The approved technician performs the installation by exclusively connecting ordinary water pipes towards the internal network, increasing security and streamlining the work by not requiring F-gas gas certificates inside.
