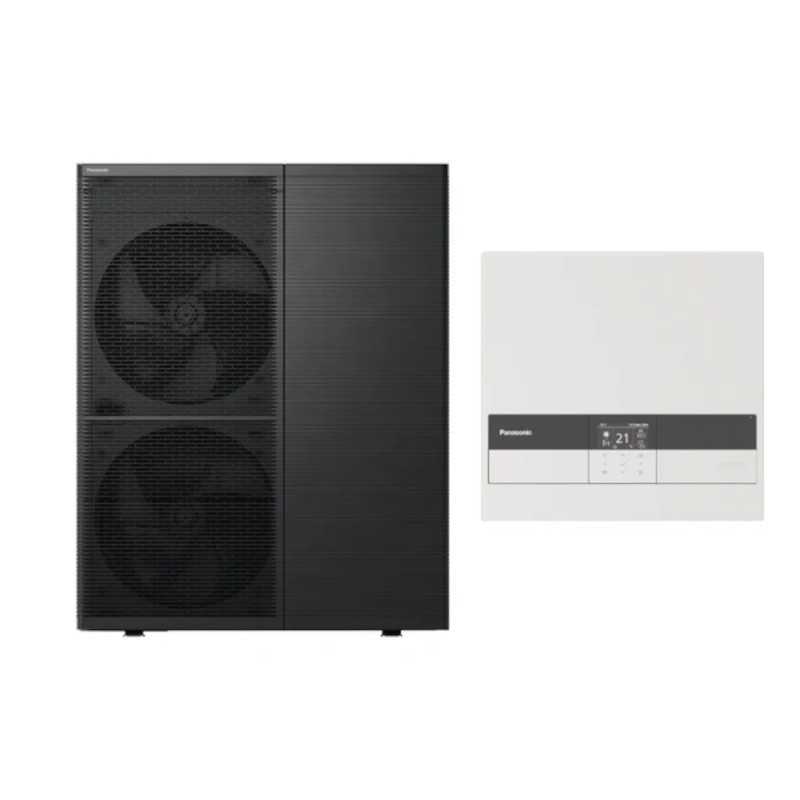

Aerotermia Monobloc WH-WXG09ME8 with WH-CME8 control module Panasonic R290

Performance and seasonal efficiency

Nominal power (A + 7 ° C, W35 ° C): 9.00 kW

NOMINAL COP (A + 7 ° C, W35 ° C): 5,23

Refrigerator capacity (A35 ° C, W7 ° C): 8,20 kW

Nominal EER (A35 ° C, W7 ° C): 2,82

SCOP temperate climate (W35): 5.00 (Tag A +++)

SCOP Warm weather (W35): 6,33

SCOP Cold Climate (W35): 4,45

SCOP temperate climate (W55): 3.50 (Tag A ++)

Mechanical specifications and installation

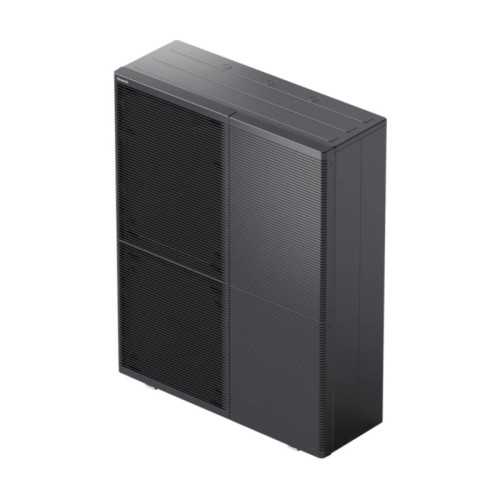

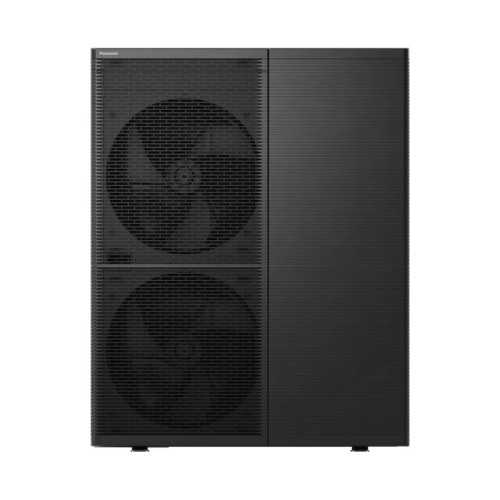

Dimensions Outdoor Unit (Alxanxpr): 1520 x 1200 x 430 mm

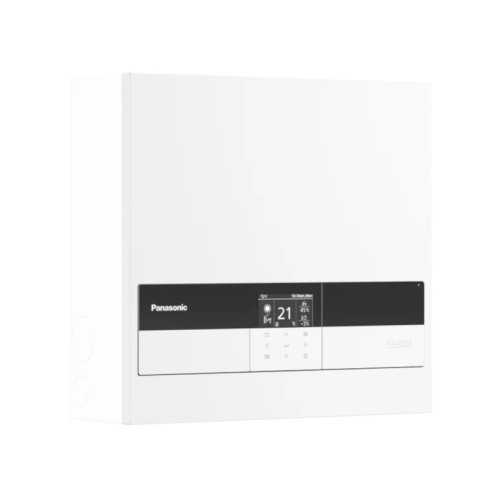

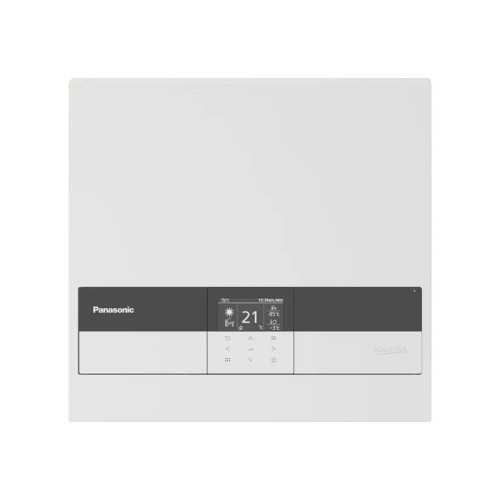

Internal control module: WH-CME8 (installation mural)

Net weight Outdoor Unit: 163 kg

Sounding power (exterior): 52 dB (A)

Gas Refrigerant Gas Natural / Load: R290 (propane) / 1,78 kg

Maximum impulse temperature: 75 ° C

Recommended electrical disconnector: 30 a

Electrical supply from the set: Three-phase, 400V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: With an insignificant PCA of Solo 3, this gas advances the European regulatory restrictive F-Gas. It offers insurmountable thermophysical performance that allows to achieve water at 75 ° C directly and cleanly.

✔️ Internal connectivity module WH-CME8: Designed specifically for networks at 400V. Centralizes the control terminals, optimizes the synchronization of the three-phase electronic logics and facilitates the interconnection with domotic catwalks and smart networks.

✔️ Rolling professional phases: By working at three-phase tensions, it symmetrically distributes the current load required by the Inverter compressor between the three general lines, avoiding imbalances and voltage drops in the building.

✔️ Super silent chassis of comfort: Developed with an advanced acoustic insulation architecture that cushions the vibrations of the Inverter compressor, lowering external emissions at only 52 dB (A) for an additional integration without discomfort.

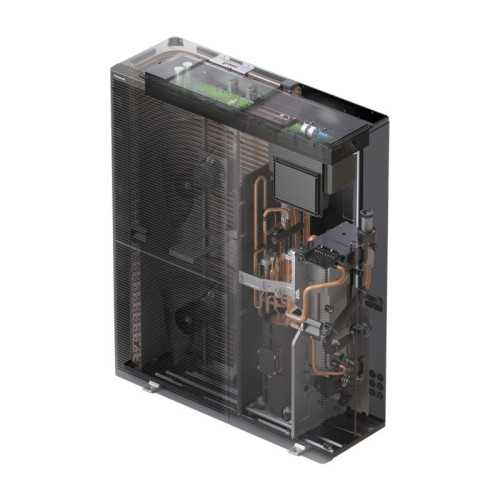

✔️ Hydraulic components integrated abroad: It houses an intelligent Hydraulic Class A hydraulic pump with integrated flow sensor, optimized expansion cup and a magnetic water filter that traps impurities from protecting the plaque exchanger.

What function does the WH-CME8 control module meet exactly?

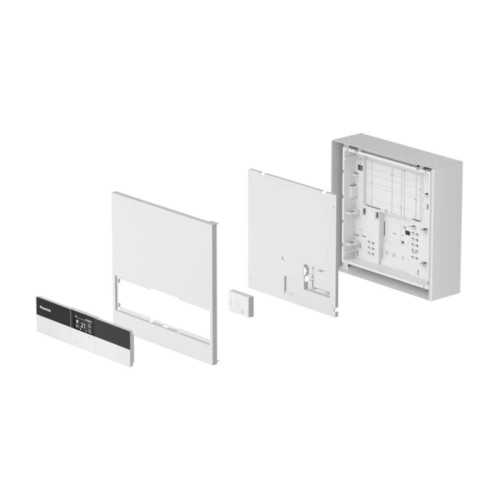

The WH-CME8 module is an internal wall component that centralizes the three-phase electrical connections, control probes and electronic source of the heat pump management. When we are located inside, it streamlines maintenance tasks and centralizes Wi-Fi and wired communications without the need to install bulky elements that consume living space.

Is this 9 kW three-phase system compatible with a network of traditional iron or aluminum radiators?

Yes, totally. When using high pressure R290 refrigerant, the machine directly reaches a water outlet temperature of up to 75 ° C without activating support resistance. This allows directly replacing fossil fuel boilers while maintaining pre-existing radiators with total thermal comfort.

How does T-CAP technology respond against extreme winter frosts?

Traditional Aerothermia teams drastically reduce their thermal delivery when the outside temperature drops. The Aquarea T-CAP models of Panasonic they incorporate an advanced coolant injection into the compressor that allows them to keep their 9.00 kW of nominal capacity at low outer temperatures, effectively operating up to -28 ° C and ensuring constant heating without performance falls.
