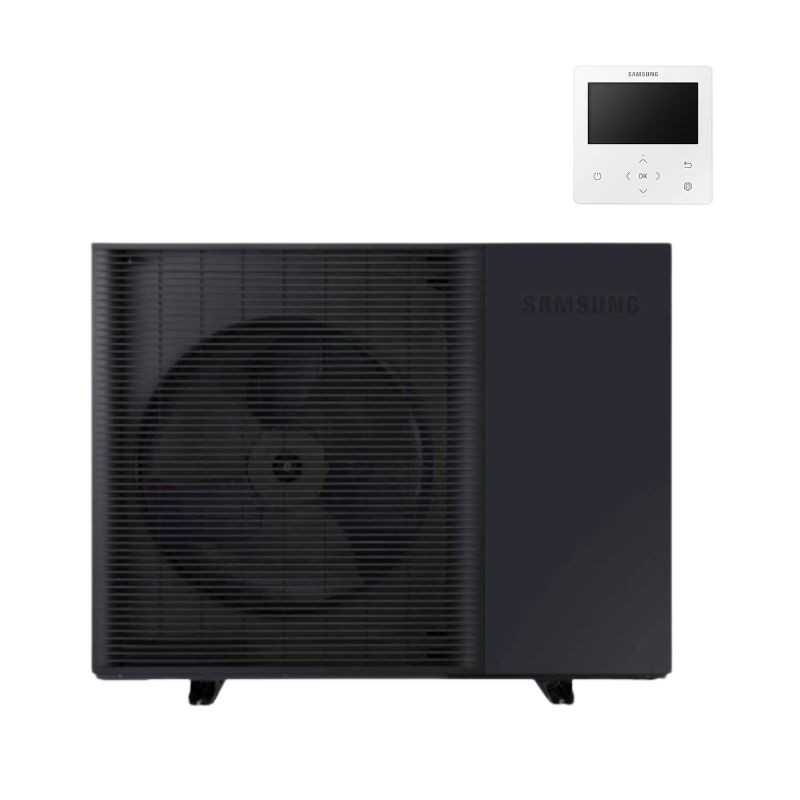

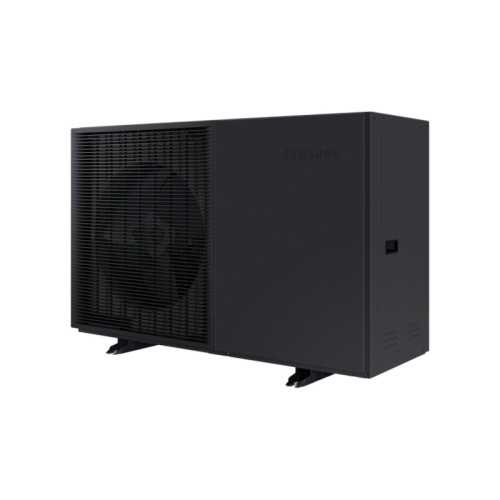

Aerotermia Monobloc AE080CXYBGK / EU EHS Mono R290 8kw Samsung Trif.

Energy efficiency (400V)

Nominal power Heating (A7 / W35): 8.00 kW

Nominal power Heating (A7 / W55): 8.00 kW

Nominal consumption Heating (A7 / W35): 1,65 kW

Nominal consumption Heating (A7 / W55): 2,67 kW

Nominal power Cooling (A35 / W18): 8.00 kW

Seasonal efficiency Spaces (35 ° C / 55 ° C): Classification A +++ / A ++

Water outlet temperature (heat): 15 ° C to 75 ° C

Mechanical and electrical specifications

Digital controller included: MWR-WW10N (cable)

Gas Refrigerant Gas Natural / PCA: R290 (propane) / PCA = 3

Standard sound pressure (heat / cold): 47 dB (A) / 45 dB (A)

Water outlet temperature (cold): 5 ° C to 25 ° C

Maximum consumption current: 16.1 a

Advanced features: Control of 2 zones / smart network (Smart Grid)

Electrical supply / Frequency: Three-phase, 380-415V, 50Hz

✔️ Gas Refrigerant Gas Natural R290: The purified propane is the definitive response to global warming. With an insignificant PCA of Solo 3, it offers exceptional thermodynamic properties to operate loosely with water at 75 ° C drive.

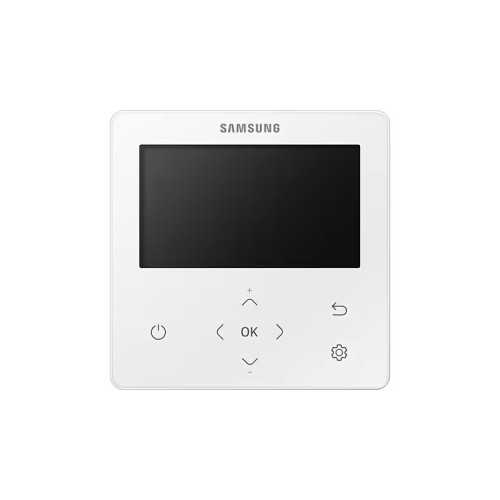

✔️ Premium driver MWR-WW10N: It acts as the Advanced System Management Switchboard. This cable control facilitates a clear interface to monitor energy consumption, set historical and pay the climate control logics.

✔️ Rolling inverter phases: When connecting to three-phase lines at 400V, the consumption of the Inverter compressor uniformly distributes between the phases, minimizing risks of imbalance and protecting the general electrical components.

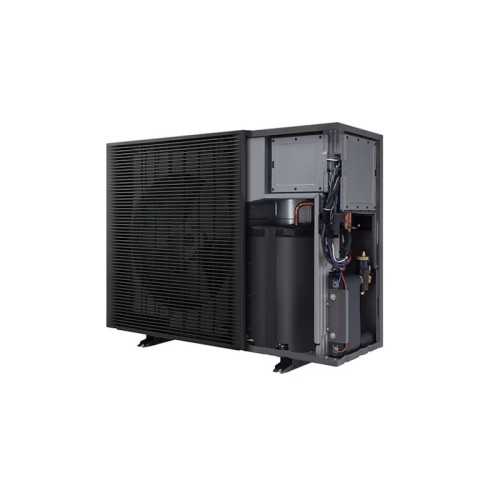

✔️ Integrated hydraulic module: Brings together the factory under the outdoor Unit the circulating pump, the hydronic expansion cup, the flow sensor and the safety valve, reducing the necessary technical interior space.

✔️ Wi-Fi and SmartThings connectivity: Includes an integrated wireless communication module to link the aerotermia with the SmartThings application, allowing to control the temperatures and heating curves from any smartphone.

Is this 8 kW three-phase system compatible with conventional radiators?

Yes, perfectly. Thanks to the thermal behavior of high pressure R290 gas, the machine directly reaches a water outlet of up to 75 ° C without activating support resistance. This allows to replace fossil boilers while maintaining intact aluminum pre-existing radiators or iron iron.

What functions does the MWR-WW10N controller include included in this set?

The MWR-WW10N knob allows to thoroughly regulate two independent air conditioning zones with different temperature claims (for example, radiators and radiant soil), to script scripts and audit the cumulative electrical consumption of the equipment.

Is the use of gas R290 (propane) in residential homes?

Fully safe. Being an outdoor monobloc compact design, the entire propane refrigerating cycle comes hermetically sealed from the factory of Samsung and it is located outdoors. The unit incorporates safety mitigation systems and the installer performs only ordinary water pipe connections towards the habitable interior.
