Aerotermia Monobloc WH-WXG25ME8 with WH-CME8L control module Panasonic R290

Large capacity thermal performance

HEAT NOMINAL POWER (A + 7 ° C, W35 ° C): 25.00 kW

Heating efficiency (W35): Energy label A +++

Heating efficiency (W55): A ++ energy label

Maximum temperature of drive (heat): 75 ° C (range 20-75 ° C)

Output temperature (cold): 5 ° C to 20 ° C

Sterilization of DHW without resistance: Up to 65 ° C direct

Mechanical specifications and installation

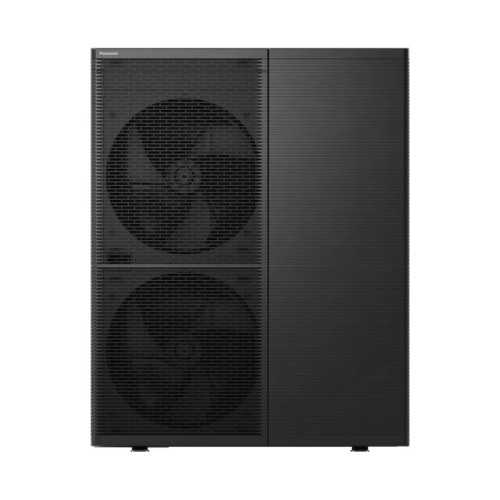

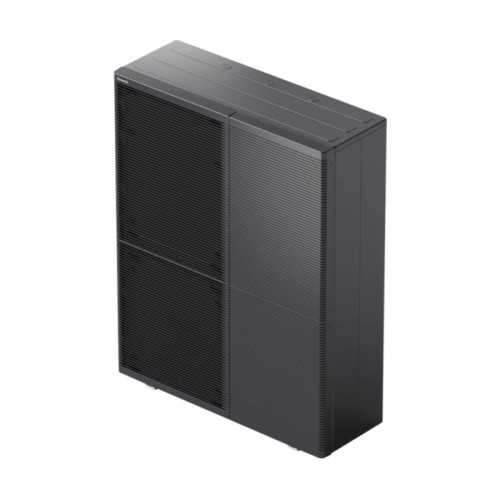

Dimensions Outdoor Unit (Alxanxpr): 1520 x 1200 x 430 mm

Internal control module: WH-CME8L (wall installation)

Gas Refrigerant Gas Natural: R290 (propane)

Sonora power emission (heat): 56 dB (A)

Outdoor operation range (heat): -25 ° C A + 35 ° C

Recommended electrical disconnector: 30 a

Water pipe connector: 1¼ inches thread

Electrical supply from the set: Three-phase, 400V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: The purified propane is the future response to global warming. It has exceptional thermophysical properties with an insignificant PCA of only 3, allowing you to work directly by providing water at 75 ° C drive.

✔️ Wh-CME8L internal connectivity module: Designed specifically to optimize network integration at 400V. Centralizes the control terminals, unifies the synchronization of the three-phase electronic logics and facilitates the technical interconnection in a highly accessible and clean interconnection.

✔️ Rolling professional phases: When working at three-phase tensions, the large electrical charge required by the Inverter compressor is distributed symmetrically between the three general lines, avoiding imbalances, overloads by line and voltage drops in the building.

✔️ Structure of soundproofing: Despite its enormous power of 25 kW, it incorporates a double-sounding acoustic chassis that mitigates mechanical frequencies, setting the outer sound power into silent 56 dB (A).

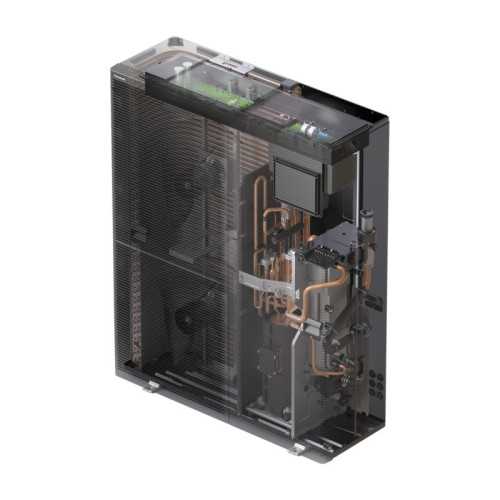

✔️ Hydraulic premium of great flow: It houses a smart variable-speed-speed hydronic pump adapted to large water flows, high-retention magnetic water filter to avoid accumulation of ferrous sludge and built-in expansion cup.

What function does the WH-CME8L control module meet exactly?

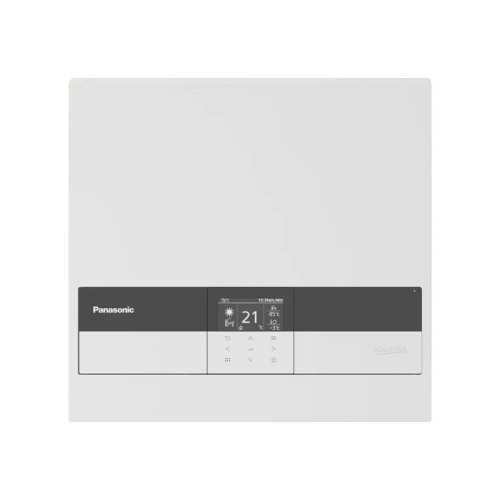

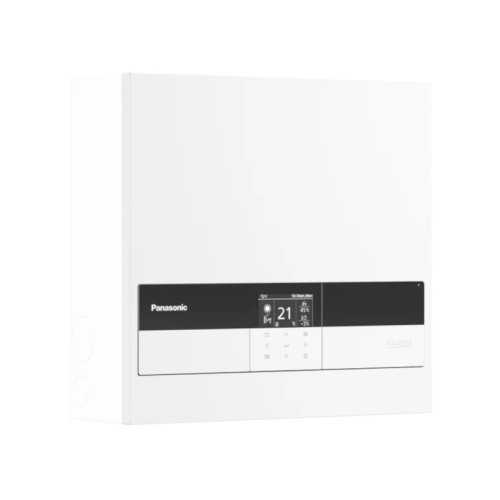

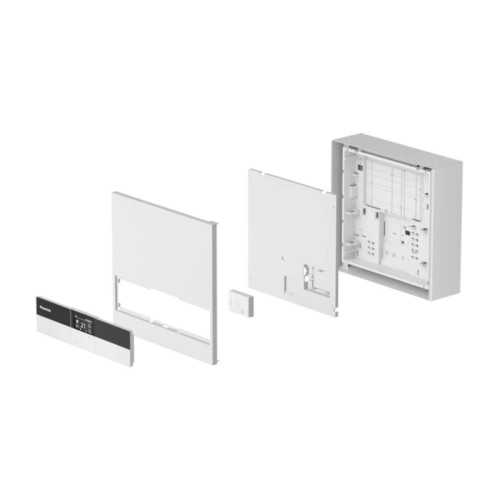

The WH-CME8L module is an internal wall component that centralizes the three-phase electrical connections, communication logics and the electronic control gateway of the heat pump. When we are located in a mural way, simplify and clean the installation, speeding up maintenance tasks without the need to install bulky elements that are useful meters on the ground.

Is this 25 kW model compatible with conventional high temperature radiators?

Yes, excellently. Thanks to the thermodynamic behavior of Natural Gas R290, the equipment drives heating water directly up to 75 ° C without requiring the support of secondary electrical resistances. This is qualified as the ideal machine to replace voluminous and inefficient fossil boilers by feeding the classic radiator network of the building with the massive flow that requires a complex installation.

Is the manipulation of refrigerant gases necessary inside the building?

No. As it is a compact monobloc architecture for exterior, the entire cooling cycle comes hermetically sealed and verified from the factory. The approved technician performs the installation by exclusively connecting ordinary water pipes towards the internal network, increasing security and streamlining the work by not requiring F-gas gas certificates inside the living rooms.
