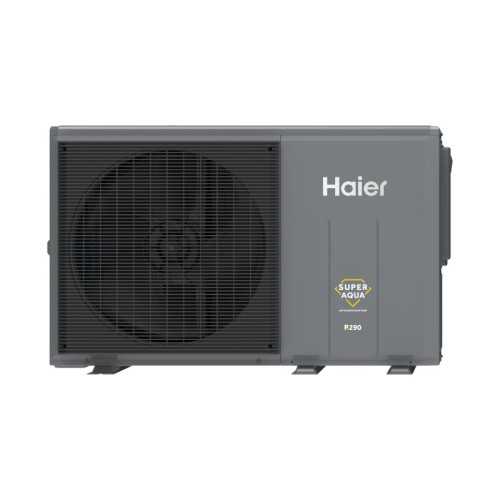

Aerotermia Pump Heat Monobloc Haier AW082Mugha R290

Efficient thermal renewal for the welfare of your home

The air / water heat pump Haier Monobloc GT AW082Mugha is the ideal solution for the renewal of obsolete heating systems in medium and large residential homes. This powerful 8 kW inverter team unifies all the main compact module required for integral comfort of housing: Robust heating in winter, refreshing refrigeration in summer by investing cycle and control for hot water production sanitary (DHW) by connecting to an external tank. Being configured in a monobloc format, the propane refrigerator circuit is sealed hermetically at the factory. This simplifies the assembly tasks by requiring only hydraulic connections towards the interior of the building, optimizing the installation spaces.

🌿 Propane R-290: higher level performance with natural gas

The Monobloc GT series Haier it founds its excellent efficiency in the use of propane ecological refrigerant R-290. This natural gas stands out for possessing extraordinary thermodynamic properties and practically null global warming potential. Thanks to the optimized design of your DC Inverter Twin Rotary compressor, the AW082Mugha model reaches exceptional performance levels, achieving the maximum seasonal energy classification of ** A +++ ** working at low temperature (W35 ° C in Medium climate) with a 5.20 scop and an excellent COP up to 5.35. This translates into a generation greater than 5 kW of thermal energy for each KW of electricity consumed, guaranteeing a strong saving in the light invoices.

🔧 Pre-installed hydraulic components at the factory

In order to streamline the assembly times and minimize the need for space in technical rooms, Haier incorporates inside the own outdoor Unit a complete hydraulic set of factory. The equipment internally has an electronic circulation pump DC Inverter, 4.5-liter expansion vessel, 3 bar safety valve, flow switch and an automatic disainer valve. As standard, a type water filter is also included and for safeguarding the circuit impurities plates exchanger and a high-strength anti-corrosive treatment "Blue End" on its exchange battery.

🌡️ Output water at 80 ° C and maximum stability against severe frost

The combination of propane gas and the Inverter technology of Haier it allows this system to drive hot water at temperatures up to 80 ° C directly, which makes it possible to change traditional gasoil or gas boilers while keeping the conventional iron or aluminum radiators of the property. Its climatic operating limits are leaders in the market, maintaining optimal and uninterrupted operation in heating even under severe winters with temperatures of up to -25 ° C exterior. In summer, the cycle is reversed agile to provide refreshing refreshing through thinning floors or refreshing floor, operating with total stability with outer temperatures up to 48 ° C.

🔌 Integrated Intelligent Control: APP WiFi, Smart Grid and Modbus

The total control of the system is managed intuitively through the digital control of Intelligent HW-WA101DBT cable that is included as standard. This wall touch panel acts as an advanced ambient thermostat, allowing to configure automatic climatic curves and manage up to 2 independent climate control zones. Thanks to its integrated WiFi connectivity, the user can regulate the temperature slogans, establish weekly schedules and consult the detailed energy measurement in real time through the official application of Haier on your smartphone. It also incorporates the integrated Modbus protocol for BMS systems and Smart Grid connectivity to make the most of the production surplus of photovoltaic solar panels.

🎯 Technical characteristics

All the technical information contained in the following specifications table rigorously reflects the manufacturer's official data, configured for supply with ATW-A03-N module:
