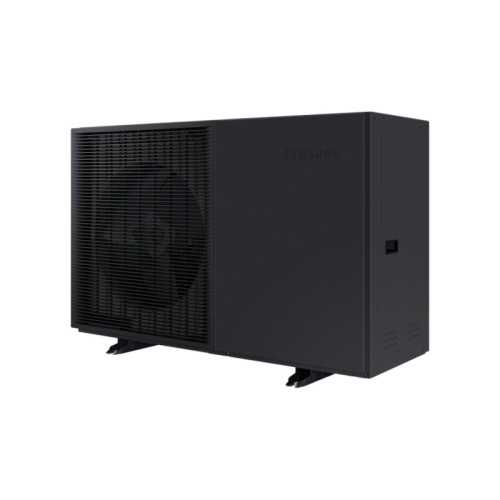

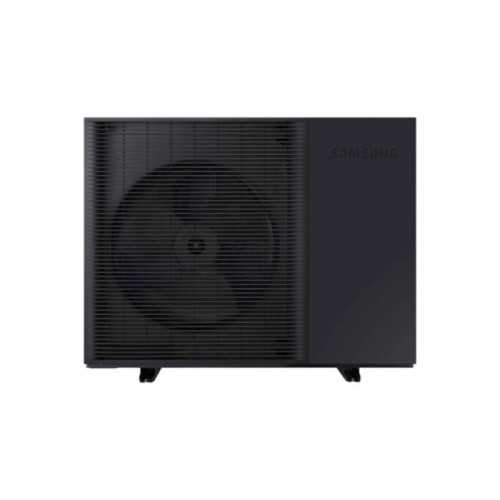

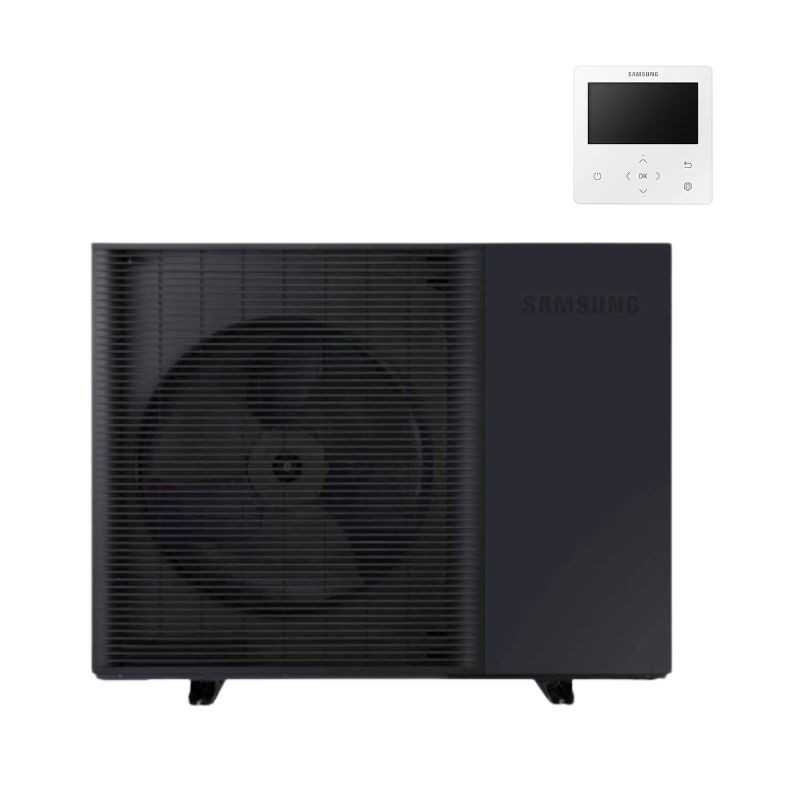

Aerotermia Monobloc AE050CXYBEK / EU EHS Mono R290 5KW Samsung

Verified Energy Performance

Nominal power Heating (A7 / W35): 5,00 kW

Nominal power Heating (A7 / W55): 5,00 kW

Nominal consumption Heating (A7 / W35): 0.98 kW

Nominal consumption Heating (A7 / W55): 1,61 kW

Nominal power Cooling (A35 / W18): 5,00 kW

Seasonal efficiency Spaces (35 ° C / 55 ° C): Classification A +++ / A ++

Water outlet temperature (heat): 15 ° C to 75 ° C (maximum range)

Technical specifications of the unit

Digital controller included: MWR-WW10N (cable)

Gas Refrigerant Gas Natural / PCA: R290 (propane) / PCA = 3

Standard sound pressure (heat): 45 dB (a)

Standard sound pressure (cold): 47 dB (A)

Water outlet temperature (cold): 5 ° C to 25 ° C

Maximum consumption current: 16.1 a

Electrical supply / Frequency: Single-phase, 220-240V, 50Hz

✔️ Gas Refrigerant Gas Natural R290 (propane): The ecological refrigerant of the future. With an insignificant PCA of only 3, it offers exceptional thermophysical properties that allow you to work with high pressure and achieve elevated water temperatures in a clean and sustainable way.

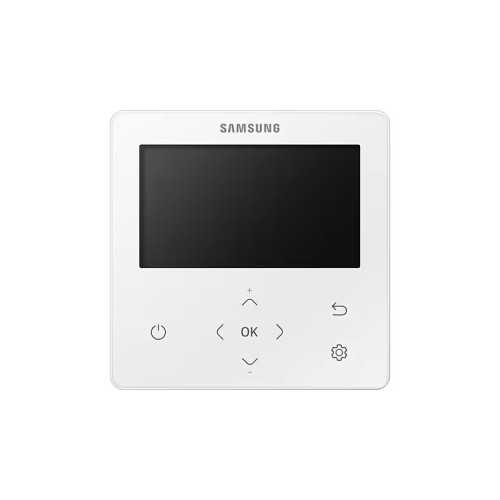

✔️ Premium driver MWR-WW10N: It is supplied as the operating nucleus of the system. This cable intelligent control provides a clear and intuitive graphic interface, allowing precise monitoring of energy consumption and climate curves programming.

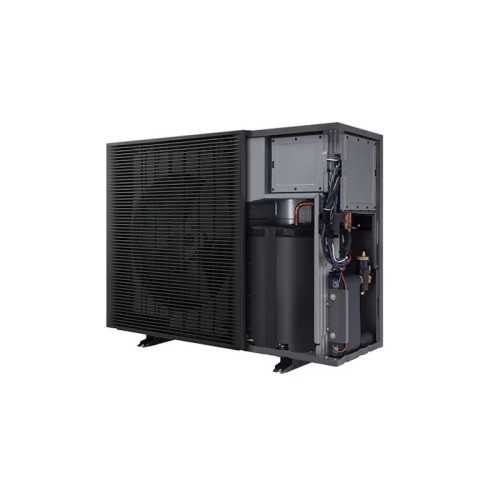

✔️ Integrated hydraulic module Outside: Maximum space optimization. It brings together the factory under the outdoor unit the synchronous circulating pump, the hydronic expansion vessel, the safety valve and the flow meter, simplifying the civil work to water connections towards the interior.

✔️ Double zone control and smart network: The logic of Samsung integrated admits regularly two circuits with different thermal demands (such as radiant soil and radiators), as well as being prepared to synchronize with Smart Grid networks and photovoltaic solar panels.

✔️ Wi-Fi connectivity series and smartThings: Factory integrated wireless communication module that allows to link the aerothermia with the SmartThings application to manage the comfort of the house remotely using the smartphone or tablet.

Is this equipment compatible with classic high temperature radiators?

Yes, excellently. Thanks to the advanced thermophysical behavior of the natural coolant R290, the equipment drives heating water directly up to 75 ° C of temperature without activating electric support resistance. This empowers it as the ideal machine to replace gas or diesel boilers while maintaining pre-existing installation of conventional radiators.

What advantages does the MWR-WW10N controller provide included in this set?

The MWR-WW10N knob acts as the Advanced Control Switchboard for the user. It allows to regulate in detail the two independent areas of air conditioning, program time slots and transparently supervise the consumption historic of the heat pump, all through a highly reliable and accessible cable interface.

Is it safe to use R290 refrigerant (propane) in a residential installation?

Fully safe. Being a purely monobloc outdoor architecture, the entire propane refrigeration cycle is hermetically preloaded and confined in the unit that is outdoors. The machine incorporates advanced mitigation and factory safety systems from Samsung, and the installer exclusively performs water pipe connections towards the inside of the house.
