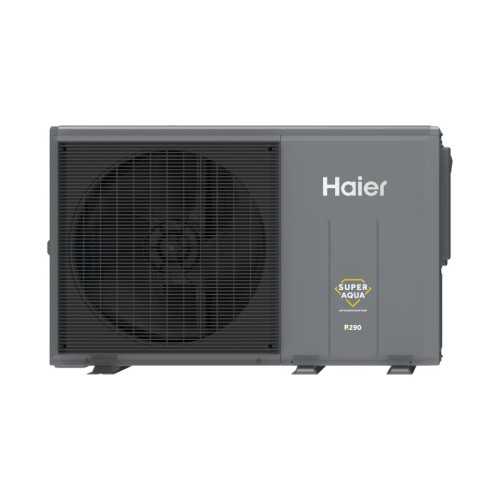

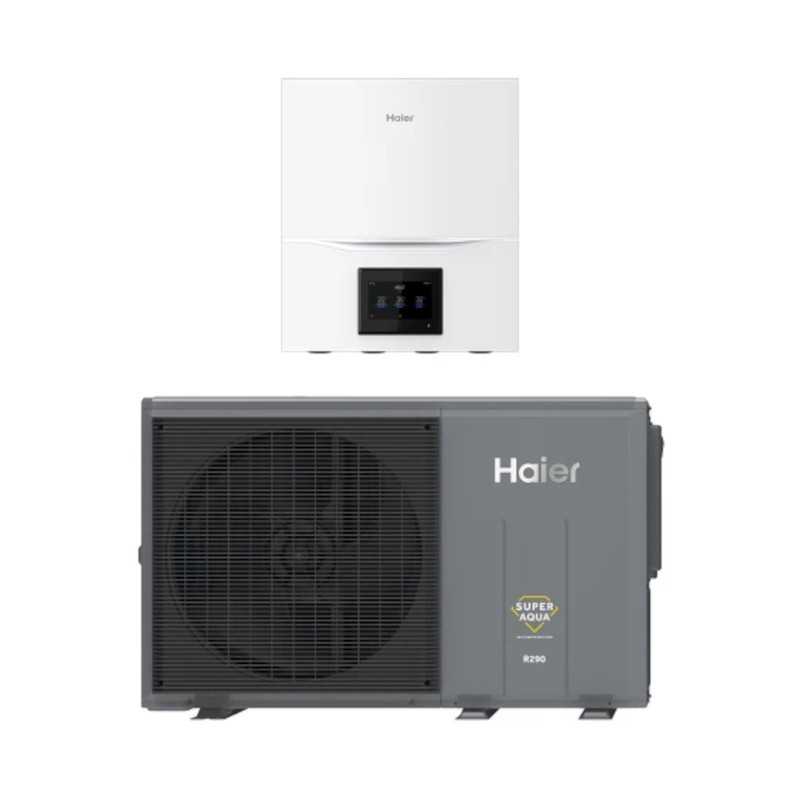

Aerotermia Pump Heat Monobloc Haier AW12NMXGHA R290 three-phase

Thermal renewal without interior reforms

The air / water heat pump Haier Monobloc GT AW12NMXGHA is consolidated as one of the most powerful and balanced solutions to undertake demanding energy reforms in single-family homes, residential villas or small shops that have an installation three-phase 400V[cite: 2]. This powerful System Inverter unifies high demand centralized heating services, refreshing refrigeration in summer by cycle investment and complete management for the production of sanitary hot water (DHW) by connecting to an external interactator[cite: 2]. Being designed in a monobloc format, the entire propane coolant circuit comes hermetically sealed factory in the outer module[cite: 2], which substantially simplifies the technical assembly tasks and eliminates the need to manipulate gas lines in the interior rooms of the building.

🌿 Refrigerant Gas Natural R-290: Vanguard and Savings Performance

Ecological excellence and maximum monthly savings merge in the Haier Monobloc GT 12 KW thanks to the integration of natural propane gas R-290[cite: 2]. This refrigerant stands out for its magnificent thermodynamic qualities and an insignificant global warming potential[cite: 2], which allows the system to work with total freedom compared to the strictest European environmental regulations. Squeezing the performance of your DC Inverter Twin Rotary compressor[cite: 2], the team reaches an exceptional energy classification of To +++ in low temperature space heating (W35 ° C)[cite: 2], recording a SCOP of 4.82[cite: 2] and a nominal COP of 5.30 under three-phase optimized conditions[cite: 2]. This guarantees a drastically reduced electricity consumption, translating into direct relief on supplies invoices during the winter.

🔧 Pre-installed hydraulic components at the factory

The monobloc GT range has been meticulously developed to optimize the space of residential technical rooms and streamline installation tasks abroad. Within its robust vertical chassis, the unit houses a factory integrated hydraulic set that includes: an electronic variable speed circulation pump, an 8-liter expansion vessel[cite: 2], Safety valve, Flow switch and automatic deaeader valve. Standard standard equipment is completed with antivibratory support gums for your lower base, a type water filter and to protect the circuit impurity plaque exchanger[cite: 2] and an anticorrosive treatment of high strength in the battery.

🌡️ Water impulsion at 80 ° C and resistance to rigorous climates

Thanks to the excellent mechanical performance of propane Gas R-290, the AW12nmxgha unit is able to boost hot water up to 80 ° C directly and purely hydronic manner[cite: 2]. This allows the replacement of ancient gasoil boilers while keeping the network of conventional radiators intact without the need to carry out reforms or add costly electrical support systems[cite: 2]. Its climate operating limits guarantee uninterrupted comfort under the most severe conditions: in heating mode it maintains a stable and continuous operation even before extreme winter frosts up to -25 ° C outer[cite: 2]. During the summer, it reverses its cycle in an agile form to provide refreshing refreshing through refreshing floor or fancails in an outside temperature range of up to 48 ° C[cite: 2].

🔌 Advanced digital management: App WiFi, Smart Grid and Modbus

Total system control is intuitively managed through the HW-WA101DBT smart cable digital control that is included as standard[cite: 2]. This wall touch panel acts as an advanced environment thermostat, allowing programming automated climate curves and controlling up to 2 independent climate control zones[cite: 2]. Thanks to its WiFi connectivity as standard, the user can regulate comfort, establish detailed weekly programming and visualize full real-time energy measurement readings through the official application of Haier on his smartphone[cite: 2]. For automated residential and commercial projects, the Modbus protocol incorporates as standard to facilitate the link to centralized BMS systems[cite: 2] and SMART Grid connectivity to intelligently coordinate electrical consumption with surplus photovoltaic solar panels[cite: 2].

🎯 Technical characteristics

All detailed technical information is faithfully reflected by the Official Performance Data for this three-phase model, configured for supply with the ATW-A03-N control module:
