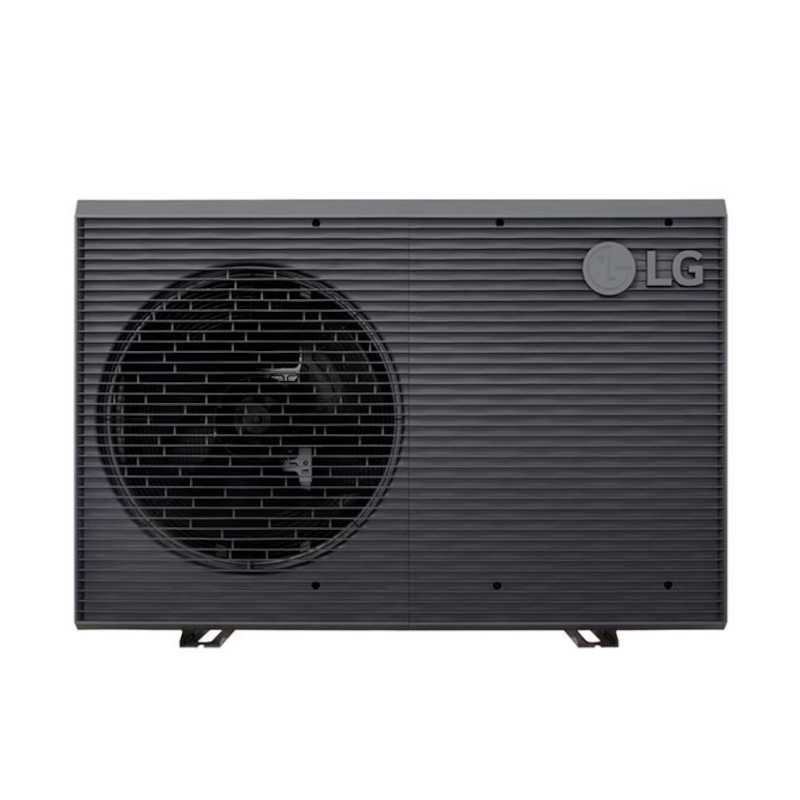

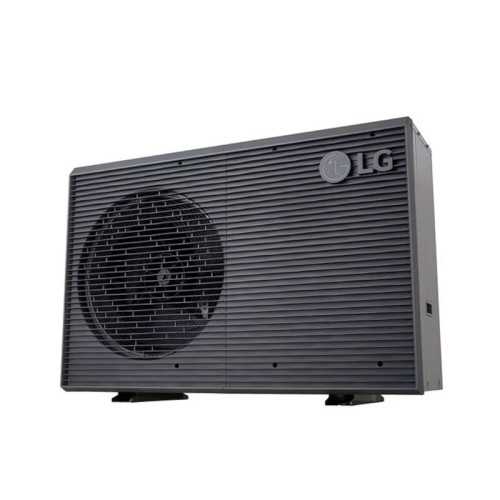

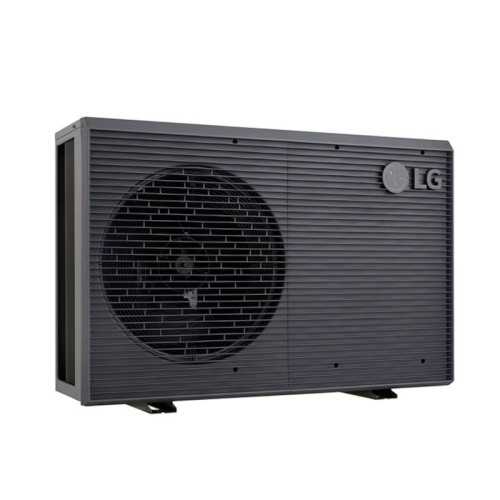

Aerotermia LG HM161MRS.UB40 THERMA V Monobloc S2

Thermal yield (35 ° C / 55 ° C)

Maximum heat capacity (W35): 14.00 kW

Maximum heat capacity (W55): 12.00 kW

NOMINAL COP (A + 7 / W35): 4,70

NOMINAL COP (A + 7 / W55): 2,80

SCOP medium climate (W35): 4,53

SCOP medium climate (W55): 3,45

Seasonal energy class: To +++

Dimensions, sound and limits

Measures (x al. X prof.): 1320 x 1019 x 520 mm

Net weight of the unit: 117 kg

Sonora power (heat): 61 dB (A)

Gas Refrigerant Gas / Preload: R32 / 1.6 kg

Outdoor operation range (heat): -25 ° C at 35 ° C

Water connections (PT): Male thread, 1 inch (25.4 mm)

✔️ Intelligent controller included: The price of the base supply includes both the outdoor Unit Compact monobloc of 16 kW as the official digital control command of LG To regulate precisely all operating parameters.

✔️ High power inverter compressor: Efficiently regulates its frequency of work to adjust to the real thermal needs of the building, optimizing consumption in partial loads and extreme cold peaks.

✔️ High hydronic flow: Ability to sustain a constant water flow of up to 45.00 liters per minute (at W35 ° C) to ensure optimal and homogeneous thermal delivery in all property issuers.

✔️ Sustainable Ecosystem R32: It uses refrigerant gas with a factory preload of 1.6 kg, ensuring an alternative of lower environmental impact against ancient conventional cooling mixtures.

What water drive limits handles the 16 kW monobloc range?

Even with its great power, in the heating mode it is capable of driving water from 15 ° C to a maximum limit of 65 ° C. In the mode focused on sanitary hot water (DHW), the operating range of output water can be raised directly to reaching 80 ° C by the ideal hydraulic configurations of the circuit.

What accessories are recommended to manage the service of DHW?

To optimally enable sanitary hot water control it is advisable to add the manufacturer's compatible items: the temperature probe for the interaumulator of DHW (PhRSta0), the management kit for the reservoir support resistance (Phutb) and the three-way external switch valve (OSHA-VAV).

Is an additional gas load needed in your installation?

No. When structured as a compact and hermetic monobloc hydronic system, it has a pre-established load of 1.6 kg of R32 completely sealed from the factory. The installer performs the mounting tasks, connecting exclusively water pipes on the outside.
