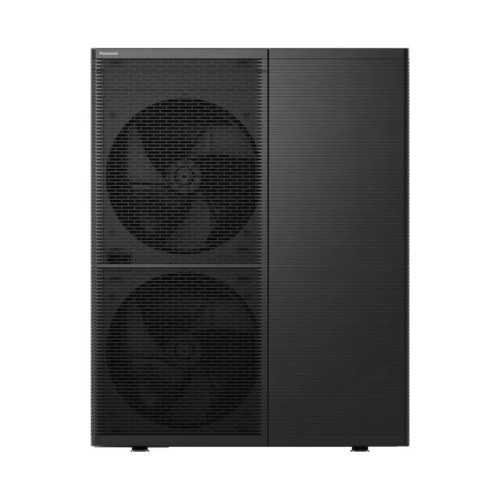

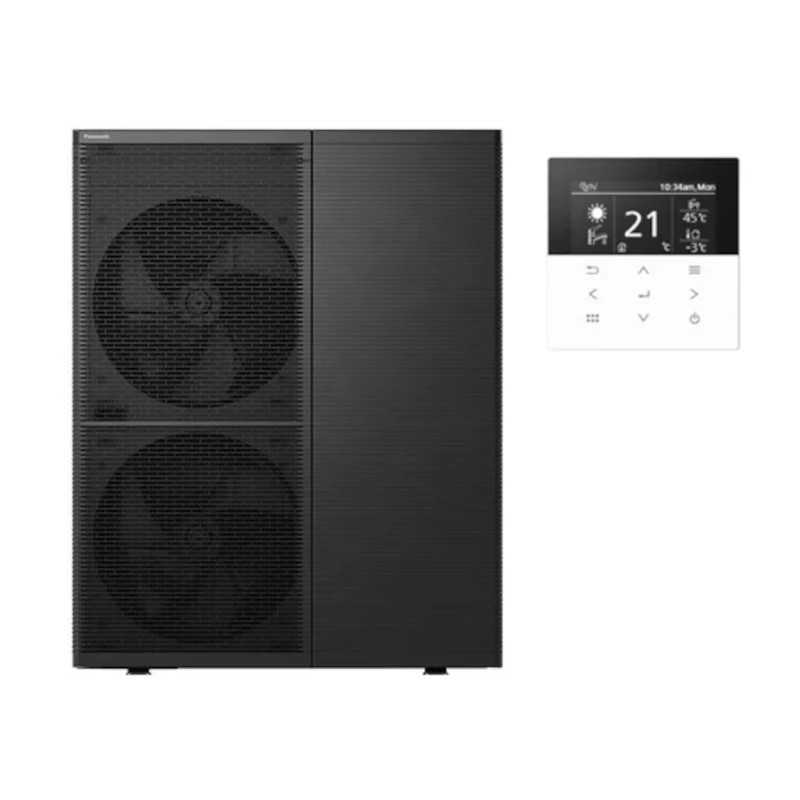

Aerotermia Monobloc WH-WXG12ME8 with CZ-RTW2TAW1C control Panasonic R290

Energy efficiency (35 ° C / 55 ° C)

Nominal power (A + 7 ° C, W35 ° C): 12.00 kW

NOMINAL COP (A + 7 ° C, W35 ° C): 4,92

Nominal power (A + 7 ° C, W55 ° C): 12.00 kW

NOMINAL COP (A + 7 ° C, W55 ° C): 3,00

Refrigerator capacity (A35 ° C, W7 ° C): 10.00 kW

Nominal EER (A35 ° C, W7 ° C): 2,75

SCOP temperate climate (W35): 4.80 (Label A +++)

SCOP temperate climate (W55): 3.45 (Tag A ++)

Mechanical specifications and installation

Dimensions (on. X x pr.): 1520 x 1200 x 430 mm

Net weight of the team: 171 kg

Sounding power of operation: 53 dB (A)

Gas Refrigerant Gas / Load: R290 (propane) / 1,78 kg

Hydraulic water flow (Δt = 5): 34,4 l / min

Maximum impulse temperature: 75 ° C

Recommended disconnector: 20 a

Electrical supply: Three-phase, 400V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: With an insignificant global warming potential, this gas advances the regulatory demanding of the European Union on fluorinated gases. It offers superior thermophysical performance that allows to achieve water at 75 ° C directly and cleanly.

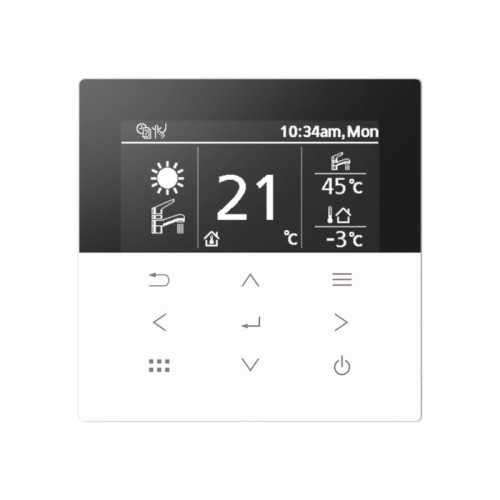

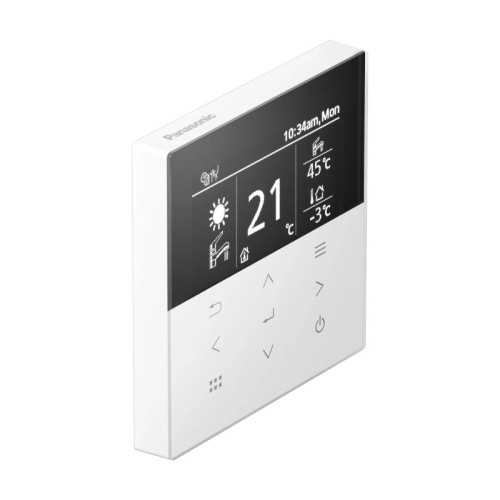

✔️ Advanced control CZ-RTW2TAW1C included: It is included as a central management component. It offers a control unit with precise tactile regulation of the housing climatic areas, schedule programming, real-time energy consumption graphics and integrated Wi-Fi connectivity.

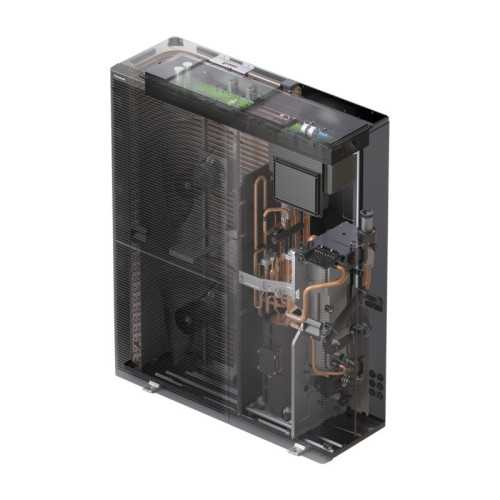

✔️ Double acoustic insulation structure: Designed with a stagnate soundproofing box around the Inverter compressor that reduces the sound power level at only 53 dB (A), allowing the equipment in patios or terraces without neighborhood discomfort.

✔️ Built-in hydraulic components: Integrates at the factory an intelligent Class A recirculation pump with a dynamic flow sensor, optimized expansion cup and a high-retention magnetic water filter that traps ferrous sludge protecting the exchanger.

✔️ Photovoltaic and solar synchronization: Automation List to directly be coupled to solar panel systems. It allows to produce sanitary hot water by taking advantage of the surplus of clean energy from the sun, drastically reducing the electric invoice.

Is this three-phase 12 kW model compatible with traditional iron or aluminum radiators?

Yes, perfectly. Thanks to the advanced thermodynamic properties of natural gas R290, the machine stably drives from 75 ° C without the need for additional electrical resistances. This allows to withdraw ancient fossil boilers while maintaining existing radiators and providing the thermal comfort required on colder days.

How does the T-Cap system work before external temperatures below zero?

The Aquarea T-CAP technology of Panasonic it incorporates advanced refrigerant injection control that counteracts common losses suffered by current air stopermers with intense cold. Holds its 12.00 kW of nominal capacity at low venture temperatures and guarantees the continuous operation of the system even in frosting environments with icy peaks up to -28 ° C.

What advantages does the monobloc format of the M series?

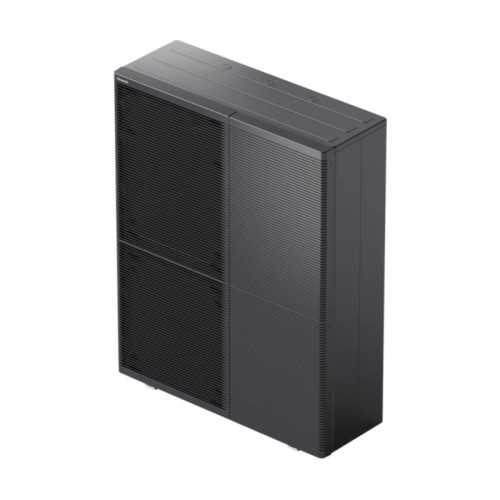

Being an exterior hermetic compact chassis, the entire gas cycle is preloaded and sealing from the factory. The professional installer performs only the connection of water pipes towards the internal network of the house. This streamlines the placement, increases security and eliminates the requirement to process certificates for handling F-gas handling within the habitable stays.
