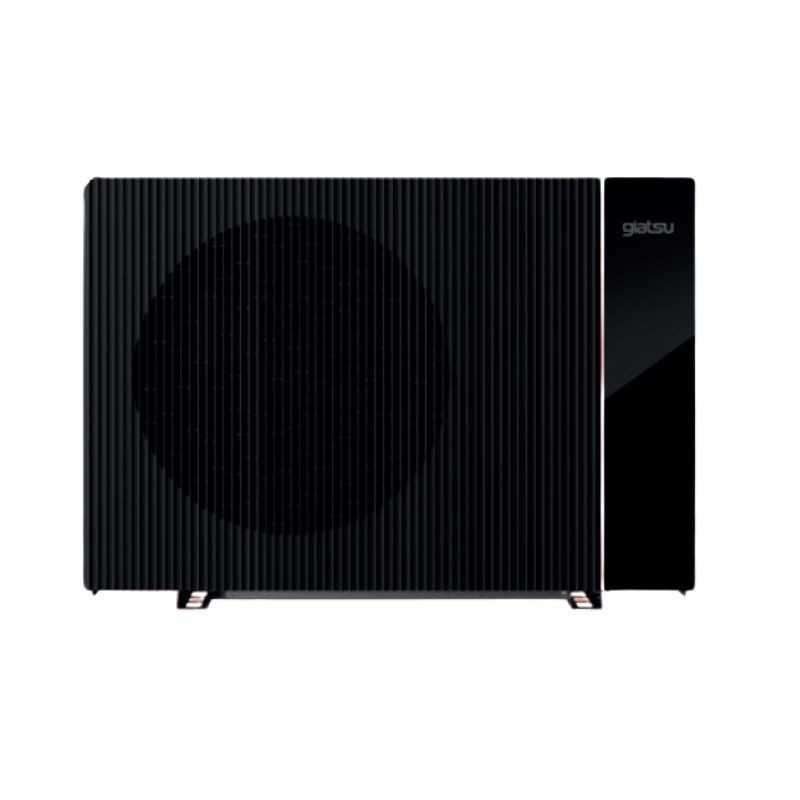

Giatsu EVO-THERMAL HOTAKA GIA-HP-MB10MPA R290 (10 kW)

Heat Pump aerotérmica Monobloc 10 kW fed 220-240V single-phase. Refrigerant Gas ecological R290, Twin compressor Rotary Full DC Inverter, maximum classification at +++ at 35 ° C and 55 ° C, 316L stainless steel exchanger, Blue END protection and IOT control with photovoltaic integration.

Refrigerant Gas Natural R290, Full DC technology Inverter and double classification A +++

The Aerotérmica monobloc heat pump Giatsu EVO-MB10MPA GIA-HP-MB10MPA offers an advanced and environmentally friendly solution for residential and commercial heating, refrigeration and healthy water production (DHW). Driven by natural coolant R290 with a potential for global warming practically null (GWP 3And an optimized load of 0.86 kg, This equipment incorporates electronic components with improved safety architecture and an independent ventilation channel of the electrical sections. Thanks to your compressor Twin Rotary DC Inverter and to your fan with DC motor, it reaches outstanding seasonal yields of SCOP 5.08 (A +++) at 35 ° C and Scop 3.98 (A +++) at 55 ° C, Delivering up 12.00 kW of power in heating and 9.00 kW in refrigeration.

Wide range of operation in extreme conditions: heating operation and DHW from -25 ° C to +45 ° C of outside temperature.

Compact monobloc construction, electrical safety and hydraulic versatility

The external unit monobloc GIA-HP-MB10MPA concentrates the entire hermetically sealed refrigerator circuit inside with dimensions of 1183 x 1035 x 510 mm and a net weight of 118.8 kg, facilitating a Agile assembly without the need for gas line handling.

Its inner architecture physically separates ventilation ducts with respect to the area of electronic components, guaranteeing the highest operating safety standards with the use of R290 refrigerant under IPX4 certification.

It uses 1-inch threaded hydraulic connections, allowing direct integration on radiant floor installations, fan coils or low and medium temperature radiators.

Technical recommendations for installation and maintenance

For the installation of the Monobloc unit Giatsu GIA-HP-MB10MPA, locate the equipment in an adequately ventilated outer area respecting the service distances recommended by the manufacturer. Connect the 220-240V single-phase power line with its corresponding magnetothermal and ground bypass protection.

Perform the hydraulic connection via 1 "pipe incorporating mesh filter, expansion vessel, safety valve and antifreeze or thermal discharge valve if necessary. Synchronize the LCD IOT panel with the Wi-Fi network and configure The parameters of climatic curve and photovoltaic signal to optimize the consumption of the installation.
