Kosner Aquaris MD HT Pro 40t: maximum industrial power of 40 kW and water at 85 ° C with gas R-290
Take the climate to the highest level of performance in large residential complexes, industries and commercial ships with the Kosner Aquaris MD HT Pro 40t three-phase, the highest capacity of the gamous monobloc heat pump. With a nominal power of 39 kW, this high temperature equipment stands out by incorporating the natural ecological refrigerant A-290 (propane) and advanced EVI compression technology, allowing you to drive water directly until 85 ° C.. It is the definitive engineering solution for comprehensive decarbonization and replacement of gas boilers in large radiator networks or processes that require high constant temperature. It offers heating, refrigeration and DHW With integrated advanced WiFi connectivity.
Key aspects of the maximum power unit (40 kW):
- ✔ Real impulsion at 85 ° C: Extreme thermal capacity designed to work with old radiator networks at full capacity.
- ✔ Three-phase feeding (400V): Balance of electric charges optimized for large installations of the industrial and tertiary sector.
- ✔ EVI Compressor Technology: Advanced steam injection that allows to sustain high drive temperatures even under rigorous climates.
- ✔ Integrated hydraulic kit: It incorporates the Electronic Circulator Electron Inverter pump on board, expansion vessel and safety elements.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

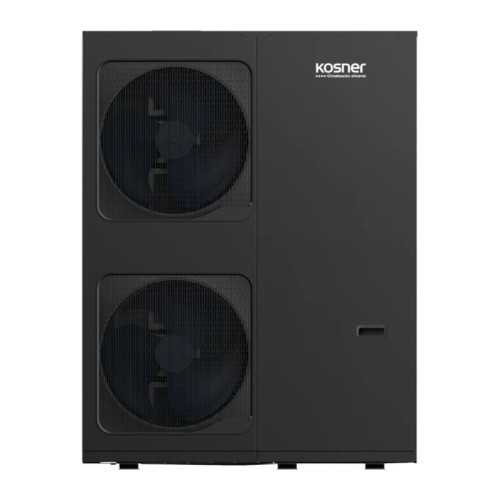

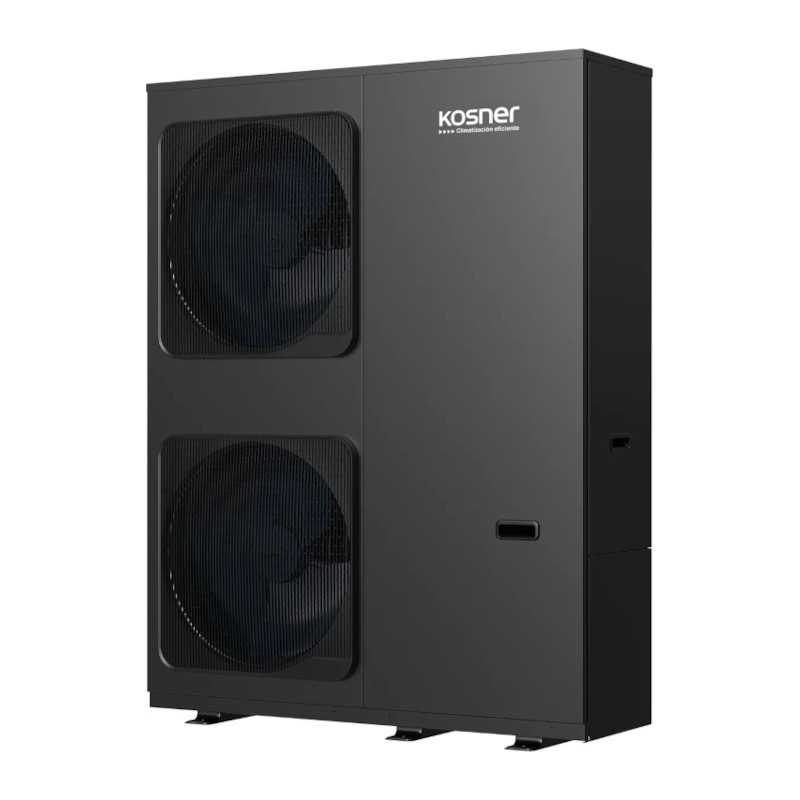

Heat Pump Air / Water Aerotermia Monobloc Kosner Aquaris 40T R-290
Referencia: 5500005103
€14,628.90
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Kosner Aquaris MD HT Pro 40t: maximum industrial power of 40 kW and water at 85 ° C with gas R-290
Take the climate to the highest level of performance in large residential complexes, industries and commercial ships with the Kosner Aquaris MD HT Pro 40t three-phase, the highest capacity of the gamous monobloc heat pump. With a nominal power of 39 kW, this high temperature equipment stands out by incorporating the natural ecological refrigerant A-290 (propane) and advanced EVI compression technology, allowing you to drive water directly until 85 ° C.. It is the definitive engineering solution for comprehensive decarbonization and replacement of gas boilers in large radiator networks or processes that require high constant temperature. It offers heating, refrigeration and DHW With integrated advanced WiFi connectivity.
Key aspects of the maximum power unit (40 kW):
- ✔ Real impulsion at 85 ° C: Extreme thermal capacity designed to work with old radiator networks at full capacity.
- ✔ Three-phase feeding (400V): Balance of electric charges optimized for large installations of the industrial and tertiary sector.
- ✔ EVI Compressor Technology: Advanced steam injection that allows to sustain high drive temperatures even under rigorous climates.
- ✔ Integrated hydraulic kit: It incorporates the Electronic Circulator Electron Inverter pump on board, expansion vessel and safety elements.
Security policy
Delivery policy
Refund policy
Kosner Aquaris MD HT Pro Monobloc: 40T model
The highest capacity of the range for industrial and centralized air conditioning
Maximum comfort and efficiency guaranteed in high power
The air pump airplane Kosner Aquaris MD HT Pro 40t Three-phase Monobloc is established as the Potential Potential Bizard, specifically conceived for industrial projects, agricultural, hotels, neighborhood communities or centralized heating networks that count with three-phase rush at 400V. With a capacity of 39 kW nominal heating, this high temperature inverter unit efficiently provides massive, cooling and sanitary hot water production (DHW). Being integrated into a single exterior monobloc module, the entire hydraulic circuit and refrigeration is concentrated in a compact chassis, which rule out any gas handling in habitable zones and simplifies the technical mounting tasks.
🌿 Refrigerant Gas Natural propane R-290 and Leader seasonal performance
Environmental commitment and maximum economic profitability come together in the Kosner Aquaris MD HT Pro 40t by using propane natural gas R-290. This ecological refrigerant is advanced to the regulations of the European Union thanks to its potential for insignificant global warming. Benefiting from this advanced design, the equipment reaches an excellent energy classification of ** A ++ / A ++ ** in its industrial air conditioning ranges, achieving a SCOP up to 3.84 working at low temperature (W35 ° C in average climate) and Earling it up to 5.35 under warm weather conditions. In refrigeration, it highlights with a SEER of 6.22 with water at 18 ° C, ensuring optimized electricity consumption throughout the year.
⚡ Vanguard compressor with EVI technology
The unit incorporates the revolutionary steam injection technology into the compressor (EVI), which optimizes the thermodynamic cycle to allow the machine to maintain high water drive temperatures even under low outer temperatures in winter. This technology is combined with an optimized ventilation engine and a protective treatment against corrosion in the "Blue End" exchange battery, ensuring the longevity of the mechanical system on severe climates or saline environments, maintaining the maximum benefits and Reliability of continuous work.
🔌 Smart Management Series: Wall Command WiFi and Modbus
Integrated connectivity is one of the identity signs of this advanced system. Each unit incorporates as standard a digital wall knob that exerts the intelligent precision thermostat function. This control has native Wi-Fi connectivity to manage and monitor the machine through the exclusive application of Kosner on any Smartphone or Tablet, allowing to establish an advanced weekly programming and visualize complete energy measurement readings. It is also equipped with the Modbus standard protocol, facilitating automated integration in residential domotic networks or centralized control BMS systems.
🎯 Verified technical characteristics (Official data)
All the information contained in the following technical data table faithfully reflects the official specifications of the manufacturer Kosner for the three-phase model Aquaris MD HT Pro 40t, according to the official technical catalog "Aquaris MD HT Pro.pdf":
| Technical specification | Official specification of the 40T model (three-phase) |
|---|---|
| Thermal power Nominal heating (A7 / W35) | 39.00 kW |
| Power absorbed in heating (A7 / W35) | 9,75 kW |
| COP performance coefficient (A7 / W35) | 4.00 w / w |
| SCOP Heating (Middle Climate / Warm weather - W35) | 3,84 / 5,35 kWh / kWh |
| Thermal power Medium heating (A7 / W55) | 39.00 kW |
| Power absorbed in medium heating (A7 / W55) | 14.00 kW |
| COP performance coefficient (A7 / W55) | 2,79 W / W |
| SCOP Heating (Middle Climate / Warm weather - W55) | 3.00 / 4,50 kWh / kWh |
| Drive thermal power at 65 ° C (A7 / W65) / COP | 35,00 kW / 2,34 W / W |
| Seasonal energy efficiency class (W35 / W55) | Class A ++ / Class A ++ |
| Refrigeration Refrigeration Power (A35 / W18) / EER | 39,00 kW / 3,96 W / W |
| Seer seasonal performance (Water at 18 ° C) | 6,22 kWh / kWh |
| Electrical supply / Network tension | Three-phase 400 V / 3 + N + T / 50 Hz |
| Maximum electric power absorbed by the equipment | 25,30 kW |
| Flow of the hydraulic pump (pressure available) | 4.20 m³ / h (4.5 MCA) |
| Hydraulic water circuit connections | 1 1/4 "Gas / Male |
| Gas-type Refrigerant Gas Ecological / factory load | R-290 (propane) / 2.90 kg |
| ERP sound power (silent mode 1 / silent mode 2) | 76.0 / 68.9 / 65.3 dB (A) |
| Net dimensions of the unit (high x wide x prof.) | 1.816 x 1.384 x 523 mm |
| Factory Homologation Code | 5500005103 |
🔧 Specialized counseling and engineering with https://tualmacendelclima.com/en/
On https://tualmacendelclima.com/en/ we support your facilities through a technical department composed of experienced engineers with more than 15 years of trajectory in the sector. The Kosner Aquaris MD HT Pro 40T is a high-end heat pump designed for large volumes whose high temperature performance can be substantially maximized by correct hydraulic design and the original accessories integration:
- • Modular installations in high power cascades: Using the smart controller that is included as standard, it is possible to configure and manage to 6 units in cascading, managing a maximum combined power of up to 240 kW to respond to tertiary projects, neighborhood communities or large commercial surfaces. In these grouped configurations, the master unit acts as main sanitary hot water producer (DHW), Facilitating hybridization with other sources of heat.
- • Accessories included in the serial supply: In order to simplify technical tasks and avoid additional costs on site, each outdoor Unit it is supplied at the factory with a 10 meter length health water probe and the wall control panel.
We assure you the most competitive purchase conditions on the electronic market. Take yourself today your Kosner Aquaris MD HT Pro 40T Enjoying the exclusive advantages of our platform: ** Free Shipping ** (EspaÑa Peninsula), immediate flexible financing options for your needs and the continued support of our team of specialized engineers.
5500005103
Data sheet
- Brand
- Kosner
- Refrigerant Gas
- R290
- Electrical supply
- Trifásica
- COP
- 4,00
- Scop (warm weather)
- 4,48
- EER
- 3,96
- Type
- Frío/Heat
- Maximum temperature Heating (ºC)
- 85
- Power Nominal heat (W)
- 39.000
- Heat consumption (W)
- 9.750
- Nominal cold power (W)
- 39.000
- Cold consumption (W)
- 9.850
- Energy efficiency
- A++
- WiFi
- Incluido
- High (mm)
- 1.365
- Width (mm)
- 1.384
- Background (mm)
- 523
- Weight (kg)
- 260
