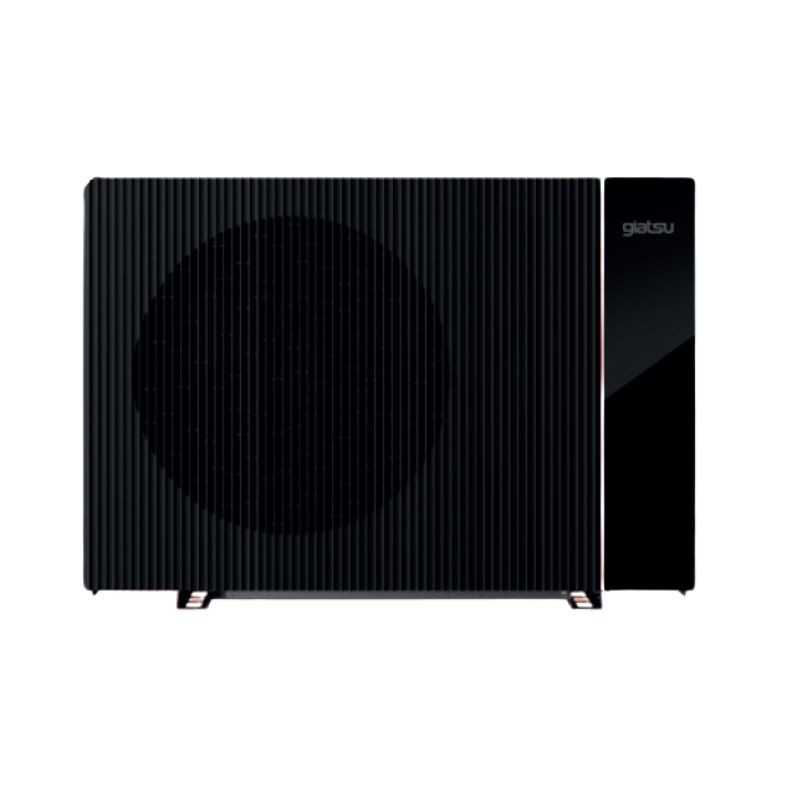

Giatsu EVO-THERMAL HOTAKA GIA-HP-MB19MPA R290 (16 kW)

Heat Pump aerotérmica Monobloc of 16 kW nominal nominal 220-240V. Refrigerant Gas ecological R290, Twin Rotary Compressor Full DC Inverter, double fan dc, maximum rating at +++ at 35 ° C and 55 ° C, 316L stainless steel exchanger, Blue END protection and IoT Control with integration Photovoltaic.

Refrigerant Gas Natural R290, double fan dc inverter and +++ rating

The Aerotérmica monobloc heat pump Giatsu Evo-Thermal Hotak Gia-HP-MB19MPA represents a high-capacity air conditioning solution designed for large single-family homes or commercial facilities that demand heating, refrigeration and sanitary hot water (DHW) with single-phase feeding. Works through ecological refrigerant gas R290 with a potential for global warming practically null (GWP 3And an adjusted load of 1,55 kg. This model has electronic architecture with improved safety and isolated ventilation channel of the electrical parts. Thanks to your compressor Twin Rotary DC Inverter and to his 2 Fans with DC engine, it reaches excellent seasonal values of SCOP 5.06 (A +++) at 35 ° C and SCOP 4.06 (A +++) at 55 ° C, Delivering up 19,10 kW of total power in heating and 14,90 kW in refrigeration.

Wide range of operational work in severe climates: heating operation and DHW guaranteed from -25 ° C to +45 ° C outer.

Double-fan monobloc design, Electrical safety and hydraulic connections

The outdoor Unit monobloc Gia-HP-MB16MPA encloses the whole hermetically sealed refrigerator circuit in its chassis of 1183 x 1379 x 510 mm with a net weight of 169 kg, facilitating installation work to Do dispense with refrigerating gas connections in the field.

Its internal structure is electrically inspected by the control modules with respect to the air currents driven by its two fans, ensuring high safety standards under the IPX4 standard when working with R290 refrigerant.

It integrates threaded water intakes with 1-inch diameter, allowing a clean coupling with radiant floor circuits, coils or traditional radiators and low temperature.

Technical recommendations for installation and maintenance

For the proper installation of the Monobloc unit Giatsu GIA-HP-MB16MPA, place the equipment in a well-ventilated outer area respecting the service free spaces specified by the manufacturer. Connect the 220-240V single-phase power line with the magnetothermal and derivation protection suitable for the power of the equipment.

Perform the hydraulic connection via pipe 1 "incorporating filter in and, expansion cup, safety valve and antifreeze or thermal discharge valve according to the installation requirements. Configure the IOT LCD console to connect the unit to the Wi-Fi network and enable synchronization with the photovoltaic plant.
