Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC09J3E8-1 Of 9 kW with three-phase feeding is the definitive solution for climate to large single-family survey located in areas of hard winters. Thanks to the exclusive T-CAP technology, this system perfectly balances the electrical consumption between the three phases and keeps its nominal capacity of 9.00 kW intact up to -7 ° C exterior without the need for additional electrical aid. Its extraordinary seasonal efficiency with a scop of 4,96 It ensures maximum heating savings, air conditioning and sanitary hot water.
9,00 kW Constant capacity Three-phase A +++ Scop 4.96
The most efficient and powerful air stop solution for your home in https://tualmacendelclima.com/en/
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

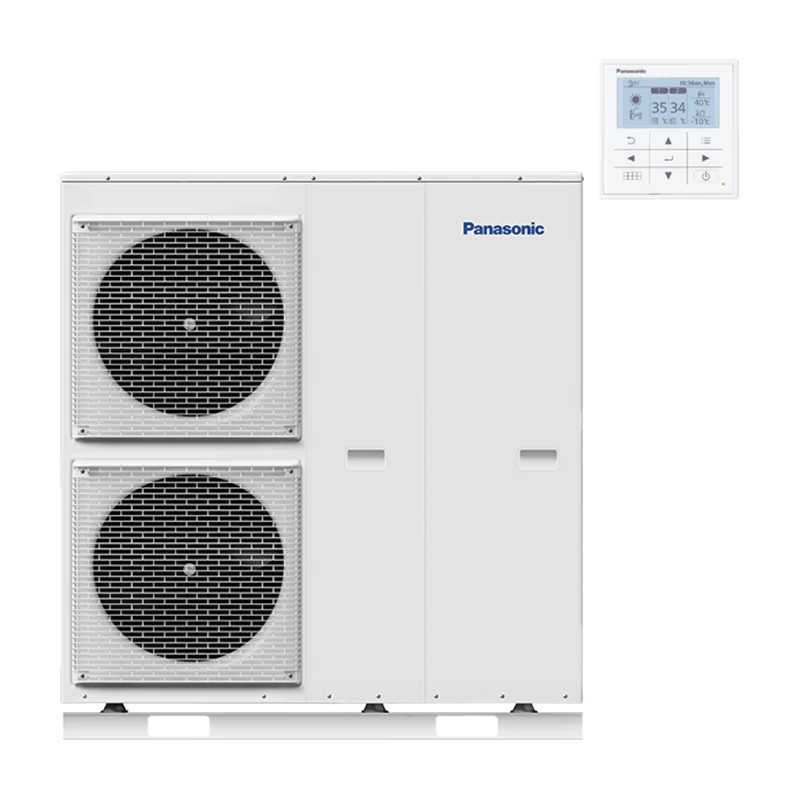

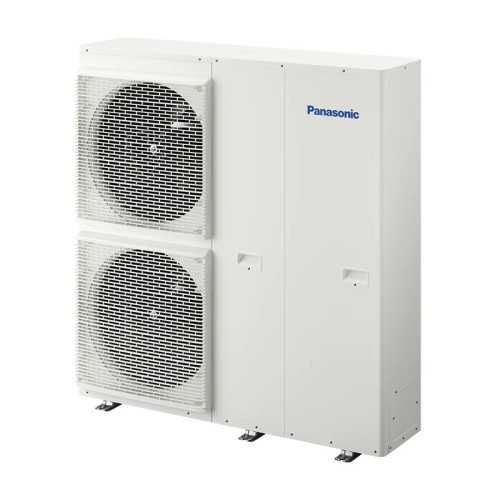

Aerotermia monobloc WH-MXC09J3E8-1 Panasonic Aquarea T-Cap Pump heat R32
Referencia: WH-MXC09J3E8-1
€6,626.83
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC09J3E8-1 Of 9 kW with three-phase feeding is the definitive solution for climate to large single-family survey located in areas of hard winters. Thanks to the exclusive T-CAP technology, this system perfectly balances the electrical consumption between the three phases and keeps its nominal capacity of 9.00 kW intact up to -7 ° C exterior without the need for additional electrical aid. Its extraordinary seasonal efficiency with a scop of 4,96 It ensures maximum heating savings, air conditioning and sanitary hot water.
9,00 kW Constant capacity Three-phase A +++ Scop 4.96
The most efficient and powerful air stop solution for your home in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
Aerotermia Monobloc T-Cap | Three-phase j generation
Panasonic Aquarea T-Cap 9kw threekw
Model WH-MXC09J3E8-1: Perfect electric balance and guaranteed performance below zero.
Electric stability and power without winterings
The Monobloc heat pump Panasonic Aquarea T-Cap Wh-MXC09J3E8-1 it is positioned as the professional hydronic system par excellence for single-family property integrated into three-phase electric networks at 400V. Unlike common airpharm, they lose caloric power as soon as the outer thermometer falls, advanced technology T-Cap (Total Capacity) of Panasonic it keeps constant your 9 kW of thermal delivery under adverse winter conditions. Fed high efficiency ecological gas R32, it provides permanent heating, summer air conditioning and hot water with a COP 5,08 and the highest seasonal energy certification To +++ at low temperature.
The Aquarea Monobloc range stands out for a clean technical implementation, centralizing the refrigeration cycle in a watertight in the outdoor Unit. Its three-phase diet symmetrically distributes the electrical intensity required by the Inverter compressor, protecting the general lines versus network imbalances. It does not consume space within housing or demand complex fluorine gas refrigerated interconnections, completing the assembly by simply by coupling ordinary water pipes towards the inside of the residence.
Detailed technical sheet WH-MXC09J3E8-1
Energy efficiency (35 ° C / 55 ° C)
Heat capacity (A + 7 ° C, W35 ° C): 9.00 kW
NOMINAL COP (A + 7 ° C, W35 ° C): 5,08
Heat capacity (A + 7 ° C, W55 ° C): 9.00 kW
NOMINAL COP (A + 7 ° C, W55 ° C): 3,08
Refrigerator capacity (A35 ° C, W7 ° C): 9.00 kW
Nominal EER (A35 ° C, W7 ° C): 3,18
SCOP medium climate (W35 / W55): 4,96 / 3,57
Seasonal energy label (W35): To +++
Technical and hydraulic specifications
Dimensions (on. X x pr.): 1410 x 1283 x 320 mm
Net weight of the team: 140 kg
Maximum sound power: 65 dB (A)
Gas Refrigerant Gas / Load: R32 / 1.60 kg
Nominal water flow (A7 / W35): 25.8 l / min
Water pipe connector: 1¼ inches thread
Integrated electrical resistance: 3,00 kW
Electrical supply: Three-phase, 400V, 50Hz
Featured Technologies Aquarea T-Cap
✔️ High temperature water drive: Advanced capacity to regulate in a stable way and drive heating water directly to 65 ° C, guaranteeing compatibility with mixed systems or radiators.
✔️ Integrated Premium Hydraulics: Factory a smart variable-speed-speed hydronic pump (consumption setting of 32 to 173 W) with flow sensor, digital flowmeter and built-in magnetic water filter.
✔️ Advanced management with optional PCB: It allows to expand the internal electronic regulation functions to coordinate double zone schemes, bivalent systems with secondary boilers or SMART Grid signals.
✔️ Compressor guarantee Panasonic: The three-phase system inverter from the system has a support and coverage of up to 5 years granted directly by the manufacturer for maximum daily tranquility.
Frequently asked questions
What benefit does T-CAP technology provide in a 9 kW model?
Traditional Aerotermia teams drastically reduce their thermal delivery when the outside temperature drops. The T-CAP models incorporate an additional liquid injection into the compressor that allows the 9.00 kW of ranked capacity constant at -7 ° C or -15 ° C exterior, guaranteeing stable comfort without resorting to electrical support resistances.
How is the sanitary hot water circuit coordinated (DHW)?
The unit has integrated intelligent control to manage DHW. It only requires incorporating a 3-way switch valve in the outer facility (such as the PAW-3WYVLV-HW accessory) linked to an enlarged or stainless water deposit of 200 or 300 liters of high efficiency.
Is it necessary to perform gas recharges during its assembly?
No. When configured as a compact closed monobloc system, the unit comes tight and has a factory preload of 1.60 kg of R32 gas. The professional carries out the assembly of the machine by uniting only ordinary water pipes on the outside of the property.
Do you need technical advice for your project?
As certified official partners Panasonic, our engineering department is at your disposal to optimize schemes, calculate your residential thermal losses or configure compatible inertial deposits.
Call 623 541 934
WH-MXC09J3E8-1
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- COP
- 4,84
- Scop (warm weather)
- 5,95
- EER
- 3,17
- Type
- Frío/Heat
- Maximum temperature Heating (ºC)
- 65
- Power Nominal heat (W)
- 9.000
- Heat consumption (W)
- 1.860
- Nominal cold power (W)
- 7.000
- Cold consumption (W)
- 2.210
- Energy efficiency
- A+++
- WiFi
- Opcional (Consultar modelo)
- High (mm)
- 1.410
- Width (mm)
- 1283
- Background (mm)
- 320
- Weight (kg)
- 151
