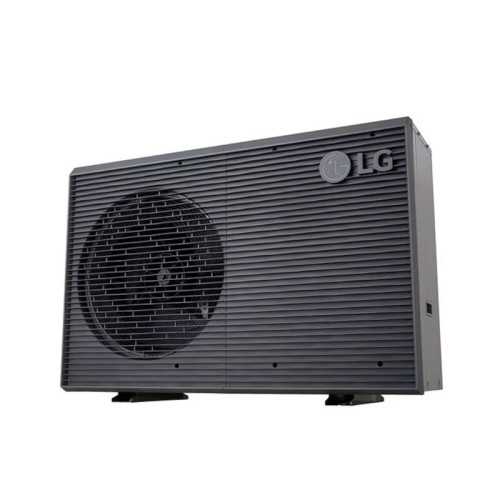

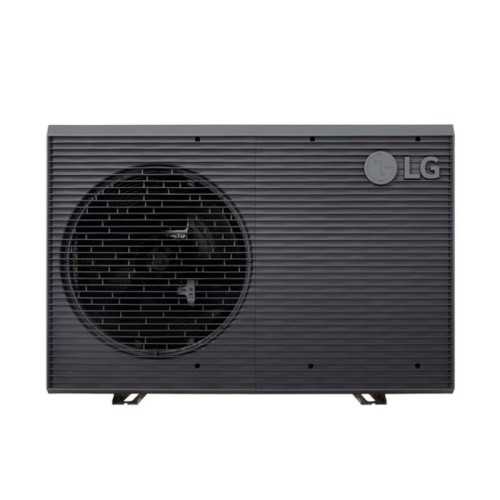

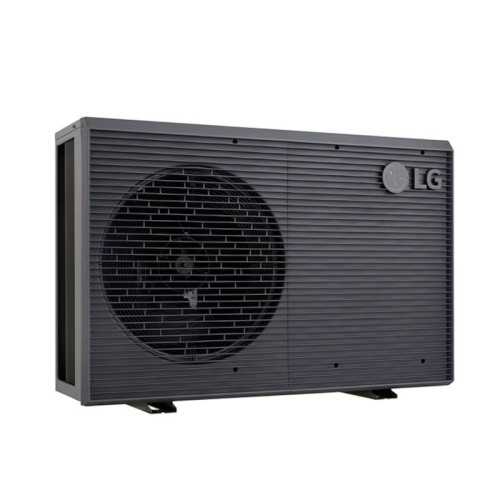

Aerotermia LG HM143MRS.UB40 THERMA V MONOBLOC S2 THRIFESIC

Thermal yield (35 ° C / 55 ° C)

Maximum heat capacity (W35): 14.00 kW

Maximum heat capacity (W55): 11.50 kW

NOMINAL COP (A + 7 / W35): 4,80

NOMINAL COP (A + 7 / W55): 2,85

SCOP medium climate (W35): 4,62

SCOP medium climate (W55): 3,46

Seasonal energy class: To +++

Dimensions, sound and limits

Measures (x al. X prof.): 1320 x 1019 x 520 mm

Net weight of the unit: 117 kg

Sonora power (heat): 61 dB (A)

Gas Refrigerant Gas / Preload: R32 / 1.6 kg

Outdoor operation range (heat): -25 ° C at 35 ° C

Water connections (PT): Male thread, 1 inch (25.4 mm)

✔️ Intelligent controller included: The price of the base supply includes both the outdoor Unit Three-phase monobloc of 14 kW as the official digital controller of LG To regulate precisely all the operating parameters of the system.

✔️ High stability Inverter compressor: It modulates agile its frequency of work to adjust to the real thermal needs of the building, optimizing consumption and reducing mechanical wear under a perfect phase swing.

✔️ Optimized hydron flow: Ability to constantly hold a water flow of up to 40.30 liters per minute (at W35 ° C) to stabilize thermal delivery in all home or commercial placers.

✔️ Sustainable Ecosystem R32: It uses the state-of-the-art gas with a factory preload of 1.6 kg, ensuring an alternative of lower environmental impact against ancient cooling mixtures.

What water drive limits handle the Monobloc S2 range?

In the heating mode, it is capable of boosting water from 15 ° C to a maximum limit of 65 ° C. In the mode focused on sanitary hot water (DHW), the operating range of the output water can be raised directly until reaching 80 ° C through the recommended hydraulic configurations and circuit accessories.

What accessories are recommended to enable the service of DHW?

To take advantage of health hot water management, it is advisable to incorporate the compatible official components: the temperature probe for deposit of DHW (PhRSta0), the kit for control of interaction resistance (phutb) and three-way switch valve (OSHA-VAV).

Does it require a complementary gas load during its assembly?

No. As configured on a closed and compact monobloc system, it has a 1,6 kg airtight preload of R32 directly sealed from the production factory. The technician performs the assembly by joining only water pipes on the outside of the house or local.
