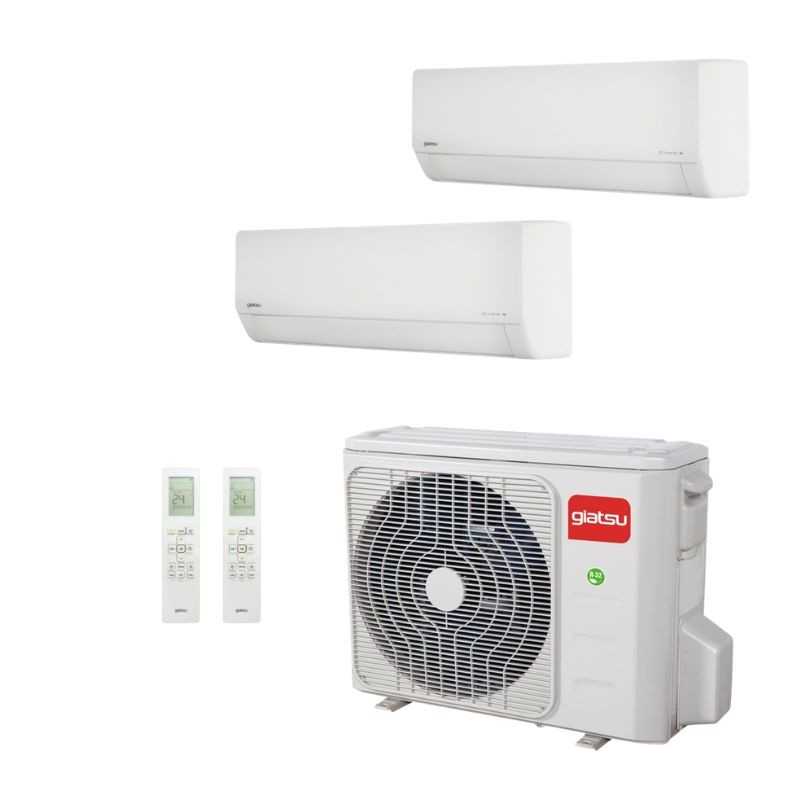

Multi Split 2x1 Giatsu GIA-MO2-18IX41B2R32 + GIA-MSI-09AR3R32 + GIA-MSI-12AR3R32 AROMA 3

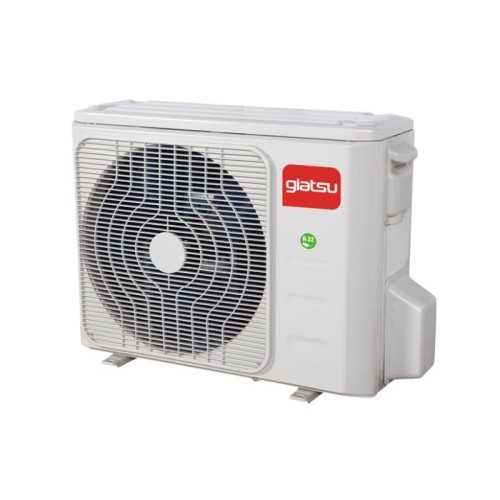

Performance of the Outdoor Unit (Gia-mo3-18ix41b2r32)

Cooling capacity (nominal): 5,20 kW (Work Range Inverter from 2.05 KW to 5,20 kW)

Capacity Heating (nominal): 5.27 kW (stable and heat efficient performance)

Seasonal energy classification (cold / heat): A ++ / A +

Seer efficiency coefficient (cold): 6,1

Efficiency coefficient SCOP (heat): 4,0

Compressor technology: High efficiency inverter DC

Exterior air flow: 3.800 m³ / h

Gas Refrigerant Gas Ecological: R32 high thermal transfer

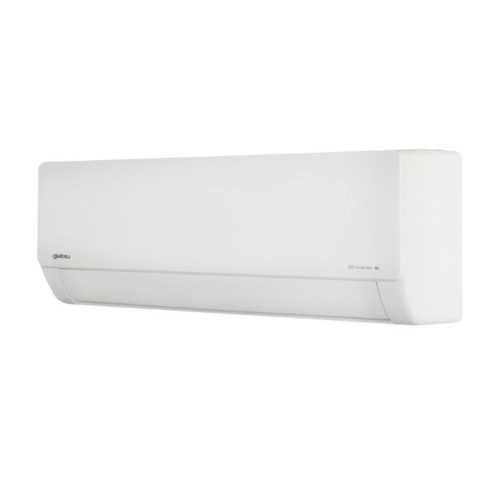

Indoor units included (Aroma 3 series)

Split Bedroom or Dispatch: 1x GIA-MSI-09AR3R32 (2,60 kW cold / 2.93 kW heat)

Main split or lounge: 1x GIA-MSI-12AR3R32 (3,51 kW cold / 3.81 kW heat)

Minimum sound pressure (2.5 kW model): 19 dB (A) (ultrasilence)

Dimensions models 2.5 kW (an x at x PR): 723 x 286 x 199 mm

Dimensions Model 3.5 kW (an x at x PR): 813 x 289 x 201 mm

Connection diameter (all models): Liquid 1/4 - Gas 3/8

Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)

✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. By linking with the mobile application on your smartphone or tablet, it allows you to control the two rooms independently or manage the basic functions using voice commands with Alexa and Google Home.

✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.

✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.

✔️ Optimized design for installation and maintenance: AROMA 3 units incorporate practical elements such as a level support included to ensure a perfect alignment, easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.

✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.

How does Asymmetric Management work for stays with units of 2.5 kW and 3.5 kW?

Independence in the air conditioning of the two stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can program the 3.5 kW unit in the main room in cold mode during the day while the bedroom unit remains completely off or at a smooth setpoint temperature, adapting the outer compressor exactly to the defendant proportional proportional expenditure.

Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?

No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.

What installation flexibility does this 5,20 nominal 520 kW system offer?

The system supports a flexible installation to adapt to the distribution of your home. The maximum vertical rate allowed between the outdoor Unit (installed in facade, patio or roof) and the interiors is 15 meters, while the vertical maximum difference between the indoor units mounted within the house is up to 10 meters, facilitating the laying of copper refrigeration lines of Form totally secure.
