Saline chlorinator Go Salt GS-12 pH CTX

Astralpool Go Salt GS-12 pH

Definitive dual treatment: natural chlorination and automatic pH regulation on a single compact equipment. Self-cleaning titanium cell, integrated peristaltic pump and maximum analytical security.

Technical Engineering Study: The complete synergy of the Go Salt PH model

In water treatment engineering, disinfection by electrolysis and pH value are indissoluble linked: if the pH exceeds the 7.6 threshold, the generated chlorine immediately loses more than half of its disinfecting power. Unlike the basic versions of the range, the system Go Salt GS-12 pH solve this problem using an automated continuous correction loop. Its integrated analysis module constantly reads the chemical value of the vessel and ordered precise micro-injections through its internal peristaltic pump. This stabilizes the disinfecting properties of naturally generated natural chlorine, protecting the vessel coatings and optimizing the dermatological comfort of bathers without manual intervention. Our engineering department analyzes the hydraulic networks of each project to guarantee a perfect chemical balance.

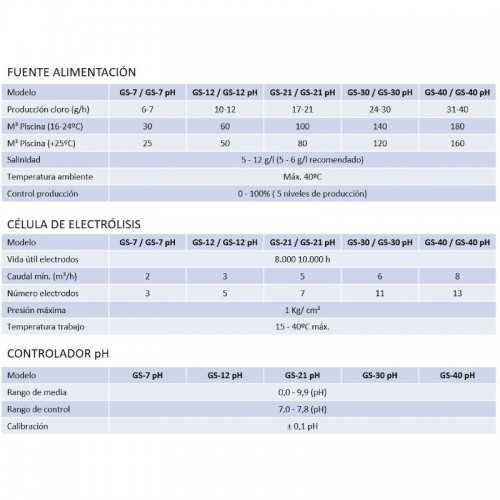

📊 All dimensional, electrochemical and functional parameters strictly correspond to the GO SALT product dossier.

Compact domotic control unit: micrometric regulation of pH and self-cleaning titanium

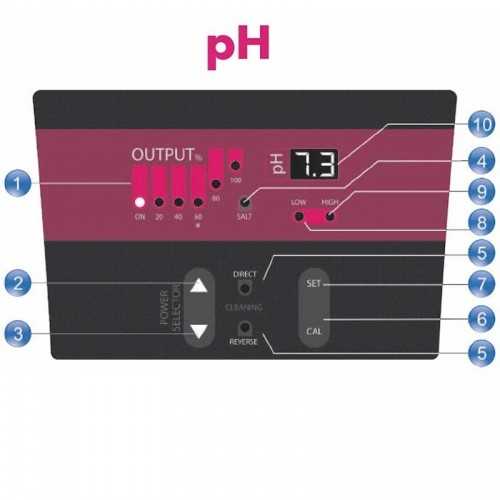

Astralpool GO Saline Saline Chlorinator is consolidated as a smart residential water treatment switchboard, specially designed to simplify maintenance in swimming pools up to 60 m³. Its advanced electronics simultaneously manages two critical processes: electrolysis and chemical analysis. Working with a recommended salt concentration of 5 to 6 g / l, the equipment ensures a production of 10 to 12 grams of pure chlorine per hour. At the same time, the control module reads the state of the water through its epoxy electrode and shows the pH in real time on a digital information display, allowing the desired setpoint value (adjustable control range from 7.0 to 7.8 pH) and performing automatic calibrations through pattern solutions.

The injection of the corrective product runs through its integrated peristaltic pump series, which offers a soft and constant volumetric dosage by rotating compression of a flexible tube. This mechanical design prevents blockages caused by gas bubbles and acts as a natural anti-return valve. The durability of the cell is backed by a set of 5 self-cleaning activated titanium electrodes with polarity investment technology (configurable by means of Jumpers to 2h or 3h cycles), reaching a certified service life between 8,000 and 10,000 hours of service.

GO SALT GS-12 PH software displays a robust active security protocol to protect the installation. Highlights the function ** pump-stop **, a menu configurable algorithm (from 1 to 99 minutes) that preventively stops the dosing pump if the pH does not stabilize at the expected time, avoiding overdose due to lack of product or faults in the probe. This is complemented with high / low salt level alarms, a general flow alarm by flashing the LED scale of the production level and a smart-free auxiliary input for the cover, which automatically reduces the production of 10% natural chlorine When the pool is covered.

Hydraulic perimeter control and safety strategies

The GO SALT-PH model unifies the robustness of industrial systems in an optimized ABS thermoplastic chassis for domestic filtering rooms. Your internal physical ports and bridges allow parameterizing different control logics:

• Automatic attenuation by coverter: By means of a configuration jumper (CO_0, CO1C) coupled to a free voltage contact, the computer reads if the pool or coverage of the pool is deployed, reducing 10% production instantaneously to mitigate overclock.
• Optional external production control: It has a parametrizable voltage-free input (OR_0, OR1C) that allows the connection with an external ORP (Redox) reading machine, automating the generation of natural chlorine by real biological demand.
• Double hydraulic alert: It has a permanent system of gasflow by gas flow in the cell itself, jointly acting with the flasking protocol of SUDGE Falls production scale in the pumping pressure of filtration.

Do you need assistance for technical automation of your pool?

On https://tualmacendelclima.com/en/ we are specialist engineers in hydraulic design, networking, efficient climate and water treatment. If you want to resolve questions about the 63 mm transparent bypass mounting diagram, the substitution of probes or the calibration of the set-point value of your GO Salt Ph equipment, our technical department is at your entire disposal.
