Cassette Haier AB140S2SR1FA(H) + 1U140S2SN2FB
Round-Flow 140 Triphasic - Absolute Industrial Power
Cassette Haier Round-Flow 140 Classic - Total industrial power cassette air conditioning system with 8-way Round-Flow technology and maximum stability three-phase feeding, ideal for the largest industrial facilities up to 140m2. Circular air distribution with integrated Wi-Fi and maximum triphase power available.
13.4 kW
Cold power
15.0 kW
Power Calor
2,43
EER
A+/A++
Energy Label
34 dBA
Sound level
10.0 A
Triphase Intensity
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Industrial Use Triphasic 380V Panel 950mm

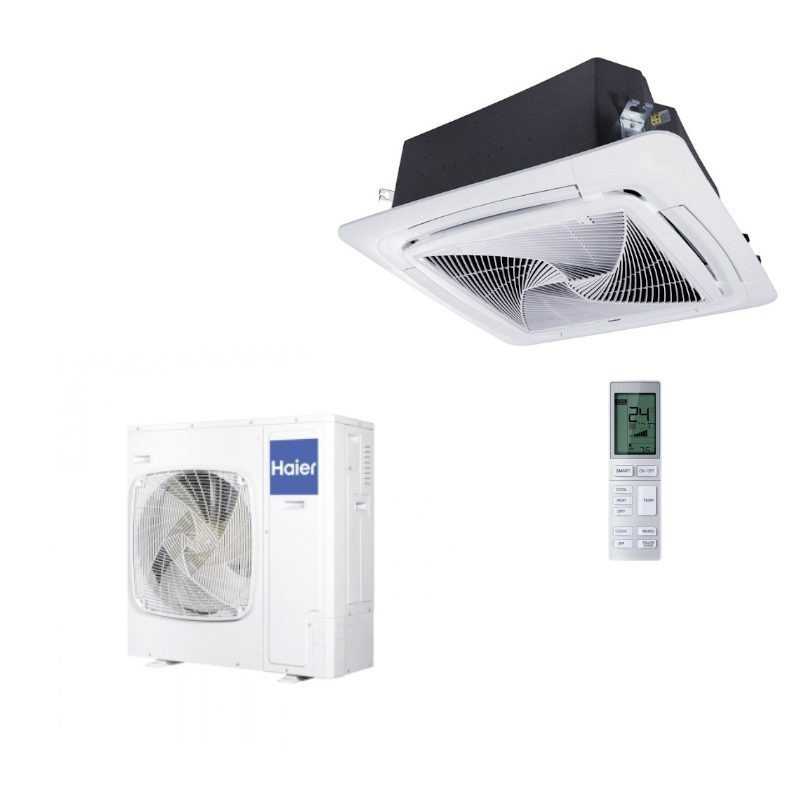

Full model: Indoor Unit AB140S2SR1FA(H) + Outdoor Unit 1U140S2SN2FB
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for the largest industrial facilities up to 140m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Trinity Absolute Power: 13,4kW with only 10,0A intensity
▪ Advantages Absolute Power 380V
Absolute Power:
13,4kW maximum in Round-Flow
13,4kW maximum in Round-Flow
Stable Intensity:
10,0A balanced operation
10,0A balanced operation
Arranque Suave:
Only 2.0A vs 5.0A monophasic
Only 2.0A vs 5.0A monophasic
Maximum Capacity:
140m2 total coverage
140m2 total coverage
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Haier Round-Flow 140 Trif. AB140S2SR1FA(H) + 1U140S2SN2FB
Referencia: HAIROUNDCAS140THC
€2,058.32
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB140S2SR1FA(H) + 1U140S2SN2FB
Round-Flow 140 Triphasic - Absolute Industrial Power
Cassette Haier Round-Flow 140 Classic - Total industrial power cassette air conditioning system with 8-way Round-Flow technology and maximum stability three-phase feeding, ideal for the largest industrial facilities up to 140m2. Circular air distribution with integrated Wi-Fi and maximum triphase power available.
13.4 kW
Cold power
15.0 kW
Power Calor
2,43
EER
A+/A++
Energy Label
34 dBA
Sound level
10.0 A
Triphase Intensity
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Industrial Use Triphasic 380V Panel 950mm
Full model: Indoor Unit AB140S2SR1FA(H) + Outdoor Unit 1U140S2SN2FB
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for the largest industrial facilities up to 140m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Trinity Absolute Power: 13,4kW with only 10,0A intensity
▪ Advantages Absolute Power 380V
Absolute Power:
13,4kW maximum in Round-Flow
13,4kW maximum in Round-Flow
Stable Intensity:
10,0A balanced operation
10,0A balanced operation
Arranque Suave:
Only 2.0A vs 5.0A monophasic
Only 2.0A vs 5.0A monophasic
Maximum Capacity:
140m2 total coverage
140m2 total coverage
Security policy
Delivery policy
Refund policy
I'M NOT SURE I'M READY FOR THIS
The Maximum Absolute Power for High Demand Industrial Installations
MODEL: AB140S2SR1FA(H) + 1U140S2SN2FB
▪ TECHNICAL SPECIFICATIONS OF MOST POTENCE
EXTREMATIVE CAPACITY
- Refrigeration power: 14.0 kW (12.020 kcal/h)
- Heating power: 15.5 kW (13,330 kcal/h)
- Maximum coverage: Up to 140 m2 industrial
- Ideal application: Large ships, industrial complexes
▪ OPTIMIZED TRIFÁSICA ALIMENTATION
- Tension: 380-415V triphase
- Ultra Low Intensity: 11,5A (vs 32,0A monophasic)
- Arranque Suave: 2.5A (vs 5,0A monophasic)
- Electrical Saving: 64% less intensity

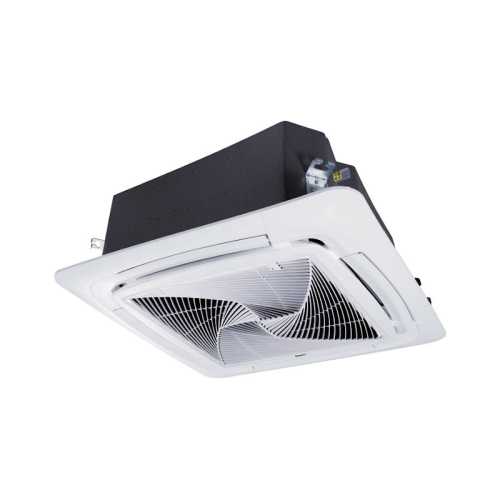

️ Indoor Unit ROUND-FLOW - REVOLUTION TECHNOLOGY
8-WAY DISTRIBUTION SYSTEM
The exclusive Round-Flow technology Haier provides a fully uniform 360° air distribution through 8 independent outputs, eliminating dead areas and ensuring a homogeneous temperature throughout the industrial facility.
Đ DIFERENCEL SALE: +23% more airflow vs. traditional 4-way cassettes
INDUSTRIAL APPLICATIONS OF MEXICO
GREAT COMPLEJES
Extensive industrial ships, logistics centers, production plants that require maximum power and electrical stability.
TECHNICAL INSTALATIONS
Large-surface laboratories, research centers, specialized technical workshops with triphase feeding.
DATA CENTRES
Large-capacity server rooms, processing centers that need constant and efficient cooling.
MÁXIMA POTENCIA INDUSTRIAL GARANTIZED
The 140 Triphasic model represents the summit of the Round-Flow range for high demand industrial installations

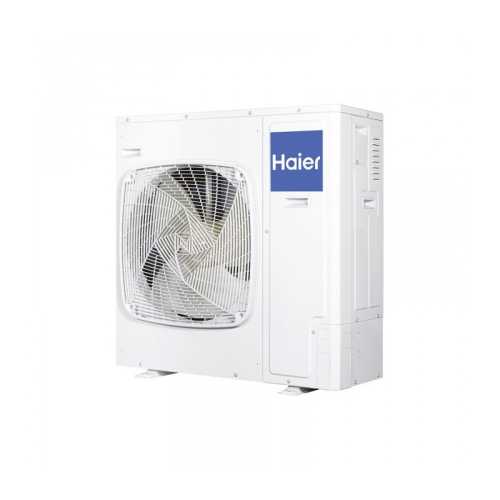

🏭 Outdoor Unit TRIFÁSICA - MÁXIMA POTENCIA INDUSTRIAL
▪ EXCLUSIVE VENTATIVES OF TRIFASIC ALIMENTATION
Ultra Optimized Intensity: 11,5A vs 32,0A monophasic (64% less)
Arrange Ultra Suave: 2.5A vs 5.0A monophasic (50% less)
:️ Perfect Balance: Stable and constant triphase distribution
Optimized cabling: 5 x 6.0 mm2 for maximum safety
ENERGY EFFECTIVE EFFICIENCY
ENERGY CLASIFICATION
A++
SEER: 6,10 (Refrigeration)
SCOP: 4,80 (Calfaction)
ANNUAL CONSURE
813 kWh/year
Refrigeration: 813 kWh/a
Heating: 3542 kWh/a
AHORRO ECONOMIC GARANTIZED
The maximum A++ energy efficiency of the 140 Triphasic model, combined with the advantages of triphasic feeding, ensures an energy saving of 30-40% compared to conventional systems, with an estimated 2-3-year ROI in intensive industrial facilities.
INDUSTRIAL ADVANCEMENTS
CONTROL INTELIGENTE Wi-Fi hOn
Wi-Fi control system integrated with hOn app for complete remote management, smart programming, consumption monitoring and real-time diagnostics.
UVC (OPCIONAL)
Optional UVC system that eliminates 99.9% of viruses and bacteria, ideal for industrial environments that require maximum air hygiene.
️ REFRIGERANT R32 ECOLOGICO
Refrigerant Gas Last-generation R32 with 2.20 kg of load, 68% less global warming potential vs R410A. Optimized load for maximum performance.
DRENAJE BOMBA INCLUDED
Factory integrated drainage pump for installations without natural unevenness, elevation up to 750mm, maximum industrial installation flexibility.
️ INTELIGENT AUTODIAGNÓSTICO
Advanced autodiagnosis system that automatically detects and reports any anomaly, minimizing stop times in critical facilities.
️ EXTREME FUND
Operation guaranteed from -15°C to +50°C, resistance to extreme industrial conditions, 24/7 operation without limitations.
TRIFASIC SPECIFICATIONS
▪ SPECIFIC REQUIREMENTS
ALIMENTATION
380-415V ~ 3N 50Hz
CABLE
5 x 6.0 mm2
PROTECTION
Difference 30mA
MAGNETOTÉRMICO
25A Curva C
▼ VENTATIONS OF TRIFASIC INSTALATION
Model 140's three-phase facilities allow perfect integration with existing industrial infrastructures, significantly reducing electrical intensity and ensuring stable and efficient operation 24 hours a day.
ROUND-FLOW 140 TRIFÁSICO: INDUSTRIAL TECHNOLOGY
Maximum power, maximum efficiency, maximum electrical stability. The 140 Triphasic model represents the definitive solution for industrial installations that do not support performance and reliability commitments.
YOU'VE GOT A LOT OF MONEY ON YOUR OWN!
Haier Round-Flow 140 Triphasic - The Definitive Solution for Large Installations
▪ EXCLUSIVE TRIFASTIC VENTAGES
- 64% LESS Intensity: 11,5A vs 32,0A monophasic
- Arrange Ultra Suave: No stream peaks
- Stability 24/7: Continuous industrial operation
- Perfect integration: With existing three-phase infrastructures
GARANTIZED RENTABILITY
- Efficiency A++: SEER 6,10 / SCOP 4,80
- 30-40% Energy Saving: vs. conventional systems
- ROI 2-3 years: Industrial facilities
- Reduction of Electrical costs: Ultra optimized intensity
️ SUPERIOR TECHNOLOGY
- Round-Flow 8 Ways: +23% more airflow
- Control Wi-Fi hOn: Remote smart management
- Ultra Silence: From 34 dB(A)
- Refrigerant Gas R32: Maximum environmental respect
IDEAL IMPLICATIONS OF MODEL 140 TRIFÁSICO
GREAT NAVES
Logistics centers, production plants, industrial warehouses up to 140m2
LABORATORY
Research centers, technical laboratories, scientific facilities
DATA CENTRES
Server rooms, processing centers, critical IT infrastructures
INDUSTRIA PESADA
Industrial workshops, factories, advanced manufacturing facilities
WHERE IS THE ROUND-FLOW 140 TRIFÁSICO?
SPA_LATN THE ABSOLUTE LEADER
The maximum power in triphasic round-flow cassette. Exclusive 8-way technology independent.
√ ROBUSTEZ INDUSTRIAL
Designed for 24/7 operation in extreme conditions. Guaranteed resistance to industrial environments.
ENVIRONMENTAL RESPECT
Refrigerant Gas Last generation R32. 68% less environmental impact vs traditional refrigerants.
FUTURE GARANTIZED
Avant-garde technology with OTA updates. Future-proof investment for your company.
PERSONALIZED INFORMATION AND BUDGET
CONTACT DIRECTO
Call us for specialized technical advice and installation calculation for your specific project.
TECHNICAL BUDGET
Personalized study of your industrial installation with ROI calculation and energy amortization.
DISPONIBILITY
Stock available for immediate delivery. Official guarantee Haier with specialized technical service.
▪ DON'T LET THIS TRADE OPORTUNITY GO!
The Round-Flow 140 Triphasic is the smartest investment for industrial installations that seek maximum power, energy efficiency and uncompromising electrical stability.
: MODEL: AB140S2SR1FA(H) + 1U140S2SN2FB
The Round-Flow Industrial Technology Summit
HAIROUNDCAS140THC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB140S2SR1FA(H)
- Outdoor Unit
- 1U140S2SN2FB
- Panel
- PB-950QB(H)
- I send

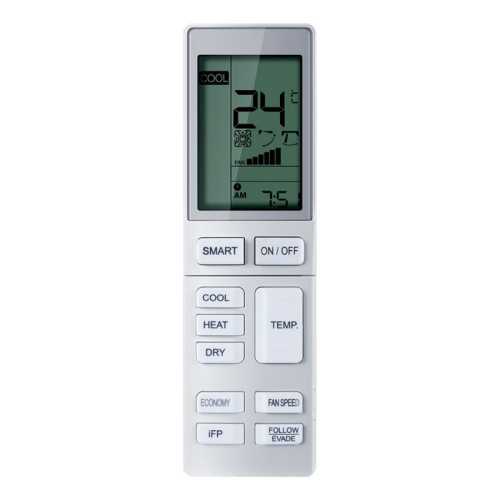

- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.280
- Energy class (cold)
- A+
- SEER
- 5,6
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 5.770
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 965
- Weight Indoor Unit (Kg)
- 32,0
- Weight Outdoor Unit (Kg)
- 68,0
- Net weight (kg)
- 97,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
