LG UT36F CONFORT+ FREE COMBINATION
Cassette Monofásico Conjunto 36 - Ecological R32 Technology
Efficiency Récord
EER 4,20 World - Maximum energy efficiency
SEER 7,00 - Higher seasonal performance
▪ Commercial power
9,50kW nominal cold - Professional capacity
10,80kW nominal heat - Heat Pump COP 4.45
Ultra Quiet
41 dBA minimum - Discreet operation
Dual Vane 950mm panel - Uniform distribution
Tecnología Green Technology
Refrigerant Gas R32 - Ecological under GWP
Tag A++/A+ - Maximum energy classification
▷ Cassette commercial LG UT36F CONFORT+ with EER 4,20 world record for demanding professional spaces
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 90x90 LG Comfort + 36 MONOF.
Referencia: CONFORT+ 36 MONO CAS
€2,664.81
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG UT36F CONFORT+ FREE COMBINATION
Cassette Monofásico Conjunto 36 - Ecological R32 Technology
Efficiency Récord
EER 4,20 World - Maximum energy efficiency
SEER 7,00 - Higher seasonal performance
▪ Commercial power
9,50kW nominal cold - Professional capacity
10,80kW nominal heat - Heat Pump COP 4.45
Ultra Quiet
41 dBA minimum - Discreet operation
Dual Vane 950mm panel - Uniform distribution
Tecnología Green Technology
Refrigerant Gas R32 - Ecological under GWP
Tag A++/A+ - Maximum energy classification
▷ Cassette commercial LG UT36F CONFORT+ with EER 4,20 world record for demanding professional spaces
Security policy
Delivery policy
Refund policy
LG UT36F CONFORT+ - Cassette Comercial Conjunto 36
EER 4,20 - World Efficiency Record
The cassette LG UT36F CONFORT+ achieves an EER of 4.20 and SEER of 7.00, establishing a new standard of energy efficiency in commercial air conditioning with FREE COMBINATION and R32 coolant technology.
Es️ Refrigeration capacities
- Minimum Cold Capacity: 3,80 kW
- Nominal Cold Capacity: 9,50 kW
- Cold Capacity Maximum: 12,54 kW
- Modulant Range: Control inverter precise
Heating capacities
- Minimum Heat Capacity: 4,30 kW
- Nominal Heat Capacity: 10,80 kW
- Maximum Heat Capacity: 13,39 kW
- COP: 4.45 - Coefficient heat pump
Energy Efficiencies
- EER: 4,20 - Energy efficiency record
- SEER: 7,00 - Cold seasonal performance
- COP: 4.45 - Performance coefficient
- SCOP: 4,30 - Seasonal heat performance
・ Consumos Eléctricos
- Consumption Minimum Cold: 0.50 kW
- Consumption Frío Nominal: 2.26 kW
- Consumption Cold Maximum: 3,44 kW
- Consumption Calor Nominal: 2.43 kW
Acoustic benefits
- High Speed: 44 dBA
- Medium speed: 42 dBA
- Low speed: 41 dBA - Ultra silent
- Air flow: 27,5/25/22,5 m3/min
En️ Energy Classification
- Energy Tag: A++/A+ (middle file)
- Refrigerant Gas: Organic R32
- GWP: Low environmental impact
- Regulations: Comply with European directives
Technology R32 - Environmental Commitment
The UT36F system employs R32 refrigerant with reduced global warming potential, significantly contributing to energy sustainability and meeting the demanding European environmental regulations.

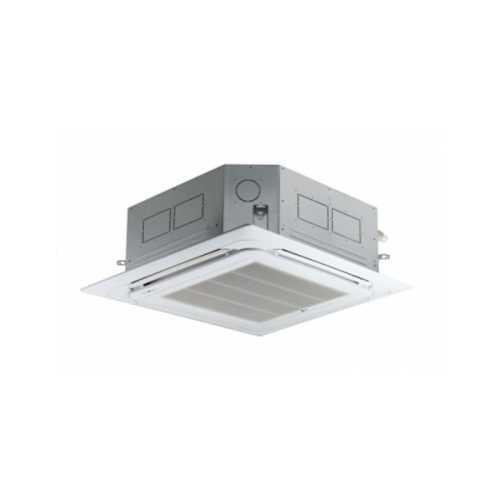

️ Indoor Unit UT36F.NA0 - Premium Commercial Design
Robust commercial Cassette with 950mm Dual Vane PT-AAGW0 panel for uniform air distribution in large professional spaces.
Es Dimensions and Weights
- Indoor Unit: 840×288×840 mm (An×Al×Pr)
- IDU weight: 25.3 kg
- Dual Vane Panel: 950×35×950 mm
- Weight Panel: 7.1 kg
S Frigorific connections
- Liquid Line: 9,52 mm (3/8 inch)
- Gas Line: 15.88 mm (5/8 inch)
- Standard Panel: PT-AAGW0 Dual Vane
- Optional panel: PT-AFGW0 available

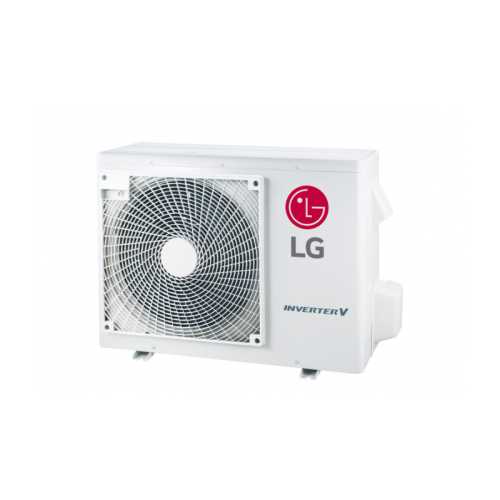

️ Outdoor Unit UUD1.U30 - Advanced Technology
Acoustic benefits
Cold Sonic Pressure: 50 dBA
Calor Sonic Pressure: 50 dBA
Air flow: 55 × 2 m3/min
S Physical Specifications
Dimensions: 950×1.380×330 mm
Weight: 89 kg
Settings: Vertical compacta
️ System Refrigerant Gas R32
Preload: 3.0 kg
Length Preload: 20 ml
T-CO2eq: 2,205
Tivos️ Operating Ranges
Máx/Mín Cold: 52°C / -20°C (CB)
Calor Máx/Mín: 18°C / -25°C (WB)
Refrigerant Gas Additional: 50 g/m
External connections
- Liquid Line: 9,52 mm (3/8 inch)
- Gas Line: 15.88 mm (5/8 inch)
- Total length: 5 - 85 meters
- Maximum Level: 30 meters
Das Advanced Features
- FREE COMBINATION: Multiple configurations
- Dual Vane Panel: Distribution 4 addresses
- Inverter technology: Frequency control
- Classification: A++/A+ maximum efficiency
▷ LG UT36F CONFORT+ Set 36 - Premium commercial casette with EER 4,20 world record, designed for professional spaces that require maximum efficiency, acoustic comfort and environmental sustainability
CONFORT+ 36 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- UT36F.NA0
- Outdoor Unit
- UUD1.U30
- Panel
- PT-AAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.260
- Energy class (cold)
- A++
- SEER
- 4,0
- Heat capacity (W)
- 10.800
- Heat capacity (Kcal / h)
- 9.288
- Nominal heat consumption (W)
- 2.430
- Energy class (heat)
- A+
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 41
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 25,3
- Weight Outdoor Unit (Kg)
- 89,0
- Net weight (kg)
- 117,3
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
