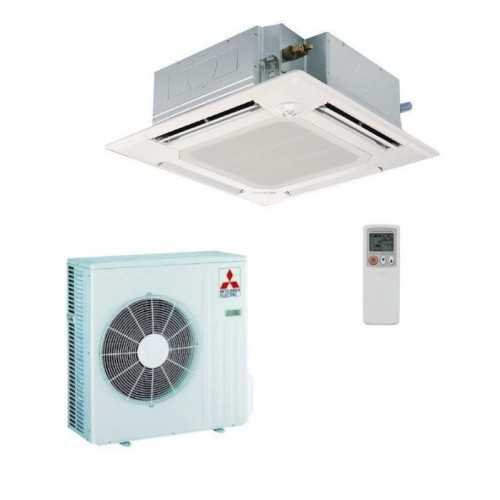

Air Conditioning Cassette Mitsubishi MGPLZ-125YEA Triphasic
Refrigeration 12100W Δ Heating 13500W Δ SEER 5.5 A Δ 400V Triphasic Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-125YEA represents high industrial capacity of the series Mr. Slim PRO with 12100W in cooling and 13500W in heating. With 400V triphase, standard panel with wireless control included and technology DC Inverter, offers 4-way air conditioning for large industrial spaces that require japanese quality, maximum operating stability and high air conditioning capacity with possibility of premium optional upgrades.
12️ 12100W Refrigeration
Rank 5.8-13.0 kW
13 13500W Heating
Rank 4,1-15,0 kW
▪ SEER 5.5 A
SCOP 3.9 A
400V Triphasic
12.2A maximum
Specifications Clave Cassette Mr. Slim PRO 125 Triphasic
Indoor Unit: PLA-SM125EA
Outdoor Unit: PUZ-SM125YKA
Air flow: 21-31 m3/min
Sonic Pressure: 33-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 3,73 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette MGPLZ-125yea Mitsubishi Pro Trif Series.
Referencia: MGPLZ-125YEA
€2,929.80
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Mitsubishi MGPLZ-125YEA Triphasic
Refrigeration 12100W Δ Heating 13500W Δ SEER 5.5 A Δ 400V Triphasic Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-125YEA represents high industrial capacity of the series Mr. Slim PRO with 12100W in cooling and 13500W in heating. With 400V triphase, standard panel with wireless control included and technology DC Inverter, offers 4-way air conditioning for large industrial spaces that require japanese quality, maximum operating stability and high air conditioning capacity with possibility of premium optional upgrades.
12️ 12100W Refrigeration
Rank 5.8-13.0 kW
13 13500W Heating
Rank 4,1-15,0 kW
▪ SEER 5.5 A
SCOP 3.9 A
400V Triphasic
12.2A maximum
Specifications Clave Cassette Mr. Slim PRO 125 Triphasic
Indoor Unit: PLA-SM125EA
Outdoor Unit: PUZ-SM125YKA
Air flow: 21-31 m3/min
Sonic Pressure: 33-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 3,73 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
Security policy
Delivery policy
Refund policy
1 Technology DC Inverter Triphasic and High Industrial Power
The Air Conditioning Cassette Mitsubishi MGPLZ-125YEA integrate technology DC Advanced Inverter with 400V triphasic power for maximum energy efficiency and operating stability with premium japanese quality. With SEER 5.5 A in cooling and SCOP 3.9 A in heating, its high power 12100W cold and 13500W in heat guarantees powerful and reliable air conditioning for large industrial spaces that require high capacity with balanced load distribution.
The system modulates its power from 5800W up to 13000W cold and from 4100W up to 15000W in heat, adapting automatically to variable load conditions with reduced intensity by phase (12.2A maximum) compared to monophasic equivalents, ensuring maximum comfort and operational efficiency in industrial installations with the possibility of adding optional smart functions.
2 Standard Panel and Potential Industrial Distribution

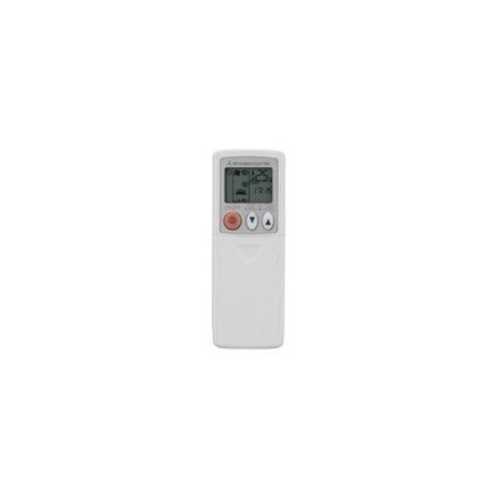

Includes pLP-6EALM standard panel with wireless serial control for full control of all basic functions. The panel 95x95 cm provides uniform air distribution air conditioning through its 4 directional pathways, with variable flow rate 21 to 31 m3/min for large industrial spaces 90-120 m2 which require high air conditioning capacity with maximum operating stability.

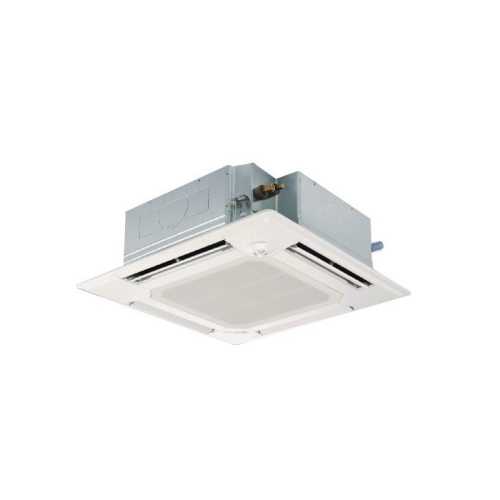

La indoor Unit of 298x840x840 mm is discreetly integrated into false standard industrial ceilings, while their operation 33 to 44 dBA maintains acoustic comfort suitable for industrial offices and commercial spaces that require powerful yet acoustically controlled air conditioning with balanced triphase feeding.
3 Premium and Available Industrial Upgrades
The high-power base unit can upgrade optionally with premium technologies easyClean automatic panel that descends to facilitate maintenance, sensor 3D i-see for intelligent detection of people, Plasma Quad Connect for advanced air purification, and wiFi adapter for smartphone control, allowing the equipment to be customized according to specific needs of large and demanding industrial projects that require stable triphase power.
4 Refrigerant Gas R32 Ecological and Industrial Operational Efficiency
Use coolant Organic R32 with load 3,60 kg, significantly reducing environmental impact while improving energy efficiency. The system operates in extended range -15°C to +46°C in cooling and -15°C to +21°C in heating, ensuring reliable operation throughout the year in industrial applications with demanding weather conditions and stable triphase feeding.

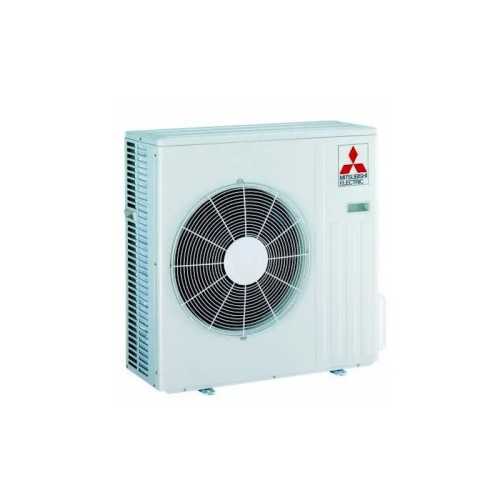

La outdoor Unit of 981x1050x330 mm facilitates installation in industrial spaces, with cold connections 9,52mm liquid and 15,88mm gas and maximum pipe length 30 meters with uneven 40 meters, providing greater flexibility in large and complex industrial projects with balanced triphase feeding.
Complete Tech Specs Triphasic
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 12100W (5800-13000W) | Heating | 13500W (4100-15000W) |
| SEER / SCOP | 5.5 A/ 3.9 A | Nominal consumption | 4170W / 3730W |
| Food | 400V Triphasic (12.2A) | Sound level | 33-44 dBA |
| Refrigerant Gas | R32 (3.60 kg) | Dimensions IU | 298x840x840 mm |
| Tube Max | 30m / 40m deseven | Weight Neto UI | 26 kg + 5 kg panel |
Recommended Industrial Applications
S Industrial offices
90-120m2 industrial spaces that require high three-phase power with Japanese quality and optional upgrades.
Es️ Industrial facilities
Medium industrial ships that need potent triphasic air conditioning with reliable Japanese quality.
S️ Gastronomic Complexes
Establishments with high electrical demand that require stable three-phase food.
Medical Centres
Medical facilities that need maximum 24/7 stability with industrial triphase power.
Technology Mitsubishi Electric Tripha
Japanese quality with high industrial power and balanced triphase food
MGPLZ-125YEA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PLA-SM125EA
- Outdoor Unit
- PUZ-SM125YKA
- Panel
- PLP-6EALM
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 4.170
- Energy class (cold)
- TO
- SEER
- 5,5
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.730
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 33
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 298
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 26,0
- Weight Outdoor Unit (Kg)
- 85,0
- Net weight (kg)
- 113,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
