LG UT30F CONFORT+ - 30 EQUILIBRATE COMMERCIAL
Technology R32 LG 日本語 简体字 РУССКИЙ
▪ Commercial power
8,00kW cold / 8,90kW heat
EER 3,27 trade efficiency
Tecnología Technology R32
Refrigerant Gas ecological
3.0 kg commercial load
️ Dual Vane Panel
950x950mm PT-AAGW0
Premium distribution
Balance
35-40 commercial dBA
Power and comfort
Commercial application: Large offices, medical centers and commercial spaces of 25-30m2 that require balanced commercial power and high efficiency SEER 7,10
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

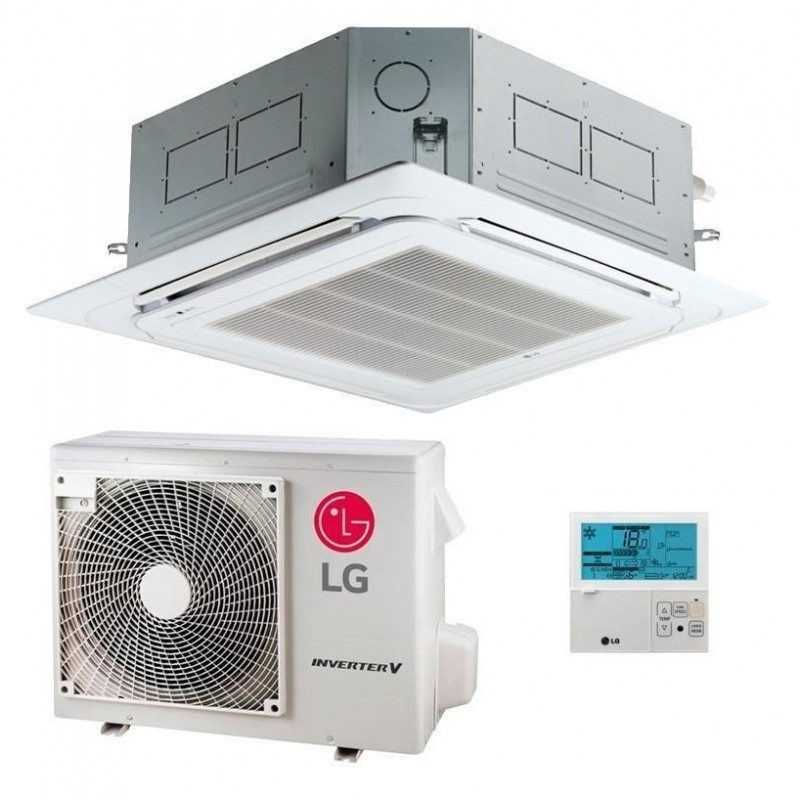

Cassette 90x90 LG Comfort + 30 Monof.
Referencia: CONFORT+ 30 MONO CAS
€2,116.71
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG UT30F CONFORT+ - 30 EQUILIBRATE COMMERCIAL
Technology R32 LG 日本語 简体字 РУССКИЙ
▪ Commercial power
8,00kW cold / 8,90kW heat
EER 3,27 trade efficiency
Tecnología Technology R32
Refrigerant Gas ecological
3.0 kg commercial load
️ Dual Vane Panel
950x950mm PT-AAGW0
Premium distribution
Balance
35-40 commercial dBA
Power and comfort
Commercial application: Large offices, medical centers and commercial spaces of 25-30m2 that require balanced commercial power and high efficiency SEER 7,10
Security policy
Delivery policy
Refund policy
LG UT30F CONFORT+ - Cassette Comercial
Set 30 - Commercial Solution
The LG UT30F CONFORT+ of Set 30 offers capabilities 3,20-8,00-9,20 kW cold and 3,60-8,90-10,10 kW in heat (minin-nom-max), achieving a EER 3,27 and SEER of 7,10 with energy label A++/A+. This commercial cassette with panel PT-AAGW0 Dual Vane of 950x35x950 mm weight 21.1 kg and represents the balanced commercial solution for spaces up to 30m2.
▪ Commercial capacities and conscientists
- Cold capacity: 3,20-8,00-9,20 kW (min-nom-máx)
- Heat capacity: 3,60-8,90-10,10 kW (min-nom-máx)
- Cold consumption: 0,50-2,45-3,14 kW (min-nom-máx)
- Consumption heat: 0.50-2.62-3.25 kW (min-nom-máx)
Commercial Energy Efficiencies
- EER: 3.27 (balanced trade efficiency)
- SEER: 7,10 (high seasonal efficiency)
- COP: 3.40 (coefficient heat performance)
- SCOP: 4,30 (seasonal heat coefficient)

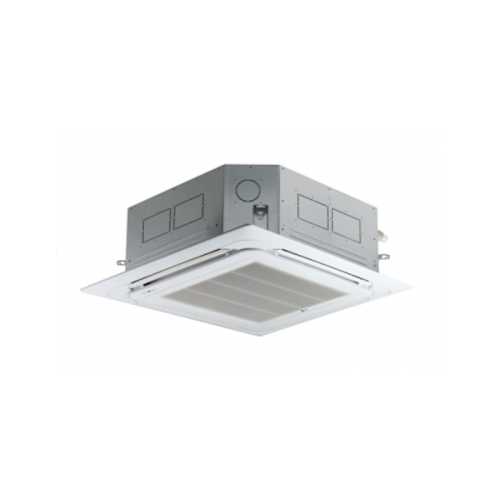

️ Specifications Indoor Unit UT30F.NB0
Dimensions 840x204x840 mm
IDU weight 21.1 kg
Dual Vane Panel 950x35x950 mm (7.1 kg)
Sound and Air Caudal Pressure
Cold Sonic Pressure (H/M/L)
High (H): 40 dBA
Average (M): 37 dBA
Low (L): 35 dBA
Air flow rate (H/M/L)
High (H): 19 m3/min
Average (M): 17 m3/min
Low (L): 15.5 m3/min
S Commercial Frigorific Connections
Liquid Line
Ø 9,52 mm (3/8")
Gas line
Ø 15.88 mm (5/8")

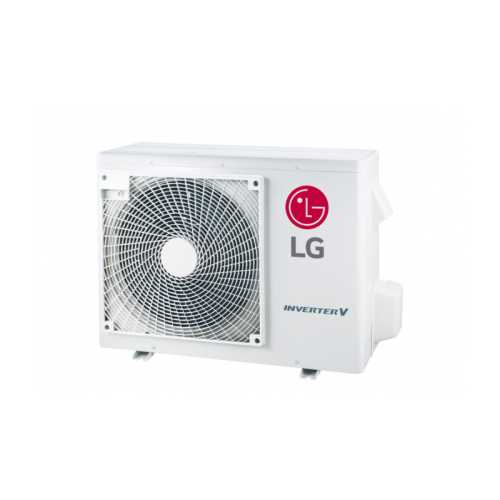

🏭 Outdoor Unit UUD1.U30
Dimensions 950x1380x330 mm
Weight 89 kg
Air flow rate 55 x 2 m3/min
Sound Pressure Outdoor Unit
Cold mode
50 dBA
Calor mode
52 dBA
🌿 Refrigerant Gas R32
- Preload: 3,0 kg R32 ecological
- Length pipe preloading: 20 meters
- T-CO2eq: 2,205
- Refrigerant Gas additional: 50 g/m
De️ Commercial Operation Range
- Cold (Máx/Mín): 52°C / -20°C (CB)
- Heat (Máx/Mín): 18°C / -25°C (WB)
- Operation: Broad climate range
- Reliability: Extreme temperatures
De Commercial Installation Specifications
Longitudes
Total min/max: 5/85 meters
Uneven: 30 meters
Frigorific connections
Liquid: Ø 9,52 mm (3/8")
Gas: Ø 15.88 mm (5/8")
Energy Label
Average climate: A++/A+
Certification: High efficiency
Es Balanced Commercial Applications
S Large Offices
25-30m2 corporate spaces
Medical Centres
Premium wide consultation
S Commercial spaces
Shops and showrooms
S Meetings
Large corporate spaces
Joint Technical Summary 30
Certified capacities
Cold nom: 8,00 kW
Calor nom: 8,90 kW
Cold range: 3,20-9,20 kW
Hot range: 3,60-10,10 kW
Commercial efficiency
EER: 3.27 (balanced)
SEER: 7.10 (high efficiency)
COP: 3.40 (heat)
SCOP: 4,30 (seasonal)
Commercial installation
Distance: 85 meters
Max: 30 meters
Total weight: 110.1 kg (IDU+ODU)
Silence: 35 dBA minimum
: UT30F: Perfect Balanced Commercial Solution
With 8,00 kW nominal, , SEER 7,10 high efficiency, , EER 3.27 Balanced and dual Vane 950mm panel, the UT30F offers the commercial solution perfectly balanced with technology Green R32 LG.
CONFORT+ 30 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- UT30F.NB0
- Outdoor Unit
- UUC1.U40
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 70 m2
- Refrigerator capacity (W)
- 8.000
- Refrigerator capacity (kcal / h)
- 6.880
- Nominal consumption Cold (W)
- 2.450
- Energy class (cold)
- A++
- SEER
- 7,4
- Heat capacity (W)
- 8.900
- Heat capacity (Kcal / h)
- 7.654
- Nominal heat consumption (W)
- 2.620
- Energy class (heat)
- A+
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 35
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 204
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 834
- Weight Indoor Unit (Kg)
- 21,1
- Weight Outdoor Unit (Kg)
- 59,0
- Net weight (kg)
- 83,1
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
