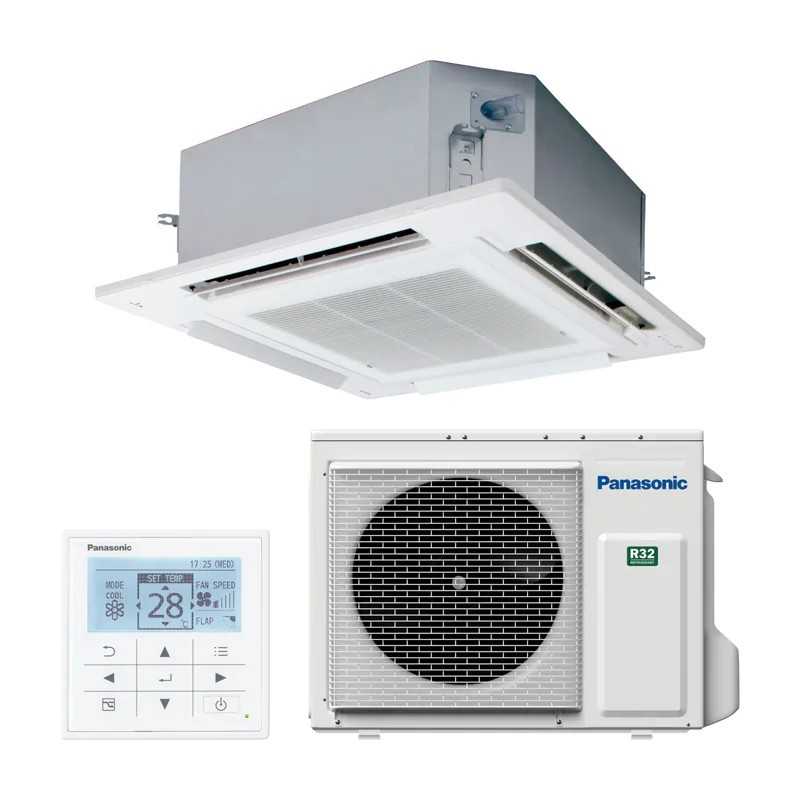

Air Conditioning Cassette Panasonic KIT-125PU3Z8-6W
Refrigeration 12500W 日本語 Heating 12500W 日本語 SEER 6,6 A++ Δ Wi-Fi + Bluetooth Δ nanoeTM X Δ TRIFÁSICO
The Air Conditioning Cassette Panasonic KIT-125PU3Z8-6W represents maximum three-phase commercial power pACi NX Standard Series with 12500W in cooling and heating. With 380-415V and command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and maximum stability for ultra-wide commercial spaces.
12️ 12500W Refrigeration
Range 3.2-13.5 kW
12 12500W Heating
Range 3.3-15.0 kW
▪ SEER 6,6 A++
SCOP 4,4 A+
Triphasic + nanoeTM X
380-415V
Specifications Cassette PACi NX Standard 125 Triphasic

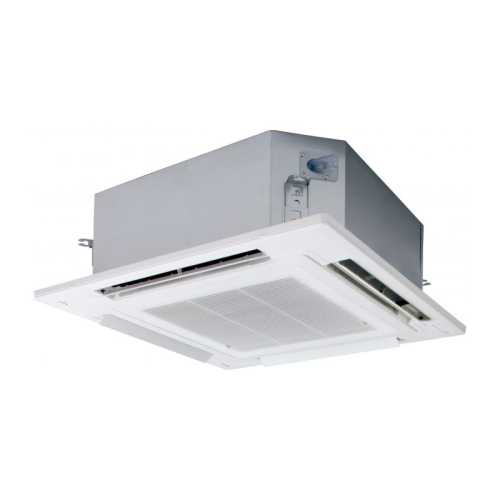

Indoor Unit: S-1014PU3E

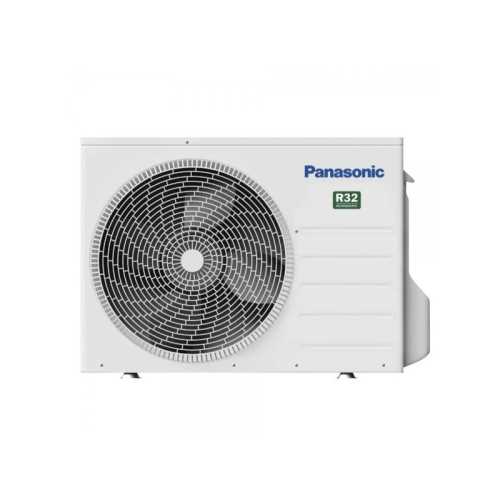

Outdoor Unit: U-125PZ3E8
Air flow: 19,0-37,0 m3/min
Sonic Pressure: 46 dBA

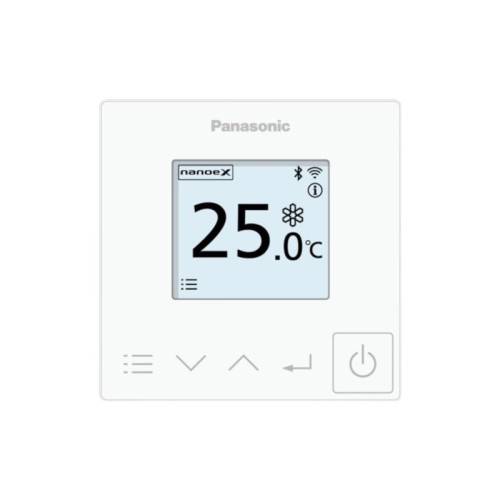

Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 3,49 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-125PU3Z8-6W PACI NX Standard
Referencia: KIT-125PU3Z8-6W
€2,918.59
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-125PU3Z8-6W
Refrigeration 12500W 日本語 Heating 12500W 日本語 SEER 6,6 A++ Δ Wi-Fi + Bluetooth Δ nanoeTM X Δ TRIFÁSICO
The Air Conditioning Cassette Panasonic KIT-125PU3Z8-6W represents maximum three-phase commercial power pACi NX Standard Series with 12500W in cooling and heating. With 380-415V and command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and maximum stability for ultra-wide commercial spaces.
12️ 12500W Refrigeration
Range 3.2-13.5 kW
12 12500W Heating
Range 3.3-15.0 kW
▪ SEER 6,6 A++
SCOP 4,4 A+
Triphasic + nanoeTM X
380-415V
Specifications Cassette PACi NX Standard 125 Triphasic
Indoor Unit: S-1014PU3E
Outdoor Unit: U-125PZ3E8
Air flow: 19,0-37,0 m3/min
Sonic Pressure: 46 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 3,49 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-125PU3Z8-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD TRIFÁSICO • 12500W/12500W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard Triphasic: Maximum Commercial Power + Total Stability
The Panasonic KIT-125PU3Z8-6W establishes the standard maximum commercial air conditioning with 12500W in cooling and heating for ultra wide commercial spaces of 90-130m2. Integra 380-415V which guarantees maximum stability and balanced distribution of loads in demanding commercial facilities, while the cZ-RTC6BLW controller with Wi-Fi + Bluetooth allows total professional remote control.
Designed for big malls, industrial ships and corporate complexes, combine the high performance turboventilator maximum power with commercial Econavi sensor which automatically optimizes energy consumption. His 4-way air distribution with cassette 90x90 cm ultra reinforced ensures uniform air conditioning in ultra wide spaces with the nanoeTM X Mark 1 series technology for continuous air purification.
Tri Maximum Triphasic Feed
380-415V Triphasic: Total stability
Balanced distribution: Balanced loads
Commercial Installation: 90-130m2 ideals
▼ Máxima Power 12500W
Refrigeration: 12500W (3.2-13.5 kW)
Heating: 12500W (3.3-15.0 kW)
SEER 6,6 A++: Trade efficiency
Tecnología Advanced technology PACi NX Standard Maximum Power
🌀
Turboventilator Maximum
Highest commercial benefits
️
Sensor Econavi Pro
Automatic saving large spaces
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
🏭
Ultra Commercial Design
Ultra reinforced unit 25 kg
E Commercial Energy Efficiency Maximum A+
SEER 6,6 A++
Maximum commercial cooling
SCOP 4,4 A+
Commercial heating
EER 3.58
Maximum nominal performance
COP 4,43
Coefficient commercial heat
Technical Specifications • PACi NX Standard KIT-125PU3Z8-6W Triphasic
INVERTER+ MÁXIMO TRIFÁSICO • 4 4 Vias 90x90 • - WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette Technology 4 Ultra Commercial Vias + Turboventilator Maximum Power
The 4-way cassette 90x90 cm ultra reinforced kIT-125PU3Z8-6W incorporates a high performance turboventilator maximum power optimized for ultra high power that maximizes air distribution through the ultra-sized heat exchanger. With flow rate from 19.0 to 37.0 m3/min, adapts automatically to ultra-wide business needs by maintaining a controlled sound level of 46 dBA at high speed.
La 380-415V guarantees balanced distribution of loads and maximum stability in continuous intensive commercial operation. The econavi Pro sensor detects occupation in ultra wide spaces and automatically optimizes performance for maximise energy savings SEER 6,6 A++ maintaining total comfort. Technology Ecological R32 with 2.80 kg maximum load offers superior thermodynamic properties for maximum power.
Re️ Maximum Air Performance Power
Variable flow rate: 19,0-37,0 m3/min
Distribution: 4 ultra-commercial tracks 90x90
Sound level: 46 dBA (high speed)
Dehumidification: 4.8 L/h maximum elimination
・ Maximum Triphasic Specifications
Food: 380-415V triphase
Consumption Cold: 3,49 kW (nominal)
Consumption Calor: 2.82 kW (nominal)
Intensity: 5.15-5.65 A (cold)
S Dimensions and Technical Specifications Maximum
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-1014PU3E |
| Interior dimensions | High x Width x Deep | 319 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 25 / 5 kg |
| Outdoor Unit | Model | U-125PZ3E8 |
| Outer dimensions | High x Width x Deep | 996 x 980 x 370 mm |
| Tuberias | Liquid / Gas | 3/8" (9,52mm) / 5/8" (15,88mm) |
| Maximum length | Tuberia | 5-50 meters |
S Ultra Large Triphasic Commercial Applications
🏭
▷ Advantages Cassette Ultra Triphasic:
- Uniform distribution 4 ultra wide spaces addresses
- Maximum three-phase power stability
- Ideal coverage for commercial spaces 90-130m2
- Continuous intensive business operation
- Precise temperature control maximum
: Ultra Commercial Features:
- SEER 6,6 A++ maximum commercial efficiency
- nanoetm X purification continuous air
- Wi-Fi + Bluetooth professional control
- Series Integrated Drain Pump
- Ultra reinforced unit 25 kg commercial
🏪
Shopping Centres
90-130m2 large premises
🏭
Industrial ships
Large air-conditioned spaces
️
Restaurants Ultra
Maximum main halls
🏢
Corporate Complexes
Complete plants
MÁXIMA TRIFÁSICO POTENCIA WITH WI-FI + NANOETM X!
Panasonic KIT-125PU3Z8-6W • 12500W/12500W • SEER 6,6 A+ • 380-415V Triphasic
MÁXIMA POTENCIA COMERCIAL TRIFÁSICA: 12500W + Wi-Fi + nanoeTM X
The maximum power triphase solution for ultra wide commercial spaces. Food 380-415V ultra stable, cassette 4 maximum power and nanoeTM X purification for large demanding shopping centers. The ideal solution for commercial centers, industrial ships and corporate complexes that require ultra-powerful air conditioning with maximum stability.
Tri Maximum Triphasic Feed
380-415V: Maximum trade stability
Balanced distribution: Ultra balanced loads
Ultra installation: Ideal 90-130m2
▼ Máxima Power 12500W
SEER 6,6 A++: Maximum commercial efficiency
Variable flow rate: 19,0-37,0 m3/min
Modulant Range: 3.2-13.5 kW cold
WHY TO ELEGATE THE KIT-125PU3Z8-6W TRIFÁSICO PANASONIC?
▷ Best Technical Advantages:
- Three-phase food 380-415V ultra stable
- SEER 6,6 A++ maximum commercial efficiency
- Maximum power 12500W modulant
- Dehumidification 4.8 L/h maximum
- Tubería up to 50m total flexibility
: Ultra Commercial applications:
- Commercial centres 90-130m2 ultra wide
- Industrial ships air-conditioned spaces
- Restaurants ultra main halls
- Corporate complexes complete plants
- Industrial projects maximum power
S Advanced Included Series Technologies
Turboventilator Maximum
High ultra-commercial benefits
️ Econavi Pro
Ultra automatic commercial sensor
NanoeTM X
4.8 billion OH/second
R32
Ecological 2,80kg maximum
CHECK IT OUT NOW!
Air conditioning specialists Panasonic • Personalized technical advice • Integral solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-125PU3Z8-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PU3E
- Outdoor Unit
- U-125PZ3E8
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.500
- Refrigerator capacity (kcal / h)
- 10.750
- Nominal consumption Cold (W)
- 3.490
- Heat capacity (W)
- 12.500
- Heat capacity (Kcal / h)
- 10.750
- Nominal heat consumption (W)
- 2.820
- Minimum sound pressure UI DB
- 33
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 319
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 87,0
- Net weight (kg)
- 117,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
