Cassette Daikin FCAG100B + RZASG100MV1
Round Flow 100 Monofásico - Inverter R-32 High Power
Cassette Daikin Round Flow 100 - High-power cassette air conditioning system with advanced circular distribution Round Flow technology, ideal for large commercial spaces up to 100m2. Power 9.5kW cooling and 10.8kW heating with efficiency A+/A+ and flows up to 22.8 m3/min.
9.5 kW
Cold power
10.8 kW
Power Calor
A++/A+
Energy Label
29 dBA
Sound level
22.8 m3/min
Maximum rate
507 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet High Power Panel 950mm Advance series

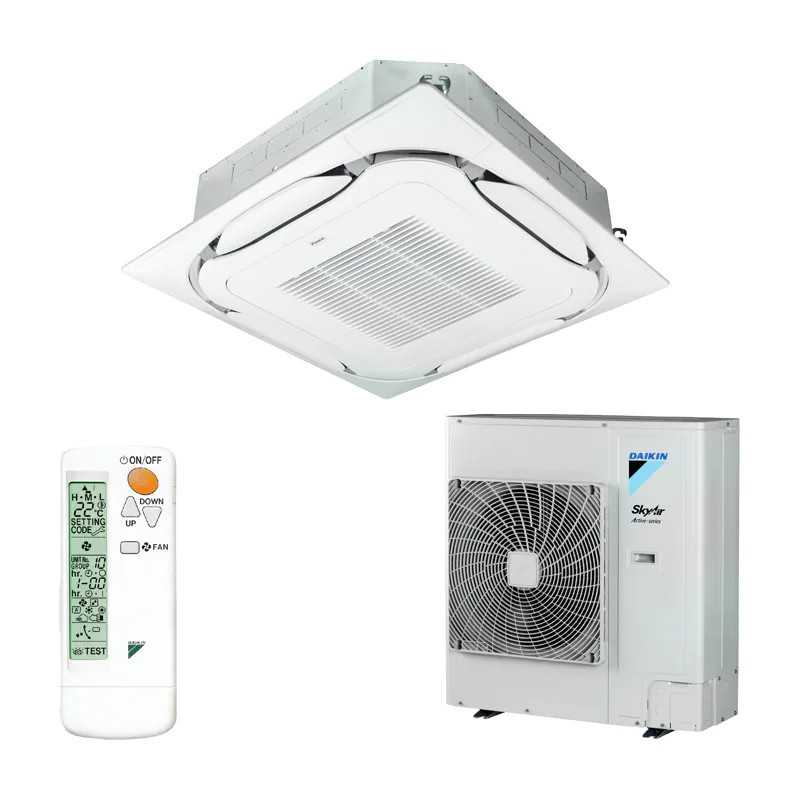

Full model: Indoor Unit FCAG100B + Outdoor Unit RZASG100MV1
Series: Sky Air Series Advance - Japanese High Commercial Power
Application: Ideal for large commercial spaces up to 100m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
High Efficiency: SEER 6,55 / SCOP 4,17 with high capacity SWING compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Daikin CASG100B
Referencia: CASG100B
€3,495.93
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG100B + RZASG100MV1
Round Flow 100 Monofásico - Inverter R-32 High Power
Cassette Daikin Round Flow 100 - High-power cassette air conditioning system with advanced circular distribution Round Flow technology, ideal for large commercial spaces up to 100m2. Power 9.5kW cooling and 10.8kW heating with efficiency A+/A+ and flows up to 22.8 m3/min.
9.5 kW
Cold power
10.8 kW
Power Calor
A++/A+
Energy Label
29 dBA
Sound level
22.8 m3/min
Maximum rate
507 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet High Power Panel 950mm Advance series
Full model: Indoor Unit FCAG100B + Outdoor Unit RZASG100MV1
Series: Sky Air Series Advance - Japanese High Commercial Power
Application: Ideal for large commercial spaces up to 100m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
High Efficiency: SEER 6,55 / SCOP 4,17 with high capacity SWING compressor
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 100 - High Commercial Power Advance Series
High-power cassette air conditioning system with Round Flow Series Advance commercial leader technology
Cassette System Round Flow 100 - High Power Advance Series
The Air Conditioning Cassette Daikin Round Flow CASG100B combines high commercial power with circular distribution Advanced Advance series. With 9,5kW cooling power and 10.8kW in heat mode, this system is designed to provide optimal comfort in large commercial spaces up to 100m2 with energy efficiency A++/A+.
️ ALTA CAPACITY ROUND FLOW TECHNOLOGY
High Capacity Circular Distribution with RZASG100MV1
The high-capacity Round Flow Series Advance technology creates a circular airflow that ensures uniform air conditioning in large commercial spaces, completely eliminating dead areas and providing exceptional comfort in high thermal demand conditions with high thermal demand outdoor Unit RZASG100MV1.
High Power Technical Specifications
9.5 kW
Refrigeration capacityHigh power up to 100m2
10.8 kW
Capacity HeatingHeat Pump high capacity
SEER 6,55
Seasonal efficiencyA++ guaranteed classification
SCOP 4,17
Efficient heatingA+ high capacity performance
High Capacity Round Flow Technology Advance Series
Exclusive technology Round Flow High Capacity Advance Series distributes air through advanced circular distribution with flows up to 22.8 m3/min, creating a uniform circular flow of high capacity. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering optimal radial distribution for large installations up to 100m2.
️
Round Flow High CapacityCircular distribution up to 22.8 m3/min
📐
950×950mm panelFull commercial coverage
️
RZASG100MV1Outdoor Unit high power
🌀
Total coverageNo dead areas 100m2
High Capacity Commercial Performance
The Round Flow 100 system is designed for high demand commercial applications, providing 3 vent speeds with flow rates from 12.4 to 22.8 m3/min. This capacity allows efficient air conditioning of large commercial spaces while maintaining homogeneous comfort and optimized energy consumption.
High Capacity Air Flows
- Maximum speed: 22.8 m3/min - Commercial ultra-fast cooling
- High Speed: 17,6 m3/min - Intensive commercial use
- Medium speed: 12.4 m3/min - Standard commercial operation
- Sound level: 29-37 dBA according to speed

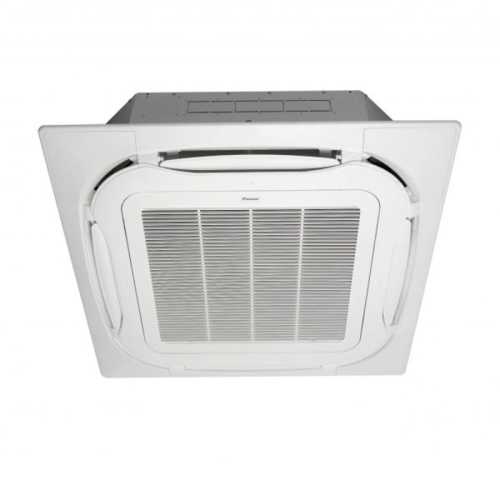

▪ Indoor Unit FCAG100B
Cassette Round Flow high power impotrable with advanced circular distribution
Full model: FCAG100B - Cassette Round Flow High Power Advance Series with Japanese technology inverter SWING
S Technical Specifications Interior
9.5 kW
Nominal Cold Power
10.8 kW
Nominal heat power
29 dBA
Minimum Sound Level
22.8 m3/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 246×840×840 mm |
| Weight Indoor Unit | 24.0 kg |
| Food | 1Ph/220V |
| Air distribution | Round Flow circular high capacity |
| Caudales (A/M/B) | 22.8/17.6/12.4 m3/min |
| Sound levels (A/M/B) | 37/33/29 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
High Power Exclusive Technologies:
Distribution Round Flow circular high capacity, indoor Unit reinforced 246mm height, maximum efficiency lavable filter and BRC7FA532F command included for advanced local control.
Distribution Round Flow circular high capacity, indoor Unit reinforced 246mm height, maximum efficiency lavable filter and BRC7FA532F command included for advanced local control.

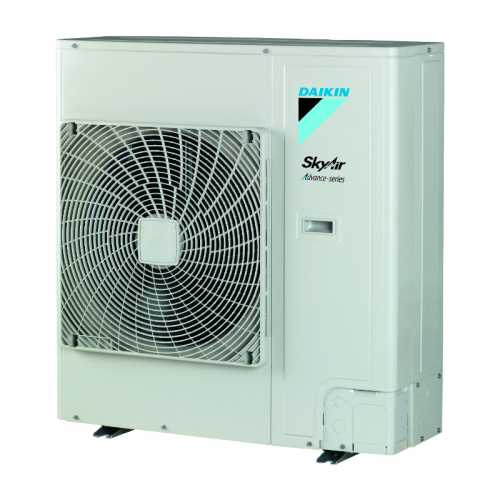

🏭 Outdoor Unit RZASG100MV1
High-Power Single Condenser with SWING Inverter Compressor
Full model: RZASG100MV1 - High capacity Condensing Unit Advance Series with SWING inverter compressor and R32 gas
S️ Foreign Technical Specifications
53 dBA
External sound level
R32
Refrigerant Gas Ecological
70 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 990×940×380 mm |
| Weight | 70 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (2.60 kg preload) |
| Air Fridge Refrigeration | 69.0 m3/min |
| Air heating | 82.0 m3/min |
| TCO2eq | 1,76 kg |
S Advanced technical characteristics:
High-capacity SWING inverter compressor with variable frequency control optimized for commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve and marine antico-red protection.
High-capacity SWING inverter compressor with variable frequency control optimized for commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve and marine antico-red protection.
Y Energy and Consumption
A++
Label Cold
A+
Label Calor
507 kWh/a
Annual Consumption Cold
2016 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 6,55: Optimized seasonal efficiency for high power
- SCOP 4,17: High performance heating guaranteed A+
- Charge cold design: 9,50 kW nominal
- Charge heat design: 6,00 kW to -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9.5 mm (3/8") |
| Tubería Gas | Ø 15.9 mm (5/8") |
| Maximum Length Tuberia | 50 meters (70 ev.) |
| Maximum level | 30 meters |
| Charge Refrigerant Gas | Standard 30m |
| Additional charge | Check table |
Del Request Information of Round Flow 100 Series Advance
Find out why the Cassette Daikin Round Flow 100 is the perfect choice for your high-power commercial project.
📞
Technical informationConsultation high capacity technology
💰
Commercial BudgetQuote for large spaces
️
Official ServiceCertified professional installation
▷ Warranty Daikin High Power
Cassette Daikin Round Flow 100 with official warranty and technical service specialized in Japanese high-capacity commercial technology.
Cassette Daikin Round Flow 100 with official warranty and technical service specialized in Japanese high-capacity commercial technology.
CASG100B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG100B
- Outdoor Unit
- RZASG100MV1
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.920
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 10.800
- Heat capacity (Kcal / h)
- 9.288
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 29
- Dimensions u.i (anxfxh) mm
- 840 x 840 x246
- Dimensions u.e (anxfxh) mm
- 940 x 380 x 990
- Weight Indoor Unit (Kg)
- 24,0
- Weight Outdoor Unit (Kg)
- 70,0
- Net weight (kg)
- 96,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
