Cassette Daikin FCAG71B + RZASG71MV1
Round Flow 71 Monofásico - Inverter R-32 Professional
Cassette Daikin Round Flow 71 - Commercial cassette air conditioning system with professional Round Flow radial distribution technology, ideal for commercial facilities up to 70m2. Power 6,8kW cooling and 7.5kW heating efficiency A++/A and outdoor Unit RZASG71MV1.
6.8 kW
Cold power
7.5 kW
Power Calor
A++/A
Energy Label
28 dBA
Sound level
15.3 m3/min
Maximum rate
368 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Commercial use Panel 950mm Advance series
Full model: Indoor Unit FCAG71B + Outdoor Unit RZASG71MV1
Series: Sky Air Series Advance - Japanese Professional Technology
Application: Ideal for professional commercial facilities up to 70m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Commercial efficiency: SEER 6,47 / SCOP 4,00 with professional SWING compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

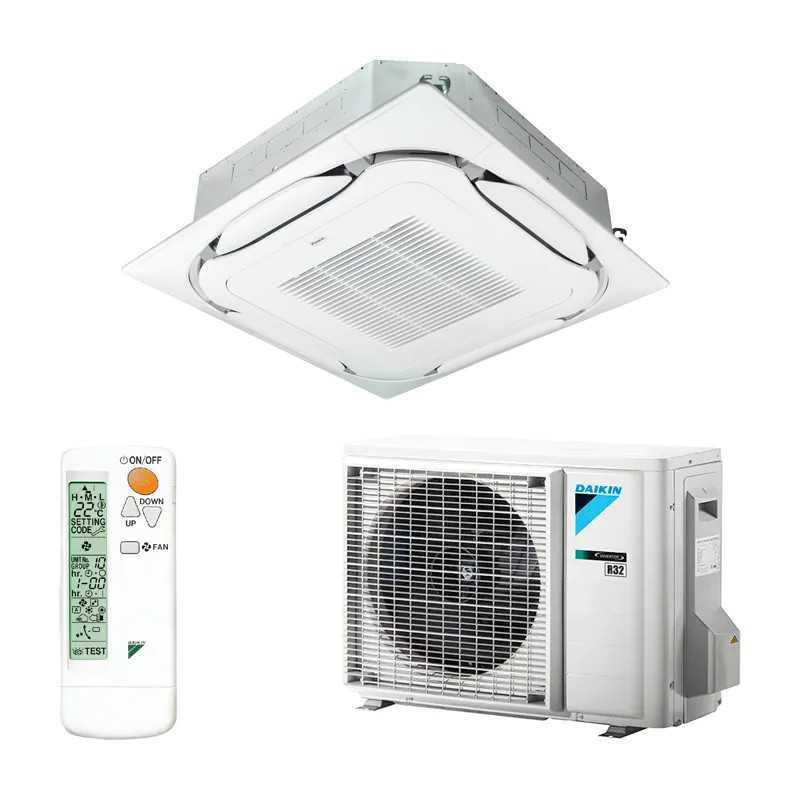

Air Conditioning Cassette Daikin CASG71B
Referencia: CASG71B
€2,752.83
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG71B + RZASG71MV1
Round Flow 71 Monofásico - Inverter R-32 Professional
Cassette Daikin Round Flow 71 - Commercial cassette air conditioning system with professional Round Flow radial distribution technology, ideal for commercial facilities up to 70m2. Power 6,8kW cooling and 7.5kW heating efficiency A++/A and outdoor Unit RZASG71MV1.
6.8 kW
Cold power
7.5 kW
Power Calor
A++/A
Energy Label
28 dBA
Sound level
15.3 m3/min
Maximum rate
368 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Commercial use Panel 950mm Advance series
Full model: Indoor Unit FCAG71B + Outdoor Unit RZASG71MV1
Series: Sky Air Series Advance - Japanese Professional Technology
Application: Ideal for professional commercial facilities up to 70m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Commercial efficiency: SEER 6,47 / SCOP 4,00 with professional SWING compressor
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 71 - Professional Japanese Technology Advance Series
Professional cassette air conditioning system with Round Flow Series Japanese Advance
Cassette System Round Flow 71 - Professional Advance Series Technology
The Air Conditioning Cassette Daikin Round Flow CASG71B combines professional power with radial distribution Japanese Advance series. With 6.8kW cooling power and 7.5kW in heat mode, this system is designed to provide optimal comfort in professional commercial facilities up to 70m2 with energy efficiency A++/A.
️ TECHNOLOGY ROUND FLOW SERIE ADVANCE
Professional Radial Distribution with RZASG71MV1
The Round Flow Series Advance technology creates a professional radial airflow that ensures a uniform air conditioning in commercial facilities, completely eliminating dead areas and providing exceptional comfort with silent operation from 28dBA with outdoor Unit RZASG71MV1.
Advance Series Technical Specifications
6.8 kW
Refrigeration capacityProfessional power up to 70m2
7.5 kW
Capacity HeatingHeat Pump professional
SEER 6,47
Seasonal efficiencyA++ guaranteed classification
SCOP 4,00
Efficient heatingPerformance A professional
Technology Round Flow Series Advance
Exclusive technology Round Flow Japanese Advance Series distributes air through professional radial distribution with flows up to 15.3 m3/min, creating a uniform flow of high professional efficiency. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering optimal distribution for installations up to 70m2.
️
Round Flow AdvanceRadio distribution up to 15.3 m3/min
📐
950×950mm panelFull professional coverage
️
RZASG71MV1Outdoor Unit professional
🌀
Total coverageNo dead areas 70m2
Professional Trade Performance
The Round Flow 71 system is designed for professional commercial applications, providing 3 vent speeds flow rate from 9.3 to 15.3 m3/min. This capacity allows efficient air conditioning of professional commercial facilities while maintaining homogeneous comfort and optimized energy consumption.
Professional Air Flows Advance Series
- High Speed: 15.3 m3/min - Heavy commercial cooling
- Medium speed: 12.5 m3/min - Professional commercial use
- Low speed: 9,3 m3/min - Silent night operation
- Sound level: 28-35 dBA at speed
🏢 Indoor Unit FCAG71B
Cassette Round Flow professional drawer Advance Series
Full model: FCAG71B - Cassette Round Flow Professional Advance Series with Japanese technology inverter SWING
S Technical Specifications Interior
6.8 kW
Nominal Cold Power
7.5 kW
Nominal heat power
28 dBA
Minimum Sound Level
15.3 m3/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 204×840×840 mm |
| Weight Indoor Unit | 21.0 kg |
| Food | 1Ph/220V |
| Air distribution | Round Flow radial series Advance |
| Caudales (A/M/B) | 15.3/12,5/9,3 m3/min |
| Sound levels (A/M/B) | 35/31/28 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
Japanese Technologies Advance Series:
Professional SWING inverter compressor, Round Flow radial distribution Advance series, high efficiency washable filter and BRC7FA532F command included for professional local control.
Professional SWING inverter compressor, Round Flow radial distribution Advance series, high efficiency washable filter and BRC7FA532F command included for professional local control.
🏭 Outdoor Unit RZASG71MV1
Advance Series Monophase Condenser with SWING Inverter Compressor
Full model: RZASG71MV1 - Condensing unit Advance series with professional inverter SWING compressor and R32 gas
S️ Foreign Technical Specifications
46 dBA
External sound level
R32
Refrigerant Gas Ecological
60 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 770×900×380 mm |
| Weight | 60 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (2.45 kg preload) |
| Air Fridge Refrigeration | 56.0 m3/min |
| Air heating | 50.0 m3/min |
| TCO2eq | 1.65 kg |
S Technical characteristics Advance series:
SWING inverter compressor with professional variable frequency control Advance series, exchanger with high-performance hydrophilic fins, optimized expansion valve and professional marine anticorrhage protection.
SWING inverter compressor with professional variable frequency control Advance series, exchanger with high-performance hydrophilic fins, optimized expansion valve and professional marine anticorrhage protection.
Y Energy and Consumption
A++
Label Cold
A
Label Calor
368 kWh/a
Annual Consumption Cold
1575 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 6,47: Professional optimized seasonal efficiency
- SCOP 4,00: High performance heating guaranteed A
- Charge cold design: 6,80 kW nominal
- Charge heat design: 4,50 kW to -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9.5 mm (3/8") |
| Tubería Gas | Ø 15.9 mm (5/8") |
| Maximum Length Tuberia | 50 meters (70 ev.) |
| Maximum level | 30 meters |
| Charge Refrigerant Gas | Standard 30m |
| Additional charge | Check table |
Del Request Information Round Flow 71 Series Advance
Find out why the Cassette Daikin Round Flow 71 Advance Series is the perfect choice for your professional commercial project.
📞
Technical informationConsultation technology series Advance
💰
Commercial BudgetQuotation for professional facilities
️
Official ServiceCertified professional installation
▷ Warranty Daikin Advance series
Cassette Daikin Round Flow 71 with official guarantee and technical service specialized in Japanese technology Professional Advance Series.
Cassette Daikin Round Flow 71 with official guarantee and technical service specialized in Japanese technology Professional Advance Series.
CASG71B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG71B
- Outdoor Unit
- RZASG71MV1
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 70 m2
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- 2.170
- Energy class (cold)
- A++
- SEER
- 6,5
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Energy class (heat)
- A
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 28
- Dimensions u.i (anxfxh) mm
- 840 x 840 x204
- Dimensions u.e (anxfxh) mm
- 900 x 380 x 770
- Weight Indoor Unit (Kg)
- 21,0
- Weight Outdoor Unit (Kg)
- 60,0
- Net weight (kg)
- 83,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
