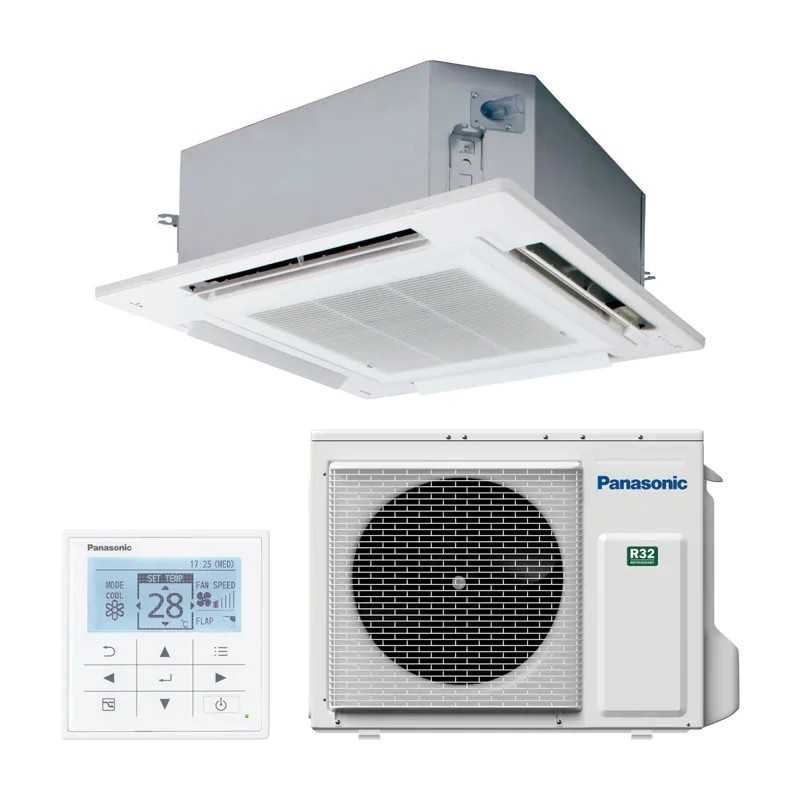

Air Conditioning Cassette Panasonic KIT-36PU3Z5-6W
Refrigeration 3600W 日本語 Heating 3600W 日本語 SEER 8.1 A++ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-36PU3Z5-6W represents maximum absolute efficiency pACi NX Standard Series with 3600W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-efficient 4-way air conditioning with advanced air purification and smart control for small commercial spaces up to 40m2.
3️ 3600W Refrigeration
Range 1.5-4.0 kW
3 3600W Heating
Range 1.5-4.6 kW
▪ SEER 8.1 A++
SCOP 4,8 A++
Wi Wi-Fi + nanoeTM X

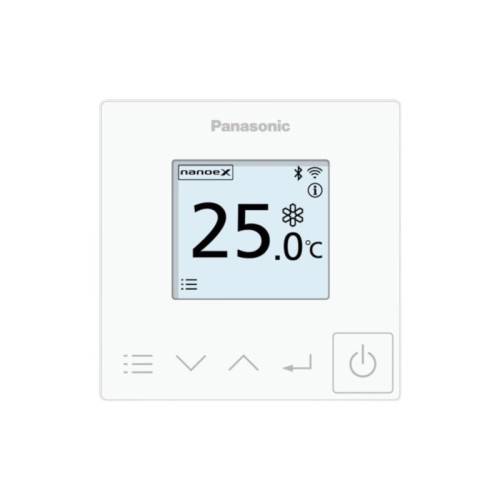

CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 36

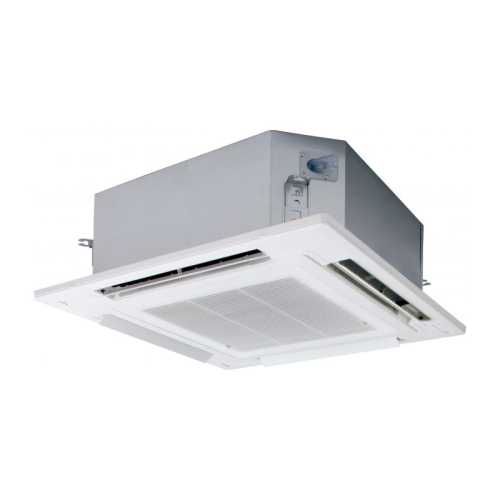

Indoor Unit: S-3650PU3E

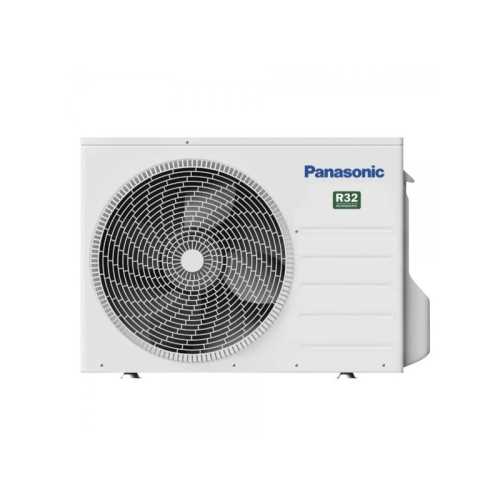

Outdoor Unit: U-36PZ3E5
Air flow: 11,5-14,5 m3/min
Sonic Pressure: 28 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 0.83 kW cold
Refrigerant Gas: R-32 (0.87 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-36PU3Z5-6W PACI NX Standard
Referencia: KIT-36PU3Z5-6W
€1,310.97
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-36PU3Z5-6W
Refrigeration 3600W 日本語 Heating 3600W 日本語 SEER 8.1 A++ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-36PU3Z5-6W represents maximum absolute efficiency pACi NX Standard Series with 3600W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-efficient 4-way air conditioning with advanced air purification and smart control for small commercial spaces up to 40m2.
3️ 3600W Refrigeration
Range 1.5-4.0 kW
3 3600W Heating
Range 1.5-4.6 kW
▪ SEER 8.1 A++
SCOP 4,8 A++
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 36
Indoor Unit: S-3650PU3E
Outdoor Unit: U-36PZ3E5
Air flow: 11,5-14,5 m3/min
Sonic Pressure: 28 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 0.83 kW cold
Refrigerant Gas: R-32 (0.87 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-36PU3Z5-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD • 3600W/3600W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard 36: Maximum Efficiency SEER 8.1 A++ Récord
The Panasonic KIT-36PU3Z5-6W establishes the absolute record of energy efficiency in the PACi NX Standard Series SEER 8.1 A++ exceptional for compact spaces of 30-45m2. Integrates cZ-RTC6BLW controller with Wi-Fi + Bluetooth which allows total remote control and intelligent configuration, while technology nanoeTM X Mark 1 series guarantees purified air with 4.8 billion hydroxyl radicals per second.
Designed for small offices, medical consultations and spaces up to 45m2, combine the high performance turboventilator with intelligent Econavi sensor which automatically reduces energy consumption. His 4-way air distribution with cassette 90x90 cm ultra compact ensures uniform air conditioning lower sound level of the entire range: 30 dBA.
Absolute Efficiency
SEER 8.1 A++: Maximum of the entire range
SCOP 4,8 A++: Exceptional heating
Annual consumption: Only 156 kWh/year
Ultra Silence Compact
30 dBA: The quietest of the range
Light weight: Only 19 kg indoor Unit
Compact: 256x840x840 mm ideal
Advanced technology PACi NX Standard
🌀
Turboventilator
High performance + exchanger
️
Sensor Econavi
Reduces automatic energy loss
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
🔇
Ultra Quiet
30 dBA record absolute silence
Energy efficiency Récord A++
SEER 8.1 A++
Absolute cooling
SCOP 4,8 A++
Exceptional heating
EER 4,34
High nominal performance
COP 5,07
Coefficient upper heat
Technical Specifications • PACi NX Standard KIT-36PU3Z5-6W
INVERTER+ • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette 4 Vias Compact + Ultra Efficient Turboventilator
The 4-way cassette 90x90 cm kIT-36PU3Z5-6W incorporates a optimized high-performance turboventilator which maximizes the air trajectory through the compact heat exchanger. With variable flow rate from 11.5 to 14.5 m3/min, adapts automatically to needs while maintaining a record sound level of only 30 dBA at medium speed, the quietest of the entire PACi NX Standard range.
The sensor Econavi intelligent automatically detects the activity in small spaces and adjusts the operation for maximise energy savings SEER 8.1 A++ without compromising comfort. Technology Green R32 with only 0.87 kg load offers superior thermodynamic properties with the lowest environmental impact of the range.
O️ Ultra Compact Air Performance
Variable flow rate: 11,5-14,5 m3/min
Distribution: 4 tracks 90x90
Sound level: 30 dBA (silent agreement)
Dehumidification: 0.7 L/h elimination
Electrical Specifications
Food: 220-240V monophasic
Consumption Cold: 0.83 kW (ultra efficient)
Consumption Calor: 0.71 kW (minimum)
Intensity: 3,55-3,85 A (cold)
S Dimensions and Technical Specifications
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-3650PU3E |
| Interior dimensions | High x Width x Deep | 256 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 19 / 5 kg |
| Outdoor Unit | Model | U-36PZ3E5 |
| Outer dimensions | High x Width x Deep | 619 x 824 x 299 mm |
| Tuberias | Liquid / Gas | 1/4" (6.35mm) / 1/2" (12.70mm) |
| Maximum length | Tuberia | 3-15 meters |
Es Ideal compact applications Cassette
🏢
▷ Advantages Cassette Compacto:
- Uniform distribution 4 small spaces
- Discreet integration false ceiling
- Perfect coverage for offices 30-45m2
- Ultra silent 30 dBA absolute record
- Precise temperature control
S Unique features:
- SEER 8.1 A++ record absolute efficiency
- nanoetm X purification continuous air
- Wi-Fi + Bluetooth control total
- Series Integrated Drain Pump
- Light weight 19 kg easy installation
🏢
Small offices
30-45m2 working spaces
🏥
Medical Consultations
Ultra silent pure air
️
Small premises
Compact shops
📚
Study Rooms
Silent environments
CSSETTE EFFECTIVE WITH WI-FI + NANOETM X!
Panasonic KIT-36PU3Z5-6W • 3600W/3600W • SEER 8.1 A+ RÉCORD • CZ-RTC6BLW
SEER 8.1 A++ + Ultra Silent + nanoeTM X
The absolute record of energy efficiency in compact cassette. Ultra silent 30 dBA, full Wi-Fi control and nanoeTM X purification for small spaces that require maximum savings. The perfect solution for small offices, medical and local consultations that prioritize maximum efficiency with purified air.
Efficiency 8.1 A++
SEER 8.1 A++: Absolute maximum of the range
Annual consumption: Only 156 kWh/year
Maximum savings: Ideal small spaces
Ultra Quiet 30 dBA
30 dBA: The most silent of the entire range
Light weight: Only 19 kg indoor Unit
Compact: Ideal small offices
WHERE'S THE PANASONIC KIT-36PU3Z5-6W?
▷ Unique technical advantages:
- SEER 8.1 A++ record absolute efficiency
- 30 dBA ultra silent of the entire range
- Sensor Econavi automatic maximum
- Light weight 19 kg easy installation
- Minimum consumption 0.83 kW cooling
: Perfect applications:
- Small offices 30-45m2 ideal
- Medical consultations silent pure air
- Compact premises maximum savings
- Study rooms silent environments
- Clear maximum efficiency
S Advanced Included Series Technologies
Turboventilator
High ultra-efficient benefits
️ Econavi
Automatic intelligent sensor
NanoeTM X
4.8 billion OH/second
R32
Ecological only 0.87kg
📞 CONSULT NOW YOUR MOST EFFECTIVE TAPE!
Air conditioning specialists Panasonic • Personalized technical advice • Integral solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-36PU3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-3650PU3E
- Outdoor Unit
- U-36PZ3E5
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 25 a 35 m2
- Refrigerator capacity (W)
- 3.600
- Refrigerator capacity (kcal / h)
- 3.096
- Nominal consumption Cold (W)
- 830
- Energy class (cold)
- A++
- SEER
- 8,1
- Heat capacity (W)
- 3.600
- Heat capacity (Kcal / h)
- 3.096
- Nominal heat consumption (W)
- 710
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 256
- Dimensions u.e (anxfxh) mm
- 824 x 299 x 619
- Weight Indoor Unit (Kg)
- 19,0
- Weight Outdoor Unit (Kg)
- 32,0
- Net weight (kg)
- 56,0
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- WiFi Included
