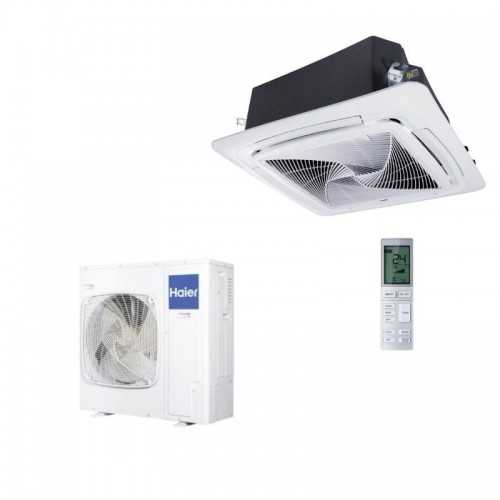

Cassette Haier AB140S2SR1FA (H) + 1U140S2SN2FA
Round-Flow 140 single-phase - maximum single-phase power
Cassette Haier Round-flow 140 - Cassette Air conditioning system of maximum single-phase power with 8-way round-flow technology, ideal for large commercial and industrial spaces up to 140m². Circular air distribution with integrated Wi-Fi and UVC high power sterilization.
13.4 kW
Cold
15.0 kw
Heat power
2,43
Eer
A + / a ++
Energy label
34 DBA
Sound level
1950 m³ / h
Maximum flow
🌪️ Round-Flow 📱 Wi-Fi integrated 🦠 UVC sterilization 🌿 Ecological R32 🔄 8 independent tracks 🏭 Industrial use ⚡ Double inverter 🎯 Panel 950mm
Full model: Indoor Unit AB140S2SR1FA (H) + Outdoor Unit 1u140s2sn2fa
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for large commercial and industrial spaces up to 140m²
Panel: PB-950QB (H) of 950 × 950mm Recessed in false ceiling
Maximum single-phase power: Leader in the monophasic round-flow range with 13.4kw
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Haier Round-Flow 140 Monof. AB140S2SR1FA (H) + 1U140S2SN2FA
Referencia: HAIROUNDCAS140MHC
€2,058.32
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB140S2SR1FA (H) + 1U140S2SN2FA
Round-Flow 140 single-phase - maximum single-phase power
Cassette Haier Round-flow 140 - Cassette Air conditioning system of maximum single-phase power with 8-way round-flow technology, ideal for large commercial and industrial spaces up to 140m². Circular air distribution with integrated Wi-Fi and UVC high power sterilization.
13.4 kW
Cold
15.0 kw
Heat power
2,43
Eer
A + / a ++
Energy label
34 DBA
Sound level
1950 m³ / h
Maximum flow
🌪️ Round-Flow 📱 Wi-Fi integrated 🦠 UVC sterilization 🌿 Ecological R32 🔄 8 independent tracks 🏭 Industrial use ⚡ Double inverter 🎯 Panel 950mm
Full model: Indoor Unit AB140S2SR1FA (H) + Outdoor Unit 1u140s2sn2fa
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for large commercial and industrial spaces up to 140m²
Panel: PB-950QB (H) of 950 × 950mm Recessed in false ceiling
Maximum single-phase power: Leader in the monophasic round-flow range with 13.4kw
Security policy
Delivery policy
Refund policy
Air conditioning cassette Haier Round-Flow 140 - Maximum single-phase power
Cassette Air conditioning system of maximum single-phase power with round-flow-flow technology
🎯 Cassette System Round-Flow 140 - Absolute single-phase leader
The Air conditioning cassette Haier Round-Flow 140 represents the maximum power reachable in monophasic cassette air conditioning technology with 8 independent circular distribution. With 13,4kw cooling power and 15.0kw in heat mode, this system is designed to provide optimal comfort in the most demanding commercial and industrial facilities of up to 140m² with energy efficiency A + / A ++.
🌪️ ROUND-FLOW TECHNOLOGY OF MAXIMUM SINGLE-PHASE POWER
Circular distribution of maximum capacity with 8 independent roads
Round-flow 140 technology of maximum single-phase power creates a high-capacity circular air flow that guarantees uniform air conditioning in the most demanding facilities, completely eliminating dead zones and providing exceptional comfort even in conditions of maximum thermal demand conditions With single-phase feeding.
⚡ Technical specifications of maximum single-phase power
13.4 kW
Cooling capacityMaximum single-phase power up to 140m²
15.0 kw
Capacity HeatingHeat Pump maximum capacity
EER 2,43
Energy efficiencyOptimized for maximum power
SEER 5,60
Seasonal efficiencyClassification A + / A ++ guaranteed
🌟 Round-flow technology high-capacity monophasic
The exclusive technology Round-Flow 140 distribute the air through 8 independent tracks with flows of up to 1950 m³ / h, creating a uniform high-capacity circular flow optimized for single-phase feeding. The 950 × 950mm dimensional panel is perfectly integrated into false commercial ceilings, offering an optimal radial distribution for the most demanding installations with standard single-phase feeding.
🌪️
8 Tracks maximum capacityCircular distribution up to 1950 m³ / h
📐
950 × 950Mm panelMaximum commercial coverage
🎛️
Single-phase controlMaximum power management 1PH
🌀
Total coverageWithout dead zones 140m²
🏭 Commercial performance of maximum single-phase capacity
The Round-Flow 140 system is specifically designed for commercial and industrial applications of maximum demand with single-phase feeding, providing 4 ventilation speeds with flows from 1250 to 1950 m³ / h. This exceptional ability allows efficiently large-scale installations by maintaining homogeneous comfort and optimized energy consumption for its monophasic power.
🎯 Air flows of maximum single-phase capacity
- Maximum speed: 1950 m³ / h - Ultrafast single-phase refrigeration
- High speed: 1650 m³ / h - Intensive commercial use
- Average speed: 1480 m³ / h - Standard commercial operation
- Silent speed: 1250 m³ / h - Night operation 34DBA
📱 Professional connectivity and high power UVC purification
Integrated technology includes Wi-Fi professional that allows total control and centralized management from multiple devices with optimized business protocols for single-phase installations. The system incorporates high power UVC sterilization that eliminates bacteria and viruses in large air volumes, guaranteeing a healthy environment in critical facilities. Includes outdoor outdoor air intake up to 20% of the nominal flow.
📱
Wi-Fi professionalCentralized monopasic control
🦠
UVC High PowerProfessional purification
🌿
Fresh airRenovation up to 20%
🔇
Silent 34dbaDiscrete
🏭 Commercial and single-phase industrial applications
The Round-Flow 140 is especially suitable for large commercial facilities, industrial buildings, shopping centers, hotels, hospitals and auditoriums that require a climate control of maximum single-phase power and uniformity. Its capacity of 13,4kw guarantees optimal comfort even under conditions of maximum occupation and extreme thermal load with standard single-phase feeding.
🎯 Single-phase ideal facilities
- Single-phase industrial buildings: Up to 140m² with high heat load
- Large shopping centers: Central zones with feeding 1Ph
- Hotels and Resorts: Lobbies, Main Salons and VIP Spaces
- Hospitals: Waiting rooms, Cafes and large common areas
- Auditoriums: Large events with single-phase feeding
- Sports facilities: Costumes and large common areas
⚡ Maximum single-phase dual compressor compressor
Equipped with rotary double reverse compressor optimized for maximum single-phase capacity that provides precise control even in the highest thermal loads with 1PH feeding. The optimized last generation Inverter technology automatically adjusts the power by maintaining energy efficiency A + even at maximum power of single-phase 13.4kw.
🌿 Refrigerant Gas R32 high-phase single capacity
Use refrigerant Ecological R32 optimized for maximum single-phase powers with lower environmental impact. Compatible with R410A to facilitate renovations. The factory load of 2,50kg guarantees optimal operation with pipes of up to 30 meters without additional load, ideal for large-scale single-phase commercial facilities.
🔧 Detailed technical specifications
Haier Round-Flow 140 - Components of maximum single-phase power

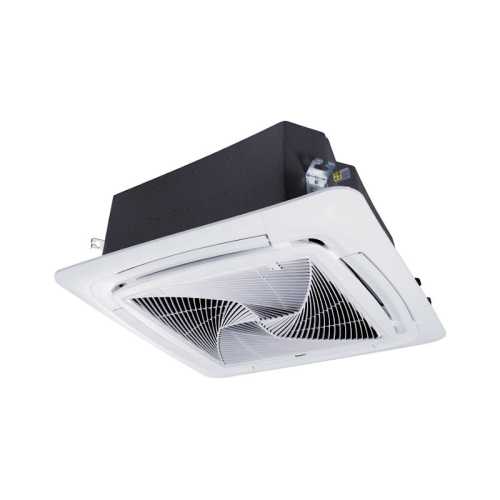

🏠 Indoor Unit AB140S2SR1FA (PM)
Recessed Round-flow cassette Maximum single-phase power with 8 independent tracks
Full model: AB140S2SR1FA (H) - Round-flow cassette of maximum single-phase power with professional Wi-Fi and high power UVC sterilization
📊 Interior technical specifications
13.4 kW
Nominal cold power
15.0 kw
Power Nominal heat
34 dBA
Minimal sound level
1950 m³ / h
Maximum air flow
| Feature | Specification |
|---|---|
| Net dimensions (an × pr × al) | 840 × 840 × 288 mm |
| Grunge dimensions (an × pr × al) | 978 × 978 × 353 mm |
| Net weight | 27/33 kg |
| Feed | 1Ph / 220 ~ 240V / 50 / 60Hz |
| Air distribution | 8 independent round-flow-flow |
| Flows (H / M / L / Q) | 1950/1650/1480/1250 m³ / h |
| Sound levels (H / M / L / Q) | 47/44/38/34 dB (A) |
| Connectivity | Integrated professional Wi-Fi |
| High power sound | 64 dB |
🎯 Decorative panel PB-950QB (H)
| Specification Panel | Measures |
|---|---|
| Net Dimensions Panel | 950 × 950 × 50 mm |
| Gross dimensions panel | 1013 × 1035 × 125 mm |
| Net weight / Gross panel | 5.5 / 8.5 kg |
| Installation type | Recessed in false commercial roof |
🌟 Internal exclusive technologies:
High power UVC sterilization, outdoor fresh air intake (up to 20% of the nominal flow), 8-way Round-Flow distribution of maximum monophasic capacity, maximum washable efficiency filter and professional anti-bacteria system.
High power UVC sterilization, outdoor fresh air intake (up to 20% of the nominal flow), 8-way Round-Flow distribution of maximum monophasic capacity, maximum washable efficiency filter and professional anti-bacteria system.

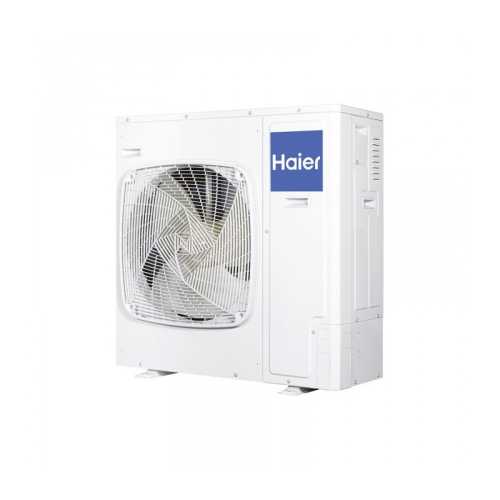

🏭 Outdoor Unit 1U140S2SN2FA
Monophasic capacitor of maximum power with double rotary inverter compressor
Full model: 1U140S2SN2FA - Maximum single-phase capacitor unit with double compressor rotary inverter and gas R32
⚙️ External technical specifications
5,51 kW
Nominal cold consumption
5,77 kW
Nominal heat consumption
58 dBA
Exterior sound level
R32
Refrigerant Gas Ecological
| Feature | Specification |
|---|---|
| Net dimensions (an × pr × al) | 950 × 370 × 965 mm |
| Grunge dimensions (an × pr × al) | 1050 × 485 × 1130 mm |
| Net weight | 68.0 / 78.0 kg |
| Compressor | Double airtight rotary inverter |
| Refrigerant Gas | R32 (2.50 kg preload factory) |
| Feed | 1Ph / 220 ~ 240V / 50 / 60Hz |
| Cord | 3 x 6.0 mm² |
| Interconnection cable | 4 x 2.5 mm² |
| Maximum intensity | 30.0 To cold / heat |
| Intensity start | 5.0 |
| Sound power | 74 dB |
🔧 Advanced technical characteristics:
DOUBLE COMPRESSOR ROTATIVE INVERTER Compressor with variable frequency control optimized for commercial loads, heat exchanger with ultra high performance hydrophilic fins, precision electronic expansion valve, marine anti-corrosion protection and Smart automatic defrosting.
DOUBLE COMPRESSOR ROTATIVE INVERTER Compressor with variable frequency control optimized for commercial loads, heat exchanger with ultra high performance hydrophilic fins, precision electronic expansion valve, marine anti-corrosion protection and Smart automatic defrosting.
🎯 Energy yield and consumption
A +
Cold
TO ++
Heat sticker
838 kwh / a
Cold annual consumption
3032 kwh / a
Annual heat consumption
🏆 Guaranteed Efficiencies
- EER 2,43: Energy efficiency optimized for maximum single-phase power
- SEER 5,60: High seasonal performance guaranteed A +
- COP 2.60: Efficient Heat pump of maximum single-phase capacity
- SCOP 4,80: Maximum Annual Energy Energy A ++
🔧 Installation data
| Parameter | Specification |
|---|---|
| Liquid pipe | Ø 9,52 mm (3/8 ") |
| Gas pipe | Ø 15.88 mm (5/8 ") |
| Standard length without load | 30 meters |
| Maximum length pipe | 50 meters |
| Ui-EU MAXIMUM RATE | 30 meters |
| Extra charge | 45 g / m over standard length |
| Cold performance limits | -20 ° C A + 46 ° C |
| Limits Heat performance | -20 ° C A + 24 ° C |
| Tco2eq Refrigerant Gas | 1,55 kg |
💡 Energy savings:
The Round-Flow 140 system can generate savings of up to 25% compared to conventional systems of similar monophasic power, thanks to its double optimized rotary inverter compressor and efficient circular distribution that eliminates dead zones even in the largest spaces.
The Round-Flow 140 system can generate savings of up to 25% compared to conventional systems of similar monophasic power, thanks to its double optimized rotary inverter compressor and efficient circular distribution that eliminates dead zones even in the largest spaces.
🏭 Maximum single-phase capacities:
Maximum single-phase power of the Round-Flow range with 13.4kw, flows up to 1950 m³ / h, intensity of 30.0a and sturdy weight of 68kg for commercial facilities of maximum requirement with feeding 1Ph.
Maximum single-phase power of the Round-Flow range with 13.4kw, flows up to 1950 m³ / h, intensity of 30.0a and sturdy weight of 68kg for commercial facilities of maximum requirement with feeding 1Ph.
🌪️ Cassette Haier Round-Flow 140
AB140S2SR1FA (H) + 1U140S2SN2FA | Maximum single-phase power 13,4kw
🏭
Maximum single-phase power
13.4kw refrigeration and 15.0kw heating. Absolute leader in single-phase power for commercial facilities.
🌪️
Round-Flow maximum capacity
Circular distribution with 8 tracks up to 1950 m³ / h. Eliminates dead zones in spaces up to 140m².
⚡
Double single-phase inverter
Optimized rotary double inverter compressor for maximum capacity with 1PH power.
📱
Professional Wi-Fi + UVC
Professional centralized control and UVC high power sterilization for large volumes.
🔇
Silent 34dba
4 maximum capacity speeds (1250-1950 m³ / h). Discrete operation in commercial environments.
🏢
Commercial application
Perfect for large commercial facilities, industrial buildings and shopping centers with 1Ph.
🌟 Exclusive features Round-Flow 140
Full model
AB140S2SR1FA (H) + 1U140S2SN2FA
AB140S2SR1FA (H) + 1U140S2SN2FA
Round-Flow panel
PB-950QB (H) 950 × 950mm
PB-950QB (H) 950 × 950mm
Flows maximum capacity
1250/1480/1650/1950 m³ / h
1250/1480/1650/1950 m³ / h
Annual consumption
838 kwh / cold
838 kwh / cold
Dimensions
840 × 840 × 288 mm
840 × 840 × 288 mm
Refrigerant Gas
R32 ecological (2.50 kg)
R32 ecological (2.50 kg)
🏭 Ideal single-phase commercial applications
Industrial Naves 1Ph
Up to 140m² with high heat load
Up to 140m² with high heat load
Large shopping centers
Central zones with single-phase feeding
Central zones with single-phase feeding
Hotels and Resorts
Lobbies, Main Salons and VIP
Lobbies, Main Salons and VIP
Hospitals
Waiting rooms, Spacious cafes
Waiting rooms, Spacious cafes
Auditoriums
Great events with feeding 1PH
Great events with feeding 1PH
Sports facilities
Costumes and large common areas
Costumes and large common areas
🏆 Absolute single-phase leader
Maximum power 1Ph
13.4kw Leader Round-Flow Single-Flow
13.4kw Leader Round-Flow Single-Flow
Maximum capacity
1950 m³ / h for maximum coverage 1PH
1950 m³ / h for maximum coverage 1PH
Efficiency A + / A ++
EER 2.43 optimized for high power
EER 2.43 optimized for high power
Single-phase intensity
30.0 Maximum with 68kg Robust Weight
30.0 Maximum with 68kg Robust Weight
⚡ Advantages Monophasic power
Simplified installation
220-240V standard single-phase
220-240V standard single-phase
Greater availability
Compatible with standard electrical networks
Compatible with standard electrical networks
Reduced costs
No need for three-phase feeding
No need for three-phase feeding
Versatility
Ideal for renovations and extensions
Ideal for renovations and extensions
🎯 Request information about Round-Flow 140
Discover why the cassette Haier Round-Flow 140 is the perfect choice for your commercial project of maximum single-phase power.
📞
Technical informationConsultation Round-Flow technology maximum power 1PH
💰
Trade budgetQuote for single-phase projects
🛠️
Professional serviceAdvice for commercial applications 1PH
✅ Round-Flow warranty
Cassette Haier Round-Flow 140 with official guarantee and technical service specialized in circular technology of maximum single-phase power.
Cassette Haier Round-Flow 140 with official guarantee and technical service specialized in circular technology of maximum single-phase power.
🌪️ Exclusive technology Maximum single-phase power
Round-flow distribution of 8 routes with flows up to 1950 m³ / h. Absolute single-phase leader for commercial facilities without dead zones.
Round-flow distribution of 8 routes with flows up to 1950 m³ / h. Absolute single-phase leader for commercial facilities without dead zones.
🏭 Single-phase commercial solution
Ideal for industrial buildings, large shopping centers and hotels up to 140m² with standard single-phase feeding.
Ideal for industrial buildings, large shopping centers and hotels up to 140m² with standard single-phase feeding.
⚡ Maximum single-phase capacities
13.4kw power, 30.0a of intensity, 68kg of sturdy weight and 2,50kg of R32 refrigerant for maximum requirement installations 1Ph.
13.4kw power, 30.0a of intensity, 68kg of sturdy weight and 2,50kg of R32 refrigerant for maximum requirement installations 1Ph.
HAIROUNDCAS140MHC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB140S2SR1FA(H)
- Outdoor Unit
- 1U140S2SN2FA
- Panel
- PB-950QB(H)

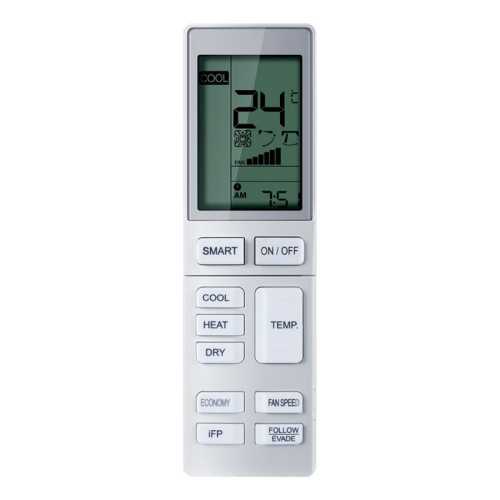

- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.510
- Energy class (cold)
- A+
- SEER
- 5,6
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 5.770
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 965
- Weight Indoor Unit (Kg)
- 27,0
- Weight Outdoor Unit (Kg)
- 68,0
- Net weight (kg)
- 97,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
New
No customer reviews for the moment.
