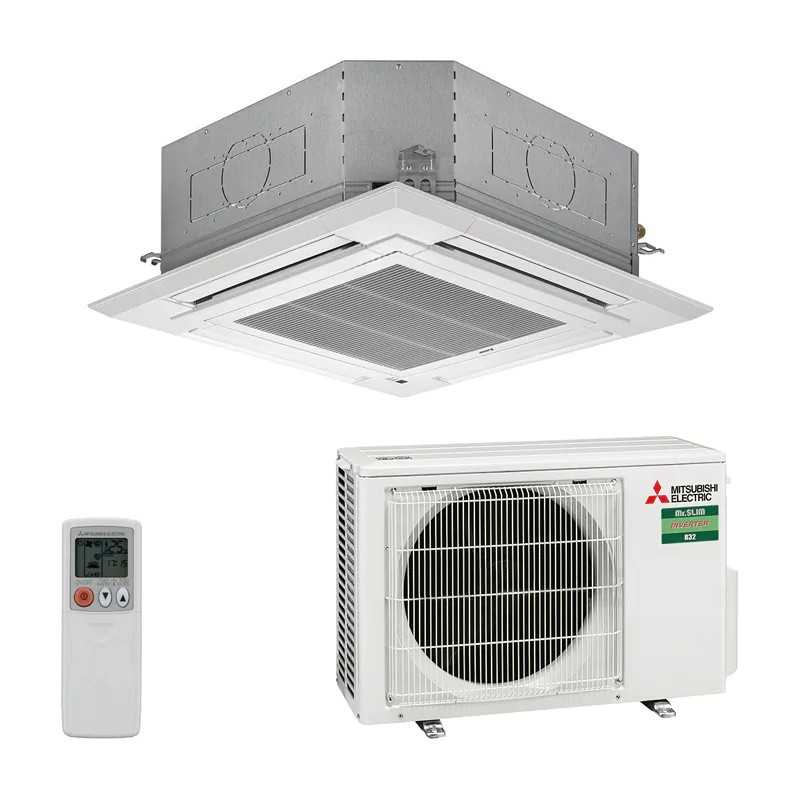

Air Conditioning Cassette Mitsubishi MSPLZ-60VEA
Refrigeration 6100W 日本語 Heating 7000W 日本語 SEER 6,6 A++ Δ Standard Inverter
The Air Conditioning Cassette Mitsubishi MSPLZ-60VEA represents medium-high commercial power of the series Mr. Slim Standard Inverter with 6100W in cooling and 7000W in heating. With pLP-6EALM standard panel included and technology Standard Inverter, offers powerful 4-way air conditioning for medium-high commercial spaces that require Japanese quality and high energy efficiency SEER 6,6 A++ with premium optionals available.
6️ 6100W Refrigeration
Rank 1.6-6.3 kW
7 7000W Heating
Rank 1,6-8,0 kW
▪ SEER 6,6 A++
SCOP 4,4 A+
Panel included
950x950mm
Specifications Clave Cassette Mr. Slim Standard 60
Indoor Unit: PLA-M60EA
Outdoor Unit: SUZ-M60VA
Air flow: 12-18 m3/min
Sonic Pressure: 27-32 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 1,84 kW cold
Refrigerant Gas: R-32 (1.25 kg)
Optional: EasyClean, 3D i-see, WiFi
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette MSPLZ-60Vea Mitsubishi Standard Inverter
Referencia: MSPLZ-60VEA
€2,099.79
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Mitsubishi MSPLZ-60VEA
Refrigeration 6100W 日本語 Heating 7000W 日本語 SEER 6,6 A++ Δ Standard Inverter
The Air Conditioning Cassette Mitsubishi MSPLZ-60VEA represents medium-high commercial power of the series Mr. Slim Standard Inverter with 6100W in cooling and 7000W in heating. With pLP-6EALM standard panel included and technology Standard Inverter, offers powerful 4-way air conditioning for medium-high commercial spaces that require Japanese quality and high energy efficiency SEER 6,6 A++ with premium optionals available.
6️ 6100W Refrigeration
Rank 1.6-6.3 kW
7 7000W Heating
Rank 1,6-8,0 kW
▪ SEER 6,6 A++
SCOP 4,4 A+
Panel included
950x950mm
Specifications Clave Cassette Mr. Slim Standard 60
Indoor Unit: PLA-M60EA
Outdoor Unit: SUZ-M60VA
Air flow: 12-18 m3/min
Sonic Pressure: 27-32 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 1,84 kW cold
Refrigerant Gas: R-32 (1.25 kg)
Optional: EasyClean, 3D i-see, WiFi
Security policy
Delivery policy
Refund policy
1 Standard Inverter and Commercial Power Media-Alta
The Air Conditioning Cassette Mitsubishi MSPLZ-60VEA integrate technology Standard Inverter for high commercial energy efficiency with premium japanese quality. With SEER 6,6 A++ in cooling and SCOP 4,4 A+ in heating, medium-high power 6100W cold and 7000W in heat guarantees efficient and reliable air conditioning for medium-high commercial spaces that require high capacity with proven and reliable technology.
The system modulates its power from 1600W up to 6300W cold and from 1600W up to 8000W in heat, adapting automatically to the commercial variable loading conditions and ensuring maximum operating comfort with superior energy efficiency and silent operation ideal for medium-high offices that prioritize efficiency and superior performance.
2 Standard Panel and Commercial Distribution Media-Alta
Includes pLP-6EALM standard panel with wireless serial control for full control of all basic functions. The panel 95x95 cm provides uniform air distribution air conditioning through its 4 directional pathways, with variable flow rate 12 to 18 m3/min for medium-high commercial spaces that require powerful air conditioning with integrated design and superior performance.

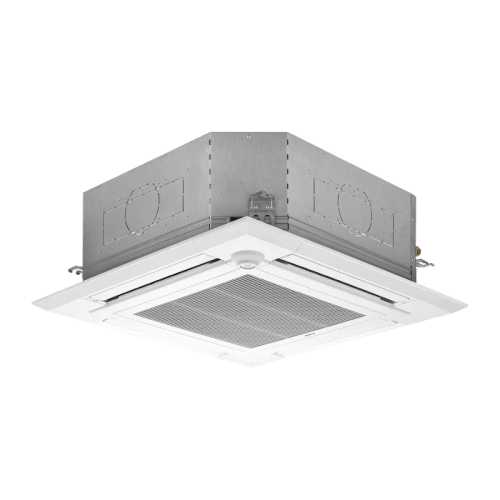

La indoor Unit of 258x840x840 mm is discreetly integrated into false standard commercial ceilings, while its ultra silent operation 27-32 ADBA maintains exceptional acoustic comfort suitable for medium-high offices and commercial spaces that require powerful yet ultra silent air conditioning with premium japanese quality and ultra reliable operation.
3 Premium and High Business Upgrades
The medium-high commercial base unit can optionally upgradeable with premium technologies easyClean automatic panel that descends to facilitate maintenance, sensor 3D i-see for intelligent detection of people, Plasma Quad Connect for advanced air purification, and wiFi adapter for smartphone control, allowing to customize the equipment according to specific needs of demanding medium-high commercial projects that require superior advanced features.
4 Refrigerant Gas R32 Ecological and Higher Commercial Operational Efficiency
Use coolant Organic R32 with optimized load 1.25 kg, significantly reducing environmental impact while improving commercial energy efficiency. The system operates in extended range -15°C to +46°C in cooling and -10°C to +24°C in heating, ensuring reliable operation throughout the year in commercial applications with variable climatic conditions and higher energy efficiency.

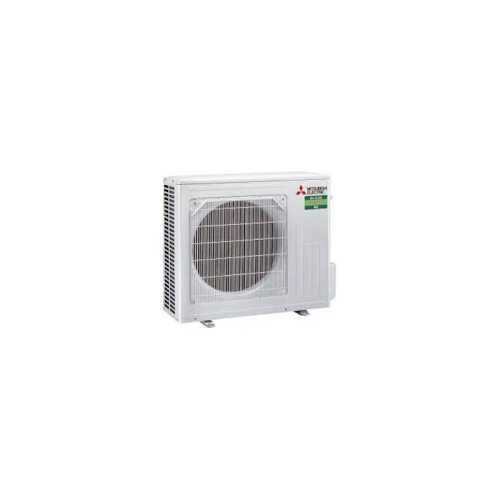

La outdoor Unit robust of 880x840x330 mm facilitates installation in commercial spaces, with cold connections 6,35mm liquid and 15,88mm gas and maximum extended pipe length 30 meters vertical and 30 meters total, providing greater installation flexibility ideal for medium-high offices, large shops and commercial spaces with more complex and demanding installation requirements.
Technical Specifications Complete Commercial Medium-Stop
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 6100W (1600-6300W) | Heating | 7000W (1600-8000W) |
| SEER / SCOP | 6,6 A++ / 4,4 A+ | Nominal consumption | 1840W / 1840W |
| Air flow | 12-18 m3/min | Sound level | 27-32 dBA |
| Refrigerant Gas | R32 (1.25 kg) | UI Dimensions | 258x840x840 mm |
| Tube Max | 30m / 30m total | Net Weight UI | 21 kg + 5 kg panel |
Recommended Commercial Applications
Media Mid-high offices
Corporate 45-60m2 spaces that require high efficiency SEER 6,6 A++ with Japanese quality and superior performance.
S️
Large stores and premises that need powerful air conditioning with premium options and extended pipe.
S️ Restaurants Grandes
Large gastronomic establishments that require silent powerful air conditioning with Japanese technology.
S Clínicas Grandes
Large medical centers that need ultra silent powerful air conditioning with premium Japanese quality.
Technology Mitsubishi Electric Standard Inverter
Japanese quality with medium-high commercial power and superior installation flexibility
MSPLZ-60VEA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PLA-M60EA
- Outdoor Unit
- SUZ-M60VA
- Panel
- PLP-6EALM
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 50 a 60 m2
- Refrigerator capacity (W)
- 6.100
- Refrigerator capacity (kcal / h)
- 5.246
- Nominal consumption Cold (W)
- 1.840
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 7.000
- Heat capacity (Kcal / h)
- 6.020
- Nominal heat consumption (W)
- 1.840
- Energy class (heat)
- A+
- SCOP
- 4,4
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 258
- Dimensions u.e (anxfxh) mm
- 840 x 330 x 880
- Weight Indoor Unit (Kg)
- 21,0
- Weight Outdoor Unit (Kg)
- 54,0
- Net weight (kg)
- 77,5
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
