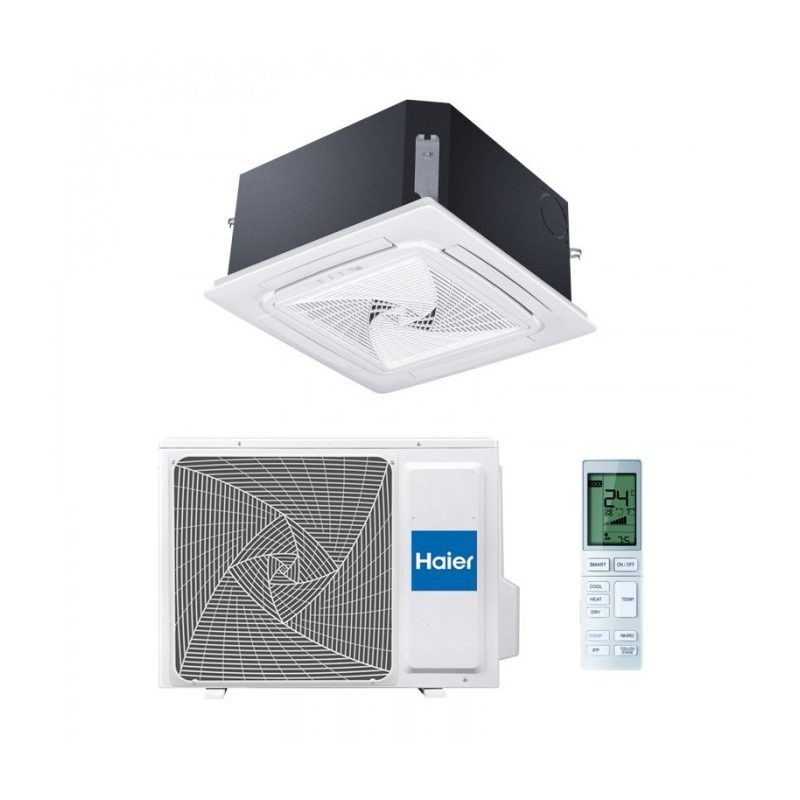

Cassette Haier AB35S2SC2FA (H) + 1U35S2SM1FA-2
Health Connect 35 (H) Monkey - Cassette 4 tracks with Wi-Fi and UVC
3.5 kW
Cold
4,00 kW
Heat power
EER 3.51
Excellent efficiency
Seer 6,10
Seasonal efficiency
Dba
Silent
To ++ / a ++
Energy label
The Cassette Haier Health Connect 35 (H) Monkey model AB35S2SC2FA (H) + 1U35S2SM1FA-2 combines medium commercial power with Cassette technology 4 independent tracks. With 3,5KW power, EER 3.51 Excellent, Wi-Fi control integrated and UVC sterilization, it is ideal for Medium commercial spaces That seek intelligent air conditioning and healthy air.
✅ Cassette 4 independent tracks • Integrated Wi-Fi control • UVC sterilization • Silent 30dB
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 60x60 Haier Health Connect 35 (H) Monkey
Referencia: CASCONNECT35H
€946.96
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB35S2SC2FA (H) + 1U35S2SM1FA-2
Health Connect 35 (H) Monkey - Cassette 4 tracks with Wi-Fi and UVC
3.5 kW
Cold
4,00 kW
Heat power
EER 3.51
Excellent efficiency
Seer 6,10
Seasonal efficiency
Dba
Silent
To ++ / a ++
Energy label
The Cassette Haier Health Connect 35 (H) Monkey model AB35S2SC2FA (H) + 1U35S2SM1FA-2 combines medium commercial power with Cassette technology 4 independent tracks. With 3,5KW power, EER 3.51 Excellent, Wi-Fi control integrated and UVC sterilization, it is ideal for Medium commercial spaces That seek intelligent air conditioning and healthy air.
✅ Cassette 4 independent tracks • Integrated Wi-Fi control • UVC sterilization • Silent 30dB
Security policy
Delivery policy
Refund policy
Air conditioning cassette 60x60 Haier Health Connect 35 (H) with commercial power
🏆 Cassette System 4 tracks with Health Connect technology
The Cassette Haier AB35S2SC2FA (H) + 1U35S2SM1FA-2 line Health Connect 35 (H) Monkey it establishes a new standard in intelligent commercial air conditioning. With cassette distribution 4 independent tracks, , factory integrated Wi-Fi control, , continuous UVC sterilization and 3,5kW optimized power, it offers healthy air conditioning for medium commercial spaces.
⚡ Commercial Power Cassette
- 🔹 Cold power: 3,5kW (0.9-4,5kw modulating)
- 🔹 Power heat: 4,00kW (1.0-4,8kw modulating)
- 🔹 Distribution: 4 independent tracks
- 🔹 Flow: 620/520/450/330 m³ / h
🌿 Health Connect technology
- 🔹 UVC sterilization: Continuous purified air
- 🔹 EER 3,51 / SEER 6,10: Label A ++ / A ++
- 🔹 Refrigerant Gas R32: Ecological
- 🔹 Silent: 30 dB guaranteed
📊 Technical specifications Health Connect 35 (H)
Annual consumption
Refrigeration: 222 kwh / a
Heating: 1,427 kWh / a
Heating: 1,427 kWh / a
Efficiency
EER: 3.51 (Excellent)
SEER: 6,10 (A ++)
SEER: 6,10 (A ++)
Sound level
Interior: 36/33/30 dBA
Exterior: 48 dBA
Exterior: 48 dBA
Dimensions
Panel: 620 × 620 × 115 mm
Net weight: 2,80 / 4.50 kg
Net weight: 2,80 / 4.50 kg
🌟 Exclusive features Health Connect 35 (H)
Control 4 tracks: Independent
Each sector controllable separately
Each sector controllable separately
Wi-Fi integrated: Factory
Connectivity without additional installations
Connectivity without additional installations
Fresh air: Built-in outdoor
Allows an external air up to 20%
Allows an external air up to 20%
ON / OFF CARD HOLDER: Included
Automatic presence control
Automatic presence control
🎯 Commercial Apps Cassette 4 tracks
Perfect for medium commercial spaces: Offices (35-50 m²), broad medical offices, professional offices, commercial stores, school classrooms, medium-sized meeting rooms and commercial spaces that require air conditioning by sectors, , intelligent remote control and uVC air purification for maximum health.

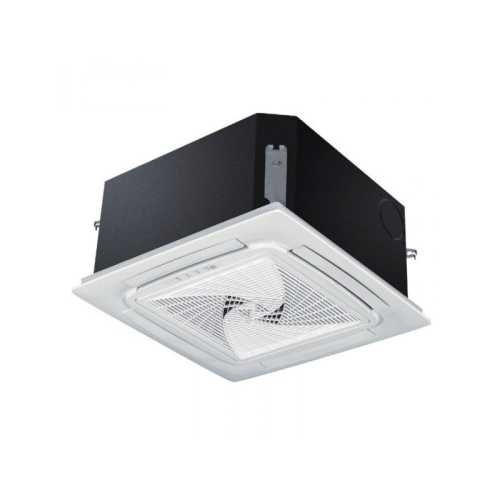

🏠 Indoor Unit AB35S2SC2FA (H) - Cassette 4 track Health Connect
The indoor Unit AB35S2SC2FA (PM) of the Health Connect 35 (h) Incorporates cassette technology 4 independent tracks with sector-led distribution. Its compact design 620 × 620mm integrates wi-Fi control factory, , uVC sterilization and outdoor for commercial commercial comfort and continuously purified air.
🔊 Indoor sound level
4 Speeds: 36/33/30 dBA
Guaranteed: 30 dBA Minimum
Ultra Silent for Commercial Use
💨 Air flow 4 tracks
620/520/450/330 m³ / h
Independent control by sector
📐 Cassette dimensions
Visible panel: 620 × 620 × 115 mm
Built-in unit: 570 × 570 × 260 mm
Integrated compact design

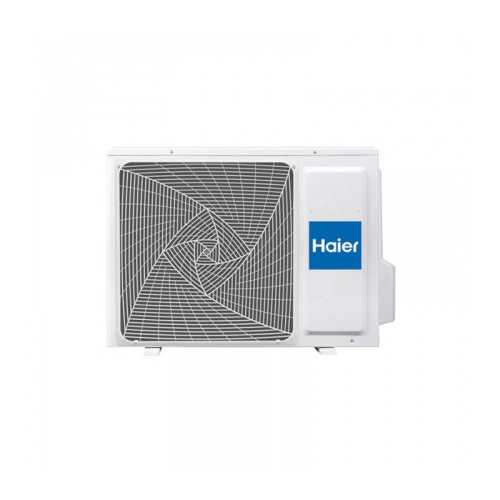

🏭 Outdoor Unit 1U35S2SM1FA-2 - Optimized rotary investment
The outdoor Unit 1U35S2SM1FA-2 incorporates rotary inverter compressor high efficiency. Its robust construction guarantees efficient performance, , sound level controlled 48 DBA and exceptional durability in all climatic conditions, optimized specifically for Health Connect 35 (H.)
🔊 Exterior sound level
Operation: 48 dBA
Absorption Start: 8.00 A (cold)
Discrete operation for commercial environments
📐 Exterior dimensions
800 × 305 × 643 mm
Weight: 30.00 / 32,90 kg
Compact for reduced spaces
❄️ System Refrigerant Gas R32
Preload: 0.78 kg R32
Tco2eq: 0,53
Ecological and efficient
🔧 Specifications Health Connect 35 (H)
Refrigerating connections
Liquid: 6.35mm (1/4 ")
Gas: 9,52mm (3/8 ")
Gas: 9,52mm (3/8 ")
Lengths pipe
Standard without load: 15 meters
High: 25 meters
High: 25 meters
Operating range
Refrigeration: -20 ° C A + 43 ° C
Heating: -20 ° C A + 24 ° C
Heating: -20 ° C A + 24 ° C
Electrical supply
Voltage: 1 ~ / 220-240V / 50 / 60Hz
Type: Single-phase
Type: Single-phase
⚠️ Technical specifications
4-Way cassette system with Inverter Health Connect technology. Includes specialized R32 coolant handling, advanced Wi-Fi system configuration and UVC sterilization calibration for maximum performance and full functionality of the air purification system.
CASCONNECT35H
Data sheet
- Brand
- Haier
- Indoor Unit
- AB35S2SC2FA (H)
- Outdoor Unit
- 1U35S2SM1FA-2
- Panel
- PB-620KB
- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 25 a 35 m2
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- 1.060
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.440
- Nominal heat consumption (W)
- 990
- Energy class (heat)
- A++
- SCOP
- 5,3
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 570 x 570 x 260
- Dimensions u.e (anxfxh) mm
- 800 x 275 x 553
- Weight Indoor Unit (Kg)
- 18,5
- Weight Outdoor Unit (Kg)
- 31,5
- Net weight (kg)
- 52,5
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- WiFi Included
