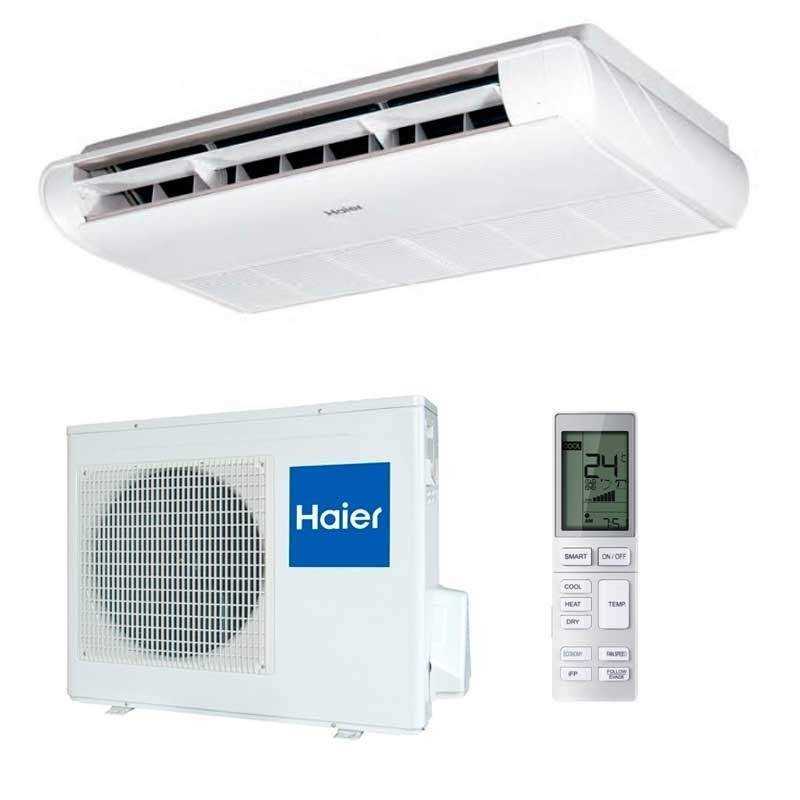

Ground-ceiling Haier Ac125s2sk2fa (pm)
High power light industrial solution, adaptable to roof assembly or floor for large surfaces. This 12.30 kW Inverter system integrates technology increase for a total thermal distribution and is compatible with UVC sterilization optional. Classification To ++, Optimized operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Efficiency A ++ / A +
• Integrable Wi-Fi
• Increased flow
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Floor-ceiling 125 HC Monof. Haier Health-Connect R32 Air conditioning
Referencia: KIT AC125S2SK1FA (H)M
€2,250.60
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ground-ceiling Haier Ac125s2sk2fa (pm)
High power light industrial solution, adaptable to roof assembly or floor for large surfaces. This 12.30 kW Inverter system integrates technology increase for a total thermal distribution and is compatible with UVC sterilization optional. Classification To ++, Optimized operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Efficiency A ++ / A +
• Integrable Wi-Fi
• Increased flow
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling 125 HC Haier Health-connect it represents the most powerful and advanced air conditioning solution for large commercial and industrial spaces that require maximum performance and efficiency. With a nominal power of 12.4 kW in refrigeration and 13.5 kW in heating, this range of the Health-Connect range incorporates double-generating rotary double compressor technology that guarantees stable performance, exceptional durability and energy efficiency Optimized for intensive and continuous use.

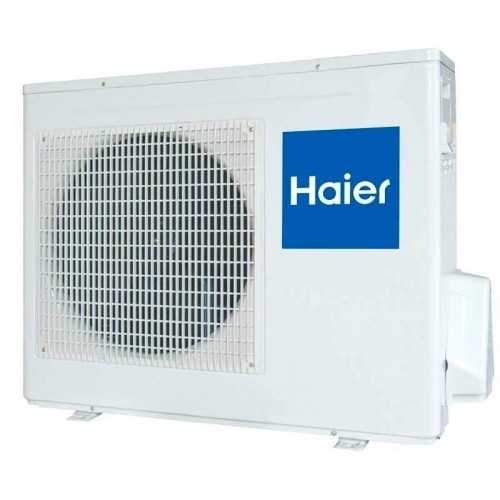

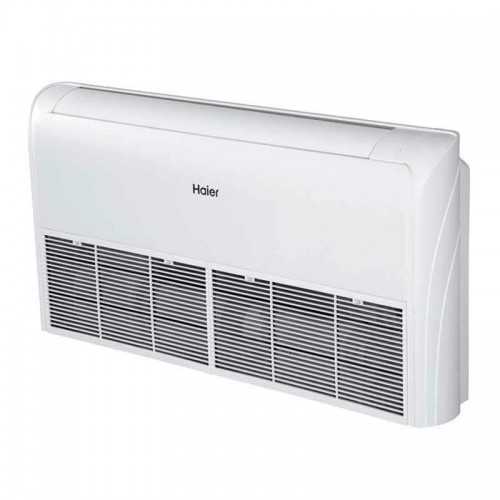

Composed of the indoor Unit AC125S2SK2FA (H) of great capacity with dimensions 1.650 x 230 x 680 mm and outdoor Unit 1U125S2SN3FA With advanced double compressor technology, this system stands out for its intelligent modulation capacity that covers from 3.0 to 13.0 kW in refrigeration and from 4.0 to 15.5 kW in heating. With an exceptional treated air volume of up to 2,050 m³ / h and sound levels controlled from 38 dB (A), it provides massive and uniform air distribution by covering large surfaces with homogeneous comfort.
The unit incorporates Health-Connect technology with integrated Wi-Fi for control and professional monitoring from smartphone, UVC Sterilization System for Healthy Air in spaces with high occupancy, external air function for continuous ventilation and 5 speeds of Adjustable fan. With installation capacity on floor or ceiling up to 4.2 meters high, maximum tubing length of 50 meters and availability in single-phase and three-phase versions, it offers maximum flexibility for large-scale commercial and industrial facilities.
Main features
⚡
Industrial power 12.4 kW
Maximum power of 12.4 kW with double rotary inverter compressor designed for demanding commercial and industrial applications with intensive use.
🏭
Single-phase and three-phase
Available in single-phase and three-phase versions to adapt to any commercial and industrial electrical installation according to specific requirements.
🌊
Mass flow 2.050 m³ / h
Exceptional treated air volume up to 2,050 m³ / h that guarantees uniform air conditioning on large commercial and industrial surfaces.
📱
Professional Health-Connect
Advanced Wi-Fi control for remote professional management, continuous monitoring and intelligent programming adapted to commercial use.
🦠
UVC Industrial Sterilization
High capacity UVC Sterilization System Specially designed for spaces with high density occupancy and intensive use.
🌿
Optimized A ++ efficiency
Seer 6,10 and SCOP 4.80 with A ++ / A ++ classification that guarantees maximum energy performance in high demand applications.
Technical specifications
| Feature | Single-phase | Three-phase |
|---|---|---|
| Pattern | AC125S2SK2FA (H) + 1U125S2SN2FA | AC125S2SK2FA (H) + 1U125S2SN2FB |
| Cold nominal power (min-nom-max) | 3.00 - 12,30 - 13.00 kW | 3,00 - 12,40 - 13.00 kW |
| Nominal power heat (min-nom-max) | 3,50 - 12,70 - 13,50 kW | 3,50 - 12,80 - 13,50 kW |
| Nominal consumption Cold (Lo-nom-Max) | 1,00 - 4,54 - 6.00 kW | 1,00 - 4,53 - 6.00 kW |
| Nominal heat consumption (Lo-nom-Max) | 1,00 - 3,96 - 6.00 kW | 1,00 - 3,93 - 6.00 kW |
| EER / COP | 2.71 / 3,21 | 2.74 / 3,26 |
| Seer / Scop | 5.86 / 3,97 | 5.86 / 3,98 |
| Energy label (cold / heat) | A + / A | A + / A |
| Annual consumption refrigeration / heating | 738 / 2,995 kWh / year | 742 / 2,976 kWh / year |
| Dimensions Indoor Unit (Anxprxal) | 1.650 x 230 x 680 mm | |
| Dimensions Outdoor Unit (Anxprxal) | 950 x 370 x 965 mm | |
| TREATED AIR VOLUME (High / Medium / Low / Quiet) | 2,050 / 1,900 / 1,600 / 1,400 m³ / h | |
| Internal sound pressure (high / medium / low / quiet) | 46/43/41/38 dB (A) | |
| Exterior sound pressure | 58 dB (A) | 58 dB (A) |
| Electrical supply | 1 / 220-240v / 50 / 60hz | 3 / 380-415v / 50 / 60hz |
| Refrigerant Gas / Load | R32 / 2.30 kg | |
| Maximum tubing length | 50 m | |
| Difference maximum height | 30 m | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Weight Indoor Unit Outdoor | 43.0 / 84.0 kg | 43.0 / 85.0 kg |
| Compressor type | Double rotary inverter | |
| Range Running cold / heat | -20 ° C A + 46 ° C / -20 ° C A + 24 ° C | |
Benefits of air conditioning floor-ceiling 125 HC
✓
Solution for large commercial and industrial spaces
With 12.4 kW of power, ideal for spaces of 150-180 m², industrial buildings, large offices, shopping centers, restaurants and premises that require high capacity air conditioning.
✓
Single-phase and three-phase electric flexibility
Available in single-phase (220-240V) and three-phase (380-415V) versions to adapt to any commercial and industrial electrical installation according to specific regulations.
✓
Industrial capacity with double compressor
Rotary Inverter Dual Compressor Technology Designed for Intensive Use 24/7, guaranteeing stable operation, exceptional durability and reduced maintenance.
✓
Healthy Air for High Occupation
High capacity UVC system and outdoor air function specially designed for spaces with high density occupation and demanding health needs.
Why choose the air conditioning floor-ceiling 125 HC?
Main applications
🏭
Industrial spaces
Industrial warehouses, workshops, warehouses and production plants that require powerful and reliable air conditioning for industrial processes.
🏢
Large offices
Corporate offices, business centers, large conference rooms and professional spaces that need continuously controlled environment.
🏪
Shopping centers
Large commercial surfaces, restaurants, leisure centers and public spaces with high density occupancy and intensive use.
Professional Health-Connect Technology
📱
Advanced commercial management
Professional control from multiple devices with specific functions for commercial management: complex schedules, control by zones and multi-user access.
📊
Industrial monitoring
Detailed analysis of energy consumption, system performance and predictive diagnostics for continuous optimization and preventive maintenance.
⚠️
Preventive alerts
Advanced alert system that automatically notifies maintenance needs, performance optimizations and possible incidents before they occur.
The industrial solution for maximum demands!
The air conditioning floor-ceiling 125 HC combines industrial power of 12.4 kW, double compressor inverter for intensive use, single-phase / three-phase electric flexibility, professional health-connect technology and UVC healthy air to provide the climate control More Robust and advanced market. The definitive choice for demanding commercial and industrial projects.
Ask your budget today for professional projects!
KIT AC125S2SK1FA (H)M
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- 1U125S2SN3FA
- I send

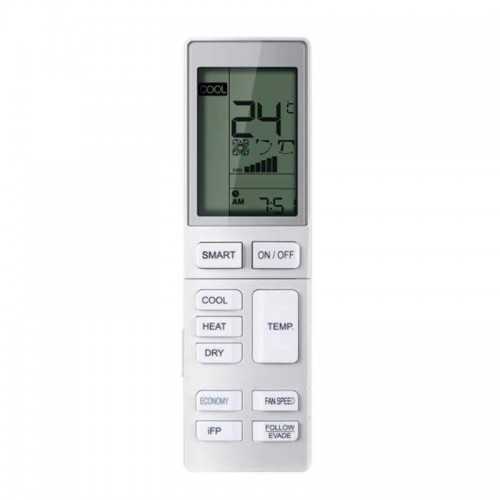

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.300
- Refrigerator capacity (kcal / h)
- 10.578
- Nominal consumption Cold (W)
- 4.540
- SEER
- 5,9
- Heat capacity (W)
- 12.700
- Heat capacity (Kcal / h)
- 10.922
- Nominal heat consumption (W)
- 3.960
- SCOP
- 3,98
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1650 x 230 x 680
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 965
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
