The ceiling LG Comfort + 24 single-phase
High performance commercial solution For suspended installation under ceiling, optimal to optimize space in stores and offices. This single-phase 6.7 kW system uses ecological refrigerant A-32 And it offers a remarkable energy savings. It has a seasonal rating To ++ In cold, a powerful air flow and excellent professional durability.
• Refrigerator power: 6.70 kW
• Seasonal efficiency: A ++ / A +
• Indoor Unit: UV24F.N10
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 24 Monof.
Referencia: TECCONFORT+ 24M
€1,840.69
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 24 single-phase
High performance commercial solution For suspended installation under ceiling, optimal to optimize space in stores and offices. This single-phase 6.7 kW system uses ecological refrigerant A-32 And it offers a remarkable energy savings. It has a seasonal rating To ++ In cold, a powerful air flow and excellent professional durability.
• Refrigerator power: 6.70 kW
• Seasonal efficiency: A ++ / A +
• Indoor Unit: UV24F.N10
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning ceiling LG model 24 (UV24F.N10) establishes new standards in commercial air conditioning with your cooling power of 6.70 kW and heating of 7.50 kW. This FREE Combination Comfort + range system incorporates last generation inverter technology that guarantees the Seer highest of the range with 7,20, providing maximum energy efficiency and superior performance for medium-large commercial spaces.

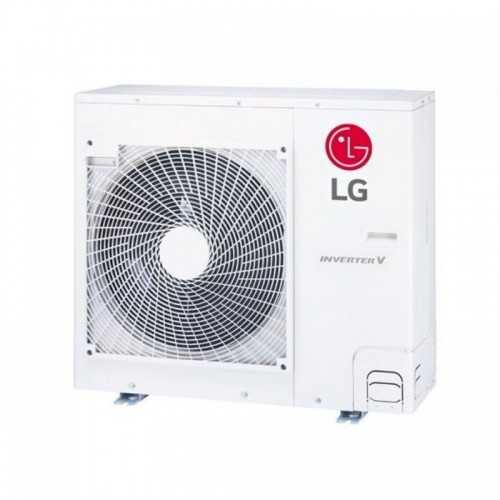

Composed of the indoor Unit UV24F.N10 with optimized dimensions 1.200 x 235 x 690 mm and outdoor Unit UUC1.U40, this system stands out for its intelligent modulation capacity ranging from 2.70 to 8.00 kW in refrigeration and from 3.00 to 9.00 kW in heating. With an air volume treated up to 16.0 m³ / min and sound levels controlled from 43 dB (A), it provides uniform air distribution by covering spaces of up to 80 m² with homogeneous comfort.
The unit incorporates ecological R32 coolant with a preload of 1.9 kg, an optimized refrigeration connections system 9.52 / 15.88 mm and installation capacity with maximum pipe length of 50 meters. With energy rating A ++ / A + and the best efficiency of the series, offers total flexibility for commercial facilities in large offices, medical centers, shops and demanding professional spaces.
Main features
🏆
Seer 7.20 Leader
The highest seer of the range with 7,20 guarantees maximum energy efficiency and lower operational consumption.
⚡
Balanced power 6.7kw
Optimum capacity of 6.70 kW Refrigeration / 7.50 kW Heating for spaces up to 80 m².
🔧
Flexible installation 50m
Maximum tubing length of 50 meters for maximum flexibility in complex commercial facilities.
🌿
Advanced R32 Technology
Refrigerant Gas R32 ecological with 1.9 kg of preload for maximum thermal efficiency and low environmental impact.
🌊
Optimized flow 16 m³ / min
Treated air volume of up to 16.0 m³ / min for uniform distribution in spacious spaces.
🌡️
Wide operating range
Reliable operation from -20 ° C to 50 ° C cold and -20 ° C to 18 ° C in heat for any climate.
Technical specifications
| Feature | Specification |
|---|---|
| Pattern | UV24F.N10 + UUC1.U40 |
| Cold power (min-nom-max) | 2,70 - 6,70 - 8,00 kW |
| Power heat (min-nom-max) | 3,00 - 7,50 - 9,00 kW |
| Cold consumption (min-nom-max) | 0.40 - 1.99 - 2,69 kW |
| Heat consumption (min-nom-max) | 0.40 - 2,20 - 3,08 kW |
| Eer / seer | 3.37 / 7,20 |
| COP / SCOP | 3.41 / 4,20 |
| Energy label (cold / heat) | To ++ / a + |
| Dimensions Indoor Unit (Anxalxpr) | 1.200 x 235 x 690 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 834 x 330 mm |
| Air flow (high / medium / low) | 16.0 / 15.0 / 14.0 m³ / min |
| Internal sound pressure (high / medium / low) | 46/45/43 dB (A) |
| Exterior sound pressure | 48 dB (A) Cold / 52 dB (A) Heat |
| Weight Indoor Unit Outdoor | 28.0 kg / 59.0 kg |
| Refrigerant Gas / Preload | R32 / 1.9 kg |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Maximum length pipe | 50 meters |
| Maximum | 30 meters |
| Range Running cold / heat | 50 ° C / -20 ° C / 18 ° C / -20 ° C |
Benefits LG Uv24f.n10
✓
Absolute leader in energy efficiency
Seer 7,20 The highest of the range guarantees maximum energy saving and minimum impact on operating costs.
✓
Solution for medium-large commercial spaces
With 6.7kw power, ideal for large offices, medical centers, spacious shops and spaces of 70-80 m².
✓
Maximum installation flexibility
Tubing length up to 50 meters for complex commercial facilities and distant locations.
✓
Balanced performance all year round
Balanced power 6,7kw cold / 7.5kW heat with COP 3.41 for optimal efficiency in heating.
Main applications
🏢
Medium-large offices
Corporate offices, large boardrooms, open work spaces and spacious business centers.
🏥
Large medical centers
Clinics, Health Centers, Large Consultants and Health Spaces that require continuously controlled environment.
🏪
Shops and Restoration
Large stores, restaurants, spacious cafes and commercial spaces with high occupancy.
Why choose the LG Uv24f.n10?
Absolute leader in energy efficiency!
The LG UV24F.N10 offers the highest seer of the range with 7,20, ecological R32 technology, balanced power and maximum flexibility for medium-large commercial spaces up to 80 m². The most efficient option for projects that look for maximum energy savings.
See availability and special prices!
TECCONFORT+ 24M
Data sheet
- Brand
- LG
- Indoor Unit
- UV24F.N10
- Outdoor Unit
- UUC1.U40
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 65 m2
- Refrigerator capacity (W)
- 6.700
- Refrigerator capacity (kcal / h)
- 5.762
- Nominal consumption Cold (W)
- 1.990
- Energy class (cold)
- A++
- SEER
- 7,20
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Nominal heat consumption (W)
- 2.200
- Energy class (heat)
- A+
- SCOP
- 4,2
- Dimensions u.i (anxfxh) mm
- 1200 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 834
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
