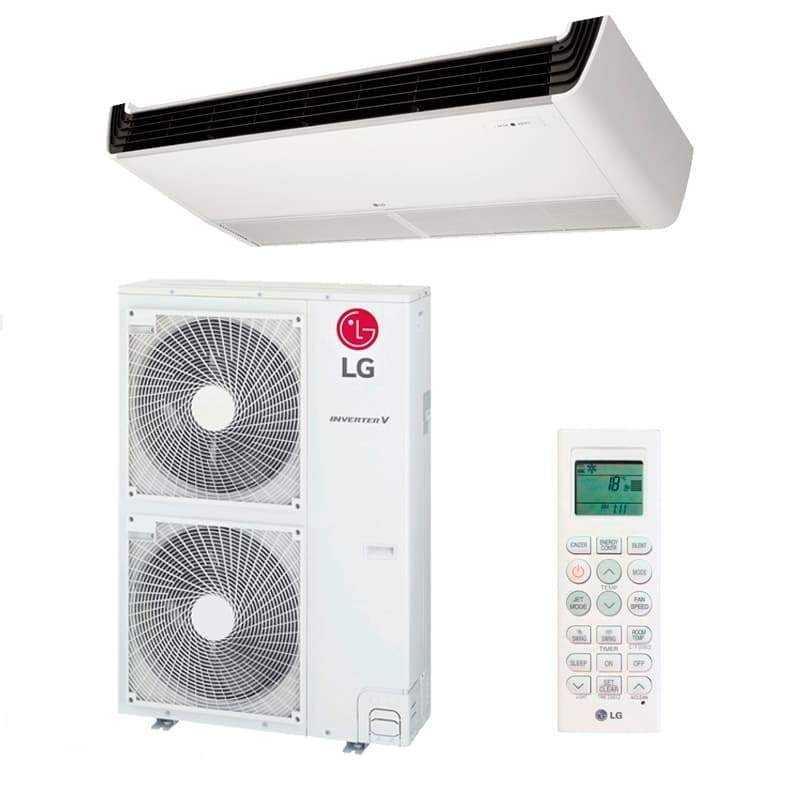

The ceiling LG Comfort + 48 single-phase
Light industrial solution of maximum power For suspended installation under ceiling, optimal for climate to large commercial surfaces and ships. This robust 13.4 kW single-phase system uses ecological refrigerant A-32 For a high seasonal performance. It offers a powerful air flow of 28.0 m³ / min distributed in a homogeneous way, optimized operation and total professional durability.
• Refrigerator power: 13,40 kW
• Air flow: 28.0 m³ / min
• Indoor Unit: UV48F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 48 Monof.
Referencia: TECCONFORT+ 48M
€3,272.63
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 48 single-phase
Light industrial solution of maximum power For suspended installation under ceiling, optimal for climate to large commercial surfaces and ships. This robust 13.4 kW single-phase system uses ecological refrigerant A-32 For a high seasonal performance. It offers a powerful air flow of 28.0 m³ / min distributed in a homogeneous way, optimized operation and total professional durability.
• Refrigerator power: 13,40 kW
• Air flow: 28.0 m³ / min
• Indoor Unit: UV48F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description

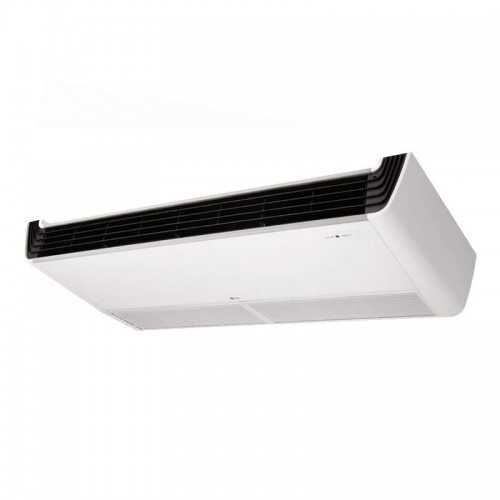

The Air conditioning ceiling LG model 48 (UV48F.N20) represents the range of maximum power with its 13,40 kW refrigeration capacity and 15.50 kW heating. This System of the Free Combination Comfort + range incorporates indoor Unit of industrial format with robust dimensions 1.600 x 235 x 690 mm and high capacity Inverter technology that guarantees exceptional performance for heavy industrial applications, large distribution centers and spaces that require intensive and continuous air conditioning.

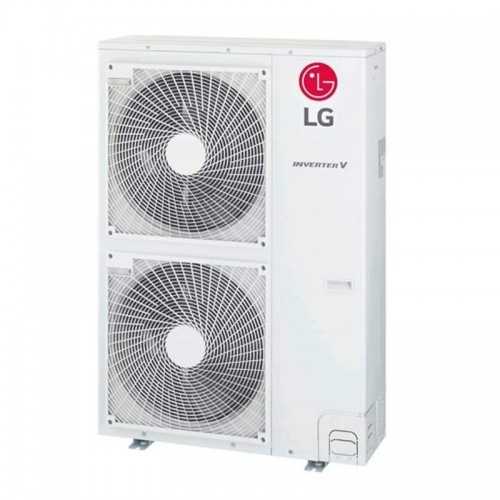

Composed of the indoor Unit UV48F.N20 of maximum capacity and the outdoor Unit UUD1.U30 with double fan for single-phase version or UUD3.U30 for three-phase version, this system stands out for its industrial modulation capacity ranging from 5.40 to 15.68 kW in refrigeration and from 6.20 to 17.52 kW In Heating. With a massive air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides powerful air distribution by covering spaces of up to 160 m² with homogeneous comfort.
The unit incorporates ecological R32 coolant with a preload of 3.0 kg, industrial refrigeration connections system 9.52 / 15.88 mm and flexible installation capability with maximum pipe length of 85 meters. Designed specifically for intensive industrial use, it offers maximum reliability and durability for complex commercial facilities in industrial plants, department stores, logistics centers and professional spaces that demand the maximum air conditioning capacity available.
Main features
🏭
Maximum power 13.4kw
Maximum capacity of 13,40 kW refrigeration / 15.50 kW Heating for large industrial applications up to 160 m².
⚡
Industrial modulation 5.4-17.5kW
Range of industrial modulation from 5.40 to 17.52 kW for maximum adaptability to variable demands.
🔌
Dual industrial configuration
Single and three-phase version to adapt to more demanding industrial electrical infrastructures.
🌊
Industrial distribution 28 m³ / min
Industrial air flow of 28.0 m³ / min for mass distribution on large industrial surfaces.
🔄
Intensive industrial use
Specific design for continuous operation 24/7 in the most demanding industrial applications.
🎯
COP 3.25 optimized
Industrial performance coefficient that guarantees optimized efficiency for high power.
Technical specifications
| Feature | Single-phase | Three-phase |
|---|---|---|
| Pattern | UV48F.N20 + UUD1.U30 | UV48F.N20 + UUD3.U30 |
| Cold power (min-nom-max) | 5,40 - 13,40 - 15,68 kW | 5,40 - 13,40 - 15,68 kW |
| Power heat (min-nom-max) | 6,20 - 15,50 - 17,52 kW | 6,20 - 15,50 - 17,52 kW |
| Cold consumption (min-nom-max) | 0.90 - 4,50 - 5,85 kW | 0.90 - 4,50 - 5,85 kW |
| Heat consumption (min-nom-max) | 0.90 - 4,77 - 5,82 kW | 0.90 - 4,77 - 5,82 kW |
| Eer / seer | 2.98 / 5.90 | 2.98 / 5.90 |
| COP / SCOP | 3.25 / 4,10 | 3.25 / 4,10 |
| Energy label (cold / heat) | - / - | - / - |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm | |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm | |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min | |
| Internal sound pressure (high / medium / low) | 48/44/40 dB (A) | |
| Exterior sound pressure | 52 dB (A) cold / 53 dB (A) heat | 52 dB (A) cold / 53 dB (A) heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg | |
| Refrigerant Gas / Preload | R32 / 3.0 kg | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Maximum length pipe | 85 meters | |
| Maximum | 30 meters | |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C | |
Benefits LG Uv48f.n20
✓
Maximum power for large industrial applications
With 13.4kw of power, ideal for industrial plants, department stores, logistics centers and spaces of 140-160 m².
✓
Extreme industrial modulation up to 17.5kw
Range of industrial modulation that guarantees perfect adaptation to the most variable and demanding thermal demands.
✓
Maximum reliability for intensive industrial use
Specific design for the most demanding industrial applications with 24/7 operation and exceptional durability.
✓
Massive distribution optimized for large spaces
Expanded format 1.600mm with a 28 m³ / min flow for uniform coverage on the largest surfaces.
Main applications
🏪
Commercial megasuperficies
Hypermarkets, department stores, massive shopping centers and maximum retail spaces.
Why choose the LG Uv48f.n20?
Maximum power for the most demanding applications!
The LG UV48F.N20 combined maximum power of 13,4kw, industrial modulation up to 17,5kw, exceptional durability and dual electric versatility to provide the most robust air conditioning in industrial plants, large logistics centers and spaces up to 160 m² that demand maximum and continuous performance.
Consult for maximum industrial projects!
d-Color: #fff; padding: 20px; Border-Radius: 10px; Box-Shadow: 0 3PX 10PX RGBA (0.0,0,08); text-align: center; ">
🏭
Industrial plants
Heavy industrial plants, factories, production facilities and industrial spaces that require maximum air conditioning capacity.
📦
Large logistics centers
Large warehouses, massive distribution centers, logistics deposits and extensive storage spaces.
TECCONFORT+ 48M
Data sheet
- Brand
- LG
- Indoor Unit
- UV48F.N20
- Outdoor Unit
- UUD1.U30
- I send

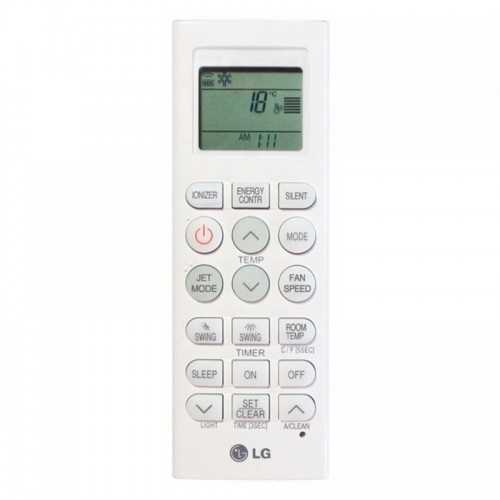

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- SEER
- 5,90
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- Nominal heat consumption (W)
- 4.770
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
