Ground-ceiling Haier Ac71s2sg2fa (pm)
High power professional solution Designed for flexible assembly on soil or ceiling. This 7.1 kW inverter team integrates technology increase for a total thermal distribution and is compatible with UVC sterilization optional. Classification To ++, Silent operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Efficiency A ++ / A +
• Integrable Wi-Fi
• Increased flow
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Floor-ceiling 71 HC Monof. Haier Health-Connect R32 Air conditioning
Referencia: KIT AC71S2SG1FA (H)M
€1,529.33
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ground-ceiling Haier Ac71s2sg2fa (pm)
High power professional solution Designed for flexible assembly on soil or ceiling. This 7.1 kW inverter team integrates technology increase for a total thermal distribution and is compatible with UVC sterilization optional. Classification To ++, Silent operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Efficiency A ++ / A +
• Integrable Wi-Fi
• Increased flow
Security policy
Delivery policy
Refund policy
Product description

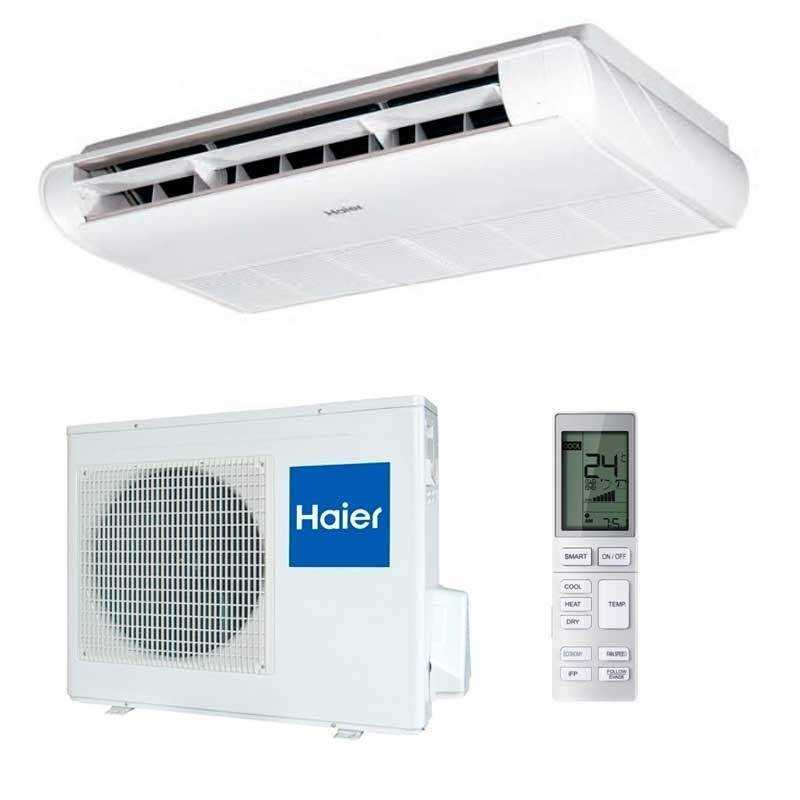

The Air conditioning floor-ceiling 71 HC Haier Health-connect it represents the premium solution for large spaces that require powerful, efficient and versatile air conditioning. With a nominal power of 7.1 kW in refrigeration and 7.8 kW in heating, this Health-Connect range system incorporates double-compressor rotary inverter technology that guarantees maximum efficiency, exceptional durability and optimal comfort in Large residential spaces, medium-sized offices and large area commercial premises.

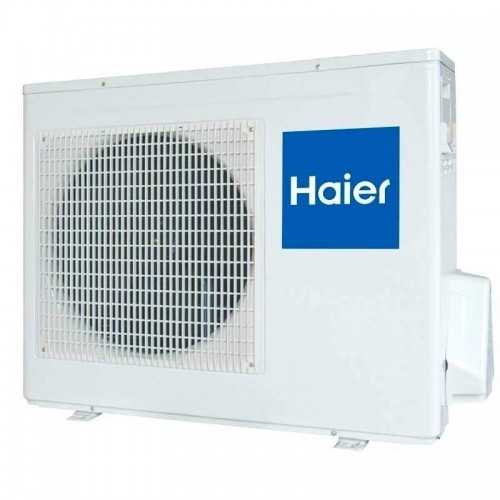

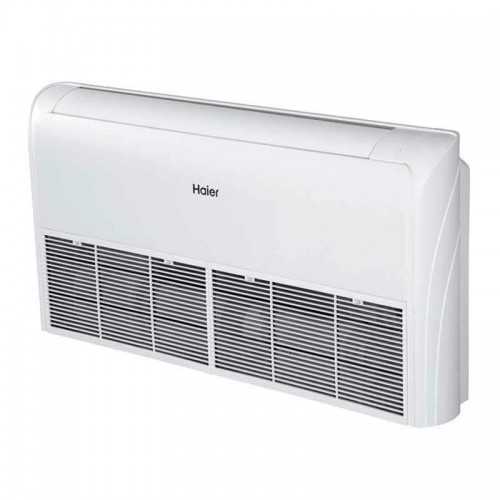

Composed of the indoor Unit AC71S2SG2FA (H) elegant design with dimensions 1.325 x 230 x 680 mm and outdoor Unit 1U71S2SR3FA With advanced double compressor technology, this system stands out for its intelligent modulation capacity ranging from 2.0 to 8.2 kW in refrigeration and from 2.5 to 8.5 kW in heating. With an air volume treated up to 1,250 m³ / h and ultrasilence sound levels since 35 dB (A), it provides uniform air distribution to the last corner of space.
The unit incorporates Health-Connect technology with integrated Wi-Fi technology for total control from smartphone, UVC Sterilization System for Healthy Air, Outdoor Air Function for Continuous Ventilation and Adjustable Fan Speeds. With installation capacity on soil or ceiling up to 4.2 meters high and maximum tubing length of 50 meters, it offers maximum installation flexibility for complex architectural projects and large-scale spaces.
Main features
⚡
Double compressor inverter
Rotary Inverter Dual Compressor Technology that guarantees maximum efficiency, exceptional thermal stability and higher durability of the system.
📱
Health-Connect Wi-Fi
Total intelligent control from smartphone with integrated Wi-Fi connectivity, advanced programming and real-time system monitoring.
🔄
Flexible dual installation
Total versatility: installation on floor or ceiling up to 4.2m high with pipe up to 50m and 30m unevenness for maximum flexibility.
🦠
Advanced UVC sterilization
Integrated UVC sterilization technology that eliminates viruses, bacteria and microorganisms, guaranteeing clean and healthy air.
🌊
Optimized increased flow
Uniform air distribution Up to 1,250 m³ / h reaches all corners guaranteeing homogeneous comfort on large surfaces.
🌿
Energy Efficiency A ++
SEER 6,20 and SCOP 4, 10 with ++ / a + classification that guarantees optimal energy performance and savings on operating costs.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | AC71S2SG2FA (H) + 1U71S2SR3FA |
| Cold nominal power (min-nom-max) | 2.00 - 7,10 - 8,20 kW |
| Nominal power heat (min-nom-max) | 2.50 - 7,80 - 8,50 kW |
| Nominal consumption Cold (Lo-nom-Max) | 0.50 - 2,21 - 4,00 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.50 - 2,10 - 4,00 kW |
| EER / COP | 3.23 / 3,71 |
| Seer / Scop | 6,20 / 4,10 |
| Energy label (cold / heat) | A ++ / A + |
| Annual consumption refrigeration / heating | 406 / 1,831 kWh / year |
| Dimensions Indoor Unit (Anxprxal) | 1.325 x 230 x 680 mm |
| Dimensions Outdoor Unit (Anxprxal) | 890 x 340 x 700 mm |
| TREATED AIR VOLUME (High / Medium / Low / Quiet) | 1,250 / 1,128 / 930/840 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 43/40/38/35 dB (A) |
| Exterior sound pressure | 54 dB (A) |
| Refrigerant Gas / Load | R32 / 1.30 kg |
| Maximum tubing length | 50 m |
| Difference maximum height | 30 m |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Weight Indoor Unit Outdoor | 33.5 / 37.0 kg |
| Compressor type | Double rotary inverter |
| Range Running cold / heat | -20 ° C A + 46 ° C / -20 ° C A + 24 ° C |
Benefits of air conditioning floor-ceiling 71 HC
✓
Ideal for large residential and commercial spaces
With 7.1 kW of power, perfect for spaces of 80-100 m², large homes, spacious offices, conference rooms and commercial premises that require powerful and efficient air conditioning.
✓
Double compressor for maximum durability
Double compressor turning inverter technology that guarantees stable operation, exceptional useful life and reduced maintenance for intensive use.
✓
Ultra-flexible installation up to 50 meters
Maximum tubing length of 50m and outrage of 30m that allows complex facilities in multi-plant buildings and demanding architectural configurations.
✓
Healthy air with UVC technology
Integrated UVC sterilization system and external air function that guarantees healthy, especially important atmosphere in spaces with high occupation.
Why choose the floor-ceiling air conditioning 71 HC?
Main applications
🏠
Large homes
Spacious single-family houses, large area floors and luxury homes that require powerful, discreet air conditioning and smart control.
🏢
Offices and offices
Spacious offices, meeting rooms, large medical consultations and professional spaces that need comfortable environment and healthy air.
🏪
Commercial premises
Great area stores, restaurants, clinics and commercial spaces that require powerful and efficient air conditioning for customer comfort.
Advanced Health-Connect Technology
📱
Total control Smartphone
Fully manage the system from anywhere: temperature, speed, mode, programming and diagnostics from the HEALTH-CONNECT APP.
⏰
Intelligent programming
Configure custom schedules, activate holiday mode and automatically optimize operation according to commercial or residential use patterns.
📊
Advanced diagnoses
Real-time monitoring, predictive maintenance alerts and detailed performance analysis for continuous system optimization.
The definitive solution for large spaces!
The air conditioning floor-ceiling 71 HC combines power of 7.1 kW, double compressor inverter, ultra-flexible installation up to 50m, Health-Connect technology and UVC healthy air to provide the most advanced and versatile air conditioning. Ideal for demanding projects that require maximum performance.
Ask your personalized budget today!
KIT AC71S2SG1FA (H)M
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- 1U71S2SR3FA
- I send

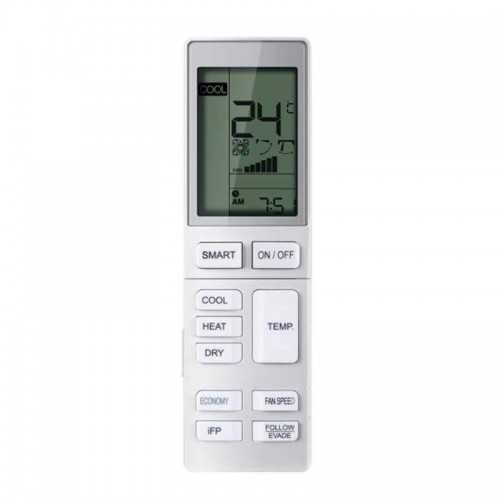

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 70 m2
- Refrigerator capacity (W)
- 7.100
- Refrigerator capacity (kcal / h)
- 6.106
- Nominal consumption Cold (W)
- Energy class (cold)
- A++
- SEER
- 6,10
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Nominal heat consumption (W)
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1325 x 230 x 680
- Dimensions u.e (anxfxh) mm
- 890 x 353 x 697
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
