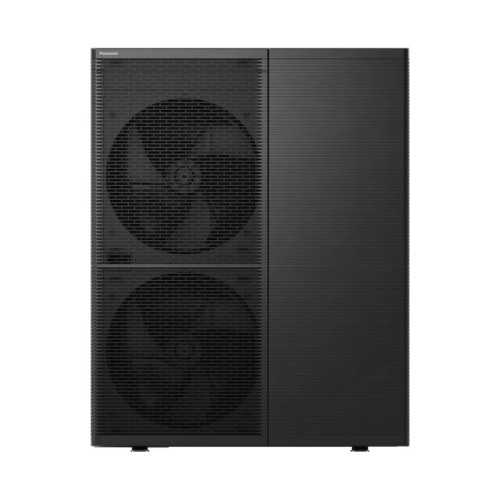

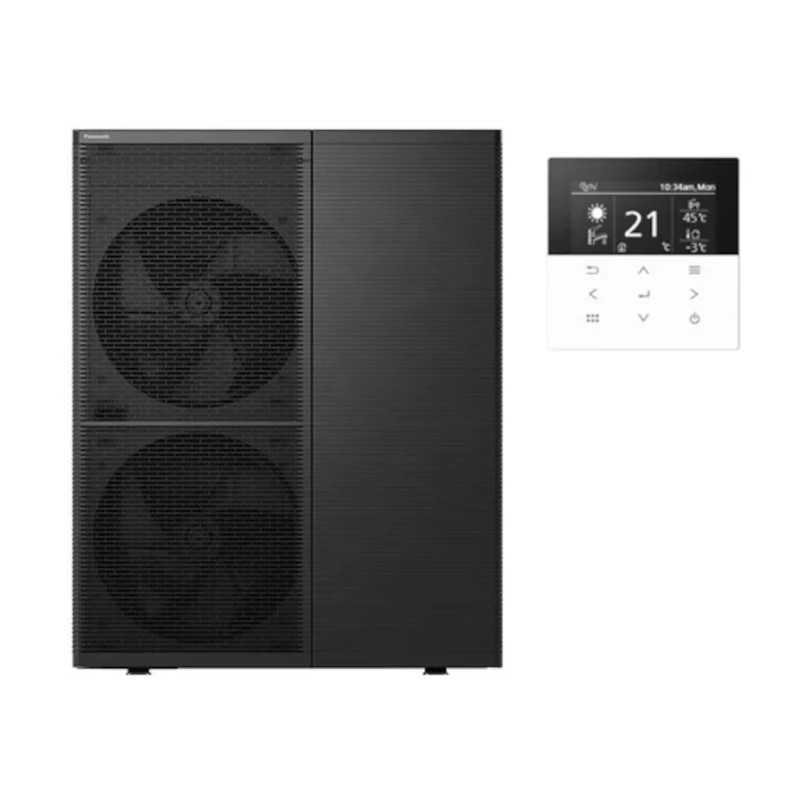

Aerotermia Monobloc WH-WXG16ME8 with CZ-RTW2TAW1C control Panasonic R290

Energy efficiency (35 ° C / 55 ° C)

Nominal power (A + 7 ° C, W35 ° C): 16.00 kW

NOMINAL COP (A + 7 ° C, W35 ° C): 4,14

Nominal power (A + 7 ° C, W55 ° C): 16.00 kW

NOMINAL COP (A + 7 ° C, W55 ° C): 2,52

Refrigerator capacity (A35 ° C, W7 ° C): 12,20 kW

Nominal EER (A35 ° C, W7 ° C): 2,40

SCOP temperate climate (W35): 4.50 (tag A +++)

SCOP temperate climate (W55): 3.40 (tag A ++)

Mechanical specifications and installation

Dimensions (on. X x pr.): 1520 x 1200 x 430 mm

Net weight of the team: 171 kg

Sounding power of operation: 55 dB (A)

Gas Refrigerant Gas / Load: R290 (propane) / 1,77 kg

Hydraulic water flow (Δt = 5): 45.9 l / min

Maximum impulse temperature: 75 ° C

Recommended disconnector: 25 a

Electrical supply: Three-phase, 400V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: With an insignificant PCA, this gas advances the demanding regulations of the European Union on the reduction of synthetic HFCS. Its upper thermophysical performance allows water at 75 ° C water with total efficiency.

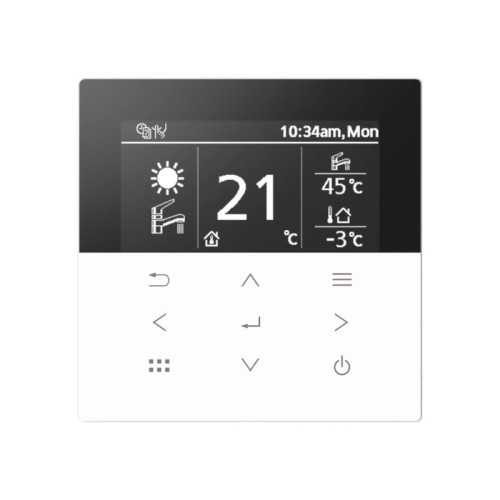

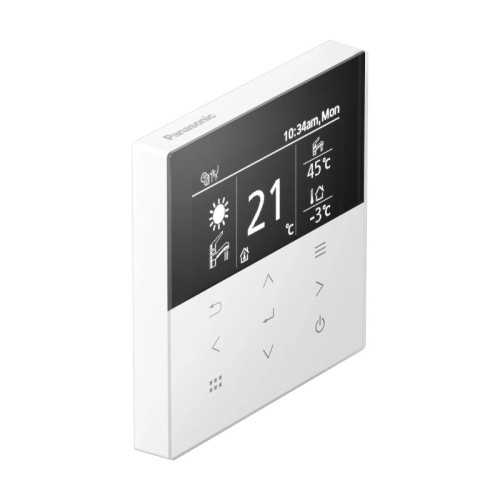

✔️ Advanced control CZ-RTW2TAW1C included: It is supplied as a central management component. It offers a control unit with intuitive tactile regulation of the climatic areas of the house, schedule programming and historical reading of energy consumption with integrated Wi-Fi.

✔️ Double acoustic insulation structure: Designed with a stagnate soundproofing box around the three-phase inverter compressor that reduces the sound power level at only 55 dB (A), allowing the equipment outdoors without neighborhood discomfort.

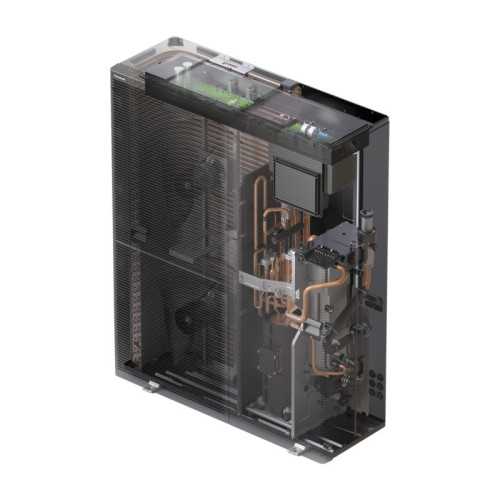

✔️ Built-in hydraulic components: Factory integrally intelligently class A Class A, optimized expansion vessel and a high-retention magnetic water filter tracing ferrous sludge protecting the exchanger.

✔️ Advanced photovoltaic synchronization: Automation ready to directly be coupled to solar inverters. It allows to produce sanitary hot water and store inertia taking advantage of the clean energy surpluses of the panels.

Is this three-phase model of 16 kW compatible with traditional iron or aluminum radiators?

Yes, perfectly. Thanks to the advanced thermodynamic properties of natural gas R290, the machine stably drives water at 75 ° C without the need for support resistances. This allows to withdraw ancient fossil boilers while maintaining existing radiators and providing the flow and temperature that a large property requires on the coldest days.

How does the T-Cap system work before external temperatures below zero?

The Aquarea T-CAP technology of Panasonic it incorporates advanced refrigerant injection control that counteracts common losses suffered by current air stopermers with intense cold. It holds its 16.00 kW of nominal capacity at low ventilatory temperatures and guarantees the continuous operation of the system even in frosting environments with zeal peaks up to -25 ° C or -28 ° C outer.

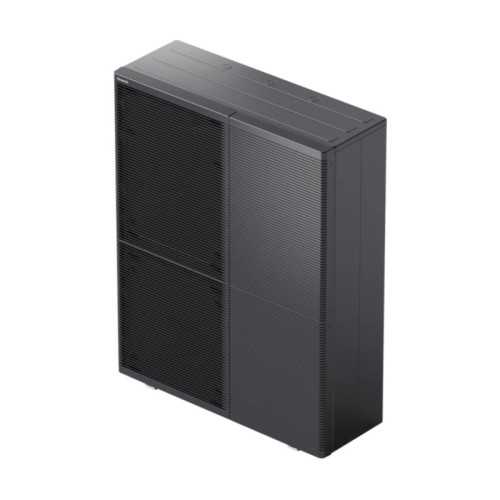

What advantages does the monobloc format of the M series?

Being an exterior hermetic compact chassis, the entire gas cycle is preloaded and sealing from the factory. The professional installer performs only the connection of water pipes towards the internal network of the house. This streamlines the placement, increases security and eliminates the requirement to process certificates for handling F-gas handling within the habitable stays.
